FORD TRANSMISSION PARTS

We stock parts for most Ford three speed transmissions manufactured from 1932 to 1965. Check our inventory of new and good used parts. Use the links below for the truck 4 speed, the V8-60, and the Borg-Warner overdrive. Gasket sets are on Page 2. Gear Oil is on Page 4. Seal kits are on Page 5

3 SPEED PARTS PRICES:

Page 1 - Page 2 - Page 3 - Page 4Page 5

V8-60hp Trans Parts Prices

Truck 4 Speed TransParts Prices

Overdrive Trans Parts Prices

Ford Part
Number
Description Image Price for
Used Part
Price for
New Part


MISCELLANEOUS

  Used New
        B-7155 Pin - Countershaft Lock                        (32 to 48 car or to 52 pickup) PIC $  6.00 $   9.50

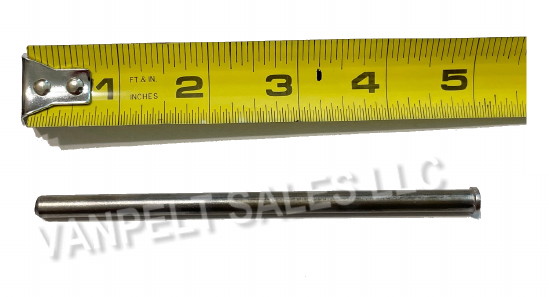

      8A-7155 Pin - Countershaft Lock  (4.875" long)    (49-62 various) PIC      9.00 12.00
      8C-7160 Snap Ring - Mainshaft to Speedo gear (42-59) - replaces 21C-7160 PIC ---      3.00


SMALL PARTS KITS

  Used New

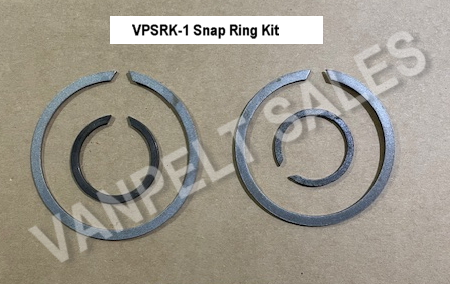

  VPSRK-1 Snap Ring Kit (4 pc) - 1939-48 Closed Drive 3 Speed (1 each: B-7064M, 81A-7059, B-7026B, & 51A-7070B) PIC   $  11.00

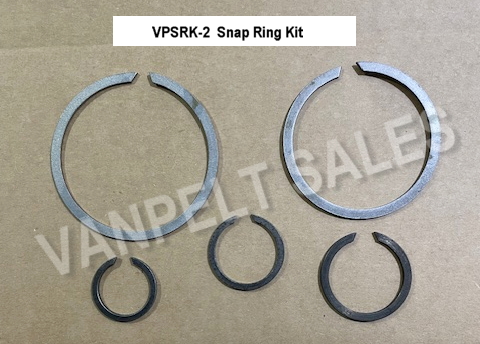

  VPSRK-2 Snap Ring Kit (5 pc) - 1942-52 Open Drive 3 Speed   (1 each: B-7064M, 81A-7059, B-7026B, 51A-7070B & 8C-7160) PIC   14.00

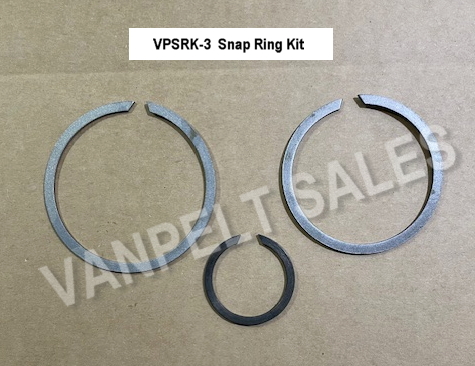

  VPSRK-3 Snap Ring Kit (3 pc) - 1932-39 Closed Drive 3 Speed (1 each: B-7064M, B-7026B, & 51A-7070B) PIC   8.00
  VPSRK-4 Snap Ring Kit (6 pc) - 1949-54 Ford Pass 3 Speed (including OD)  (1 ea: 8A-7064, 51A-7070B, 81A-7059 (two), 8M-7130, and 8C-7160) PIC   23.00

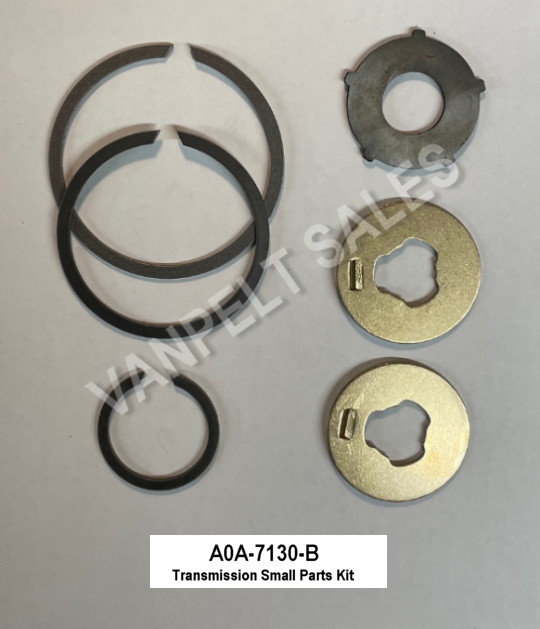

 A0A-7130-B Small Parts Kit (6 pc) - For 1932-35 Early 3 Speed    (includes all snap rings + cluster washers) PIC   31.00

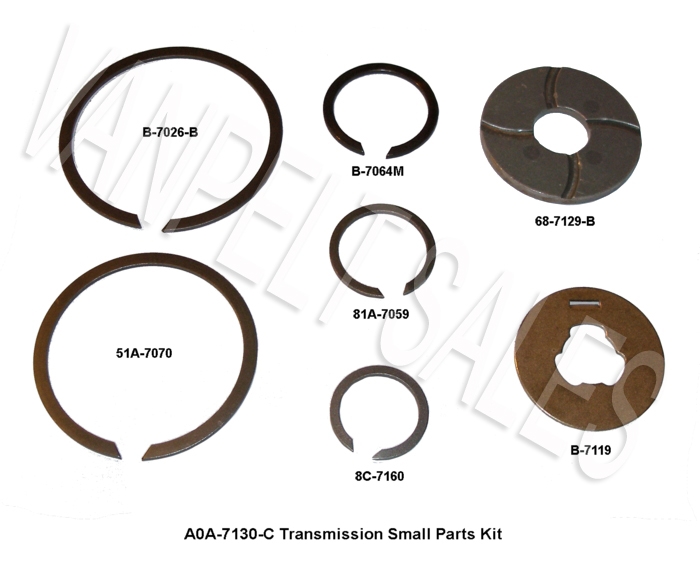

 A0A-7130-C Small Parts Kit (7 pc) - For 1940-48 car + 42-52 pickup 3 Speed    (includes 68-7129B type rear washer) PIC   33.00

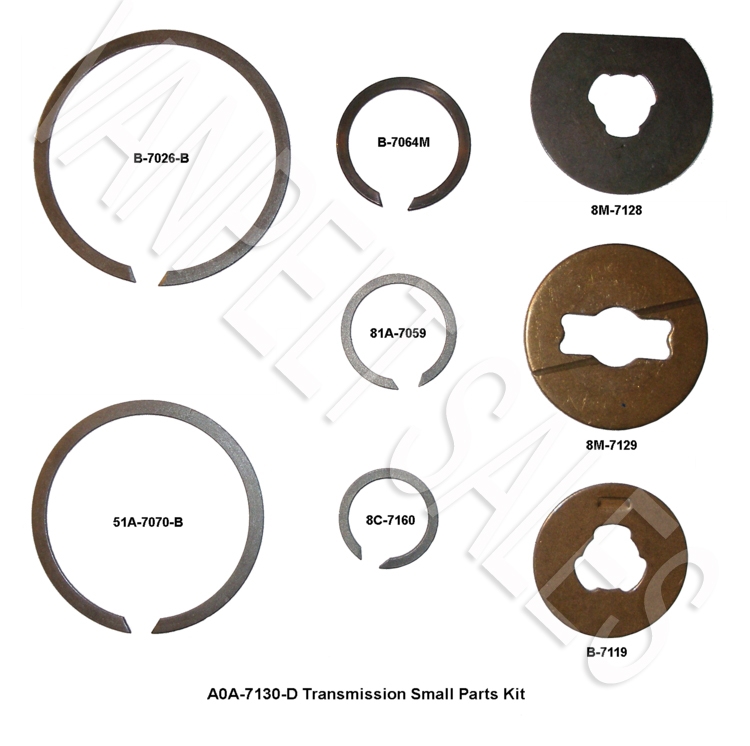

 A0A-7130-D Small Parts Kit (8 pc) - For 1940-48 car + 42-52 pickup 3 Speed    (includes 8M-7128 & 8M-7129 rear washers) PIC      33.00

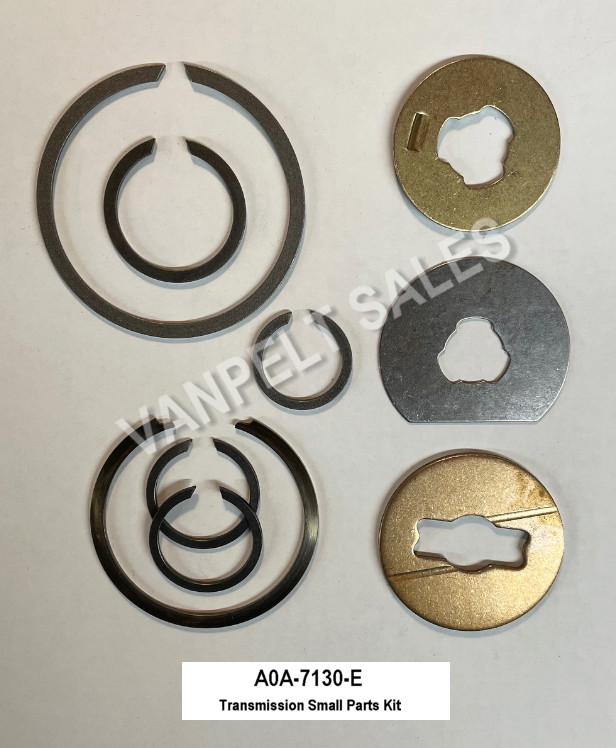

 A0A-7130-E Small Parts Kit (8 pc) - For 1949-50 Mercury 3 Speed Std & OD   (includes 8M-7128 & 8M-7129 rear washers) PIC   38.00

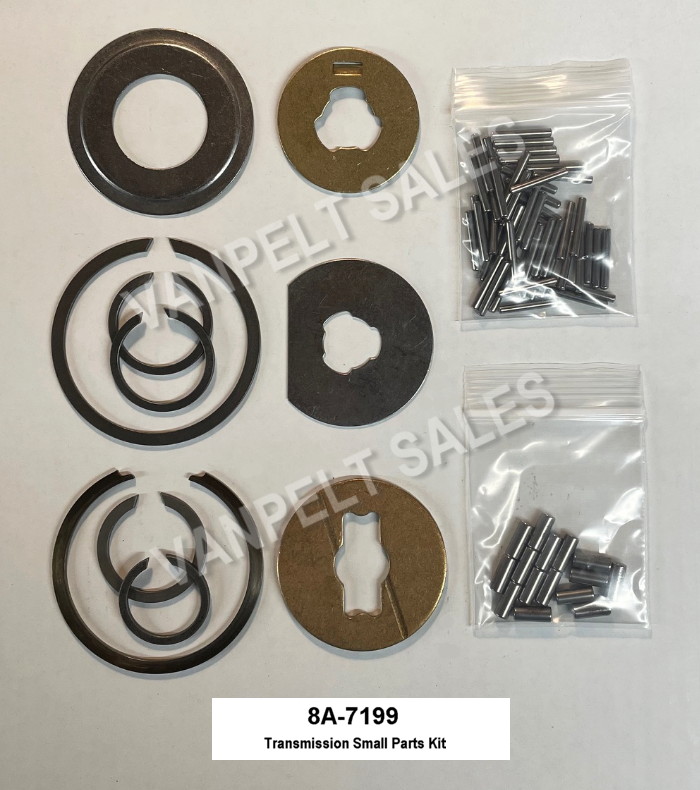

    8A-7199 Small Parts Kit (9 pc) - For 1949-54 Ford Design Three Speed  (253 and 259 series) PIC     53.00

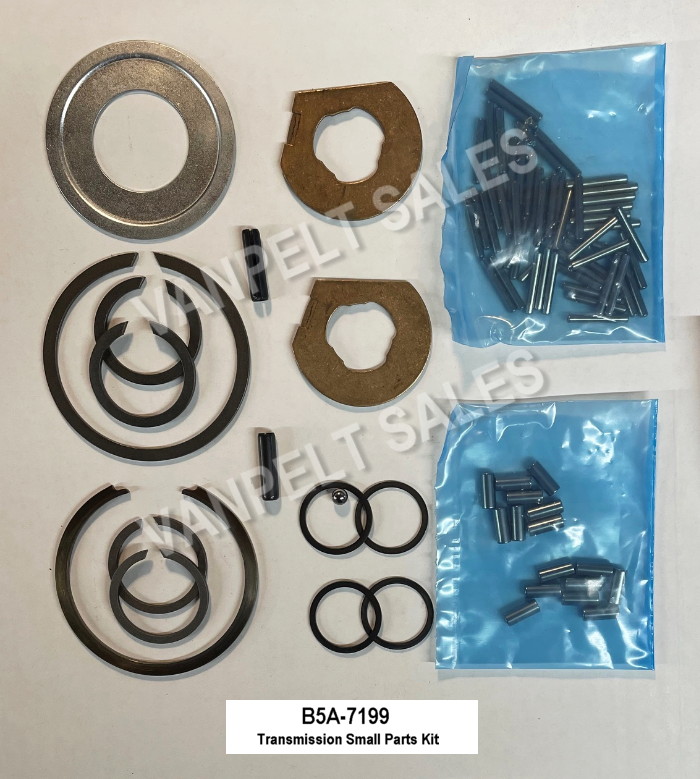

  B5A-7199 Small Parts Kit (17 pc) - For 1955-62 Ford Design Three Speed  (259 series) PIC      54.00

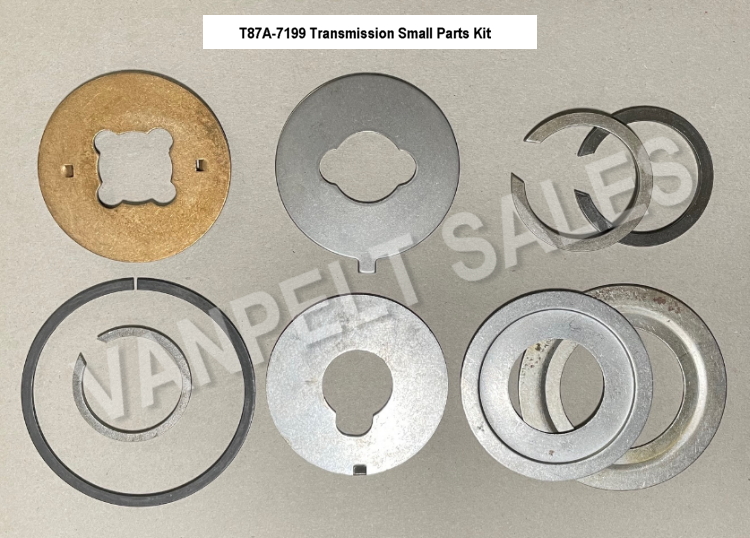

 T87A-7199 Small Parts Kit (10 pc) - For 1948-55 HD T-87 Three Speed PIC      42.50

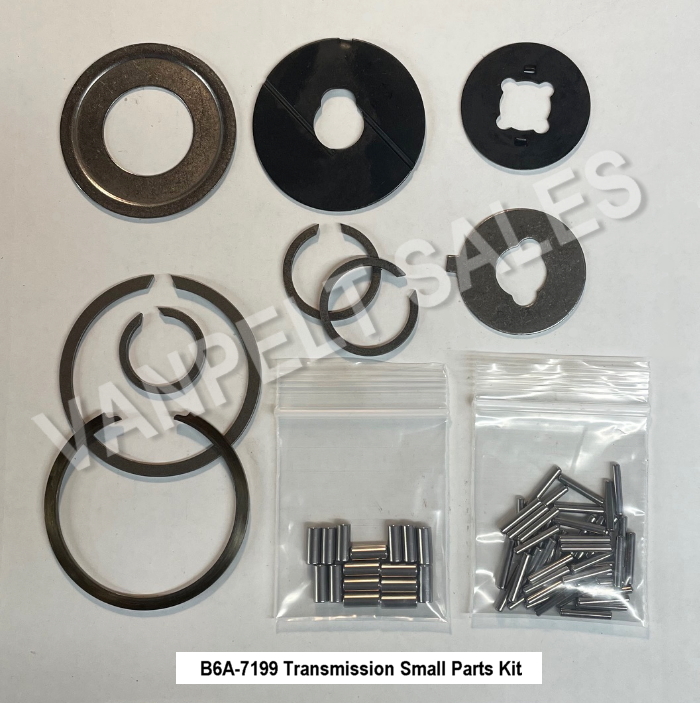

   B6A-7199 Small Parts Kit (9 pc) - For 1955-67 Borg T-86 Three Speed OD PIC      46.50

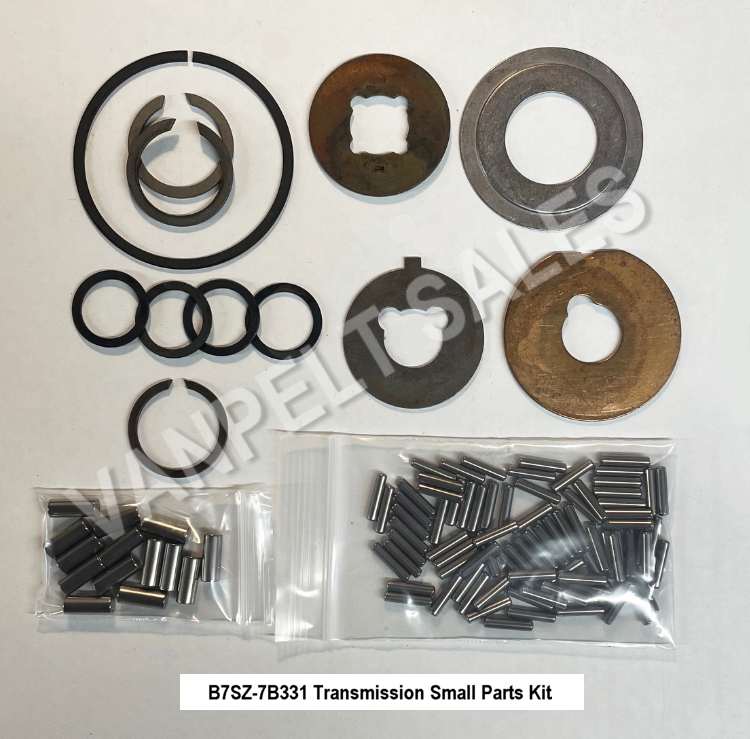

  B7SZ-7B331-A Small Parts Kit (13 pc) - For 1956-65 Borg T-85 Three Speed PIC      49.50
  C3AZ-7B331-D Small Parts Kit (23 pc) - For 1963-67 Ford 303 Three Speed PIC      49.50


SHIFTER LEVERS

  Used New

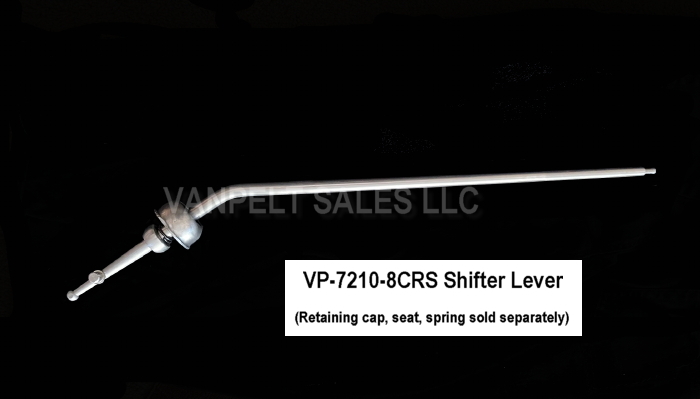

            7210 Shifter Lever - 1932-52 Toploader (call for pricing and availability
(these are
used - sold as-is - prices range from $125.00 to $195.00)
  Check availability


SHIFTER HOUSING PARTS

  Used New
      40-7207 Gasket - Shift Lever Retaining Cap to Shifter Housing PIC ------ $  3.00

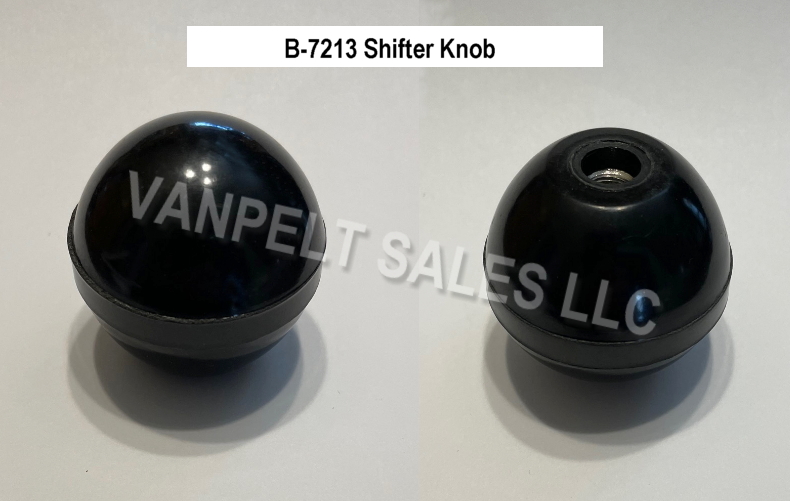

        A-7213 Shift Lever Knob - black    (28-36) PIC ------      6.00
      78-7213 Shift Lever Knob - dark brown  (37-38 car) PIC ------      14.00

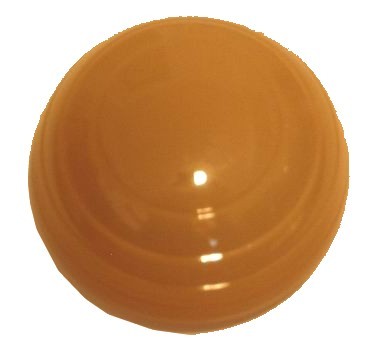

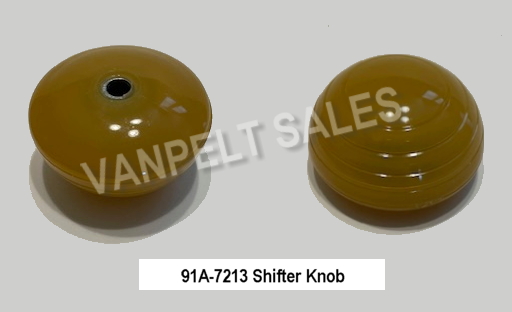

   91A-7213 Shift Lever Knob - light yellow  (39 Ford car) PIC ------    17.50
   99A-7213 Shift Lever Knob - ivory   (39 Mercury car) PIC ------      9.50

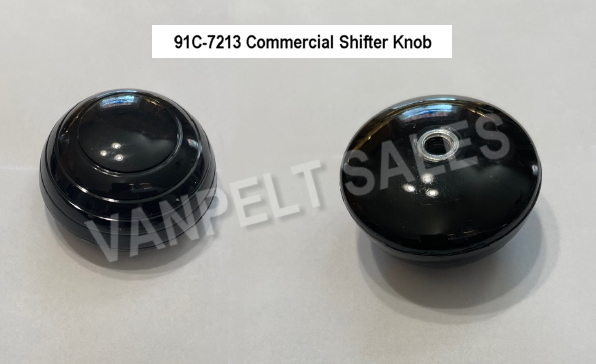

   91C-7213 Shift Lever Knob - black  (36-50 Ford commercial) PIC ------    18.50

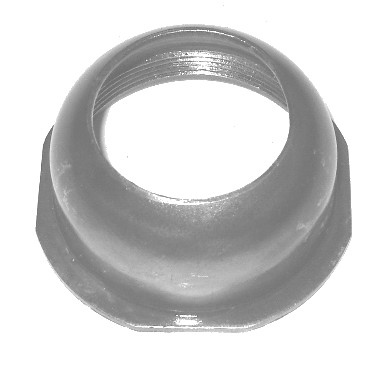

       B-7220 Cap - Toploader shifter lever retaining   (32-52) PIC $     4.00 10.00

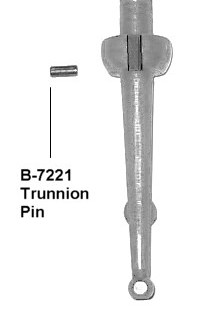

       B-7221 Pin - Toploader shifter housing          (32-52) PIC ------      2.00
     40-7222 Shift Housing Assy (includes forks & shafts)  (32-35) PIC     275.00
     68-7222-A Shift Housing Assy (includes forks & shafts)  (36-38)  with 68-7230 fork PIC     275.00
     68-7222-B Shift Housing Assy (includes forks & shafts)  (1936-39) with 91A-7230 fork PIC     315.00
   81A-7222 Shift Housing Assy (includes forks & shafts)  (1939 car + 39-52 pickup) PIC     395.00

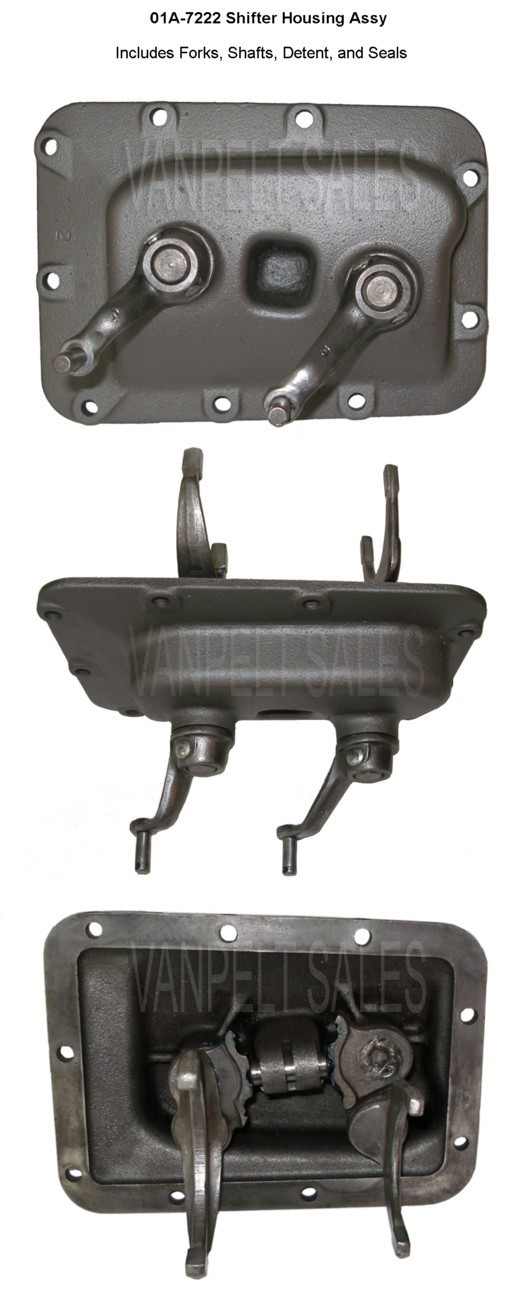

  01A-7222 Shift Housing Assy (includes forks & shafts & seals)  (40-48 cars + 48-52 pickup) PIC     250.00
    8A-7222 Shift Housing Assy (includes forks & shafts & seals)  (49-50 Ford cars) PIC 225.00
   8M-7222 Shift Housing Assy (includes forks & shafts & seals)  (49-51 early Merc) PIC 225.00
   1A-7222 Shift Housing Assy (includes forks & shafts & seals)  (51 Ford + late 51 Merc) PIC 225.00
   AB-7222 Shift Housing Assy (includes forks & shafts & seals)  (52-56 Ford & Merc) PIC 225.00
 Note: All of above 7222 shifter housings are cleaned and assembled with new detent springs. These assemblies are not in stock, but are built-to-order in our shop.

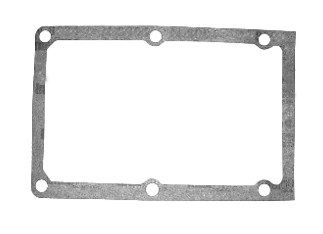

       B-7223 Gasket - Toploader shifter housing   (32-39 car + 32-52 pickup) PIC ------      3.50
   01A-7223 Gasket - Side Loader shifter housing   (40-48 car + 49-50 Mercury + 50-52 pickup) PIC ------   4.00
C2AZ-7223-A Gasket - Side Loader shifter housing   (49-62 various) - Replaces the 8A-7223 gasket PIC ------ 3.50
       B-7227 Spring - Toploader shifter lever          (32-52) PIC 3.00      3.00

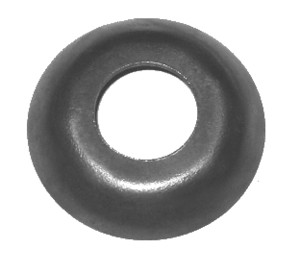

       B-7228 Seat - Toploader shifter lever             (32-52) PIC      20.00
     40-7230 Fork - Toploader shifter - 2nd/high     (32-35) PIC      30.00    45.00

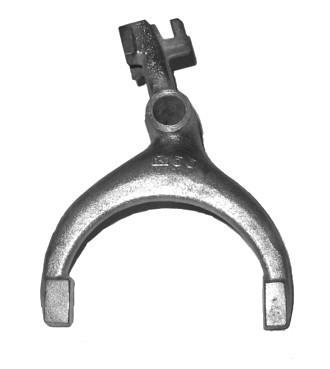

     68-7230 Fork - Toploader shifter - 2nd/high     (36-42) PIC      35.00    55.00

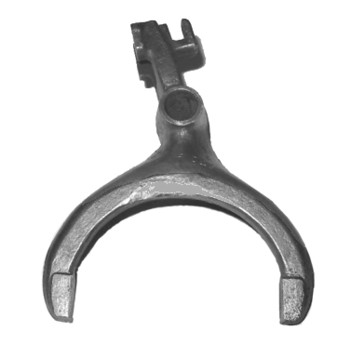

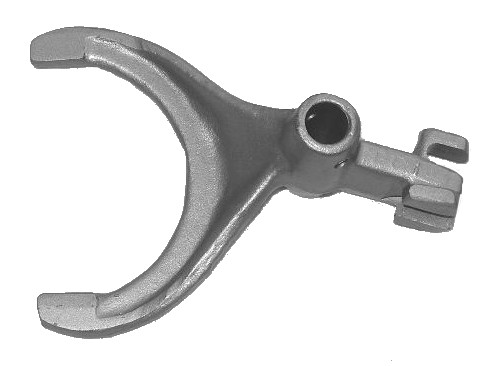

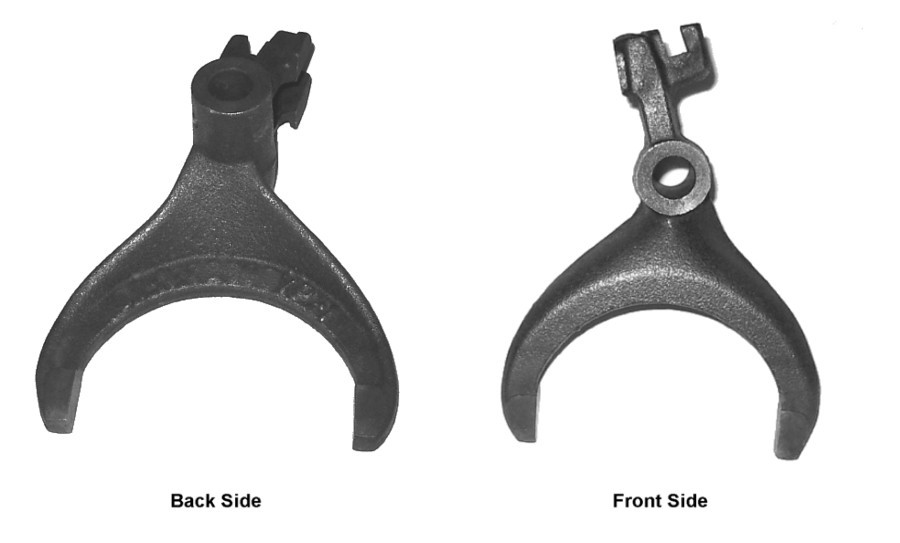

  91A-7230 Fork - Toploader shifter - 2nd/high  (39-52)   Original Ford mfr   (subject to availability) PIC   225.00 n/a
  01A-7230 Fork - Sideloader shifter - 2nd/high   (40-48) PIC 23.00     32.00
    0A-7230 Fork - Sideloader shifter - 2nd/high   (50-54) PIC 35.00

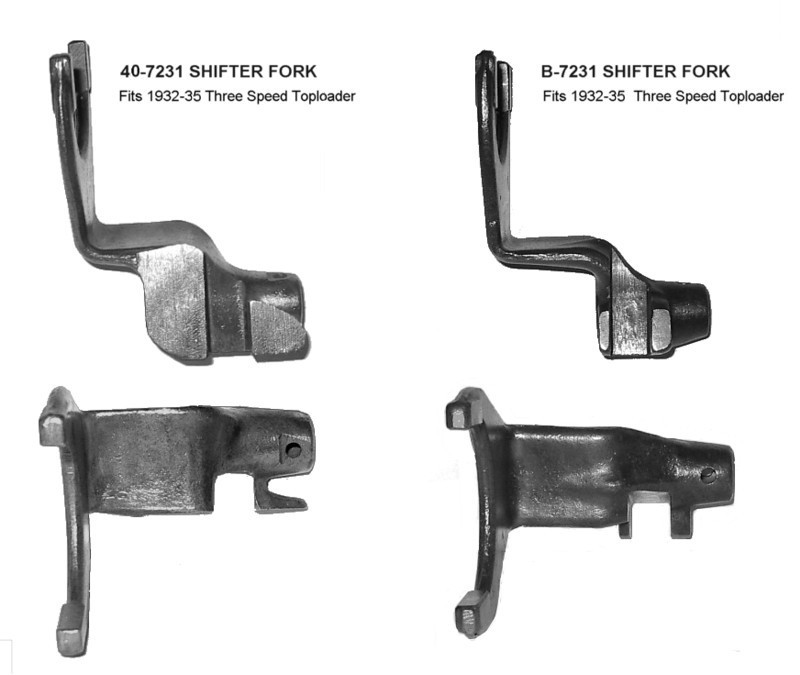

     40-7231 Fork - Toploader shifter - 1st/rev    (32-35) - Replaces B-7231 PIC      30.00     45.00
     68-7231 Fork - Toploader shifter - 1st/rev       (36-52) PIC      30.00     45.00
  01A-7231 Fork - Sideloader shifter - 1st/rev      (40-48) PIC      20.00     35.00
    1A-7231 Fork - Sideloader shifter - 1st/rev      (50-54) PIC      20.00
      A-7232 Tubular Pin - for toploader type shifter forks  (32-52)  Per Pair PIC        2.00
  B-7233/34 Spring & Plunger Kit - shifter detent  (32-38) PIC        8.00
  81A-7233 Plunger - shifter detent interlock (39-52 toploader) PIC Check Availability
     78-7234 Spring - Toploader shifter detent      (39-52)  2 required per shifter housing (81A-7222 type) PIC ------       4.00

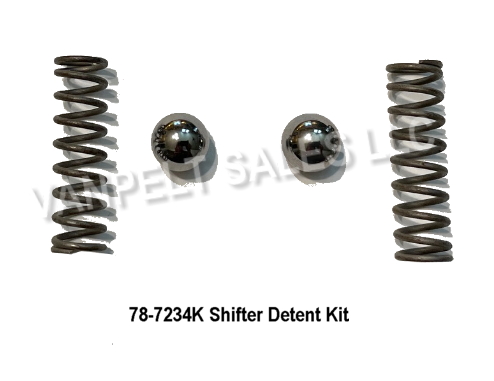

    VP-7234K Kit - Shifter detent springs & balls   (39-52)  Used on toploader shifter housing (81A-7222 type) PIC ------ 12.00
  01A-7234 Spring - Sideloader shifter detent    (40-54) PIC ------       3.00
  01A-7235 Pin - Detent (sideloader type)      (40-52) PIC     5.00 ----
     74-7238 Plug - Shift Housing Detent             (39-52)  Price is per plug: PIC

5.00

7.50

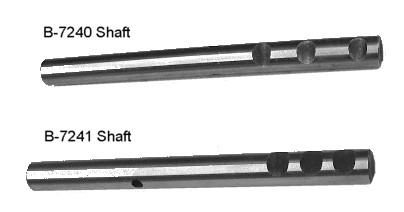

       B-7240 Shaft - Toploader shifter - 1st/rev     (32-35) PIC    20.00     35.00
     68-7240 Shaft - Toploader shifter - 1st/rev     (36-38) PIC 20.00 35.00

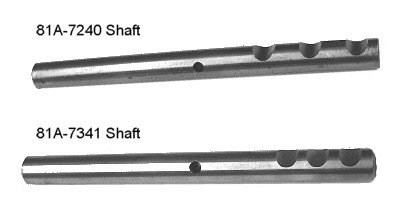

  81A-7240 Shaft - Toploader shifter - 1st/rev     (36-52) - 6.25" long PIC    30.00 Check Availability
      B-7241 Shaft - Toploader shifter - 2nd/high  (32-35) PIC      20.00     35.00
     68-7241 Shaft - Toploader shifter - 2nd/high  (36-38) PIC 20.00 35.00
  81A-7241 Shaft - Toploader shifter - 2nd/high  (36-52) - 5.88" long PIC    30.00 40.00
  99A-7242B Rubber Boot - Shifter Tower (fits 36-52 toploader) PIC ------ 15.00
      B-7248 Leather Seal - Toploader shifter lever   (32-52) PIC ------       1.50
      B-7249 Washer - Toploader shifter lever (32-52) PIC ------ 3.00
  01A-7280 Cam & Shaft Assy (2nd/high)   (40-48) PIC    25.00     34.50
  01A-7281 Cam & Shaft Assy (1st/Rev)   (40-48) PIC    25.00     34.50
 21A-7285 Shift Lever - 2nd/High - Sideloader  (40-48 car) PIC 65.00 Check Availability
 01A-7288 Oil Seal - Sideloader shift levers    (40-50 car & 48-52 pickup) PIC ------       3.50
   1A-7288 Oil Seal - Sideloader shift levers    (51-62) PIC ------       0.50
A9AZ-7288 Oil Seal - Toploader shift shafts  (1955-62 T86 & T85 overdrive) PIC ------       6.75
C0DR-7288 Oil Seal - Toploader shift shafts (1960-66 Falcon 277 series) PIC -------       8.00
 21A-7290 Shift Lever - 1st/Reverse - Sideloader  (40-48 car) PIC 65.00 Check Availability

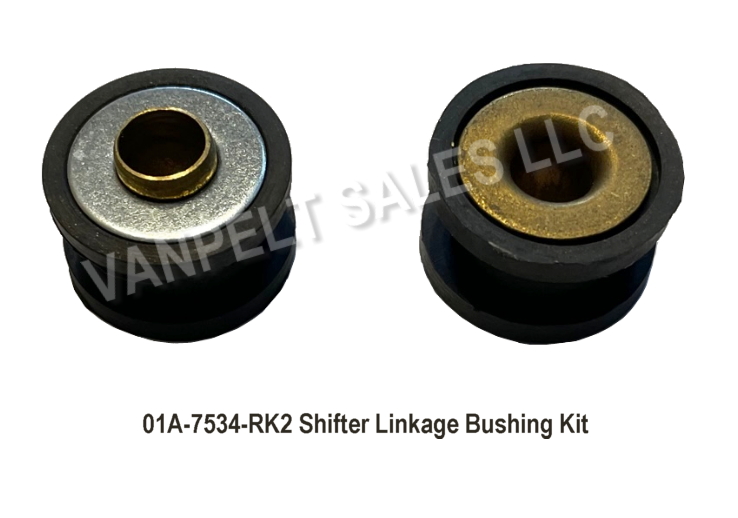

01A-7354-RK2 Shift Linkage Bushing Repair Kit  (49-59)    (2 bushing sets in kit) PIC ------    11.00

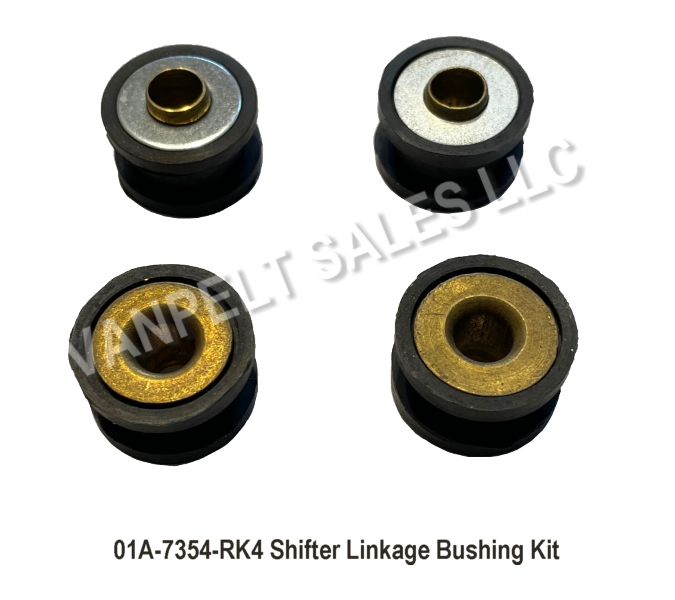

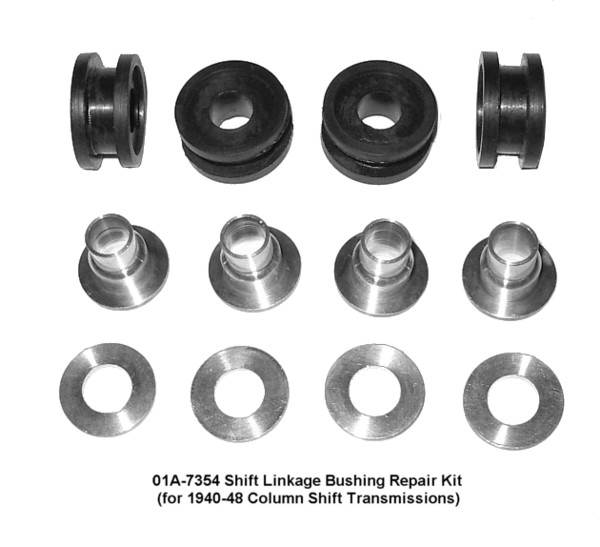

01A-7354-RK4 Shift Linkage Bushing Repair Kit  (40-48)    (4 bushing sets in kit) PIC ------    22.00


CLUTCH RELATED PARTS

  Used New

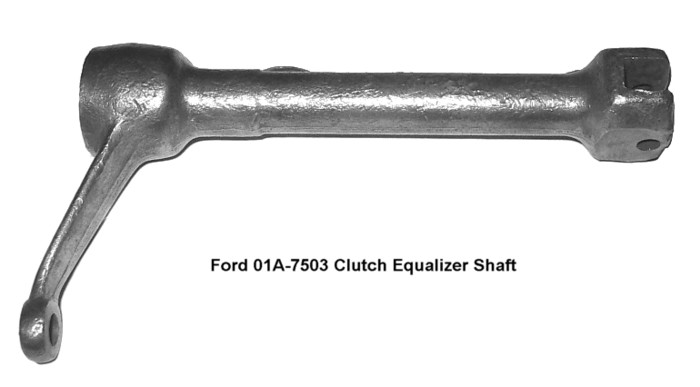

  01A-7503 Clutch Equalizer Shaft  (1940 85hp  passenger car) PIC $  35.00 $ 49.00

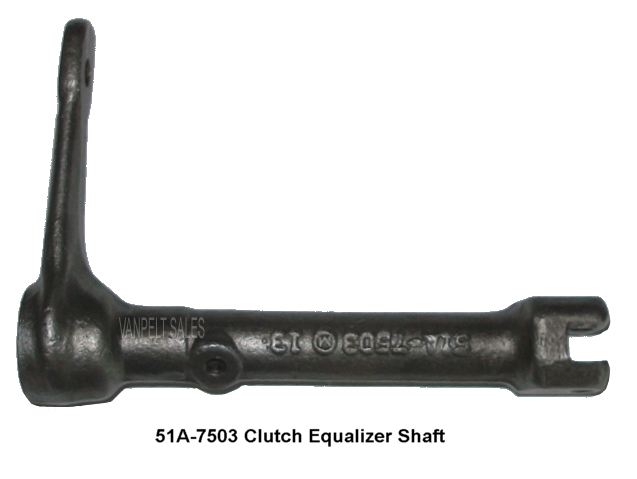

  51A-7503 Clutch Equalizer Shaft  (1940-48 100hp + 41-42 85hp pass) PIC     35.00 49.00

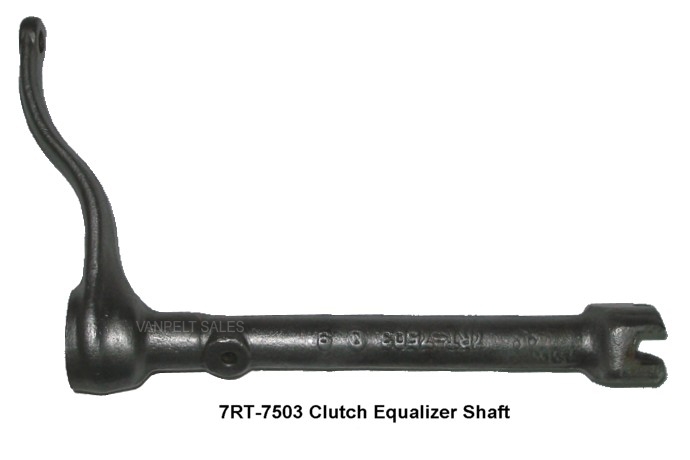

  7RT-7503 Clutch Equalizer Shaft  (48-52 truck) PIC Check Availability

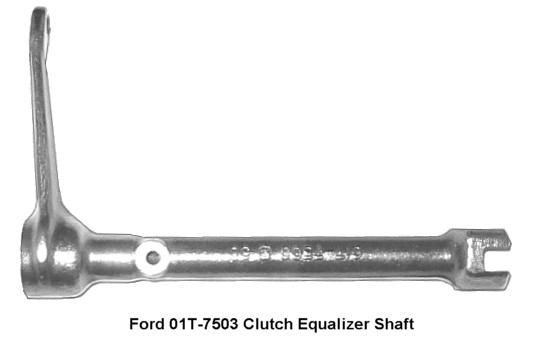

  01T-7503 Clutch Equalizer Shaft  (40-47 truck) PIC     25.00 40.00
   8A-7506 Clutch Equalizer Shaft  (49-51 Ford car) PIC   21.00

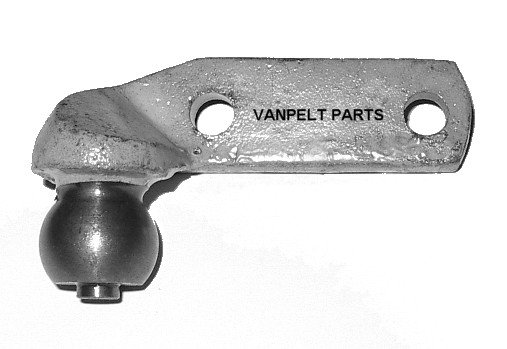

  01A-7507 Clutch Equalizer Bracket (40-48 car + 40-47 truck) PIC       22.00

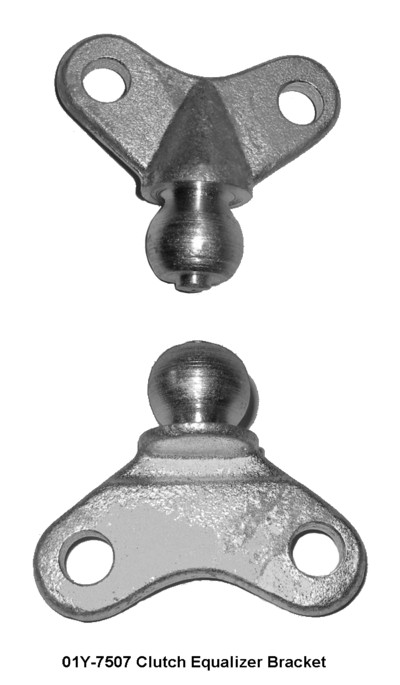

  01Y-7507 Clutch Equalizer Bracket (40-52 truck) PIC Check Availability Check Availability
  01T-7507 Clutch Equalizer Bracket (40-52 truck) PIC Check Availability Check Availability

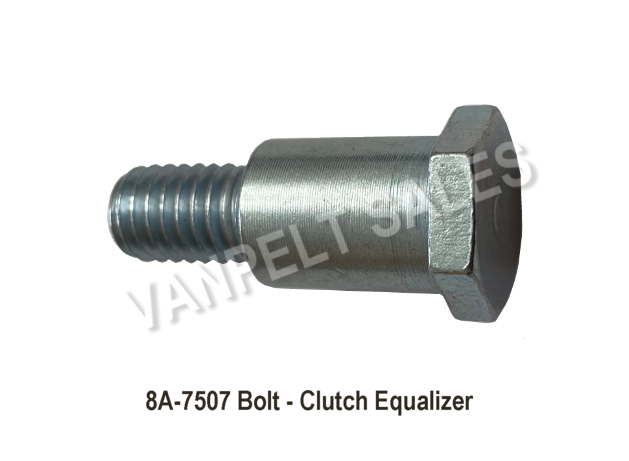

   8A-7507 Bolt - Clutch Equalizer Bracket (49-51 Ford car) PIC   12.00
      B-7508 Bushing - Clutch release shaft   (2 req'd) - 0.945" OD x 1" long            Each: PIC ------       3.00
    40-7508 Bushing - Clutch release shaft   (2 req'd) - 0.945" OD x 1-3/8" long       Each: PIC ------       4.50
  51A-7508 Bushing - Clutch release shaft   (2 req'd) - 1.004" OD x 1-1/4" long       Each: PIC ------       7.50
      B-7510 Shaft - Clutch release    (32-39) - Drilled for clutch release arm pin PIC 16.00     27.00
 01A-7510 Shaft - Clutch release    (40-48 car + 40-52 pickup) - Flat tab on linkage end PIC     25.00     39.00

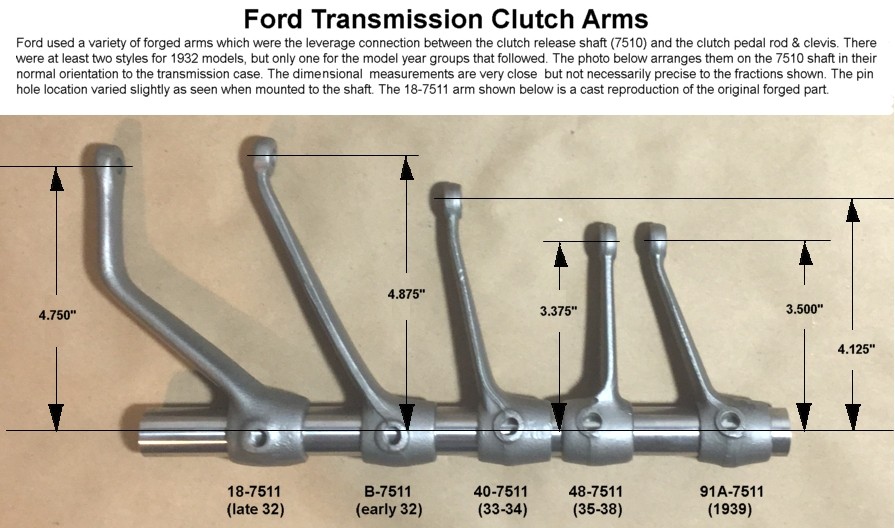

         7511 Arm - Clutch release shaft (32-39) - Different styles from factory - refer to PIC link images PIC

Check Availability

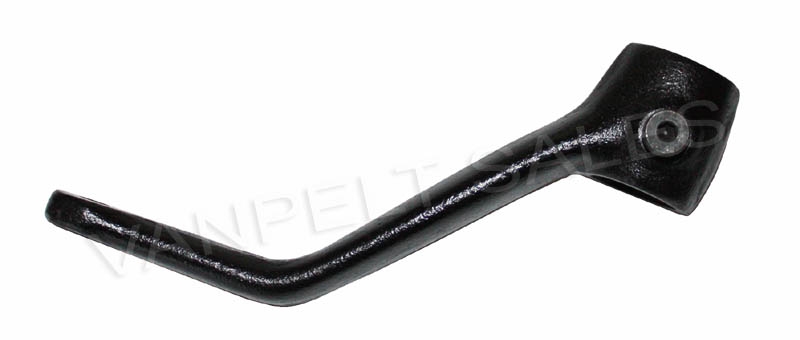

    18-7511 Arm - Clutch release shaft (1932 V8) PIC Check Availability     95.00
  AB-7513B Boot (leather) - Clutch Fork to Bell Housing (52-54 Ford cars) PIC --- 35.00
    48-7515 Fork - Clutch release bearing    (35-52) PIC     20.00     19.00

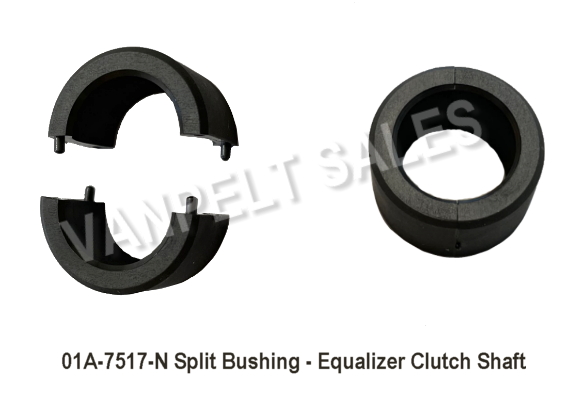

  01A-7517-N Split Bushing - clutch equalizer shaft (40-59) - (Nylon - replaces the bronze) Per bushing PIC ------       6.50
    48-7518 Cover - Trans Inspection    (35-52)     (Cleaned and painted) PIC      25.00      ---
      B-7521 Rod - Clutch Arm to Pedal (32-34) - 3.56" long PIC        8.00     13.00
    48-7521 Rod - Clutch Arm to Pedal (33-38) - 4.19" long PIC        8.00      12.00
    7521-EXT Rod Extension Kit (one 6" threaded rod + one coupling fitting) PIC   13.00
    48-7523 Spring - Clutch Pedal Return - 3.44" long   (35-36) PIC         3.50
    78-7523 Spring - Clutch Pedal Return - 2.81" long   (33-34 & 37-38) PIC         3.50

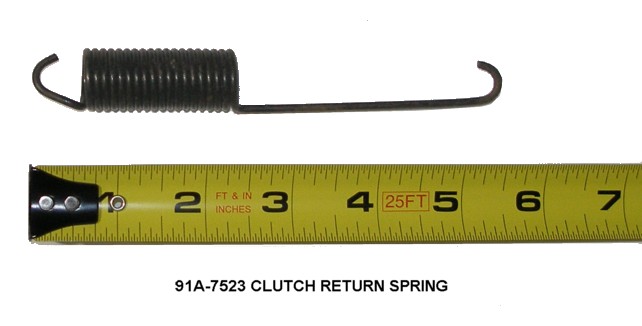

 91A-7523 Spring - Clutch Pedal Return - 5.4" long   (1939) PIC         8.00

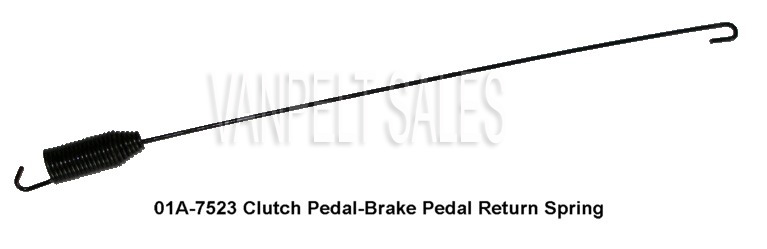

 01A-7523 Spring - Clutch Pedal Return - 17.3" long   (1940 car + 40-41 pickup) PIC   6.00
 11A-7523 Spring - Clutch Pedal Return - 6.3" long   (1941-48 car) PIC   Out of Stock
   8A-7523 Spring - Clutch Pedal Return - 3.0" long   (1949-50 car) PIC         7.50

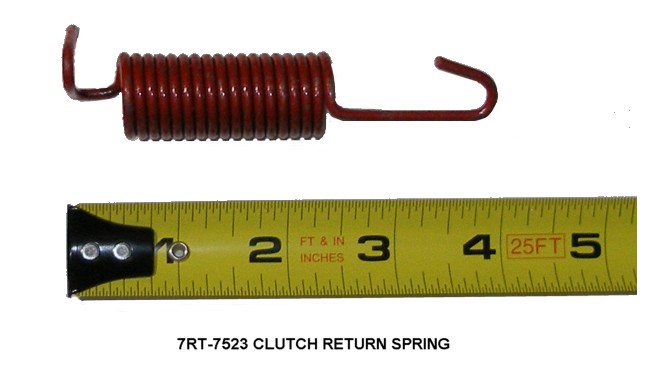

 7RT-7523 Spring - Clutch Pedal Return - 4.0" long   (1939-52 truck 4 speed) PIC         8.00
TAAA-7523 Spring - Clutch Pedal Return - 13.4" long (1953-56 F-100 and F-250) PIC   5.00
  MB-7523 Spring - Clutch Pedal Return - 5.0" long (1952-54 Ford & Mercury cars) PIC   4.50
     B-7526 Bushing - Clutch Pedal  (1932-34 pass/comm + 41-47 comm + 48-52 trucks + other misc) PIC         3.00
   48-7526 Bushing - Clutch Pedal  (1935-38 pass/comm + other misc) PIC   5.00
 91A-7526 Bushing - Clutch Pedal  (1939) PIC   Out of Stock
 01A-7526 Bushing - Clutch Pedal  (1940-48 passenger) - 2 required                                                       each: PIC   2.50
Note: The 7526 pedal bushings are also used with the brake pedals (refer to Brake Parts Page 2 for listings)
 91A-7527 Pedal Seal - see 91A-2476 pedal seal set - Brake Parts Page 2 for the seals PIC

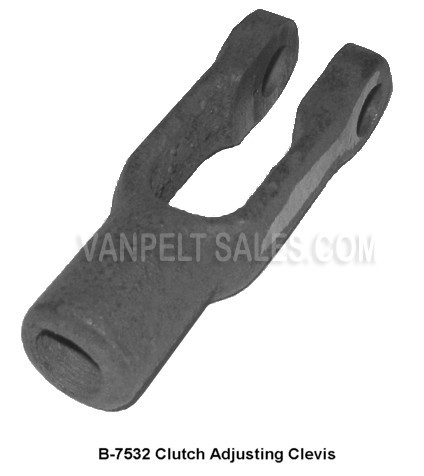

     B-7532 Clevis - Clutch Rod   (32-48) PIC       12.50

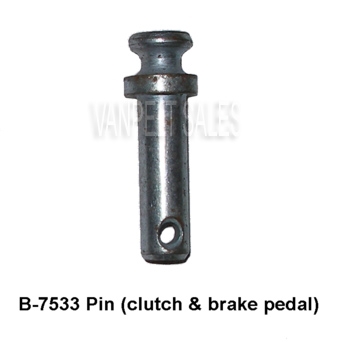

     B-7533 Pin - Clutch & Brake Pedal  (32-48) PIC         2.00
 01A-7539 Rubber Washer - clutch release shaft  (40-59) PIC         1.50
 01A-7545 Spring - Clutch Equalizer Shaft       (40-48 car & 40-52 truck) PIC         3.00


CLUTCH DISCS & TOOLS

  Used New
 91A-7550 Clutch Disc -    9" dia x 1-3/8" ten spline  (35-42) - New PIC        $ 45.00

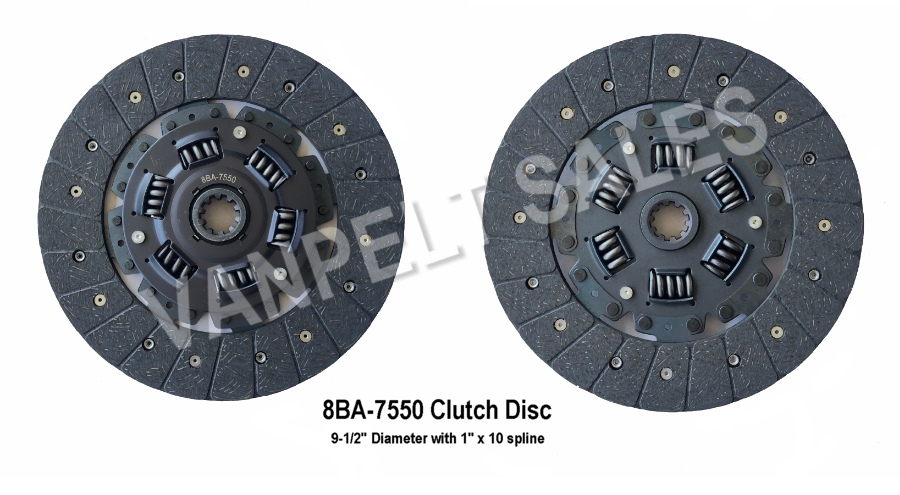

 8BA-7550 Clutch Disc - 9½" dia x 1" ten spline (49-57) - New PIC       47.00
 B5A-7550-B Clutch Disc - 10" dia x 1" ten spline (49-57) - New PIC       49.00

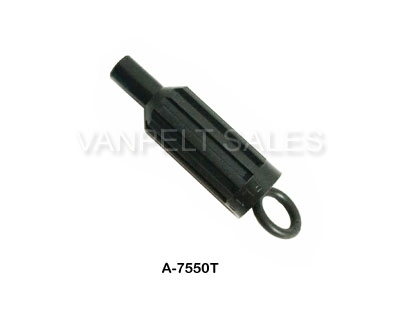

   A-7550T Clutch Alignment Tool    (1-3/8" x ten spline) PIC    8.00


CLUTCH PRESSURE PLATES

  Used New

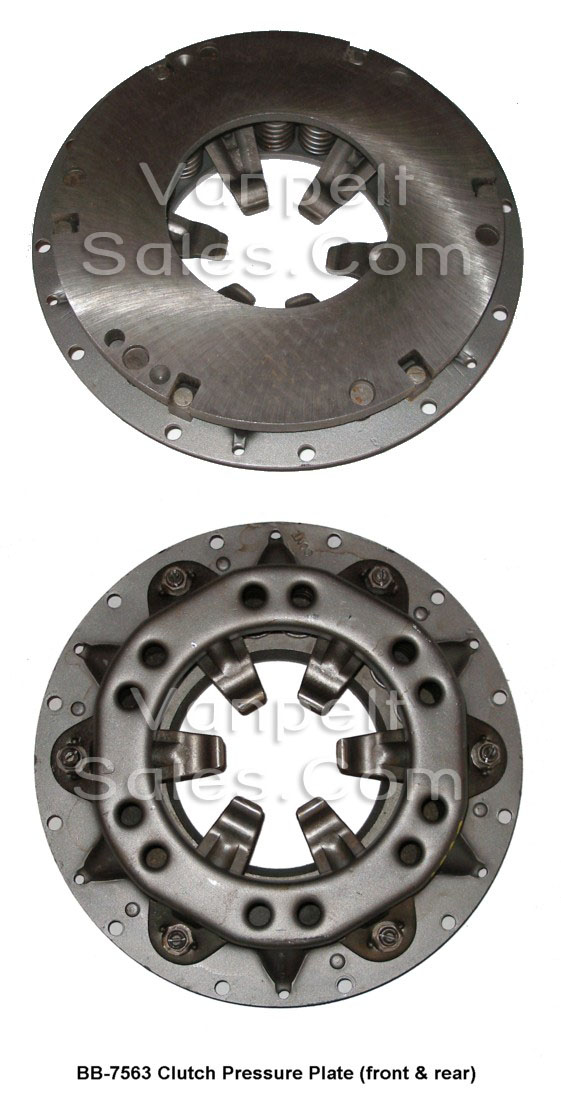

   BB-7563 Clutch Pressure Plate - 9¾" dia (28-34) PIC     159.00
     51-7563 Clutch Pressure Plate - 11" dia  (35-67)   New (no core) PIC     145.00


CLUTCH RELEASE BEARINGS & RELATED PARTS

  Used New

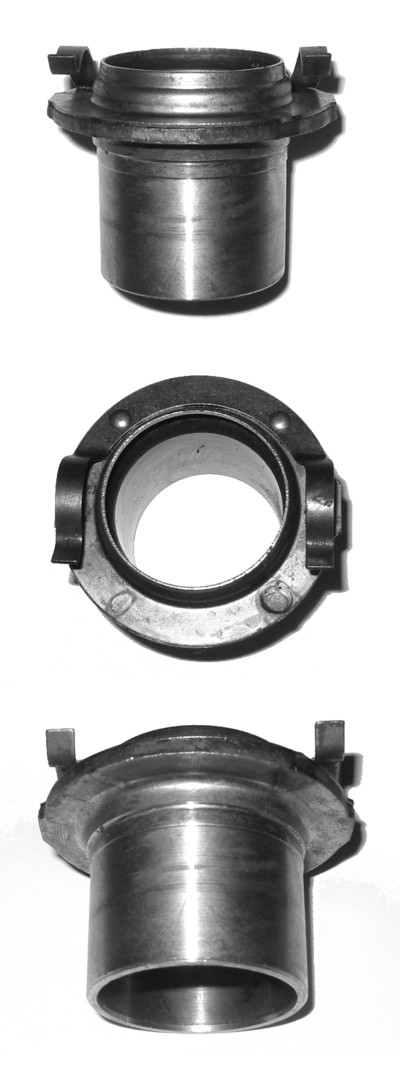

    48-7561 Hub - Clutch release bearing     (35-48 car + 35-52 truck) PIC $  19.00     21.00

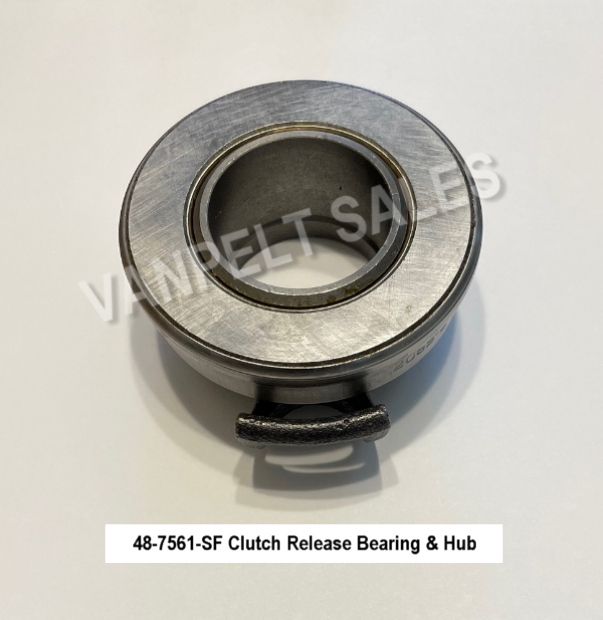

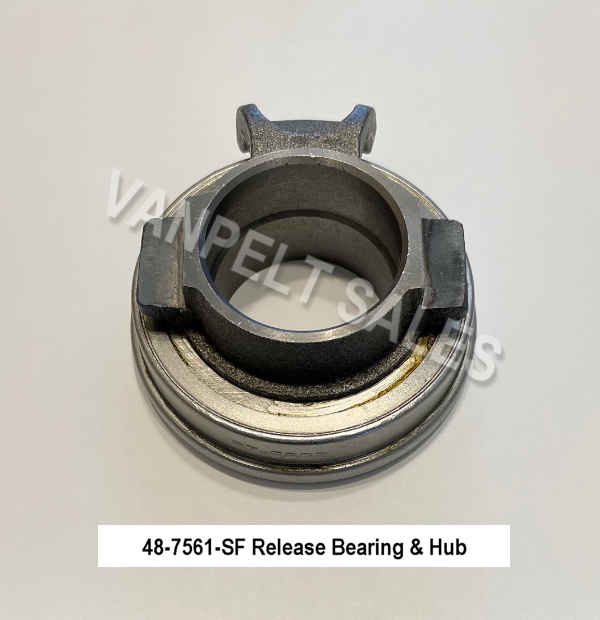

   48-7561-SF Hub & Bearing Set  (78-7580F)   (35-48 car + 35-52 truck) with top quality bearing PIC     59.00

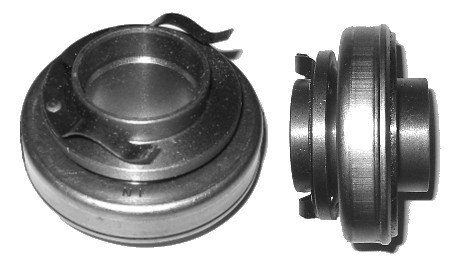

   8A-7561-SF Hub & Bearing  (8A-7580F) Set       (49-51 car)  with top quality bearing PIC   Out of Stock

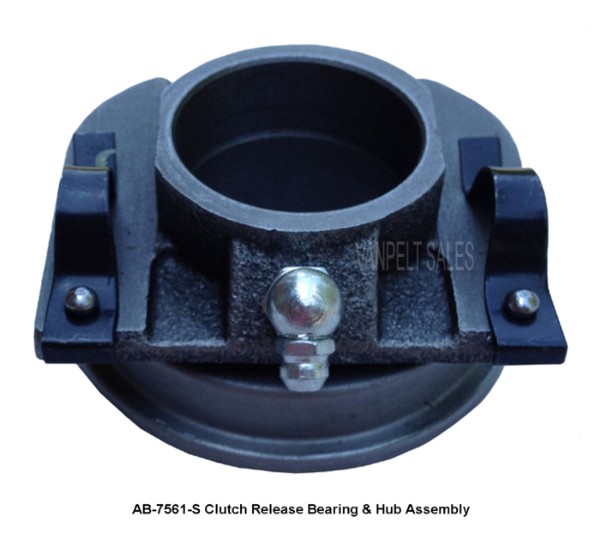

   AB-7561-S Hub & Bearing  (8A-7580) Set       (52-56 car) PIC   39.00
    48-7562 Spring - Clutch release bearing  (35-52) PIC 2.00       3.00
    AB-7562 Spring - Clutch release bearing  (52-56) PIC ------       1.00
    48-7575 Adjusting Screw - Pressure plate fingers (35-41 on 9" pressure plate) - 3 required PIC   4.00
    74-7580 Bearing - Clutch release -  (37-39 with V8-60hp small transmission) PIC ------ 34.00
    74-7580 Bearing - Clutch release -  (37-39 with V8-60hp small transmission) PIC ------ 29.00
    78-7580 Bearing - Clutch release -  (32-48 car + 32-62 pickup) - Imported PIC ------     18.00

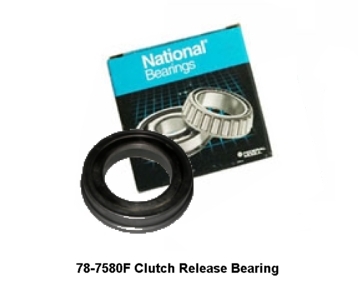

    78-7580F Bearing - Clutch release - Top quality brand      (32-48 car + 32-62 pickup) PIC ------     39.00
    8A-7580 Bearing - Clutch release                (49-64 cars) PIC ------     19.50
    8A-7580F Bearing - Clutch release - Top quality brand   (49-64 cars) PIC ------ 34.00

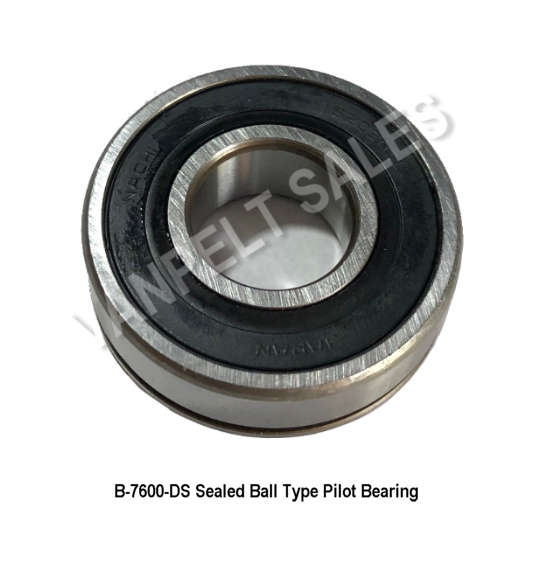

     B-7600-DS Pilot Bearing - Double Shield ball bearing type (32-57) PIC ------       7.00
  56H-7688 Oil Seal - OD shift lever (49-66 BW overdrives) PIC ------       6.75
  26H-7693 Oil Seal - OD solenoid to adapter (49-66 BW overdrives) PIC ------       5.50


CLUTCH PACKAGES



 For complete clutch packages at special kit prices, refer to Clutch Packages listed on Page 4

Back to Page 1      Back to Page 2      Forward to Page 4    Forward to Page 5

Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts (ie bearings, seals, thrust washers, gaskets, etc) or some limited supplies of new-old-stock or new-old-replacement-stock, or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. The Used Parts may be original Ford parts or might be used aftermarket manufacturer parts, depending on what is available at any given time. Our minimum order for product is $10.00 and the minimum shipping charge is $10.00 (US Dollars).

Repair Kits or Parts Kits
We do not offer multi-part kits (except for the gasket sets and seal kits) for the early Ford transmissions for one simple reason. There are too many variations in gears and other transmission parts over the years, and a kit would either have to include a lot of unnecessary parts, or would be missing a key part that your transmission required.
Please order the specific parts you actually need. We can assist you with this if you need help.

 Later Model Transmission Parts
We have been adding service parts and gears for Ford transmissions used from 1955 up into the 1960's, primarily three speed units for the passenger cars and light trucks. Not all of  these parts are cataloged and listed here, so please contact us for pricing and availability.

To place an order, call 1-513-724-9486. Office hours are Monday-Thursday from 9:00am to 5:00pm Eastern Time.

Email: sales @ vanpeltsales.com

Note: Blank entries in the Used Parts pricing simply means that we have not had that part available to this point. The --- indicates
that the part is either not available as a Used Part or is not available as a New Part (other than NOS items).

VANPELT SALES LLC
P. O. Box 327
Batavia, OH  45103
Sales Office: 1-513-724-9486

Copyright 2024 - VANPELT SALES LLC - All rights reserved

Ford transmission parts, transmission parts prices, ford toploader transmission parts, overdrive transmission, overdrive parts, three speed transmission parts, transmission gears
