FORD 4 SPEED TRUCK TRANSMISSION

SPUR GEAR - NON SYNCHRO T8 - T9 TYPE

Home    Parts Drawings     Web Links     Tune-Up & Service     Serial Numbers     Engine ID     Trans Identification     Model ID     Terms of Sale     Contact Us    Our Online Store    Our Catalog

FORD
TRUCK 4 SPEED
TRANSMISSION PARTS

Transmission Parts Prices

The Ford 4 speed spur gear (non-synchro) transmission was essentially the same from 1932 through 1952, although there were some changes in the shifter mechanism, the mainshaft, and the rear mount over those years. This transmission was also marked as a T-8 on the gearbox case in the post-war versions.

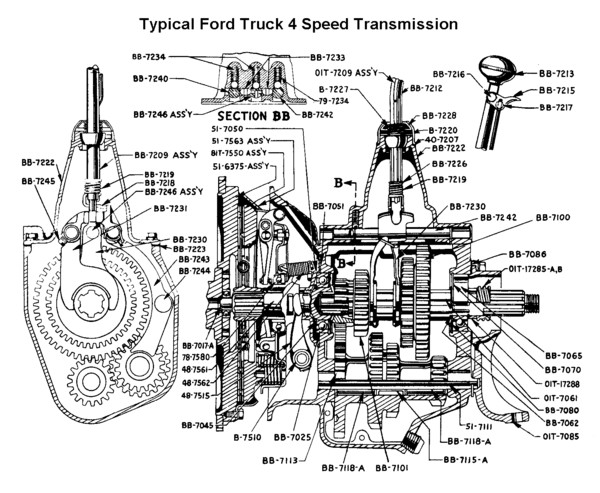

Click on the schematic thumbnail above for a larger image of the parts breakdown on this type transmission.

Ford Part
Number
Description Image Price for
Used Part
Price for
New Part

Please note: new gears are not available on a regular basis. Check before ordering

      BB-7017 Main Drive Gear - 17 Spur Tooth - 7.78" long PIC $  155.00 $  265.00
      BB-7025 Ball Bearing - Main Drive Gear PIC   28.00
      BB-7030 Snap Ring - MDG Bearing - 3.5625" OD PIC   3.00
     01T-7039 U-Joint (1940-52) - Open Drive (1, 2, or 3 required) PIC       16.50
     01Y-7039 U-Joint (1940-56) - Open Drive (2 or 3 required) PIC       16.50
      BB-7043 Oil Baffle - MDG PIC 3.00       4.00
      BB-7045 Snap Ring - MDG bearing to shaft - 1.65" ID x 1/8" thick PIC         2.50
      BB-7050 Retainer - MDG - replaced by 51-7050 PIC
       51-7050 Retainer - MDG  (1929-52) PIC 25.00      42.00
      BB-7061 Mainshaft - 10.14" long - 6S splines  (1929-51) PIC 65.00    115.00

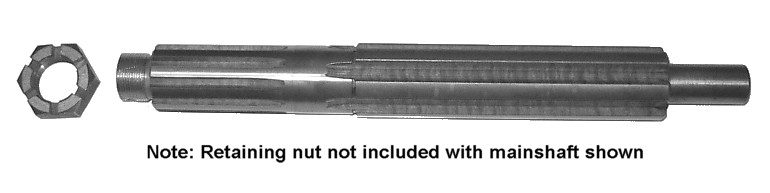

   01T-7061-A Mainshaft - 12.74" long - with undercut on splines - (1940-52) PIC 95.00    130.00


Please note: new gears are not available on a regular basis. Check before ordering


     BB-7062 Thrust Washer - Mainshaft ball bearing PIC   $     3.00
     BB-7063 Spacer - mainshaft pilot - 0.81" ID PIC           2.00
     BB-7064 Snap Ring - mainshaft (1929-39) PIC           4.00
     BB-7065 Ball Bearing - Mainshaft PIC        28.00
     BB-7070 Snap Ring - Mainshaft bearing retainer - 3.375" OD PIC           3.00
     70-7080 Oil Baffle - Mainshaft bearing PIC $   2.00        3.00
     BB-7085 Rear Bearing Retainer (rear support) - 1932-39 PIC        37.00
    01T-7085 Rear Bearing Retainer (rear support) - 1940-52 PIC     35.00
    BB-7090 U-Joint - Front (1932-39) - Closed Drive PIC      120.00

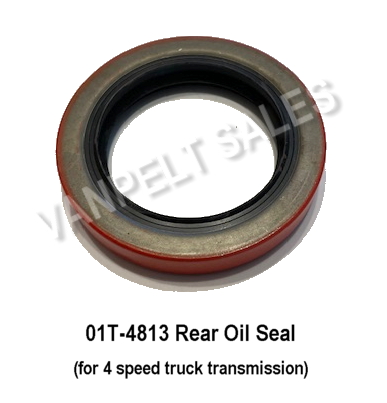

    01T-4813 Rear Oil Seal (for the 01T-7085 retainer) PIC          7.00


Please note: new gears are not available on a regular basis. Check before ordering


    BB-7100 Low/Second slider gear (43-33 spur teeth) - 1932-52 PIC $ 135.00 $ 195.00
    BB-7101 Third/High slider gear  (24 spur teeth) - 1932-52 PIC 115.00 185.00
    51-7111 Countershaft - 9.44" long (1929-52) replaces BB-7111 PIC 27.00 Out of Stock
   BB-7113A Cluster Gear (43-36-27-17 spur teeth) - 1932-52 PIC 325.00 425.00
   BB-7115A Spacer - Countershaft - 1.68" long (1932-52) PIC 3.00 5.00
   BB-7118A Roller Bearing - countershaft  (1932-52) - 2 req'd  (Each) PIC   23.00
   BB-7120A Roller Bearing - mainshaft pilot (1932-52) PIC   16.00
   59T-7129A Thrust Washer - countershaft - 2 req'd   (Each) PIC   8.00
   BB-7140 Reverse Idler Shaft - 5" long - (1932-52) PIC 5.00 13.00
   BB-7141 Reverse Idler Gear (22-18 spur teeth) PIC 85.00 139.00
   BB-7153 Gasket Set  (1932-52) PIC   22.50
   BB-7155 Retainer - countershaft/rev idler shaft  (1932-52) PIC   3.00

      BB-7209 Shifter Lever  (1932-38) - includes trigger lock assy PIC $  95.00 $125.00
     01T-7209 Shifter Lever  (1932-42) - replaces the BB-7209 PIC 85.00 ---
     41T-7210A Shifter Lever  (1944-52) PIC 85.00 ---

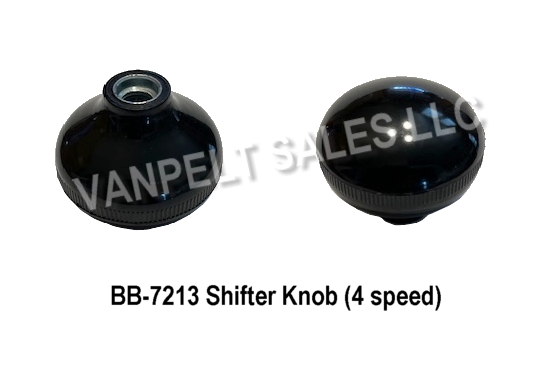

      BB-7213 Shifter Knob/ball  (1932-52) PIC --- 9.00
      BB-7215A Shifter Lever Trigger for latch  (1932-42)  PIC ---
      BB-7218 Shifter Lever Latch (1932-42) PIC   6.00
      BB-7220A Cap - Shifter Lever  (1932-52) PIC 4.00 5.00
        B-7227 Spring - shifter lever  (1932-52) PIC 3.00 3.00
     BB-7228 Seat - shifter lever  (1932-52) PIC 6.00 9.00
     BB-7230 Shift Fork - 3rd/High   (1932-52) PIC 35.00 55.00
     BB-7231 Shift Fork - 1st/2nd    (1932-52) PIC 35.00 55.00
     BB-7232 Gate - shifter reverse  (1932-52) PIC   12.00

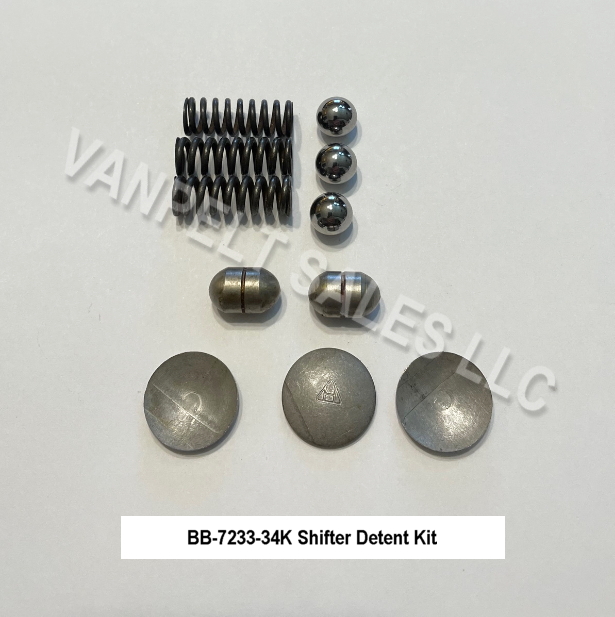

     BB-7233 Plunger - shifter detent  (1932-52) PIC

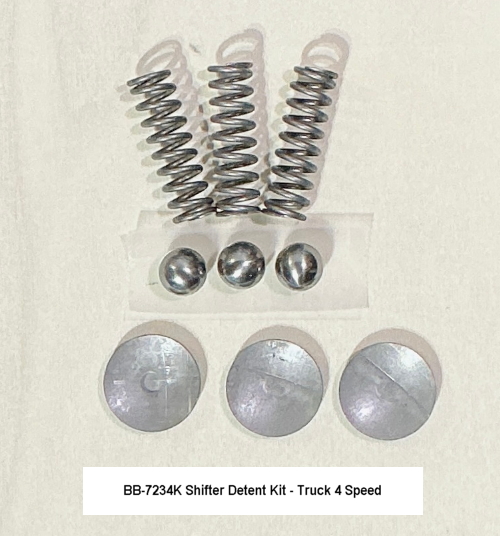

     BB-7234 Spring - shifter detent   (1932-52) PIC   3.00

     BB-7240 Shaft - 1st/2nd - 7.06" long  (1932-52) PIC $    8.00 $  10.00
     BB-7242 Shaft - Reverse - 7.25" long (1932-52) PIC 8.00 12.00
     BB-7243 Shift Fork - reverse    (1932-52) PIC 35.00 55.00
     BB-7244 Shaft - reverse - 5.0625" long  (1932-52) PIC 8.00 12.00
     BB-7246 Shaft - 3rd/high - 7.06" long   (1932-52) PIC 8.00 13.00
    41T-7247 Plunger - reverse shifter gate  (1944-52) PIC
      78-7580F Bearing - Clutch release  (1932-52) PIC   29.00

      BB-4513 Inner Cap (Torque tube) - 6 bolt holes   (1932-39) PIC   $  37.50
     BB-4515 Gasket   (inner cap)     - (1932-39) PIC         1.50
     BB-4520 Outer Cap - Two halves - (1932-39) PIC       49.00
    01T-4813 Oil Seal - rear mount/coupling shaft  (1940-51) PIC         9.00

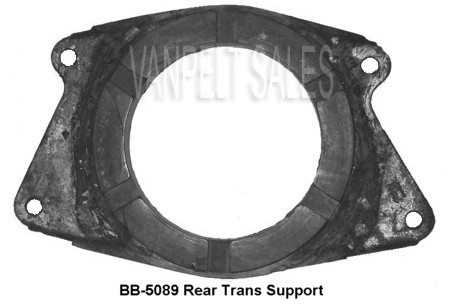

     BB-5089-A Rear Support  (1932-39) PIC       39.95
    01T-5089-A Rear Support  (1940-47) - 11" long insulator (replaced by 8T-5089) PIC         ---

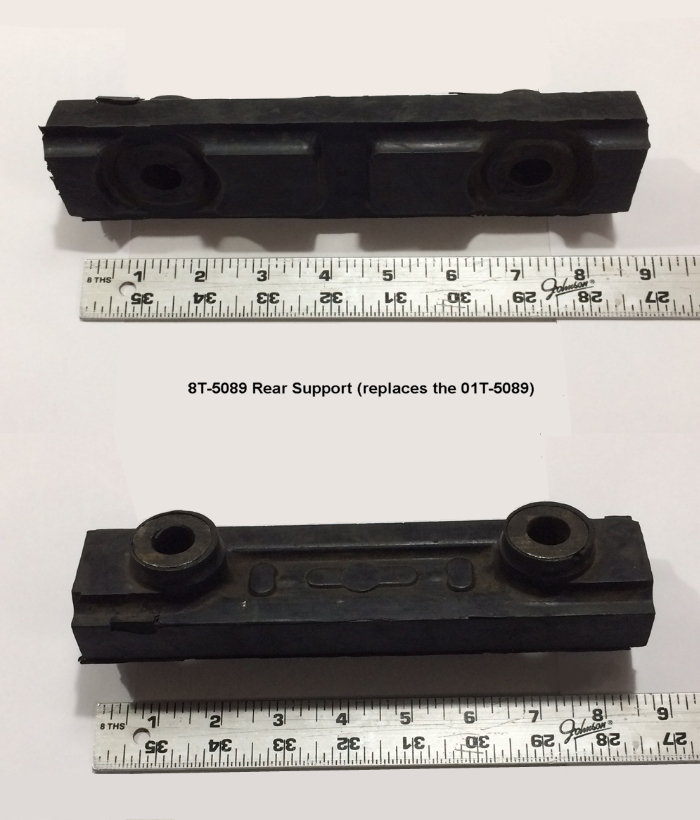

      8T-5089 Rear Support  (1948-52) - 8" long insulator PIC        79.50

 Please Note: Availability on gears for the truck 4 speed transmission is very limited.   Please check with us regarding our stock on gears since inventory changes weekly.

Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts (ie bearings, seals, thrust washers, gaskets, etc) or some limited supplies of new-old-stock or new-old-replacement-stock, or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. The Used Parts may be original Ford parts or might be used aftermarket manufacturer parts, depending on what is available at any given time. Our minimum order for product is $10.00 and the minimum shipping charge is $8.00 (US Dollars).

Repair Kits or Parts Kits
We do not offer multi-part kits (except for the gasket sets and seal kits) for the early Ford transmissions for one simple reason. There are too many variations in gears and other transmission parts over the years, and a kit would either have to include a lot of unnecessary parts, or would be missing a key part that your transmission required.
Please order the specific parts you actually need. We can assist you with this if you need help.

To place an order, call toll free (from USA locations) 1-800-299-7496. Office hours are Monday-Thursday from 9:00am to 5:30pm Eastern Time. If you are outside the USA please call (513) 724-9486. The same office hours apply.

INTERNATIONAL PHONE ORDERS: If you wish to order parts by telephone and credit card, please call
(513) 724-9486 only during regular office hours.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
Email: sales @ vanpeltsales.com

Note: Blank entries in the Used Parts pricing simply means that we have not had that part available to this point. The --- indicates
that the part is either not available as a Used Part or is not available as a New Part (other than NOS items).
