FORD TRANSMISSION PARTS

We stock parts for most Ford three speed transmissions manufactured from 1932 to 1965. Check our inventory of new and good used parts. Use the links below for the truck 4 speed, the V8-60, and the Borg-Warner overdrive. Gasket sets are on Page 2. Gear Oil is on Page 4. Seal kits are on Page 5

3 SPEED PARTS PRICES:

Page 1 - Page 2 - Page 3 - Page 4 - Page 5

V8-60hp Trans Parts Prices

Truck 4 Speed TransParts Prices

Overdrive Trans Parts Prices

Ford Part
Number
Description Image Applications Price for
New Part


COMPLETE CLUTCH PACKAGES


  91A-7550K Kit - 9.0" diameter (1.375" hub x ten spline) PIC 35-42 $ 159.00
  29A-7550K Kit - 10" diameter (1.375 hub" x ten spline) PIC 42-52     159.00
  8BA-7550K Kit - 9.5" diameter (1.0" hub x ten spline) PIC 49-57     169.00
  51-7550K Kit - 11" diameter (1.375" hub x ten spline) PIC 35-67     176.00
Note: kits include the clutch disc, the pressure plate, the release bearing, a pilot bearing (bushing or ball type), and an alignment tool. Be sure to check your application before ordering. NO core charge required for these all new parts. All above kits include Long style pressure plates.


MISCELLANEOUS PARTS

  Price for
Used Part
Price for
New Part

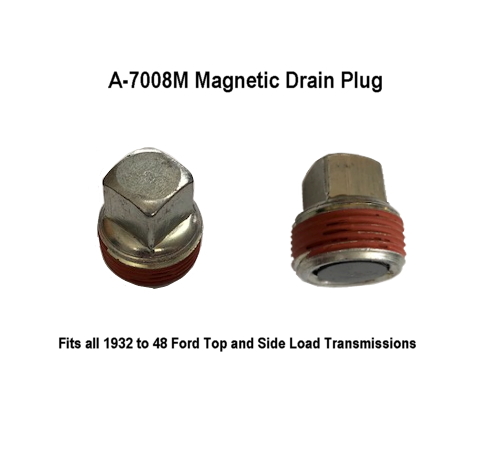

   A-7008 Plug - Drain or Fill  (See 353051-S plug below)   ---

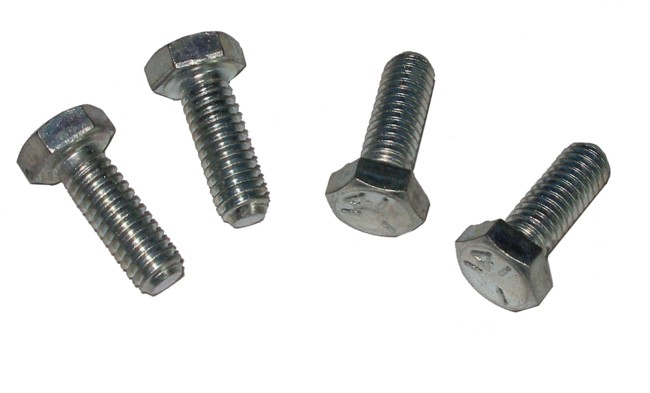

  20366-S Bolt - Front Bearing Retainer (Grade 8) - Pkg of 4 bolts PIC --- $  2.00
  20388-SK Bolt Kit - Transmission case to engine bell housing  (Grade 8) - Pkg of 8 bolts & lockwashers) PIC --- 7.50

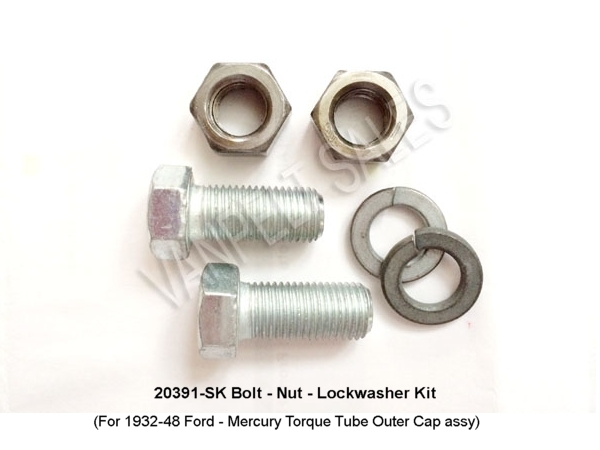

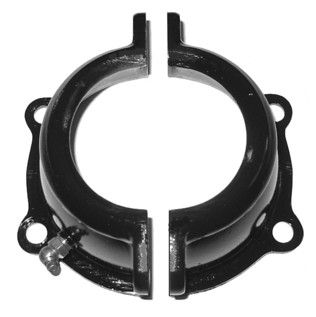

  20391-SK Bolt Kit for B-4520 outer cap assy (6 pcs) PIC ---      3.00
  22518-SK Bolt Kit - Rear Bearing Retainer to Trans (pack of 6) - 32-48 car + 32-41 pickup 3 speed PIC      $ 3.00 ---
  22526-SK Bolt Kit - Rear Bearing Retainer to Trans (pack of 5) - 48-52 pickup PIC      2.50 ---
  351529-S Washer - Countershaft - (49-54)    (2 or 4 required) - 3/4" PIC ---      2.00
  352581-S Pin - Clutch release shaft/fork  (5/16")          (32-52) PIC ---      2.00
  353051-S Plug - Drain or Fill       (3/4" x 15/16" square head pipe plug) PIC     1.00      2.00

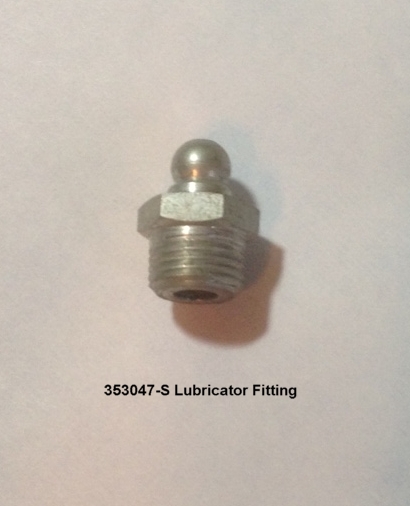

  353047-S Lubricator Fitting - 1/8" straight  (gearbox case for clutch release shaft) PIC   1.50
  353075-S Steel Ball - 3/8" - used on 40-48 side shift housing PIC ---      2.00
  353076-S Steel Ball - 1/4" - used in 01A-7124 or 81A-7124 style synchro PIC ---      0.75
  353080-S Steel Ball - 3/16" PIC ---
  353082-S Steel Ball - 7/16"  (.434") used in 81A-7222 shifter housing PIC ---      3.00
  357534-S Pin - Sideloader shifter lever retaining (1/4") - (40-48 car or 40-52 pickup)   - (Use 48-4607) PIC ---      2.00

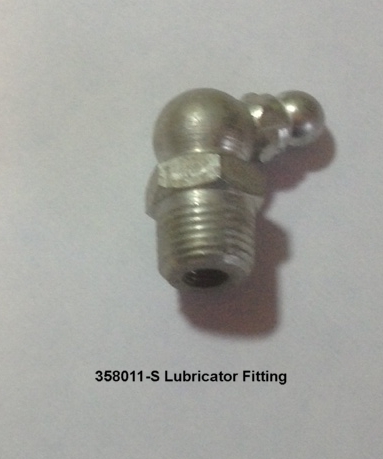

  358011-S Lubricator Fitting - 1/8" - Angled  (split outer cap assy for torque tube to trans rear mount) PIC --- 2.00
    26148-S Screw - Transmission Inspection Cover (2 required)  each PIC        1.50
    73746-S Tapered Pin - shifter shaft lock    (49-62 side loader) PIC        1.00
    74111-S 5/8" Expansion Plug for shifter housing (2 or 3 req'd)  -  Package of 3 PIC ---      1.50
    74113-S 3/4" Expansion Plug for shifter housing (2 or 3 req'd)          Each: PIC ---      1.00
    74125-S 1" Expansion Plug for OD housing (1 req'd)                      Each: PIC ---      2.00
    74172-S 1/8" wide woodruff key for speedo gear to mainshaft PIC ---      0.50
    RC-110 Aerosol can of Antique Ford Green spray paint  (approx. 12 oz) PIC ---      8.00
    RC-111 Aerosol can of Antique Ford Blue spray paint  (approx. 12 oz) PIC ---      8.50
    RC-112 Aerosol can of Cast Blast spray paint  (approx. 12 oz) PIC ---    11.50
    SW-25 Safety Wire (.032" ss wire) - 1/4 lb spool PIC ---       8.50


TRANSMISSION GEAR OIL

    New
 VPGO-1A Gear Oil - 140 wt - GL4 specification - Quart size PIC ---      $  16.50
 VPGO-1B Gear Oil - 140 wt - GL4 specification - Gallon size PIC ---    52.00
 VPGO-2A Gear Oil -   90 wt - GL4 specification - Quart size PIC ---     16.50
 VPGO-2B Gear Oil -   90 wt - GL4 specification - Gallon size PIC ---    52.00
CAPACITIES:   1932 to 39 toploader trans: 2.5 pints      1940-48 side loader trans: 2.75 pints       1932-48 Banjo Rear End: 2.5 to 3 pints
The GL4 specification does not have any additives that will harm the yellow metals (brass - copper - bronze) in the transmission.   Note: 1 quart = 2 pints


REAR ENGINE SUPPORTS - EARLY STYLE (1932-36)

  Used New
    B-7085 Rear Bearing Retainer (1932-36) - Reconditioned PIC  $ 85.00 ---

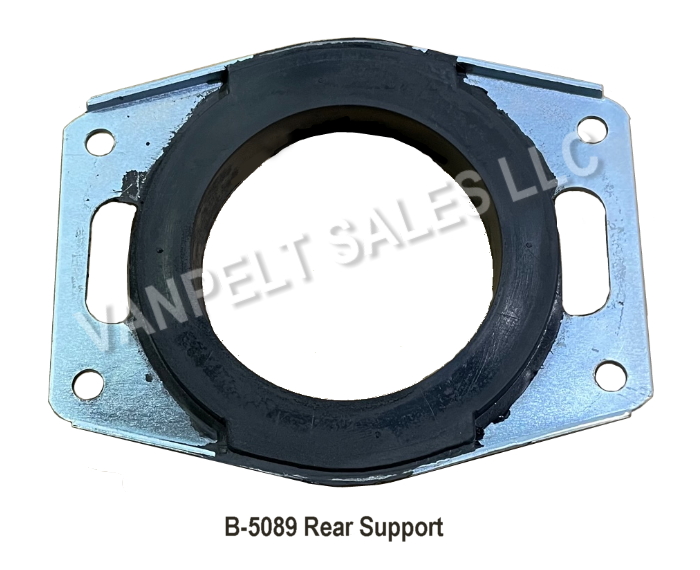

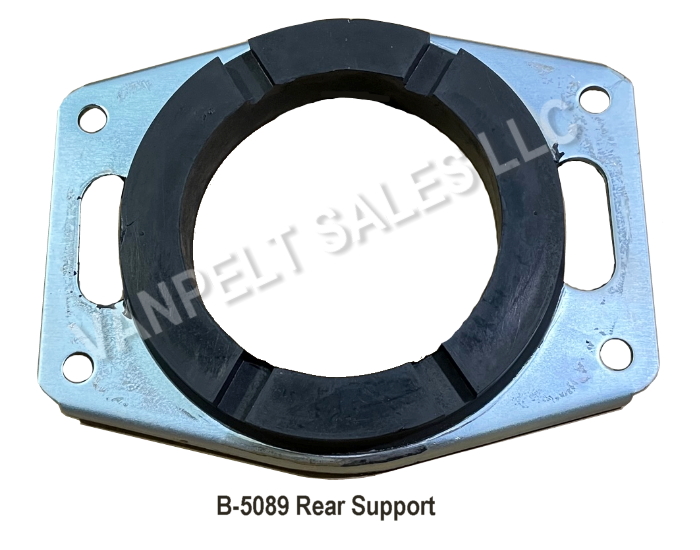

    B-5089-B Rear Trans Support  (32)  - with rubber isolator (bolts not included) PIC --- $  55.00

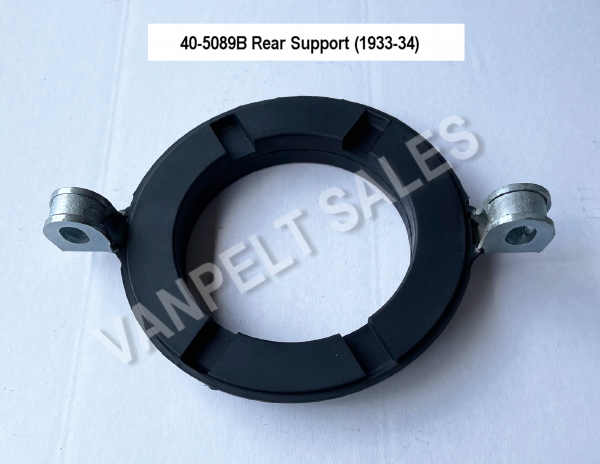

  40-5089-B Rear Trans Support (33-34) - with rubber isolator (bolts not included) PIC ---     49.00

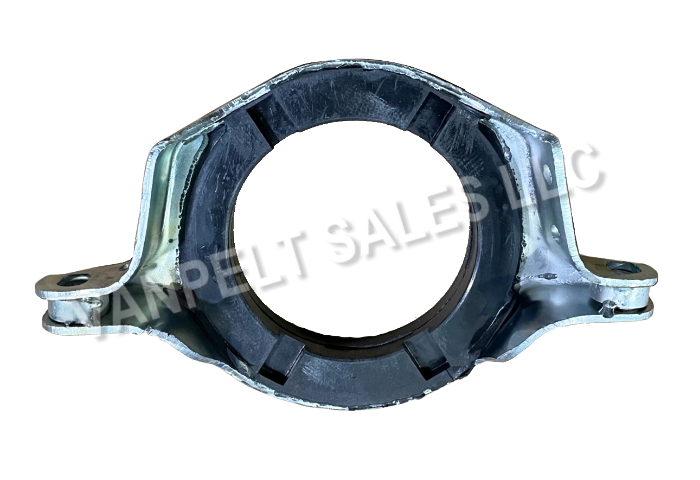

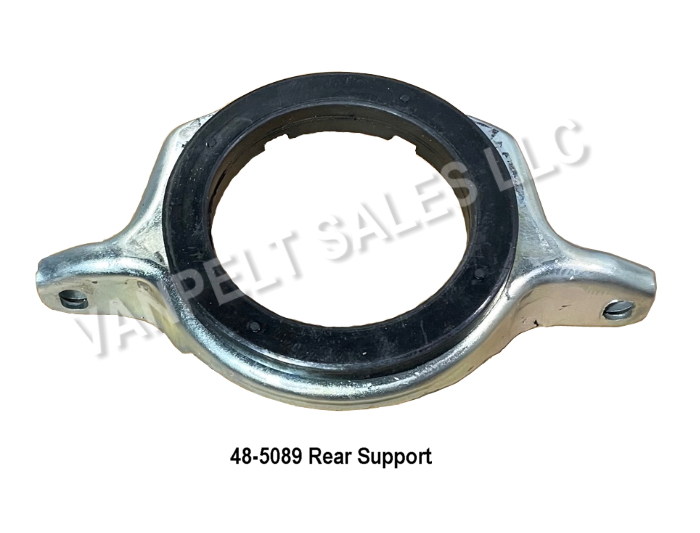

  48-5089 Rear Trans Support (35-36) - with rubber isolator (bolts not included) PIC ---     49.00

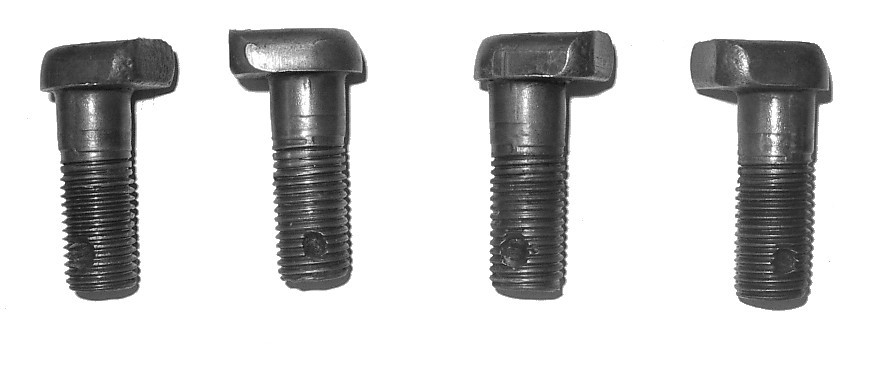

    B-5098-S T-Bolt Set    (original type for trans rear mount to torque tube cap) PIC    24.00      n/a
    B-5098-RK T-Bolt Set     (replacement type for trans rear mount to torque tube cap) PIC         7.50
    B-5099-A Plate - Rear motor support   (1932-36) PIC    25.00     32.00


REAR ENGINE SUPPORTS - LATE STYLE (1937-56)

  Used New

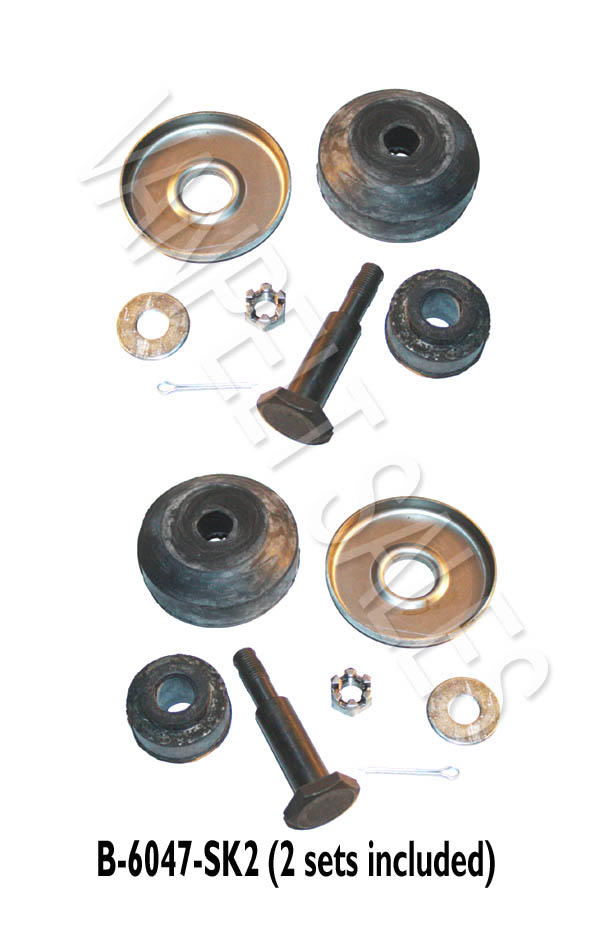

    B-6047SK2 Rubber Isolator Kit - 2 sets rubber mount & hdwr (37-41) PIC   $  27.50

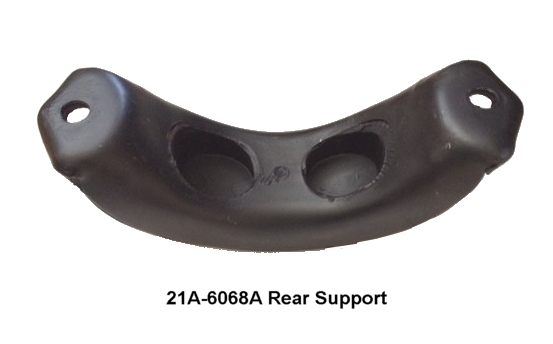

  21A-6068-A Steel and Rubber Saddle Mount (1942-48 car and 1942-52 pickup) PIC       29.50
     8A-6068 Steel and Rubber Trans Mount  (1949-50 V8 cars) PIC       17.00

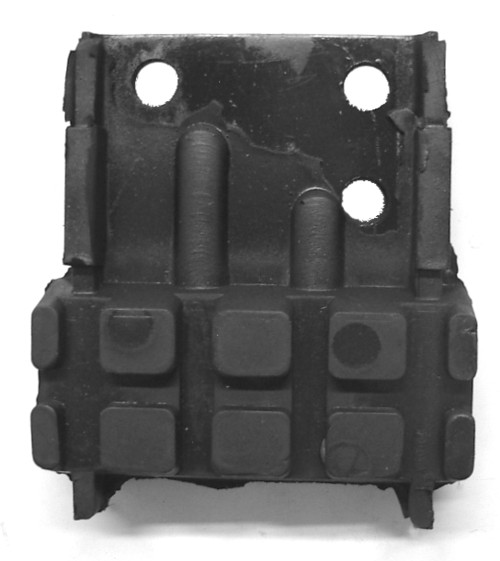

    AD-6068-D Steel and Rubber Trans Mount  (1951-56 V8 cars) PIC       17.00

 7085

See listings on Page 1 for the various 7085 rear bearing retainers


FRONT ENGINE SUPPORTS - LATE STYLE

  Used New
    B-6047SK2 Rubber Isolator Kit - 2 sets rubber mount & hdwr (32-48 V8)        Set PIC   $  27.50
   MA-6038 Steel and Rubber front mount (49-53 Ford car) - 2 req'd             each PIC       17.50
   MA-6038 Steel and Rubber front mount (52-53 Mercury) - 2 req'd              each PIC       17.50
 8M-6038-A Steel & Rubber Square front mount (49 Mercury) - 2 req'd          each PIC       34.00

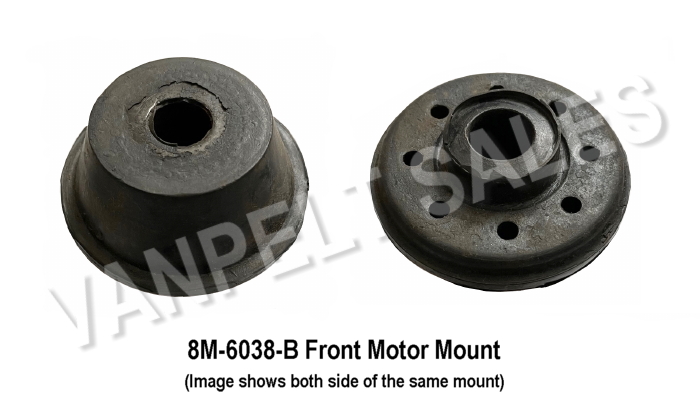

 8M-6038-B Steel & Rubber Round upper mount (49-51 Mercury) - 2 req'd     each PIC         8.00

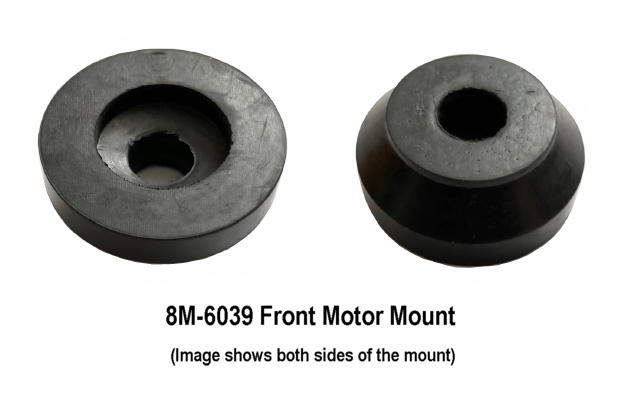

 8M-6039 Steel & Rubber Round lower mount (49-51 Mercury) - 2 req'd     each PIC         6.00
B7A-6038-B Steel and Rubber front mount (54-58 Ford V8) - 2 req'd              each PIC       19.00


Clutch Pedal Pads

    New

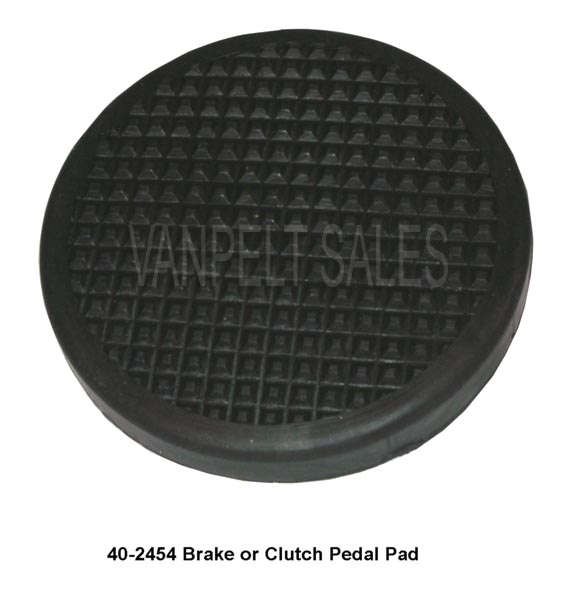

   40-2454 Clutch & Brake Pedal Pad (diamond grid rubber pattern) PIC   $ 10.50

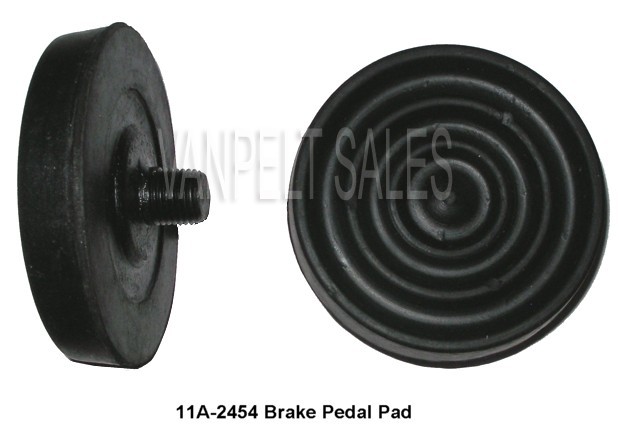

11A-2454

Clutch & Brake Pedal Pad (circular groove rubber pattern)

PIC   7.50

Back to Page 1      Back to Page 2    Back to Page 3   Forward to Page 5



Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts (ie bearings, seals, thrust washers, gaskets, etc) or some limited supplies of new-old-stock or new-old-replacement-stock, or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. The Used Parts may be original Ford parts or might be used aftermarket manufacturer parts, depending on what is available at any given time. Our minimum order for product is $10.00 and the minimum shipping charge is $7.00 (US Dollars).

Repair Kits or Parts Kits
We do not offer multi-part kits (except for the gasket sets and seal kits) for the early Ford transmissions for one simple reason. There are too many variations in gears and other transmission parts over the years, and a kit would either have to include a lot of unnecessary parts, or would be missing a key part that your transmission required.
Please order the specific parts you actually need. We can assist you with this if you need help.

 Later Model Transmission Parts
We have been adding service parts and gears for Ford transmissions used from 1955 up into the 1960's, primarily three speed units for the passenger cars and light trucks. Not all of  these parts are cataloged and listed here, so please contact us for pricing and availability.

To place an order, call toll free (from USA locations) 1-800-299-7496. Office hours are Monday-Thursday from 9:00am to 5:30pm Eastern Time. If you are outside the USA please call (513) 724-9486. The same office hours apply.

INTERNATIONAL PHONE ORDERS: If you wish to order parts by telephone and credit card, please call
(513) 724-9486 only during regular office hours.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
Email: sales @ vanpeltsales.com

Note: Blank entries in the Used Parts pricing simply means that we have not had that part available to this point. The --- indicates
that the part is either not available as a Used Part or is not available as a New Part (other than NOS items).
