FORD - MERCURY BORG-WARNER OVERDRIVE

Transmission Parts Prices



Please note that the regular three speed gears for the overdrive transmissions are listed with the standard three speed gears (Pages 1-4)

Ford Part
Number		 Description Image

Price for
Used Part

Price for
New Part


Overdrive Controls

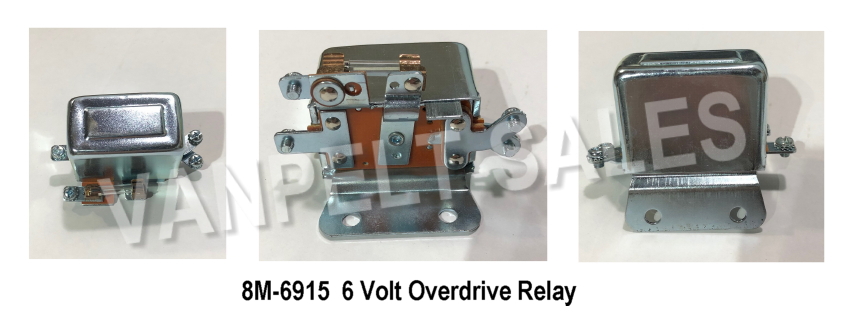

8M-6915 Overdrive Relay ( 6V ) - 1949-55    (also replaces FAA-6915) PIC --- $ 125.00

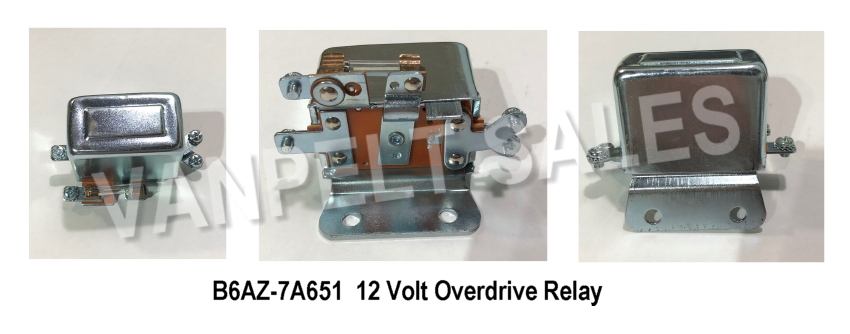

B6AZ-7A651A Overdrive Relay (12V) - 1956-64 PIC --- 125.00

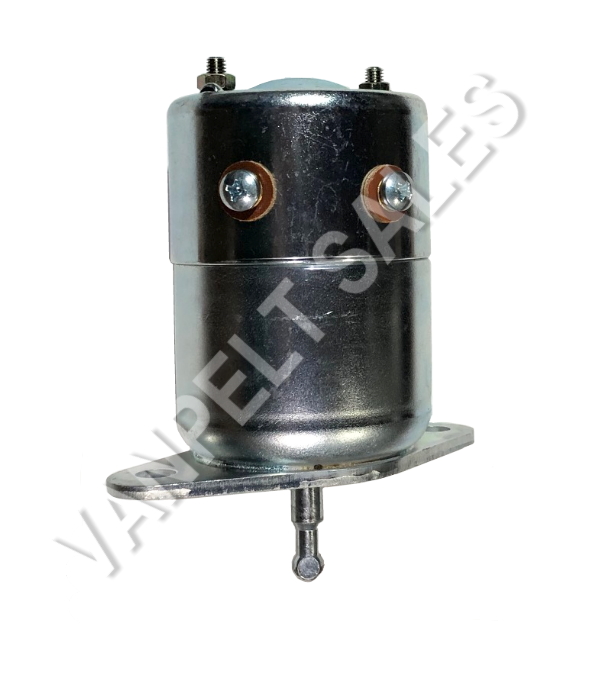

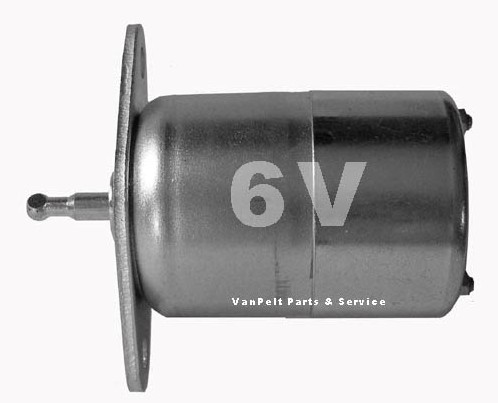

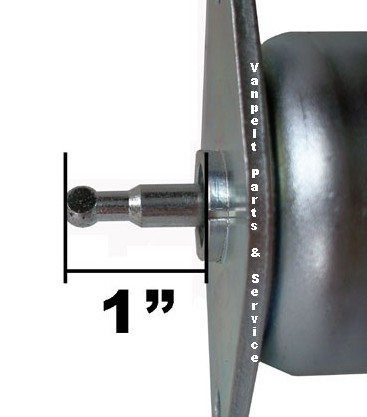

FAA-6916-A Overdrive Solenoid (6V) - Small boss base PIC --- 265.00
B6A-6916-A Overdrive Solenoid (12V) - Small boss base PIC --- 265.00

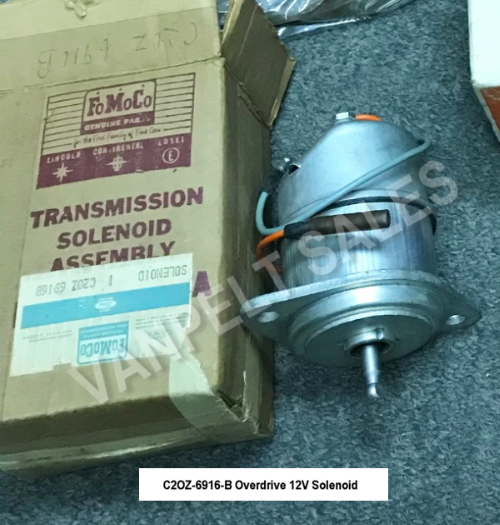

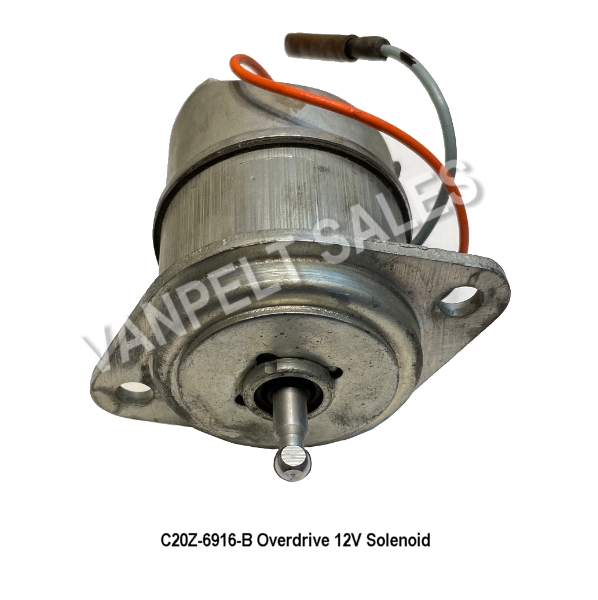

C20Z-6916-B Overdrive Solenoid (12V) - Large boss base PIC  PIC --- Check availability

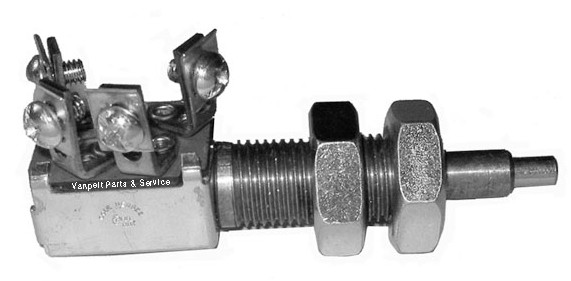

A9AZ-7A651A Overdrive Kickdown Switch  (replaces 8A-6918) - with 2 jam nuts PIC ---       33.00

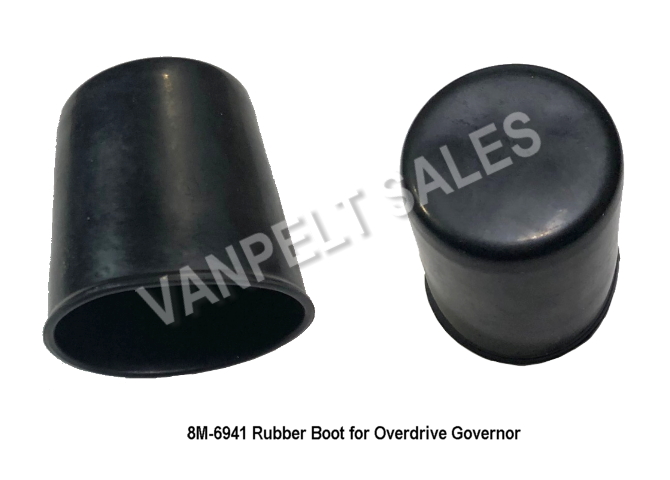

8M-6941 Overdrive Governor Rubber Cover PIC --- 9.00

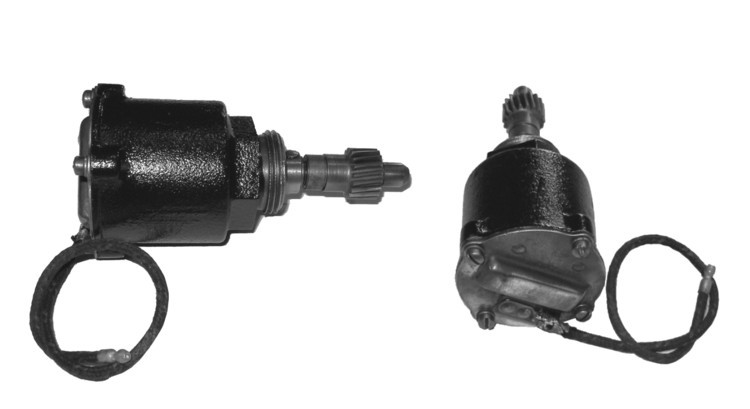

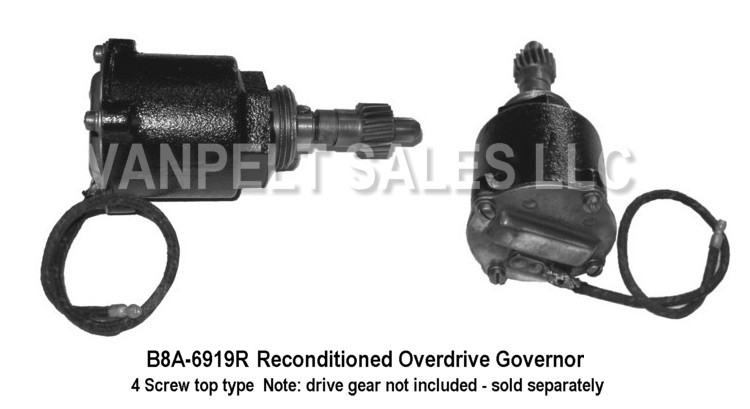

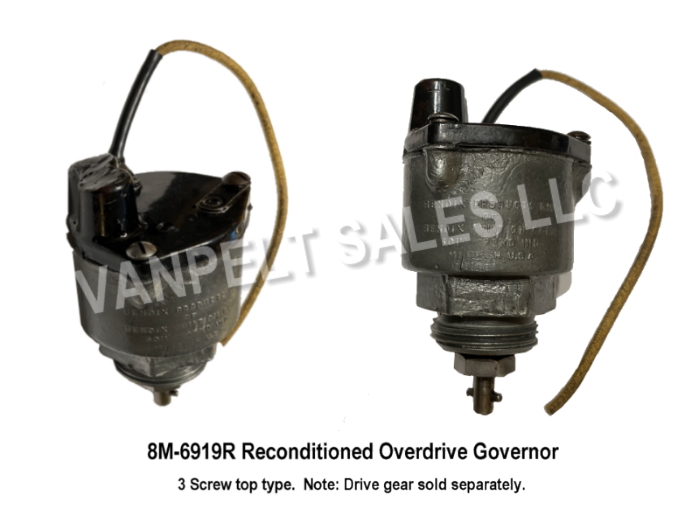

8M-6919R Overdrive Governor (reconditioned) - Less gear   Limited  Availability PIC ---            165.00
8M-6919N Overdrive Governor (New old stock) - Less gear   Limited  Availability PIC --- 215.00
8M-6922 Gear - Governor Driven (18T - LH pitch) - USED (49-56) PIC 25.00 ----

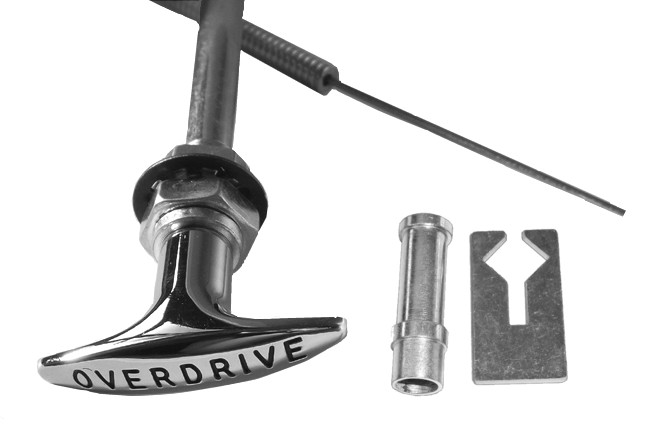

A9AZ-7A650A Overdrive Control Cable & Chrome Handle - 80" long   (fits all 49-65) PIC ---       49.50
NOTE: The overdrive relays and solenoids can be fitted to other vehicle makes and models. Some differences in wiring connections might be required.


Overdrive Transmission Parts


51A-7025 Ball Bearing - Trans MDG  (49-50 Merc + Early 51 Merc) PIC --- $   21.00
51A-7025F Ball Bearing - Top quality (see above applications) PIC --- 37.50
8A-7025 Ball Bearing - Trans MDG  (49-62 Ford, 51-59 Merc)   (= C3AZ-7025B) PIC ---      22.00
8A-7025 Ball Bearing - Trans Mainshaft (49-62 Ford, 51-59 Merc)   (= C3AZ-7025B) PIC --- 22.00
8A-7025 Ball Bearing - OD Mainshaft  (49-62 Ford, 51-59 Merc)   (= C3AZ-7025B) PIC ---      22.00
8A-7025 Ball Bearing - OD Mainshaft  (56-66 T-85 type)   (= C3AZ-7025B) PIC ---      22.00
8A-7025F Ball Bearing - Top quality (see above applications) PIC --- 32.00
B3TZ-7A034-A Bushing - OD Tail Housing (49-67) - 1.6250" OD PIC --- 8.00
B5AZ-7A034-A Bushing - OD Tail Housing (56-64) - 1.8125" OD PIC --- 9.50

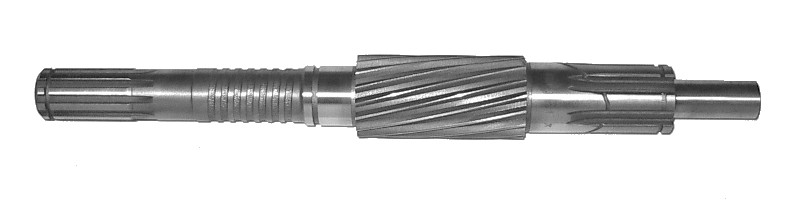

56H-7061 OD Trans Mainshaft (49-50 Mercury) - 14.25" long PIC $  95.00     145.00
8A-7061-B OD Trans Mainshaft (49-50 Ford) -  13.36 " long PIC 65.00     95.00
1A-7061-B OD Trans Mainshaft (51 Ford & Merc) -  13.36 " long PIC 75.00     105.00
AB-7061-B OD Trans Mainshaft (52-54 Ford & Merc) -  13.36 " long PIC 95.00     145.00
B5A-7061-D OD Trans Mainshaft (55 T-Bird) -  13.36 " long   (same as 1A-7061-B) PIC 75.00     105.00
B5A-7061-F OD Trans Mainshaft (55-60 Ford; 56-60 T-Bird) -  14.56 " long PIC 95.00     145.00
B5A-7061-G OD Trans Mainshaft (55-62 Ford) -  13.56 " long PIC 95.00     145.00
51A-7065 Ball Bearing - OD Housing  (49-50 Merc) - 2 required: (trans mainshaft + OD mainshaft) PIC ---  19.50
51A-7065F Ball Bearing - Top quality (see above applications) PIC --- 37.50
BB-7065 Ball Bearing - Trans MDG (56-65 T-85 type) PIC   39.50
BB-7065 Ball Bearing - Trans Mainshaft  (56-65 T-85 type) PIC   39.50

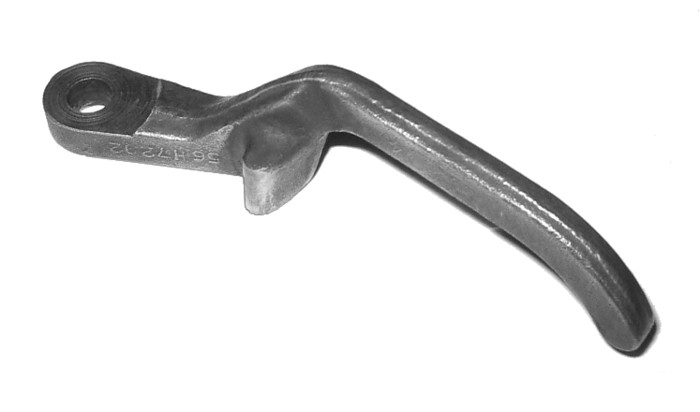

56H-7292 Lever - OD Rev Lockout   (49-50 Merc) - Fits inside shifter housing PIC 20.00

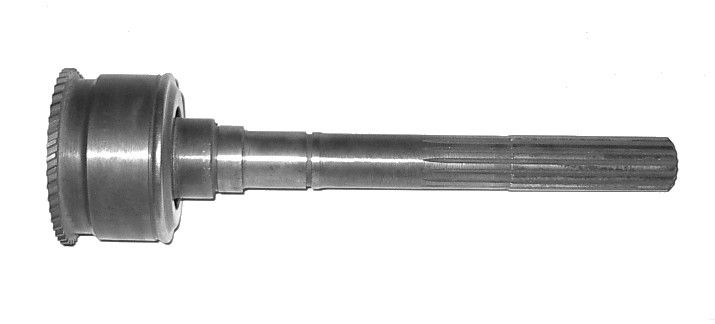

8A-7652 OD Mainshaft & Gear (49-51 Ford; 1951 Merc) - 12.75" long PIC 125.00  195.00
      7652 OD Mainshaft & Gear - see others below under the 7749 listings PIC ---
16H-7653 OD Ring Gear (42 spline x 4.25" diameter) 1949-66 R10) PIC 50.00
   8L-7653 OD Ring Gear (52 spline x 5.16" diameter) 1956-6 R11) PIC 50.00

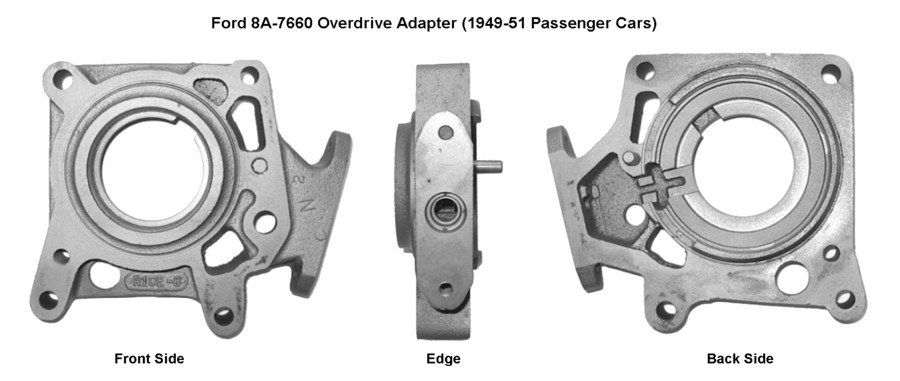

  8A-7660 OD Adapter - Trans case to OD Housing (1949-51 Ford; 51 Merc) PIC 80.00

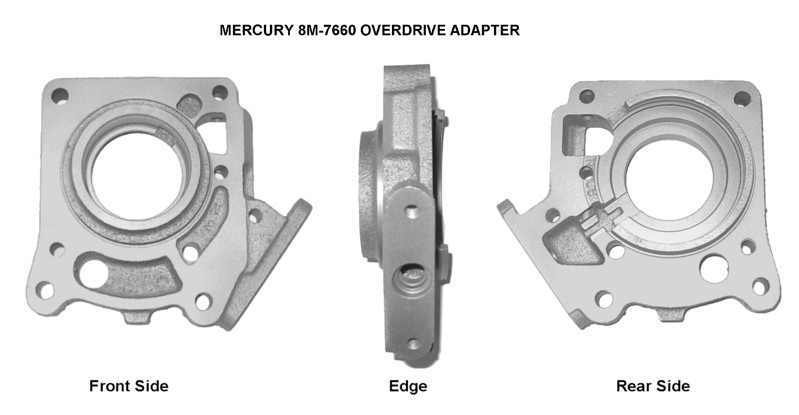

  8M-7660 OD Adapter - Trans case to OD Housing (1949-51 Merc) PIC 80.00
 AB-7660-A OD Adapter - Trans case to OD Housing (1952-51 Ford; 52-54 Merc) PIC 80.00
B5A-7660-B OD Adapter - Trans case to OD Housing (1955-59 Ford Six & V8) PIC 80.00
B7A-7660-A OD Adapter - Trans case to OD Housing (1957-59 Ford big V8) PIC 80.00
  8L-7660 OD Adapter - Trans case to OD Housing (1956-57 T-Bird 312 V8) PIC 80.00

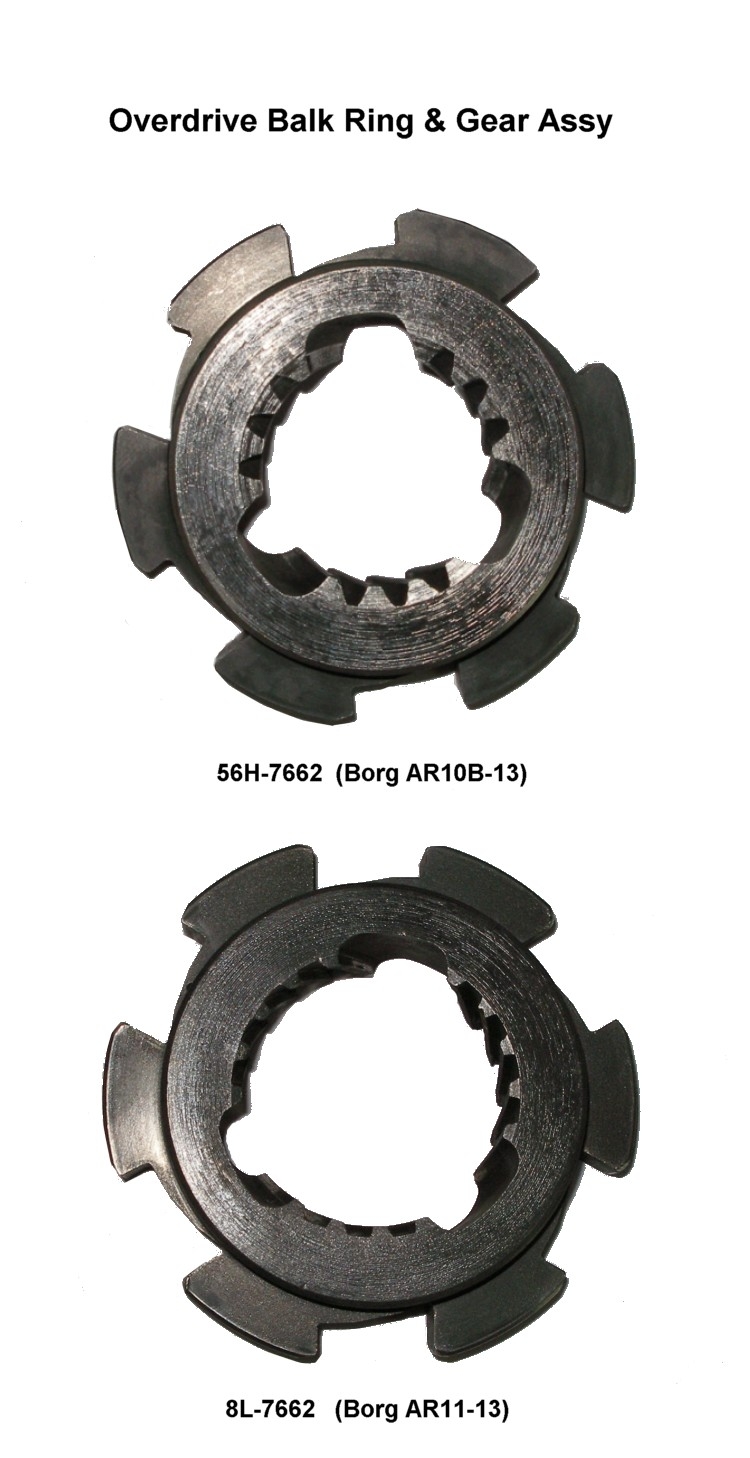

56H-7662 OD Balk Ring & Gear Assy (1949-64) PIC 45.00
  8L-7662 OD Balk Ring & Gear Assy (1956-70) PIC 55.00
8A-7665 OD Plate & Trough Assy (1949- PIC 35.00
8M-7665 OD Plate & Trough Assy (1949-51 Merc) PIC 35.00
AB-7665-A OD Plate & Trough Assy (1952-58 Ford) PIC 35.00
56H-7665 OD Plate & Trough Assy (1956-57 T-Bird 312 V8) PIC 35.00
B7A-7665 OD Plate & Trough Assy (1957-64) PIC 35.00
16H-7666 Snap Ring - Plate & Trough (1949-62 R10) PIC   5.00
16H-7668 OD Oil Baffle - Output Shaft (1949-51 Merc) PIC   7.00
  8A-7668 OD Oil Baffle - Output Shaft (1949-58 Ford) - 2.82" od PIC   7.00
56H-7670 OD Sun Gear  (1949-64)  PIC 85.00
  8L-7670 OD Sun Gear  (1949-70)  PIC 95.00
56H-7673 OD Planetary Gear (1949-66) - 3 pinion   (R10)     (check availability) PIC 345.00
  8L-7673 OD Planetary Gear (1949-70) - 4 pinion   (R11)     (check availability) PIC 385.00
16H-7674 OD Freewheel Retainer Clip (front) (1949-64)  (R10) PIC  3.00

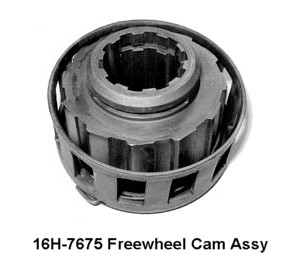

16H-7675 OD Freewheel Cam (w/o rollers)     (1949-64) - for R10     (check availability) PIC 130.00

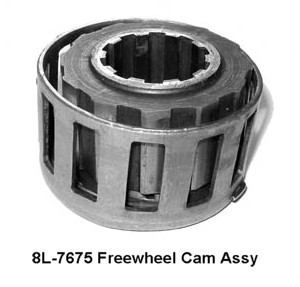

  8L-7675 OD Freewheel Cam (w/o rollers)     (1949-70) - for R11     (check availability) PIC 145.00
16H-7676 OD Freewheel Retainer Clip (rear) (1949-64)  (R10) PIC   3.00
16H-7679S OD Freewheel Roller Set (12) - (1949-64  R10) PIC 29.00
  8L-7679-S OD Freewheel Roller Set (12) - (1949-70  R11) PIC 29.00

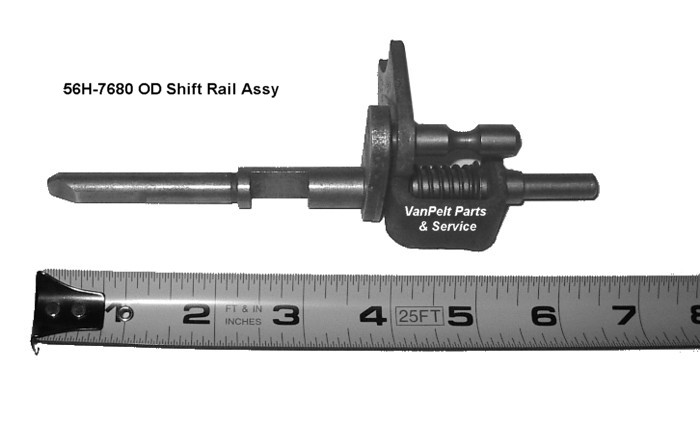

56H-7680 OD Fork & Rail Assy (1949-51 Merc) PIC 20.00 $ 30.00
  8A-7680 OD Fork & Rail Assy (1949-50 Ford - with lockout switch) PIC 20.00

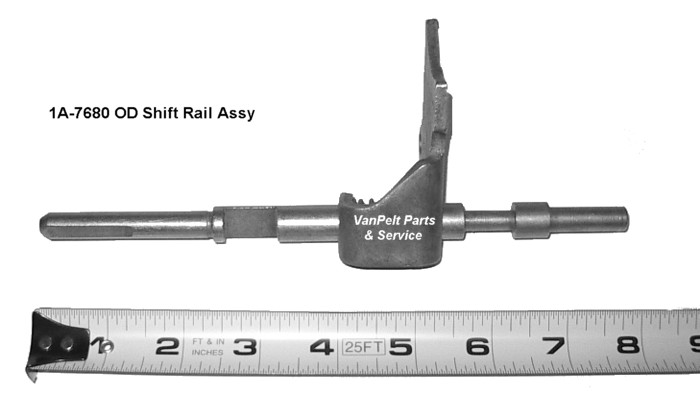

  1A-7680-A OD Fork & Rail Assy (1949-55 Ford & Merc) PIC 20.00 30.00

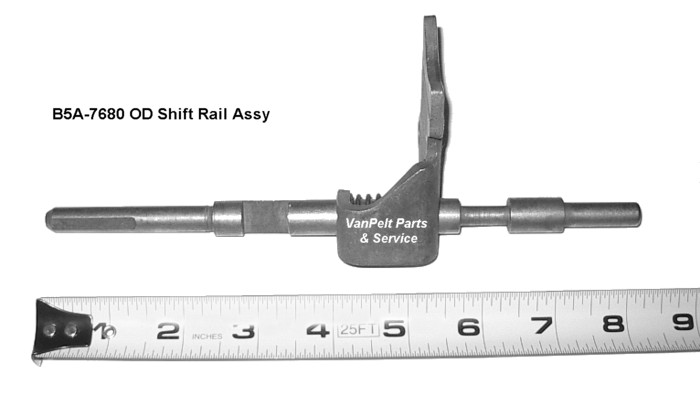

B5A-7680-B OD Fork & Rail Assy (1949-64 Ford & Merc) PIC 20.00 30.00
B5A-7680-A OD Fork & Rail Assy (1956-64 T-Bird 312 V8)) PIC 20.00 30.00
B7A-7680-A OD Fork & Rail Assy (1957-64 Ford & Merc big V8) PIC 20.00 30.00
16H-7685 OD Spring - Fork & Rail (1949-64 all) PIC   8.00
56H-7686 OD  Shaft - Control Lever (1949-51 Merc) PIC 17.00
 8L-7686 OD Control Lever & Shaft  Assy (1949-55 Ford & 1951-55  Merc) PIC 17.00
   56H-7688 Oil Seal - Control Lever Shaft  (replaced by A9AZ-7288A) PIC --- See Next Item
A9AZ-7288-A Oil Seal - Control Lever Shaft (1949-66 Ford & Merc) PIC --- $  7.00
 8A-7689 OD Lever - Control Shaft (1949-55 Ford + 51-59 Merc) PIC 20.00
 8M-7689 OD Lever - Control Shaft (1949-51 Merc) PIC 20.00

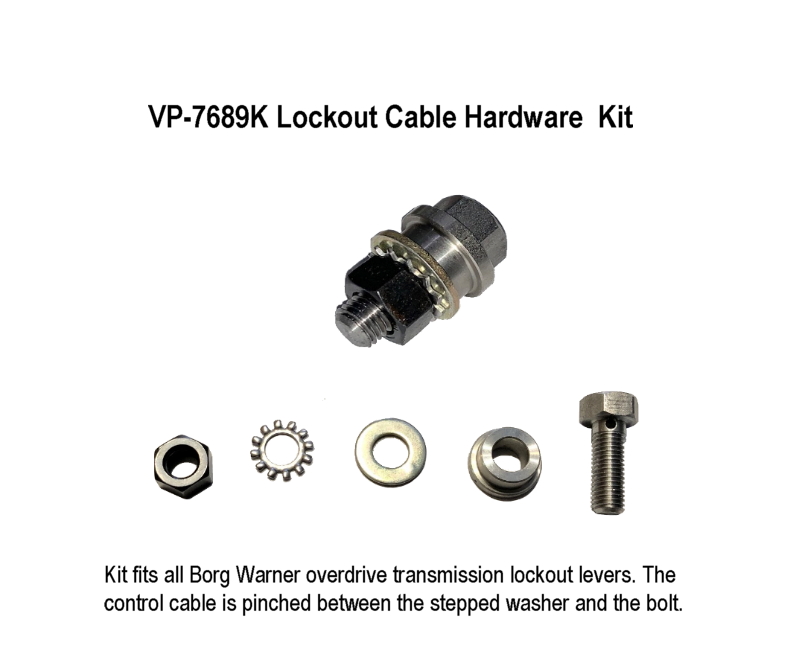

 VP-7689 Hardware for 7689 levers (special washers, bolt, and nut) PIC ---   $  19.00
B5A-77685-A OD Control Lever & Shaft  Assy (1955-64 Ford & 1951-56  Merc) PIC 17.00
B7A-77685-A OD Control Lever & Shaft  Assy (1957-64 Ford & 1957-64  Merc) PIC 17.00
 8M-7690 OD Pawl (1949-51 Merc) - with V-shaped slot PIC 10.00
 8A-7690 OD Pawl (1949-51 Ford + 1951 Merc) - with circular slot PIC 10.00
 AB-7690-A OD Pawl (1952-57 Ford + 52-57 Merc) - 2.11" long PIC 10.00
 B7A-7690-A OD Pawl (1957-64 Ford big V8) - 2.40" long PIC 10.00
 8L-7690 OD Pawl (1956-57 T-Bird) - 1.82" long PIC 10.00
16H-7691-C OD Interlock Plunger (1949-51 Merc) - 1.082" long PIC 10.00
16H-7691-E OD Interlock Plunger (1949-51 Merc) - 1.065" long PIC 10.00
26H-7693 Oil Seal - OD Solenoid (1949-66 Ford & Merc) PIC --- $     5.50
 8L-7696 OD Guide - Shift Rail (1949-59 Ford + 51 Merc) PIC 15.00
 8A-7713 OD Clip - cable to steering column (1949-52 Ford) PIC --- 5.50
 8M-7749 OD Mainshaft & Gear Assy (1949-51 Merc) - 10.75" long PIC 125.00 220.00
 AB-7749-A OD Mainshaft & Gear Assy (1952-56 Ford & Merc) - 16.03" long PIC 140.00 220.00
 B5A-7749-A OD Mainshaft & Gear Assy (1955-57 T-Bird) - 18.17" long PIC 140.00 240.00
 B7A-7749-A OD Mainshaft & Gear Assy (1957-63) - See C1AA-7749-B below PIC --- ---
 B7A-7749-B OD Mainshaft & Gear Assy (1957 Ford 312) - 22.18" long PIC 140.00 240.00
 C1AA-7749-B OD Mainshaft & Gear Assy (1957-63) - 16.03" long / 28 spline PIC 140.00 240.00


Overdrive Transmission Gasket Sets

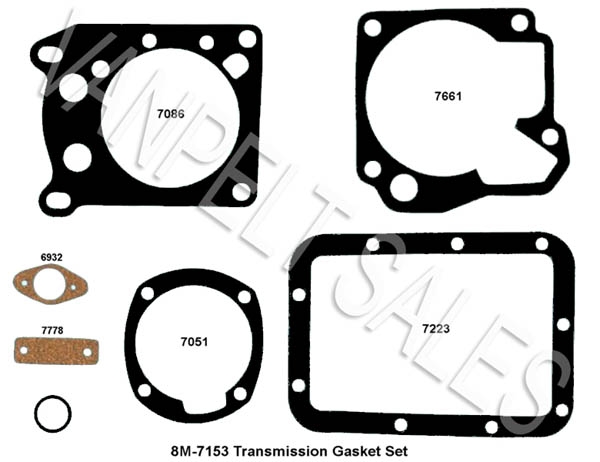

8M-7153 Gasket Set (49-51) Merc Std and OD Trans  (9 bolt side cover) PIC --- $ 19.50
B5A-7153-B Gasket Set (55-62) Ford L/D OD Trans (T86)  (6 bolt top cover) PIC ---    22.50
B6A-7153-A Gasket Set (56-65 Car) HD Std and OD Trans (T85)   (side load type) PIC ---    22.50
B6A-7153-D Gasket Set (48-56 Truck +  56-65 Car) HD Std and OD Trans (T85-T87-T89)   (side load & top load types) PIC ---    22.50
 Note: Transmission gasket sets only include the paper gaskets (no seals - seals are sold separately and in seal kits).


Overdrive Wiring Harnesses


 8M-14382 Main OD wire harness (49-51 Ford/Mercury) - molded ends PIC   Check Availability
 1A-14382 Main OD wire harness (1951 Ford)    - molded ends PIC   Check Availability
FAC-14382 Main OD wire harness (1952-54 Ford)   - molded ends PIC   Check Availability
B5S-14382 Main OD wire harness (1955 T-Bird)    - molded ends PIC   Check Availability
B7A-14382 Main OD wire harness (1956-58 Ford) with crimped ends PIC   Check Availability
B7A-14382M Main OD wire harness (1956-58 Ford) with molded ends PIC   Check Availability

Please Note:
 Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts (ie bearings, seals, thrust washers, gaskets, etc) or some limited supplies of new-old-stock or new-old-replacement-stock, or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. The Used Parts may be original Ford parts or might be used aftermarket manufacturer parts, depending on what is available at any given time. Our minimum order for product is $10.00 and the minimum shipping charge is $10.00 (US Dollars).

Repair Kits or Parts Kits
We do not offer multi-part kits (except for the gasket sets and seal kits) for the early Ford transmissions for one simple reason. There are too many variations in gears and other transmission parts over the years, and a kit would either have to include a lot of unnecessary parts, or would be missing a key part that your transmission required.
Please order the specific parts you actually need. We can assist you with this if you need help.

 Later Model Transmission Parts
We have been adding service parts and gears for Ford transmissions used from 1955 up into the 1960's, primarily three speed units for the passenger cars and light trucks. Not all of  these parts are cataloged and listed here, so please contact us for pricing and availability.

To place an order, call 1-513-724-9486. Office hours are Monday-Thursday from 9:00am to 5:00pm Eastern Time.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.

You can also reach us by  EMAIL:

Email: sales @ vanpeltsales.com

Note: Blank entries in the Used Parts pricing simply means that we have not had that part available to this point. The --- indicates
that the part is either not available as a Used Part or is not available as a New Part (other than NOS items).
