FORD CHASSIS PARTS

We stock BRAKE and SUSPENSION parts

Use these links for more information:

Brake Parts Drawings

Chassis/Frame Parts Drawings

Page 2 or 1 - Brake & Wheel Parts

Page 3 or 4 - Chassis/Frame Parts
Ford Part
Number		 Description Image Application Notes Price for
New Part


Hydraulic Brake - Miscellaneous Brake Springs & Parts

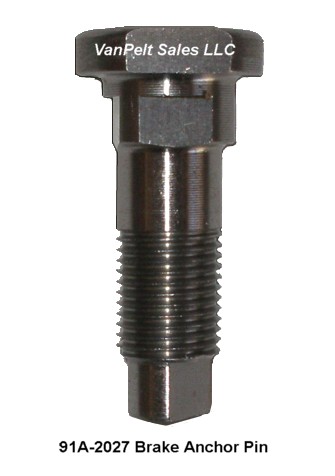

91A-2027 Anchor Pin PIC 1939-42 Car & Pickup Check Stock
96H-2027 Anchor Pin PIC 1948-52 Pickup (F1) $ 17.00
92Y-2027 Anchor Pin PIC 1939-52 Various Trucks 12.00
356039-S Nut - Anchor pin  PIC 1939-42 Car & Pickup 1.00
 33850-S Nut - Anchor pin  PIC 1948-52 Pickup (F1) 2.00
91A-2028 Cam - Brake Adjusting PIC 1939-42 Car & 39-44 Pickup 5.00

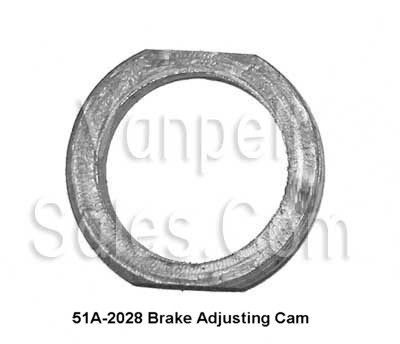

51A-2028 Cam - Brake Adjusting PIC 1946-48 Car & 45-47 Pickup 5.00

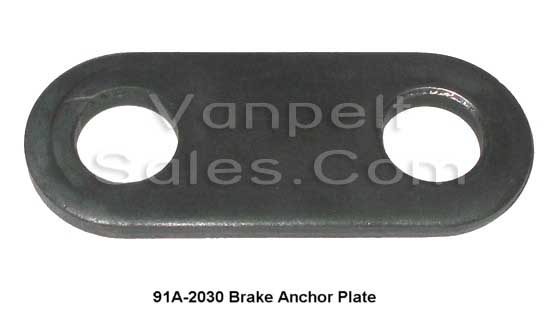

91A-2030 Anchor Plate PIC 1939-42 Car & 39-44 Pickup 2.50
51A-2030 Anchor Plate PIC 1946-48 Car & 45-47 Pickup 5.50

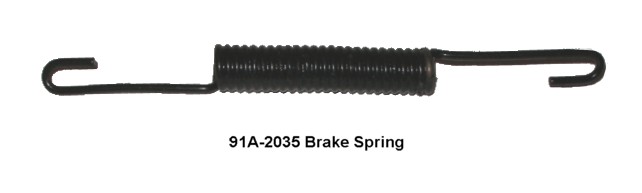

91A-2035 Spring - Brake Return (6.25") - Front or Rear PIC 1939-48 Car & Pickup   2.50

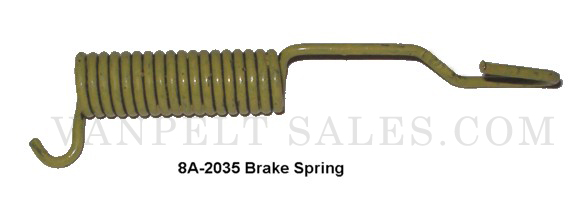

8A-2035 Spring - Brake Return (4.62") - Front or Rear PIC 1949-54 Car 2.50

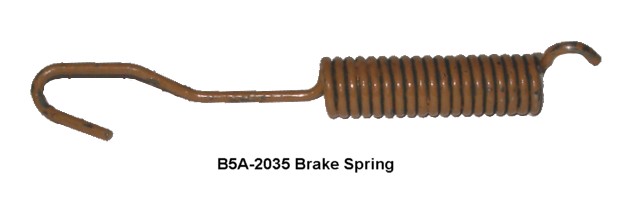

B5A-2035 Spring - Brake Return (5.00") - Front or Rear PIC 1949-59 Car 2.50
B7A-2041-S Starwheel adjust & socket (RH thread only - front or rear - vehicles w/o automatic adjusters PIC 1955-60 Car + 48-63 pickup 7.50
B7A-2042-A Link - Brake shoe to wheel cylinder (2 per WC) PIC 1949-72 Car (full size) 5.00

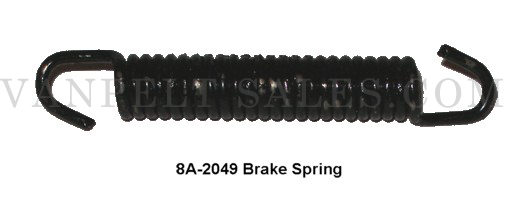

8A-2049 Spring - Brake Adjust (3.25") - Front or Rear PIC 1949-54 Car 2.95

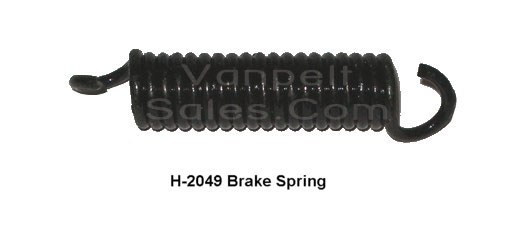

H-2049 Spring - Brake Adjust (3.25") - Front or Rear PIC 1949-59 Car 2.95
8A-2092 Rubber Plug (brake adjuster hole) PIC 1949-59 Car 0.95

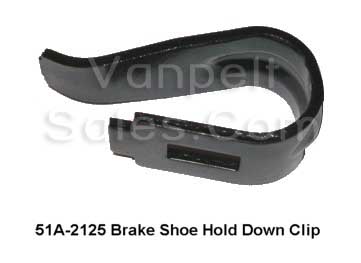

51A-2125 Clip - Brake Shoe Hold Down - Front or Rear PIC 1946-48 Car & 1946-51 Truck 6.00

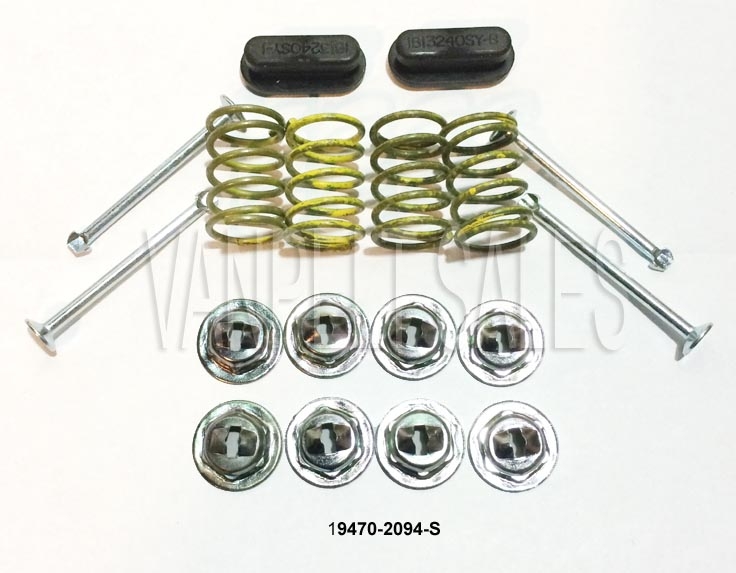

19470-2094S Brake Hardware Kit - Front PIC 1955-58 Ford Car 7.50

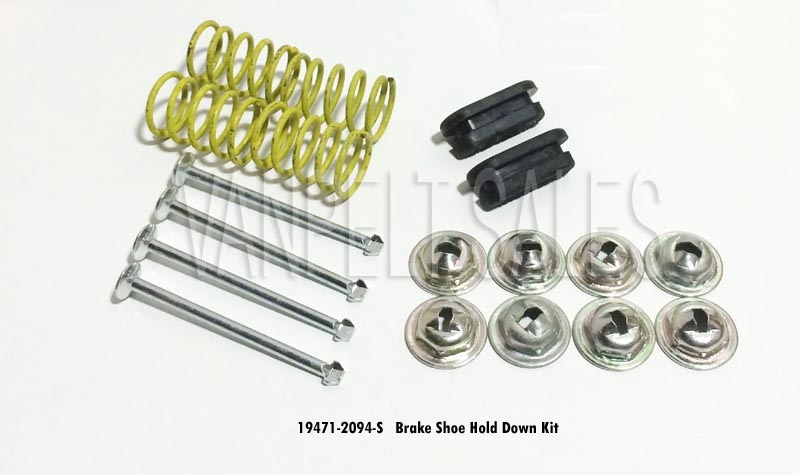

19471-2094S Brake Hardware Kit - Rear PIC 1955-58 Ford Car 7.50

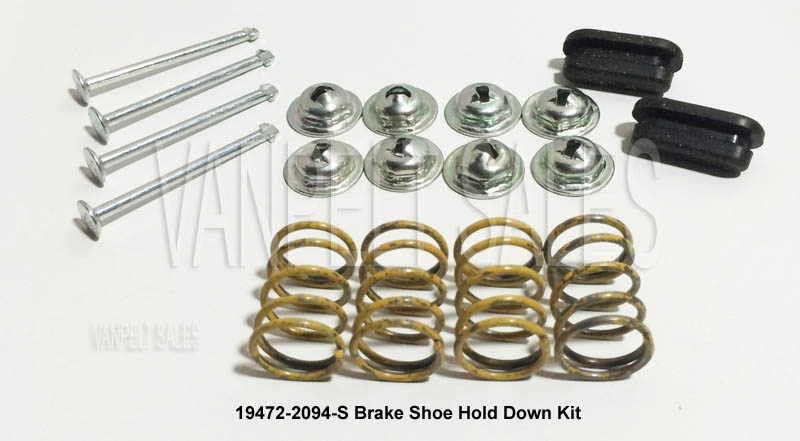

19472-2094S Brake Hardware Kit - Front or Rear PIC 1949-54 Ford Car 7.50


Hydraulic Brake - Master Cylinders


91A-2140-B Master Cylinder (includes 2180 boot & 2162 cap) PIC 1939-48 Car & 39-52 Pickup $ 69.50

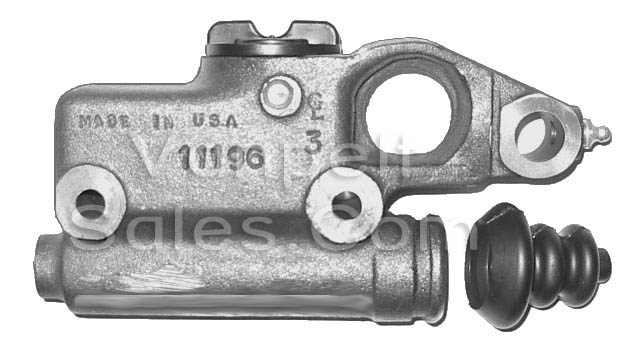

A9A-2140-A Master Cylinder (includes 2180 boot & 2162 cap) PIC 1949-51 Ford & Merc * Car 89.00

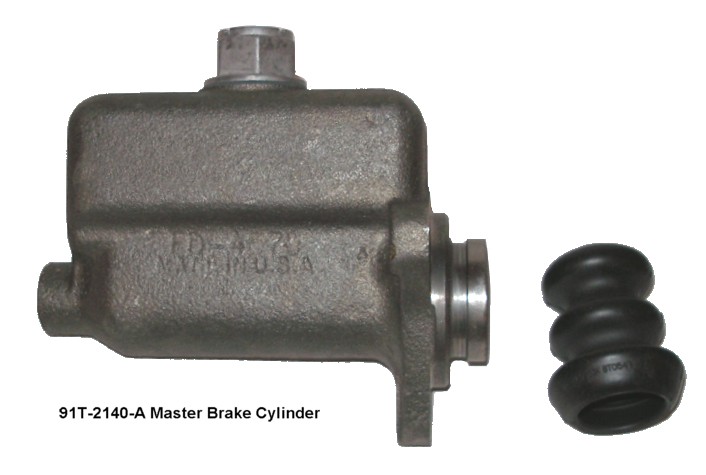

91T-2140-A Master Cylinder (includes 2180 boot & 2162 cap) PIC 1939-47 1 Ton Truck 96.50
B3C-2140 Master Cylinder (includes 2180 boot & 2162 cap) PIC 1953-56 F-100 Pickup 84.00
B5A-2140-B Master Cylinder (includes 2180 boot & 2162 cap) PIC 1952-56 Ford & Mercury 89.50
11A-13480 MC Brake Light Pressure Switch PIC 1939-59 Car & Truck 8.50
 * Note: The Ford cylinder mounting is the same as the Merc on this application. Bushings available on request.

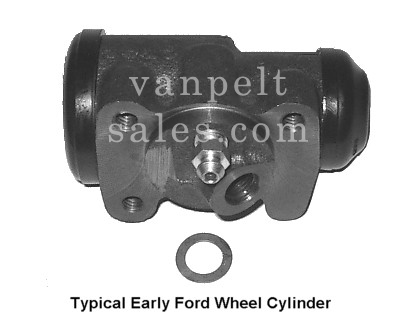

Hydraulic Brakes - Wheel Cylinders


21A-2061 Front-Right  (1" x 1-3/8" bore) PIC 1939-48 Car & Pickup $ 37.50
21A-2062 Front - Left  (1" x 1-3/8" bore) PIC 1939-48 Car & Pickup 37.50
91A-2261 Rear-Right  (1" x 1-1/8" bore) PIC 1939-48 Car & Pickup 37.50
91A-2262 Rear - Left   (1" x 1-1/8" bore) PIC 1939-48 Car & Pickup 37.50
AD-2061 Front - Right  PIC 1949-56 Ford & Mercury 28.50
AD-2062 Front - Left PIC 1949-56 Ford & Mercury 28.50
8A-2261 Rear - Right   (7/8" bore) = C3AZ-2261-B PIC 1949-59 Ford,  55-56 Mercury 27.00
8A-2262 Rear - Left      (7/8" bore) = C3AZ-2262-B PIC 1949-59 Ford,  55-56 Mercury 27.00

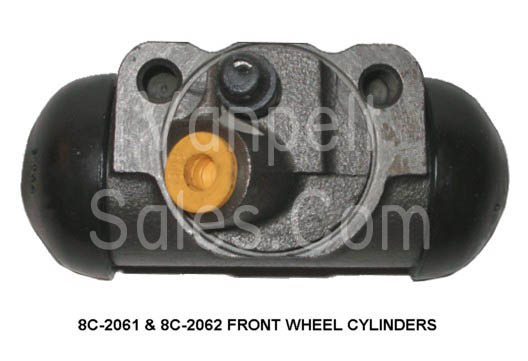

8C-2061 Front - Right  PIC 1948-60 Pickup 27.00
8C-2062 Front - Left PIC 1948-60 Pickup 27.00
8M-2261 Rear - Right PIC 1949-51 Mercury 31.00
8M-2262 Rear - Left PIC 1949-51 Mercury 31.00
8L-2261 Rear - Right PIC 1952-59 Mercury 28.50
8L-2262 Rear - Left PIC 1952-59 Mercury 28.50
92Y-2261 Front - Right & Left (1-3/8" bore) PIC 1939-47 1 Ton Truck 59.00
91T-2261 Rear - Right & Left (1-1/2" bore) PIC 1939-47 1 Ton Truck 79.00
8M-2208 Bleeder Valve (3/8-24) for original WC PIC 1939-59 Car & Pickup 1.50
Note:  Original 1939-41 Cars & Trucks used 1" x 1¼" bore front wheel cylinders but the 21A-2061 and 21A-2062 with 1" x 1-3/8" bore replace these in service.


Hydraulic Brake Hoses


99A-2079A Front Hose -15¾" long - For left or right side PIC 1939-48 Car & 39-47 Pickup $ 14.75
91A-2078A Rear Hose - 8¾" long PIC 1939-48 Car & 39-41 Pickup 12.75
01T-2078 Rear Hose - 18¼" long PIC 1942-47 Pickup,  40-47 Truck 14.75
8A-2078 Rear Hose - 17.5" long (49-51 and 57-58 car)     and Front Hose (48-52 F1 & 52-60 F100) PIC 49-51 & 57-58 Car & 48-60 Pickup 15.75
TAAA-2078 Front Hose - 17.2" long) PIC 1953-56 F100 Pickup 16.50
B4AZ-2078A Front Hose - 1.2" long) PIC 1954-56 Car + 55-57 TB + 59 car 19.75
B7AZ-2078A Front Hose - 15.0" long) PIC 1957-58 Car +  19.75
8A-2079 Front Hose - 12.0" long) PIC 1949-51 Car & 48-60 Pickup 15.75
Note: Several of the brake hoses listed above also cover other applications including front and rear. Call for specific vehicle listings if you do not see it listed here.


Miscellaneous Brake Parts & Fittings

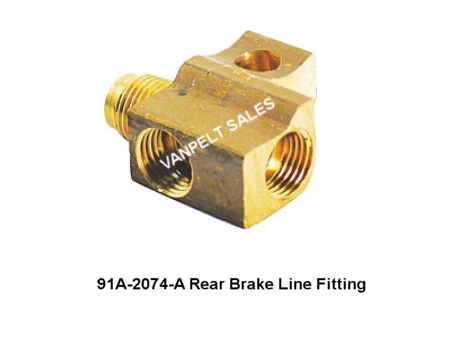

91A-2074-A Brake Line Fitting - T Connector PIC 1939-41 Car & Pickup 11.75

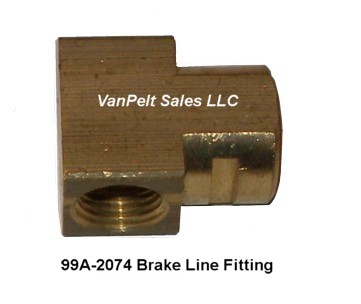

99A-2074 Brake Line Fitting - T Connector PIC 1941-48 Car 13.50

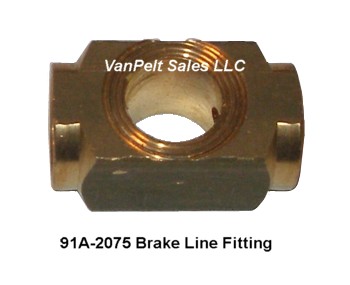

91A-2075 Brake Line Fitting - Connector PIC 1939-48 Car & 39-41 Pickup 11.50

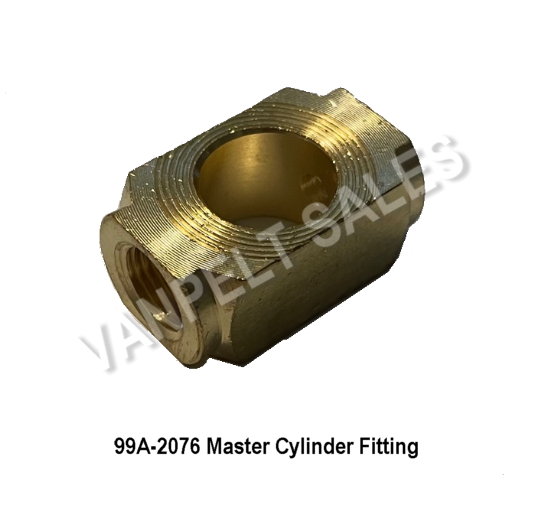

99A-2076 Brake Line Fitting - MC Outlet PIC   19.00
91A-2076 Brake Line Fitting - MC Outlet - V Outlet PIC 1939-40 Car & Pickup 13.75
99T-2076 Brake Line Fitting - MC Outlet PIC 1939-48 Car & 39-41 Pickup 14.50

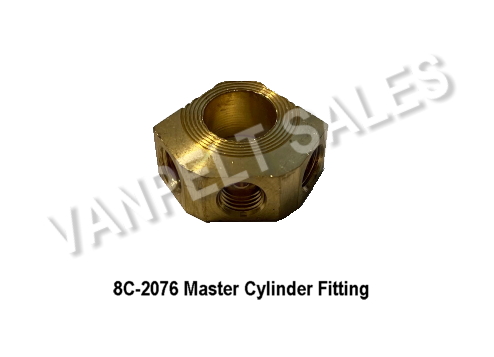

 8C-2076 Brake Line Fitting - MC Outlet PIC 1948-56 F1 and F100 Pickup 19.00

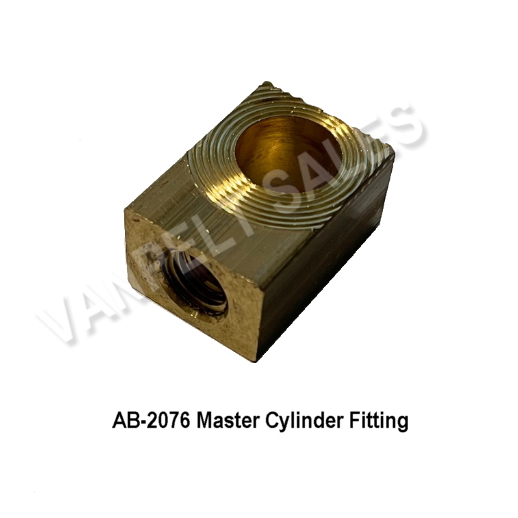

 AB-2076 Brake Line Fitting - MC Outlet PIC 1952-59 Car & 55-57 T-Bird 11.00

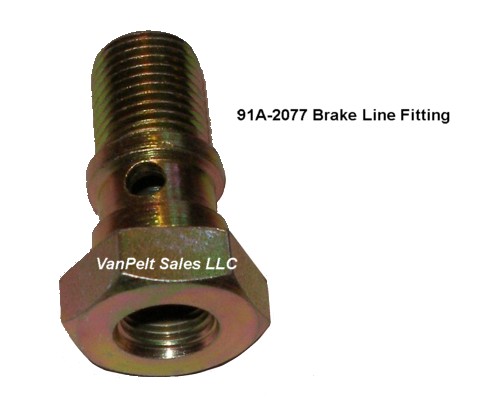

91A-2077 Brake Line Fitting - MC Bolt PIC 1939-48 Car & 39-47 Pickup 6.75

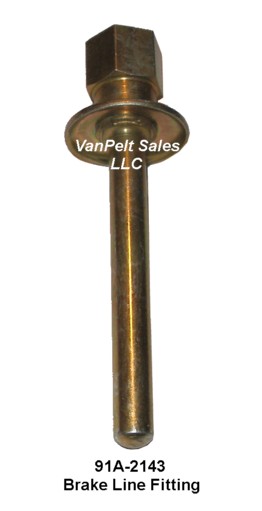

91A-2143 Push Rod - MC PIC 1939-48 Car & 39-47 Pickup 15.00

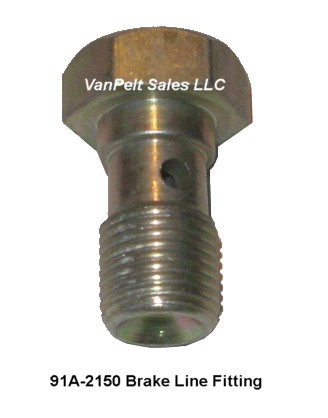

91A-2150 Brake Line Fitting - Bolt PIC 1939-48 Car & 39-41 Pickup 5.50
91A-2149 Copper O-Ring Washer (0.69" OD x 0.45" ID) PIC Various 0.85
91A-2151 Copper O-Ring Washer (0.81" OD x 0.61" ID) PIC Various 0.85
91A-2152 Copper O-Ring Washer (0.81" OD x 0.51" ID) PIC Various 0.85
8M-2208 Bleeder Screw (1 per wheel cylinder) PIC 1939-48 Car & 39-47 Pickup 1.50
8T-2208 Bleeder Screw (1 per wheel cylinder) PIC 1939-46 Truck - Rear 2.00
91A-2462 Rod - Brake Pedal to MC pushrod PIC 1939-48 Car & 39-47 Pickup 8.00
21C-2462 Rod - Brake Pedal to MC pushrod PIC 1942-52 Pickup & Commercial 24.50

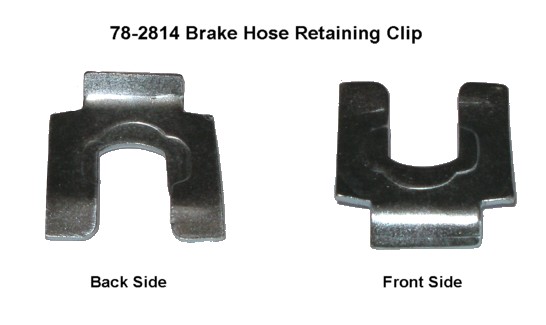

78-2814 Clip - Brake Hose Connection (priced each) PIC 1939-73 1.25


Wheel Cylinder Repair Kits


91A-2221 For 91A-2061 & 91A-2062 front wheel cylinders PIC 1939-41 Car & Pickup $ 10.50
21A-2221 For 21A-2061 & 21A-2062 front wheel cylinders PIC 1939-48 Car & Pickup 19.95
91A-2128 For 91A-2261 & 91A-2262 rear wheel cylinders PIC 1939-48 Car & Pickup 8.50
8A-2128 For 8A-2261 & 8A-2262 rear wheel cylinders PIC 1949-56 Ford & Mercury 6.50
8M-2221 For front wheel cylinders with 1-1/8" bore PIC   6.50
91T-2221 For 92Y-2261 front wheel cylinders PIC 1939-47 1½ Ton Truck 6.50
91T-2128 For 91T-2261 rear wheel cylinders PIC 1939-47 1½ Ton Truck 6.50
Note:  Some wheel cylinders may be too pitted/damaged for a safe repair. Consider buying complete new wheel cylinders for your vehicle.


Parking Brake Parts


    48-2045 Pin - Cable Clevis to Equalizer Yoke PIC 1939-48 $ 3.00

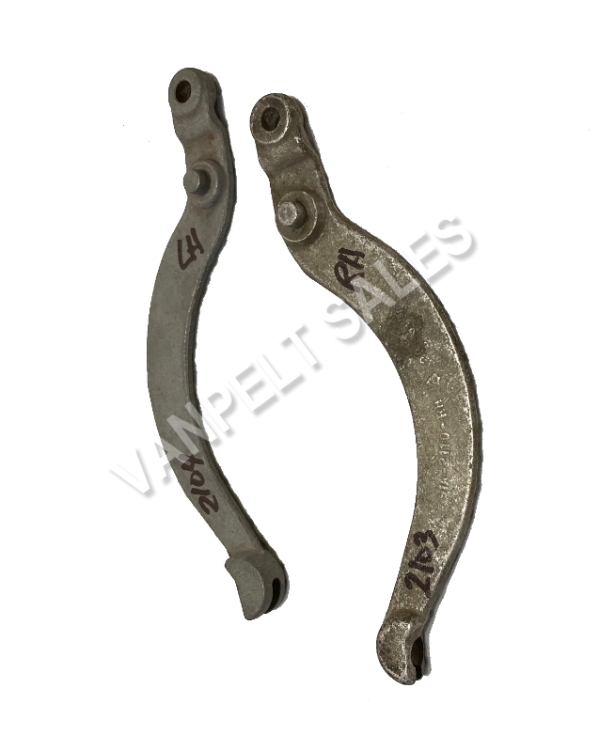

 91A-2103 Lever - Parking Brake (RH side) - Used part (call for pricing on NOS) PIC 1939-48 Car & 39-47 Pickup 17.00
 91A-2104 Lever - Parking Brake (LH side) - Used part (call for pricing on NOS) PIC 1939-48 Car & 39-47 Pickup 17.00
  91A-2105 Pin - Parking Brake Link Pin (2 per vehicle) PIC 1939-48 Car & 39-47 Pickup 3.00
  91A-2106 C-Clip - Parking Brake Retainer (4 per vehicle)               Each: PIC 1939-73             0.75
  91A-2107 Pin - Parking Brake Link Pin (2 per vehicle) PIC 1939-42 Car & 39-42 Pickup 4.00
  91A-2108 Link - Parking Brake (RH side) - Used part (call for pricing on NOS) PIC 1939-48 Car & 39-47 Pickup 12.00
  91A-2109 Link - Parking Brake (LH side) - Used part (call for pricing on NOS) PIC 1939-48 Car & 39-47 Pickup 12.00
  91A-2113 Retainer Plate - Parking Brake Cable              Each: PIC 1939-48 2.50

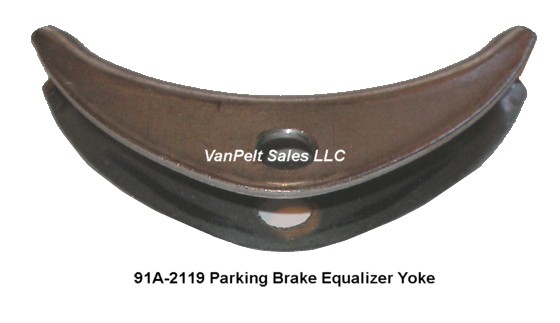

  91A-2119 Equalizer Yoke - Parking Brake Cable PIC 1939-48               5.00
  91A-2271 Rubber bushing - fits into the 91A-2272 strap (2 required) PIC 1939-40 Car & 39-41 Pickup 3.50
  91A-2272 Strap - Hand brake cable stabilizer (2 required) PIC 1939-40 Car & 39-41 Pickup 7.00
  91A-2275-B Cable Assy - Parking Brake (122" long) PIC 1939-41 Car & 39-41 Pickup             18.50
  21A-2275

Cable Assy - Parking Brake (107¼" long) - also replaces 99A-2275 cable

 PIC 1941-48 Car             18.50
  21C-2275 Cable Assy - Parking Brake (44.75" long) - 2 per vehicle PIC 1942-47 Pickup & 48-52 F2/F3 27.00
    8C-2275 Cable Assy - Parking Brake (45.375" long) - 2 per vehicle (same as B1TZ-2635) PIC 1948-52 F1 Pickup 35.00
TAAA-2275A Cable Assy - Parking Brake (          ) PIC 1953-60 F100 Pickup 39.00
  91A-2597 Rubber Boot - Parking Brake Cable PIC 1939-48 car & 39-47 Pickup               2.00
 01A-2853 Parking Brake Front Cable Assy (77" long) PIC 1940-41 Car (exc 60hp) 29.00
 01C-2853 Parking Brake Front Cable Assy (70" long) PIC 1939 Car + 39-41 Comm 29.00
 11A-2853 Parking Brake Front Cable Assy (87.5" long) PIC 1941-48 Car 29.00
 7RC-2853 Parking Brake Front Cable Assy (      ) - same as 2C-2853 PIC 1948-52 F1 Pickup 55.00


Brake & Clutch Pedal Parts


  40-2454 Brake or Clutch Pedal Pad (diamond rubber pattern) PIC 1933-40           $ 8.00
 11A-2454 Brake or Clutch Pedal Pad (circular rubber pattern) PIC 1933-48 cars + 48-52 F-1               11.00
  8A-2454 Brake or Clutch Pedal Pad (rectangular rubber pattern) PIC 1949-51 Ford cars 8.50
91A-2476-S Pedal Seals (for clutch & brake pedals) - one set for both PIC 1939-48 Car & 39-41 Pickup 7.50
  48-2470-A Bushing - Clutch & Brake Pedal Assy - 3.80" long PIC 1935-38 Car + 38-47 COE 25.00
B7AZ-2471B Bushing - Clutch & Brake Pedal Bracket (nylon) - 2 required per pedal PIC 1957-72 Car 2.00
Note: The 11A pedal pads can be used as replacement for the 1933-40 pedals. The difference is primarily in the pattern on the molded rubber pad. Both pads are the rubber pad bonded to the steel back plate with the threaded attaching stud.   NOTE: the 2471 bushing has many applications - check your vehicle model before ordering.


Brake Pedal Return Springs

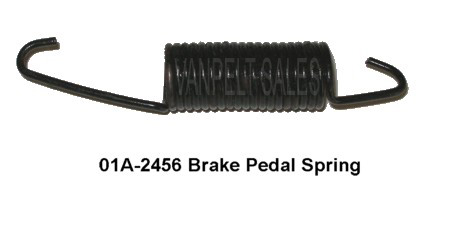

  01A-2456 Spring - 4.25" long PIC 1940 Car & 40-41 Pickup            $ 4.00
  51-2472 Spring - 4.90' long PIC 1935-37 Various Truck               6.00
 91T-2472 Spring - 5.70" long PIC 1939 Truck (exc COE) 6.00

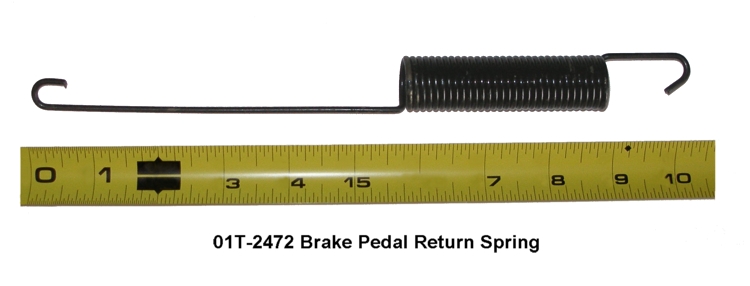

  01T-2472 Spring - 10.25" long PIC 1942-47 Comm + 1940-52 Truck               4.50
  91A-7523 Spring - 5.40" long PIC 1939 Car               4.00


Brake Pedal Shaft Bushings


  48-2470A Bushing - Brake & Clutch Pedal (3.80" long) PIC 1935-56 Car Out of Stock
 B7AZ-2471B Bushing - Brake & Clutch Pedal Mounting Bracket - 4 per vehicle PIC 1957-72 Car - Various $ 2.00
    B-7526 Bushing - Brake Pedal (1.78"L x 0.941"OD x 0.874"ID) - See also for Clutch Pedals PIC 1932-36 Car/Commercial
1944-52 trucks		 $ 3.00
  48-7526 Bushing - Brake Pedal (1.80"L x 1.129"OD x 1.070"ID) - See also for Clutch Pedals PIC 1937-48 Car + 37-47 Commercial;
1948-56 trucks		 5.50
  91A-7526 Bushing - Brake Pedal (1.92"L) PIC 1939 All vehicles Out of Stock
  01A-7526 Bushing - Brake Pedal (0.68"L) PIC 1940-48 Car + 40-41 Commercial 5.50
Note: The above pedal bushings are also listed for the clutch pedals in the transmission parts group. Go to Page 3 for those listings.
