FORD TRANSMISSION PARTS

We stock parts for most Ford three speed transmissions manufactured from 1932 to 1965. Check our inventory of new and good used parts. Use the links below for the truck 4 speed, the V8-60, and the Borg-Warner overdrive. Gasket sets are on Page 2. Gear Oil is on Page 4. Seal kits are on Page 5

3 SPEED PARTS PRICES:

Page 1 - Page 2 - Page 3 - Page 4 - Page 5

V8-60hp Trans Parts Prices

Truck 4 Speed TransParts Prices

Overdrive Trans Parts Prices

Ford Part
Number
Description Image Price for
Used Part
Price for
New Part

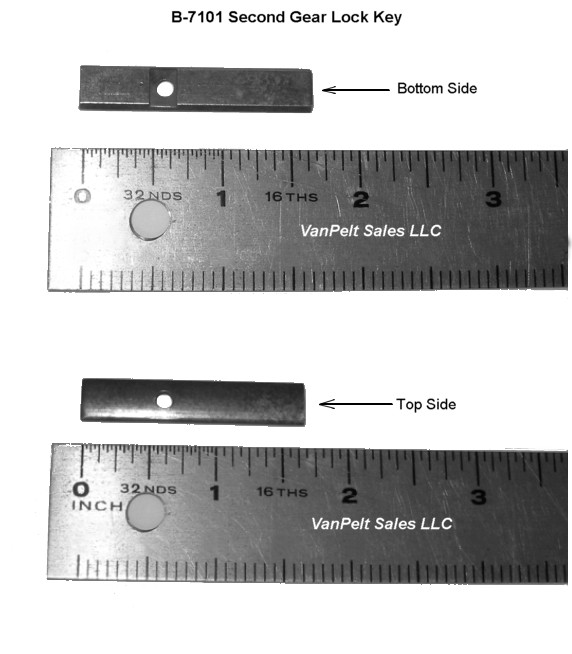

        B-7101 Key - Second Gear Lock   (32-39) PIC $   4.00 $    4.50
    81A-7102R Intermediate (2nd) Gear - 22 tooth  (39-50)           (replaces 51A-7102) PIC ------   135.00

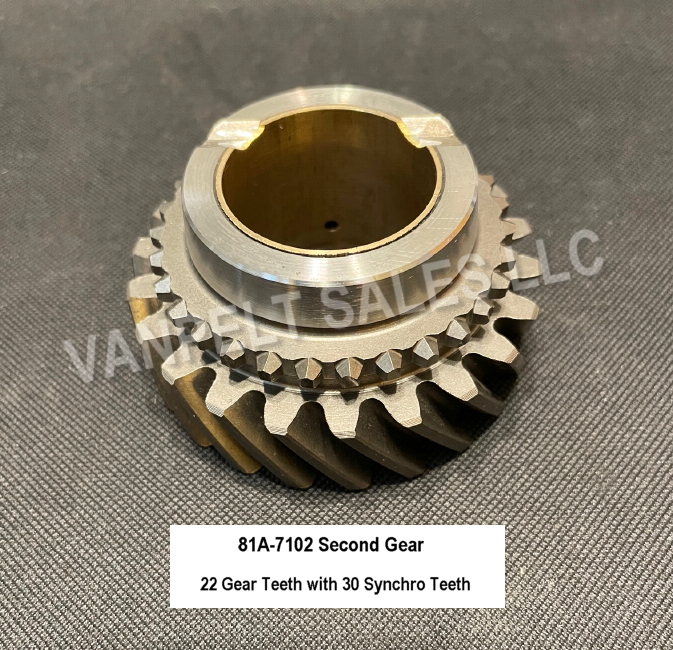

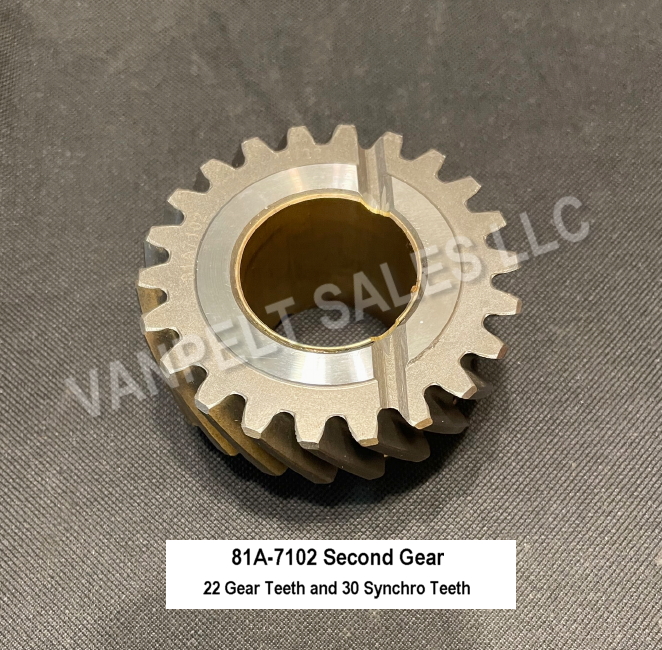

    81A-7102 Intermediate (2nd) Gear - 22 tooth  (39-50)   (replaces 51A-7102) - NOS or NORS PIC 85.00   165.00
    51A-7102 Intermediate (2nd) Gear - 22 tooth  (39-50)   (replaced by 81A-7102   ------ ------

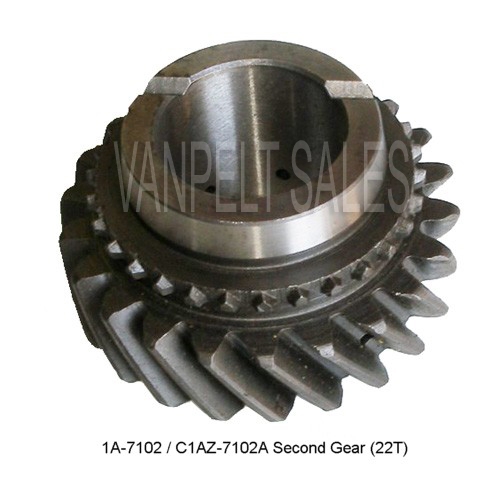

      1A-7102R Intermediate (2nd) Gear - 22 tooth  (51-54)           (= C1AZ-7102A) PIC 60.00   135.00
      1A-7102 Intermediate (2nd) Gear - 22 tooth  (51-54)           (= C1AZ-7102A) - NOS or NORS PIC 60.00   165.00
  B5A-7102-D Intermediate (2nd) Gear - 26 tooth (55-65)  for T-85 (Std or OD) PIC 95.00 145.00
  B6A-7102-A Intermediate (2nd) Gear - R23 tooth (55-63)  for T-88 OD trans PIC 60.00 124.00

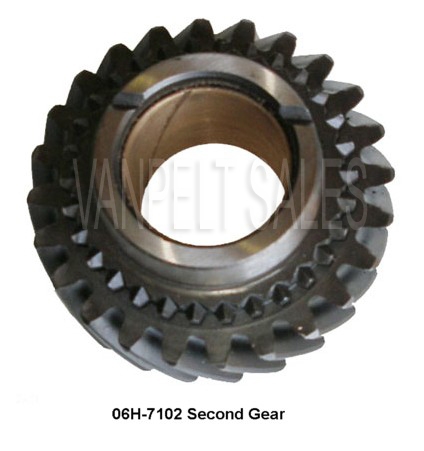

    06H-7102 Intermediate (2nd) Gear - 24 tooth  (40-48)  L-Z PIC 85.00   165.00
        B-7103 Intermediate (2nd) Gear - 22 tooth  (32-39) PIC 95.00   175.00
      68-7104 Bushing for B-7103 gear (replaces the B-7104 bushing) PIC ------     29.00
      Used New

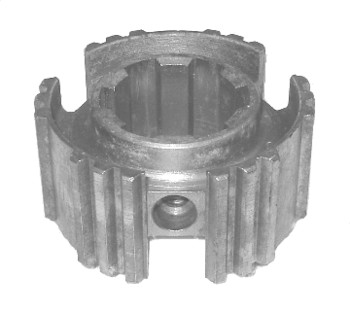

   81A-7105 Synchronizer Hub (39-48) - uses 3 balls, 3 springs, and 3 inserts (not included) - NOS or NORS PIC $ 25.00 $  45.00

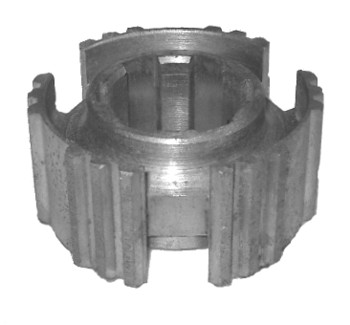

   51A-7105 Synchronizer Hub (39-54) - uses 2 spring retainer and 3 inserts (not included) - NOS or NORS PIC 25.00   45.00

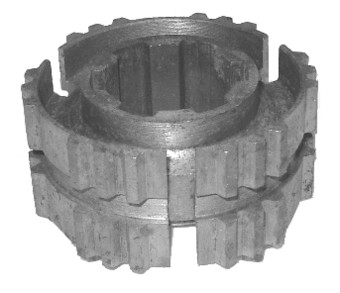

   B5A-7105 Synchronizer Hub (55-62 T86) - uses 2 spring retainers and 3 inserts (not included) - NOS or NORS PIC 25.00   45.00
      Used New

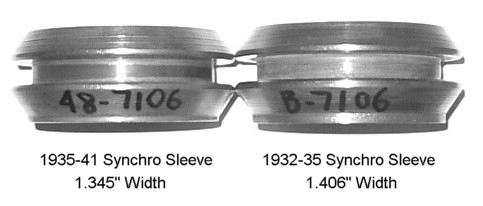

       B-7106 Synchronizer Sleeve  (32-34) - used with B-7108 hub (1.406" wide)  Used or NOS PIC $ 60.00 $  95.00
     48-7106 Synchronizer Sleeve  (35-41) - used with B-7108 hub (1.345" wide)  Used or NOS PIC 55.00 95.00

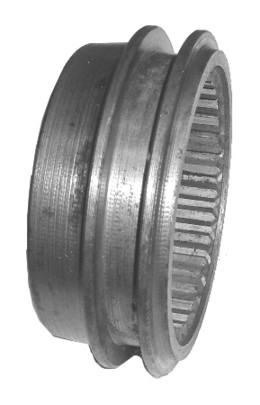

   81A-7106 Synchronizer Sleeve  (39-48) - 3.376" OD - 2.90" groove - NOS or NORS PIC 25.00  45.00

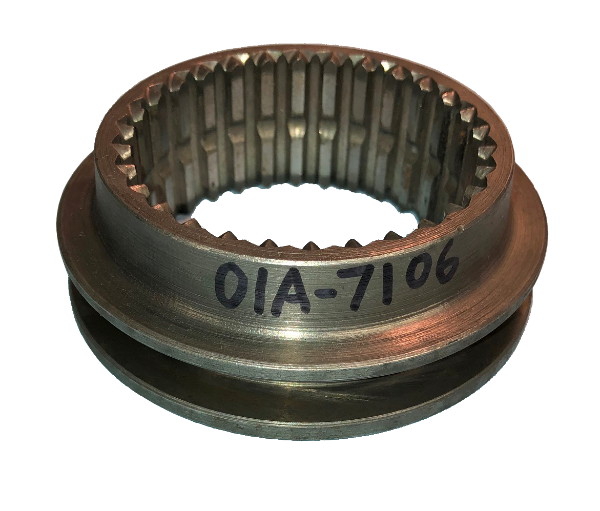

   01A-7106 Synchronizer Sleeve  (39-48) - 3.626" OD - 2.90" groove - Used or New PIC 25.00  49.00
   B5A-7106 Synchronizer Sleeve  (55-62 T86) - 3.626" OD - 2.90" groove - Used or NOS PIC 25.00   45.00

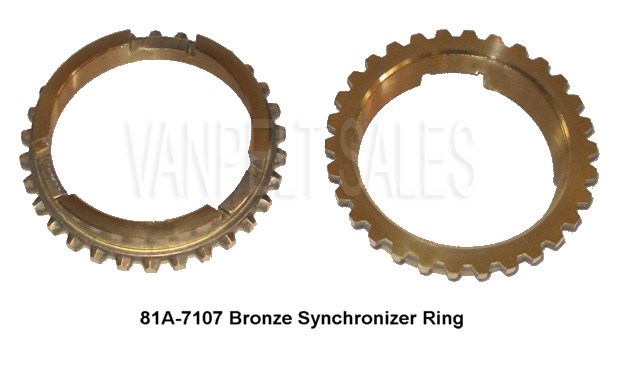

   81A-7107 Synchro Bronze Ring (39-62) - 2 required (price is each ring) - Exact Fit - New PIC -------    9.50
   81A-7107N Synchro Bronze Ring (39-62) - 2 required (price is each ring) - NOS or NORS PIC -------    19.50

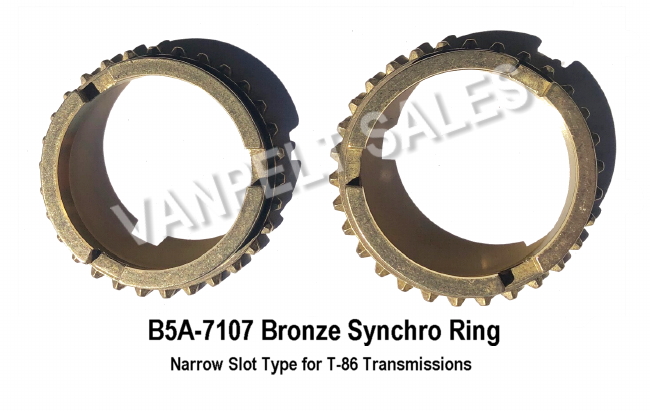

  B5A-7107-A Synchro Bronze Ring (55-62 T86) - 2 required (price is each ring) - Narrow Slot type PIC ------- 12.50

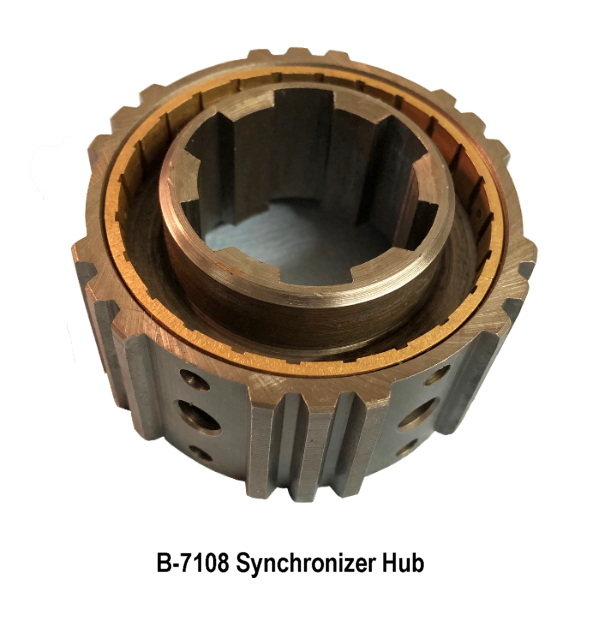

       B-7108 Synchronizer Hub (32-41) - uses 6 balls & 6 springs (not included) PIC 75.00 125.00
       B-7109 Spring (32-38 type synchronizer) 6 required - for B7108 hub    (price is per spring) PIC ------     2.50

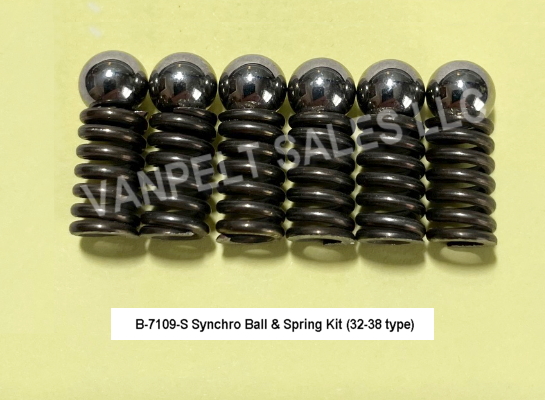

    B-7109-S Spring & Ball Kit   (12 pcs) - for all 32-38 early style syncrhonizers PIC ------ 12.00
  81A-7109 Spring (39-48) 3 required - for 81A-7105 hub (price is per spring) PIC ------    2.00
  81A-7109S Spring-Ball-Insert set (3 each) - for 81A-7105 hub (price is for a set)  OK to replace with 51A-7109-S kit PIC ------ 12.00

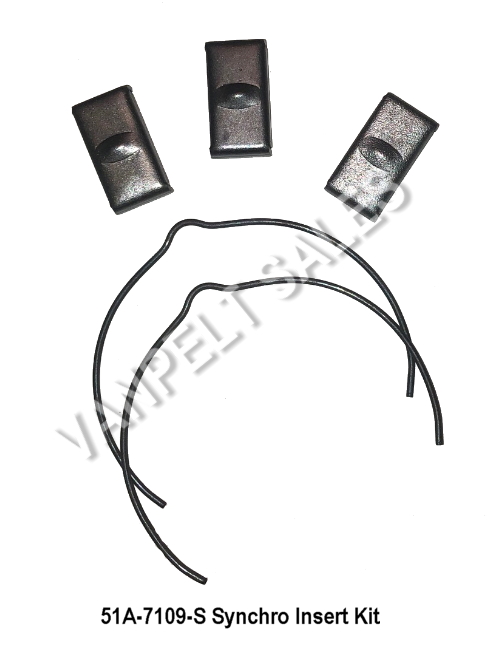

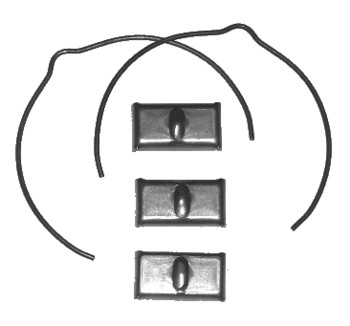

  51A-7109S Spring and Insert set (2&3 of each) - for 51A-7105 hub (price is for a set)     Use with 81A or 51A-7105 hub PIC ------ 11.00
  B5A-7109 Spring (55-62) 3 required - for 91A-7105 and B5A-7105 hub (price is per spring) PIC 3.00 5.00
      B-7111R Countershaft   (32 to 48 or to 52 pickup) - Reproduction PIC ------ 15.00

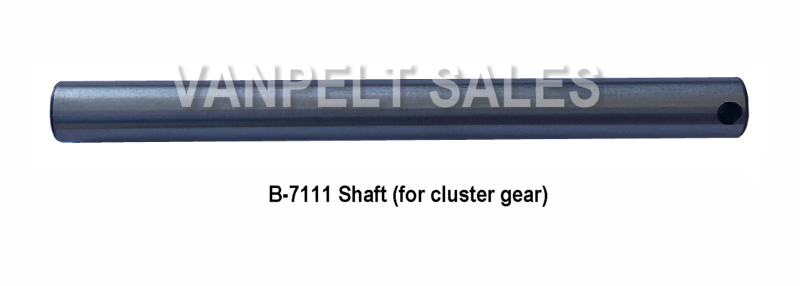

      B-7111 Countershaft   (32 to 48 or to 52 pickup) - NOS or NORS PIC 9.00 Check Availability
    8A-7111 Countershaft   (49-54) - 8.22" long (or order the B-7111 and modify) PIC 9.00 17.50

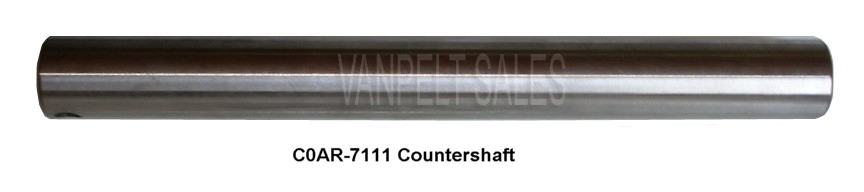

C0AR-7111-A Countershaft  (55-63) - 8.22" long x 0.8683" dia PIC       18.50
      Used New
   06H-7112-K 26T Cluster + 18T MDG + 24T Second Gear    (Set of 3 pieces)      1-B PIC   Out of Stock
      68-7112-K 28T Cluster + 16T MDG + 22T Second Gear    (Set of 3 pieces)      1-A PIC   See gears below
  022A-7112-K 29T Cluster + 15T MDG + 22T Second Gear    (Set of 3 pieces)      1-A PIC    See gears below
         B-7113 Cluster Gear - 28-24-18-15T  (32-35) - NOS or NORS                1 PIC $ 175.00       255.00
       48-7113 Cluster Gear - 28-24-18-15T  (32-39) - NOS or NORS                1 PIC 195.00      295.00

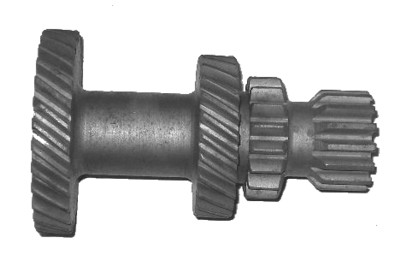

       67-7113 Cluster Gear - 29-24-17-15T  (36-37) - NOS or NORS                1 PIC 75.00      115.00

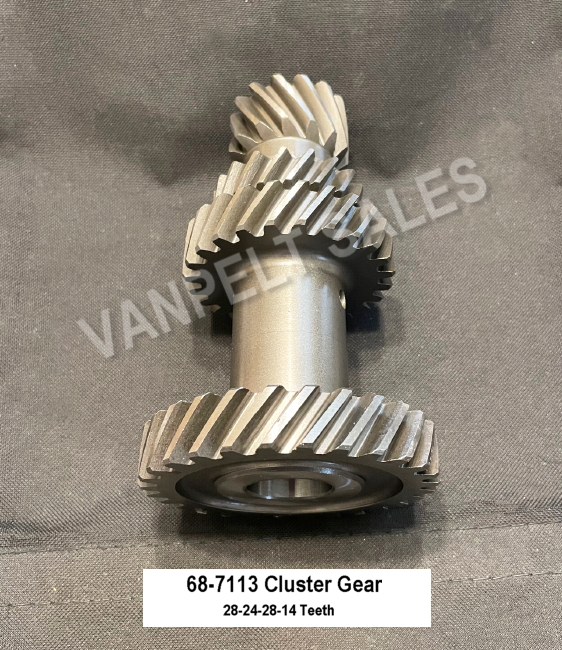

      68-7113-AR Cluster Gear - 28-24-18-14T  (36-50)                                           1-A PIC 295.00      410.00
      68-7113-A Cluster Gear - 28-24-18-14T  (36-50) - NOS or NORS               1-A PIC 295.00      445.00
 022A-7113-AR Cluster Gear - 29-24-18-14T  (40-50)                                           1-A PIC        410.00

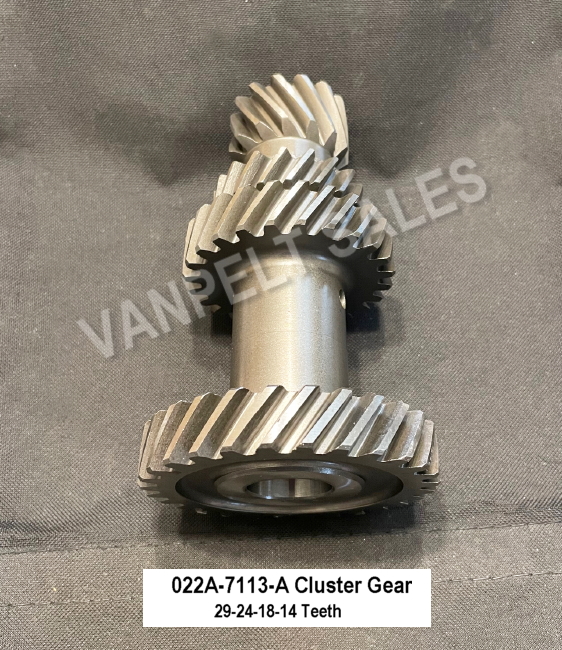

 022A-7113-A Cluster Gear - 29-24-18-14T  (40-50) - NOS or NORS               1-A PIC 295.00      445.00
 022A-7113-B Cluster Gear - 29-24-18-14T  (40-50) - NOS or NORS               1-B PIC 295.00      445.00
    51A-7113 Cluster Gear - 28-24-18-14T  (39-50) - use the 68-7113 gear PIC
      8M-7113 Cluster Gear - 28-24-18-14T  (39-50) - see the 68-7113 gear   1-B PIC 295.00
      8A-7113 Cluster Gear - 28-24-18-14T  (49-50)  - NOS or NORS              2-B PIC 295.00      435.00
     1A-7113-A Cluster Gear - 27-23-17-13T  (51-55)  - NOS or NORS              2-B PIC 295.00      425.00
   B4A-7113-A Cluster Gear - 27-23-17-14T  (51-54) - NOS or NORS              2-B PIC 295.00

425.00

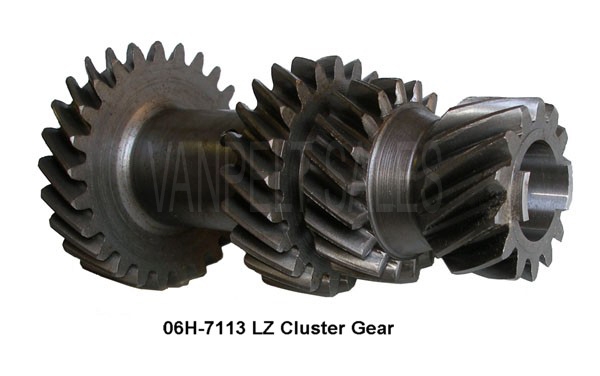

    06H-7113 Cluster Gear - 26-22-18-14T  (40-48) - L-Z                                  1-B PIC 325.00 Out of Stock
    26H-7113 Cluster Gear - 25T  (42-48) - L-Z   325.00 Out of Stock
    56H-7113 Cluster Gear - 26T  (40-48) - L-Z - (see the 06H-7113) PIC   n/a
Cluster Gear       Notes 1 - Has 1-1/8" bore for caged type roller bearings
2 - Has 1" bore for loose needle bearings
A - Uses the 1 piece rear thrust washer (68-7129B)
B - Uses the 2 piece rear thrust washers (8M-7128 & 8M-7129)

We also stock all the cluster gear thrust washers (7119-7128-7129) and roller bearings (7118-7121) for the various cluster gears. We also carry cluster gears for 1955-62 Ford/Mercury three speed transmissions. Check tooth count carefully and call us for availability on these later gears.

      Used New

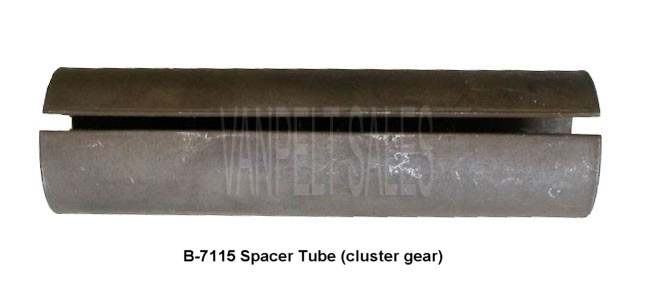

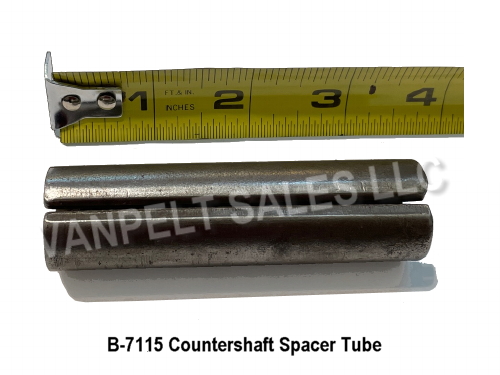

        B-7115 Spacer Tube for countershaft  (32-48) - Used with the caged roller bearings in 32-48 cluster gears PIC $   7.00 $ 10.00

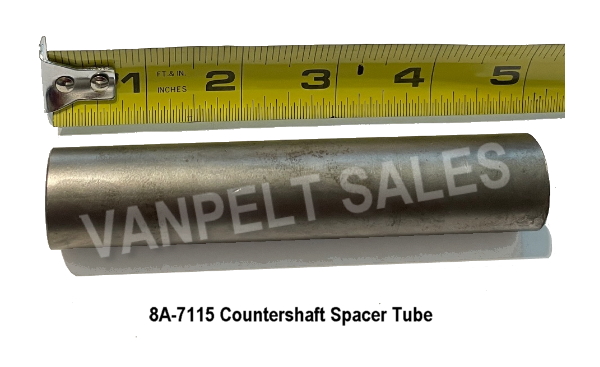

      8A-7115 Spacer Tube for countershaft  (49-54) - Used with the loose needle bearings in 1" bore cluster gear PIC 9.00     12.00
    81A-7116 Insert (40-48) - for 81A-7105 hub - 3 required (price per insert) PIC 1.00       2.50
    51A-7116 Insert (40-50) - for 51A-7105 hub - 3 required (price per insert) PIC 1.00 PART OF THE
51A-7109S KIT
   B5A-7116 Insert (55-62 for T-86 trans)  -  See B5AZ-7A044C PIC 3.50 5.00
        B-7118 Roller Bearing (short)  - (32-50) - 2 required - price per bearing PIC ------       6.50
      8A-7118 Roller Bearing Set   (15pc) for MDG  (49-55) PIC ------       7.50
        B-7119 Thrust Washer - Cluster gear front  (32-54) PIC ------       7.00
 C1AR-7119 Thrust Washer - Cluster gear front/rear (55-64) PIC         7.50
        B-7121 Roller Bearing (long)  -  (32-50) PIC ------       6.50
      8A-7121-S Roller Bearing Set (50 pc loose rollers)    (49-62) PIC ------     15.00
        B-7124 Synchronizer Assy (6 ball and spring type)   (32-34) PIC 155.00 225.00
      48-7124 Synchronizer Assy (6 ball and spring type)   (35-39) PIC 155.00    225.00

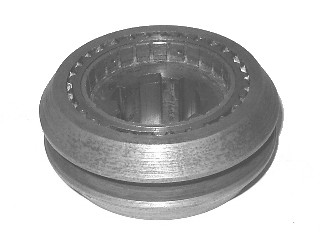

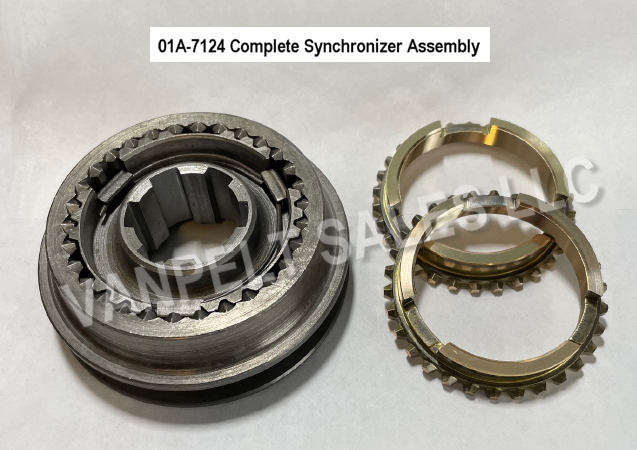

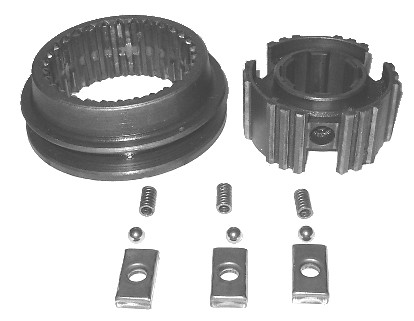

    01A-7124 Synchronizer Assy (3 ball and spring type)   (40-48)  * PIC 75.00    120.00

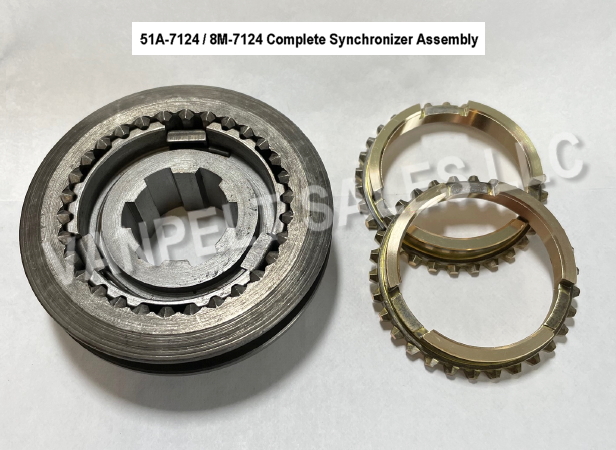

    51A-7124 Synchronizer Assy (wire spring type) - replaced by 8M-7124 PIC ------ ---
      8M-7124 Synchronizer Assy (replaces 51A-7124)    (48-54)   * PIC 75.00    120.00
  B5A-7124-B Synchronizer Assy (55-60) with T86 transmission   * PIC 90.00 135.00
C2AZ-7124-C Synchronizer Assy (56-60) with T85 transmission PIC   145.00
* Note: The USED 01A-7124 and 8M-7124 and B5A-7124 synchro assemblies include new bronze synchro rings.
      Used New
      8M-7128 Thrust Washer - Cluster Gear Rear (thin)    (40-54) PIC ------        6.00
      8M-7129 Thrust Washer - Cluster Gear Rear (thick w/oblong hole)  (40-54) PIC ------      14.00

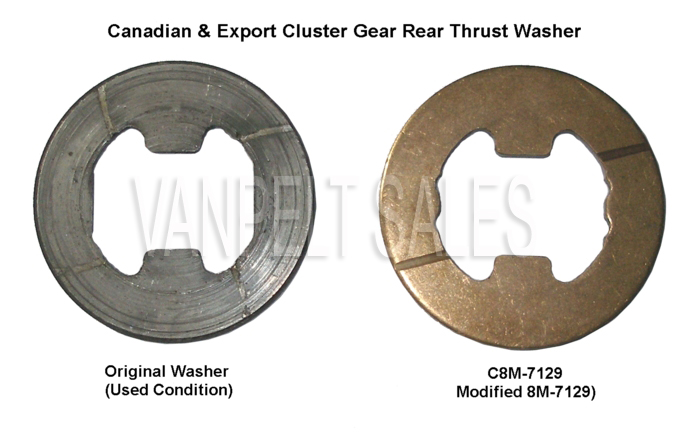

   C8M-7129 Thrust Washer - Cluster Gear Rear (thick w/wide oblong hole) for Canadian and export applications PIC ------ 27.50
         B-7129 Thrust Washer - Cluster Gear Rear  (5 tooth)  (32-37) fits cluster gears with the straight cut reverse teeth PIC ------        5.00

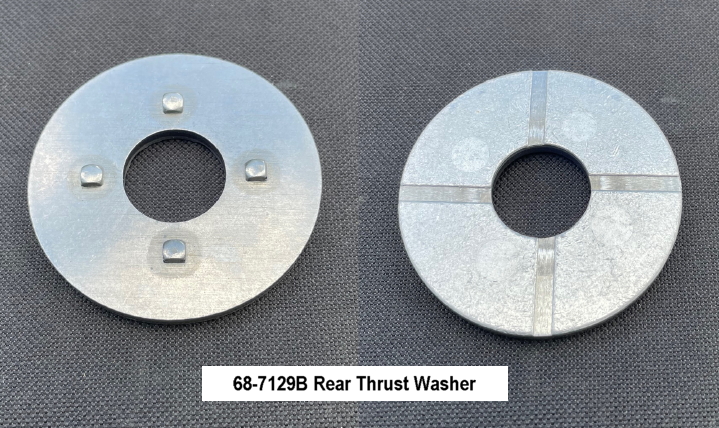

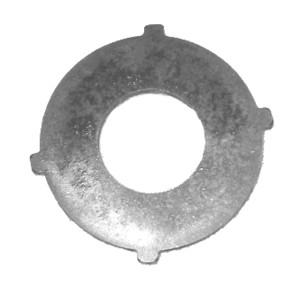

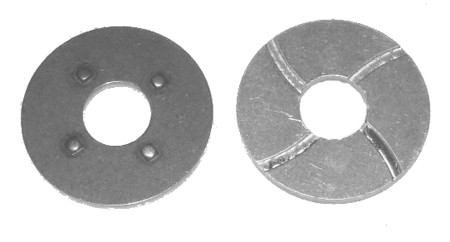

      68-7129-B Thrust Washer - Cluster Gear Rear (thick w/4 prongs) (36-50) PIC ------      15.00
     VP-7129-A Shim Washer (2.45" dia x 0.023" thick) - Fits between rear thrust washer and back of case (32-52) * PIC ------ 4.00
  A0A-7130-C Small Parts Kit for 3 Speed (includes 1 ea: B-7119, 68-7129B, B-7064M, 81A-7059, 8C-7160, B-7026B, & 51A-7070B)    (1939-52)    NOTE: The kit is specific to the cluster gear rear thrust washer type. PIC ------      33.00
  A0A-7130-D Small Parts Kit for 3 Speed (includes 1 ea: B-7119, 8M-7128, 8M- 7129, B-7064M, 81A-7059, 8C-7160, B-7026B, & 51A-7070B) (1939-52)   NOTE: The kit is specific to the cluster gear rear thrust washer type. PIC ------      33.00
 * Note: the shim washer is for worn cases at the thrust surface, which must be smooth in order to utilize the shim washer (which is in addition to the regular thrust washer).
      Used

New

         B-7140 Shaft - Reverse Idler (32-54) PIC $  8.00 $  14.00
         B-7141 Reverse Idler Gear - 18T spur cut     (32-48) PIC 20.00      35.00

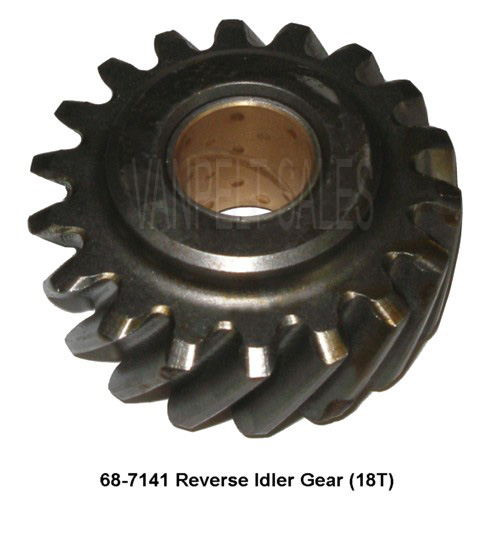

       68-7141 Reverse Idler Gear - 18T helical       (36-50) PIC 55.00      95.00

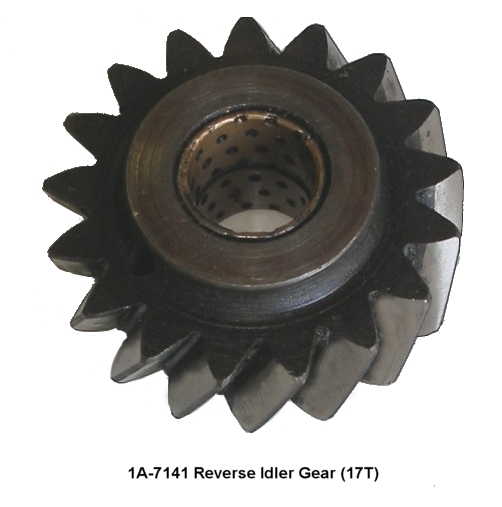

      1A-7141 Reverse Idler Gear - 17T helical       (51-54) PIC 55.00 85.00
    B6A-7141-A Reverse Idler Gear - R16T helical     (55-62)   For T-86 overdrive trans PIC 55.00 75.00


Transmission Gasket Sets

    New
  91A-7223K Gasket Set (32-39 car & 32-52 pickup) - 3 pc set  (front, top, rear) - Toploader PIC   $ 6.50

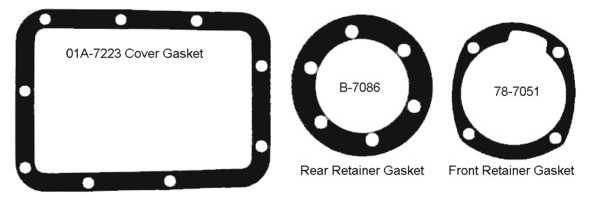

  01A-7223K Gasket Set (40-48 car & 49-52 pickup) - 3 pc set  (front, side, rear) - Sideloader PIC   6.50

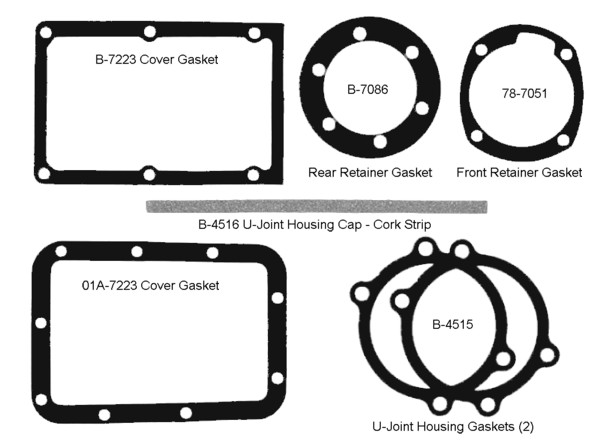

      B-7153F Gasket Set (32-48 car & 32-52 pickup) - 7 pc set  (top or side loader) PIC   9.50
    8M-7153 Gasket Set (49-early 51 Mercury) - Standard or Overdrive (side loader) PIC   17.50

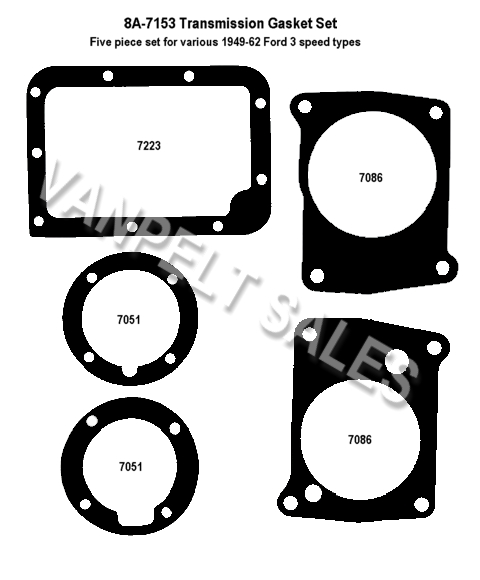

    8A-7153 Gasket Set (49-62) - Ford car standard trans - 3 pc set (side loader) PIC   6.50
 B5A-7153-B Gasket Set (55-64) - Ford Light Duty OD transmission (T86 - toploader) PIC   24.50

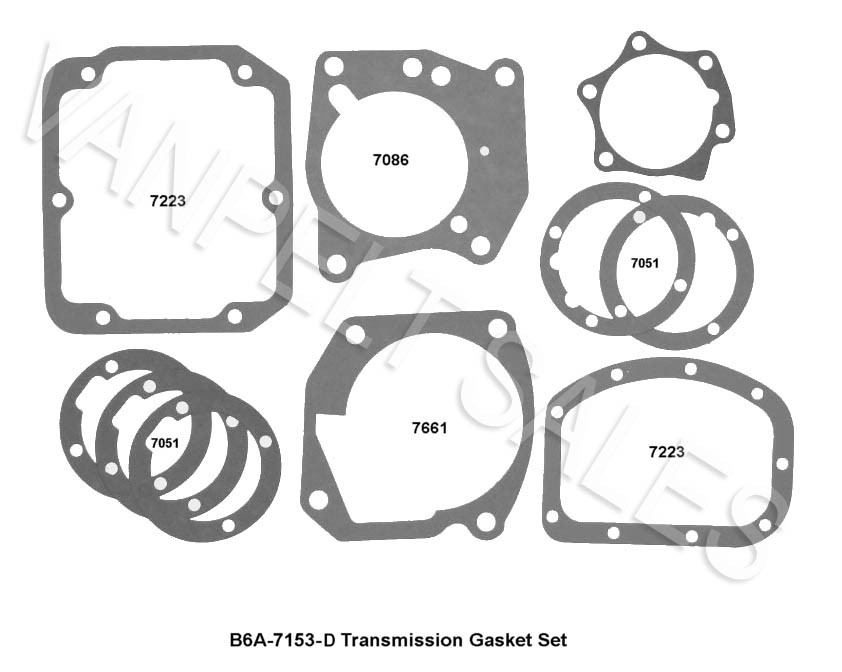

 B6A-7153 Gasket Set (56-65 Ford/Merc) & (48-56 Ford HD 3 Speed Truck)  Heavy Duty 3 speed transmissions for car & truck (Standard and OD)  PIC   24.50

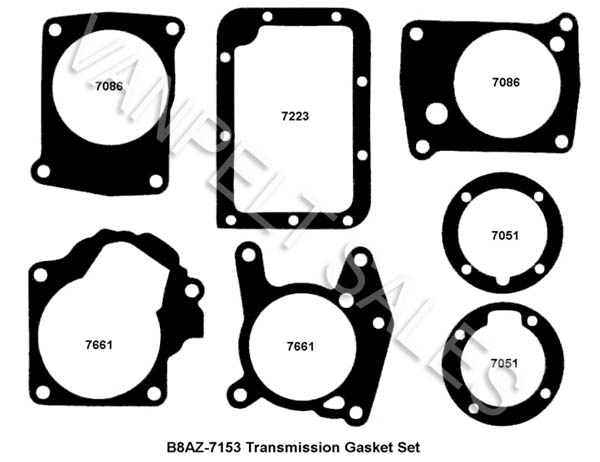

 B8AZ-7153-A Gasket Set (49-62) Ford Std & Overdrive + (51-54 Merc) - for 9 bolt side cover trans PIC   17.50
C3AZ-7153-F Gasket Set (63-75 Ford toploader 3 speed trans (3.03 type) PIC   14.50

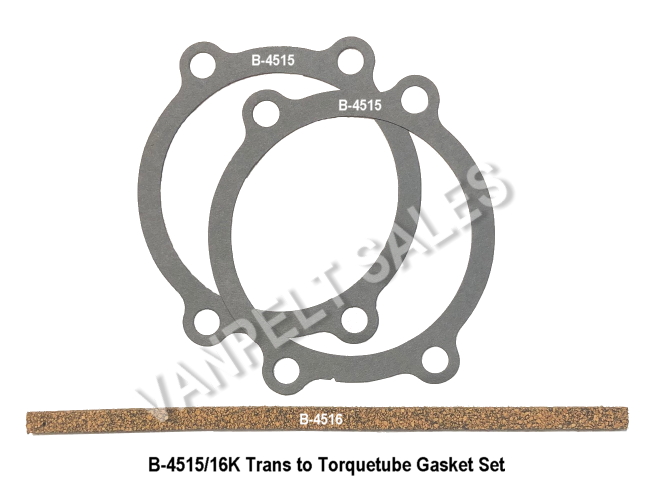

 B-4515/16K Gasket Set (32-48) - Torgue tube to Trans rear support  (note: this kit is also part of the B-7153F gasket set listed above) PIC   6.95
Note: Gasket sets only include the various paper gaskets. Grease/Oil Seal Kits are available separately for most transmissions. See Page 5 for kit listings.
Back to Page 1      Forward to Page 3    Forward to Page 4    Forward to Page 5


Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts (ie bearings, seals, thrust washers, gaskets, etc) or some limited supplies of new-old-stock or new-old-replacement-stock, or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. The Used Parts may be original Ford parts or might be used aftermarket manufacturer parts, depending on what is available at any given time. Our minimum order for product is $10.00 and the minimum shipping charge is $7.00 (US Dollars).

Repair Kits or Parts Kits
We do not offer multi-part kits (except for the gasket sets and seal kits) for the early Ford transmissions for one simple reason. There are too many variations in gears and other transmission parts over the years, and a kit would either have to include a lot of unnecessary parts, or would be missing a key part that your transmission required.
Please order the specific parts you actually need. We can assist you with this if you need help.

 Later Model Transmission Parts
We have been adding service parts and gears for Ford transmissions used from 1955 up into the 1960's, primarily three speed units for the passenger cars and light trucks. Not all of  these parts are cataloged and listed here, so please contact us for pricing and availability.

To place an order, call toll free (from USA locations) 1-800-299-7496. Office hours are Monday-Thursday from 9:00am to 5:30pm Eastern Time. If you are outside the USA please call (513) 724-9486. The same office hours apply.

INTERNATIONAL PHONE ORDERS: If you wish to order parts by telephone and credit card, please call
(513) 724-9486 only during regular office hours.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
Email: sales @ vanpeltsales.com

Note: Blank entries in the Used Parts pricing simply means that we have not had that part available to this point. The --- indicates
that the part is either not available as a Used Part or is not available as a New Part (other than NOS items).
