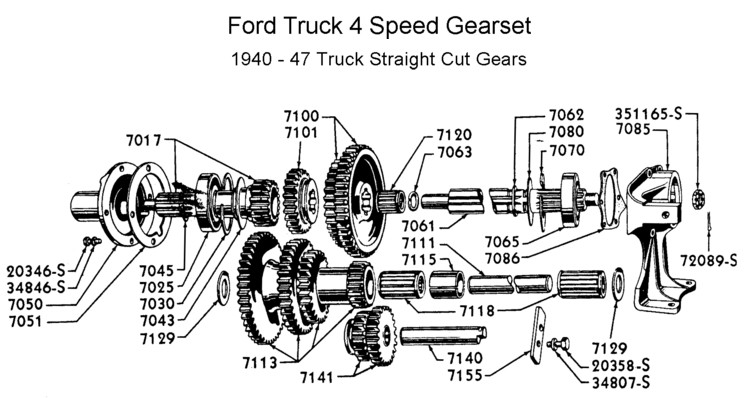

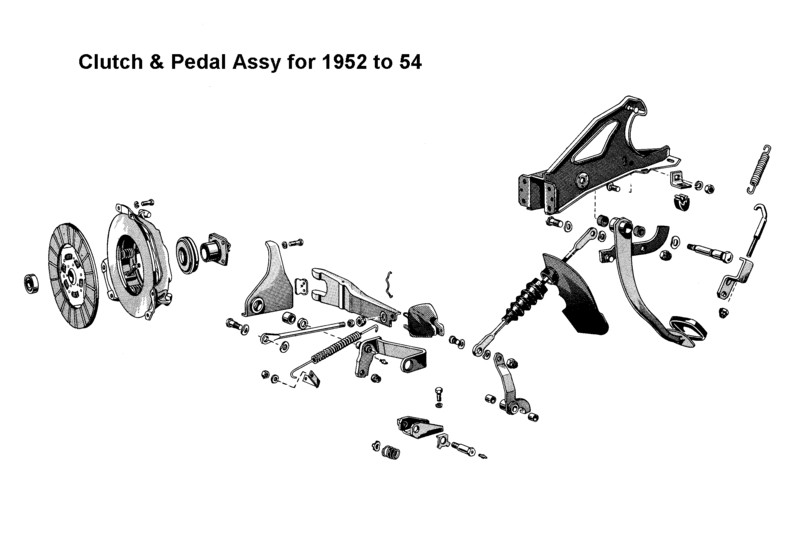

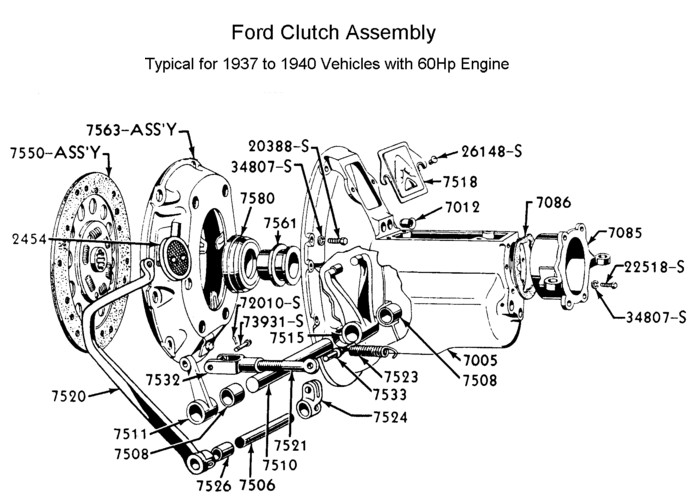

Parts Drawings: Transmissions & Clutches

Click on a link below to download the picture. Please note that Ford's illustrations often were used to cover a range of transmissions. The exploded drawing you see may be labeled for a group of years, of which there may be variations from the actual drawing you are looking at. The reference to a "1939 transmission" is a catch-all phrase these days. It initially refers to the last year of the top-load shifter style, but it also referred to the change over to an improved gear and synchronizer set. Ford started this process in 1939 but not all vehicles received the newer gear set until about 1941. Furthermore, some of the actual parts used in the newer transmissions were never illustrated in any Ford parts books. If you want to get the complete story on the early three speed transmissions, see the link below for the book, "The Ins and Outs of Early Ford Transmissions"
Home Parts Drawings Web Links Tune-Up & Service Serial Numbers Engine ID Trans Identification Model ID Terms of Sale Contact Us Our Online Store Our Catalog

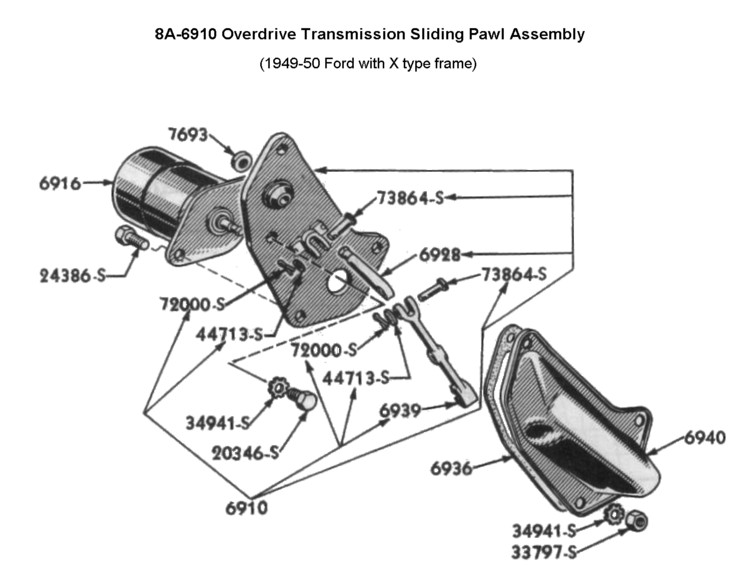

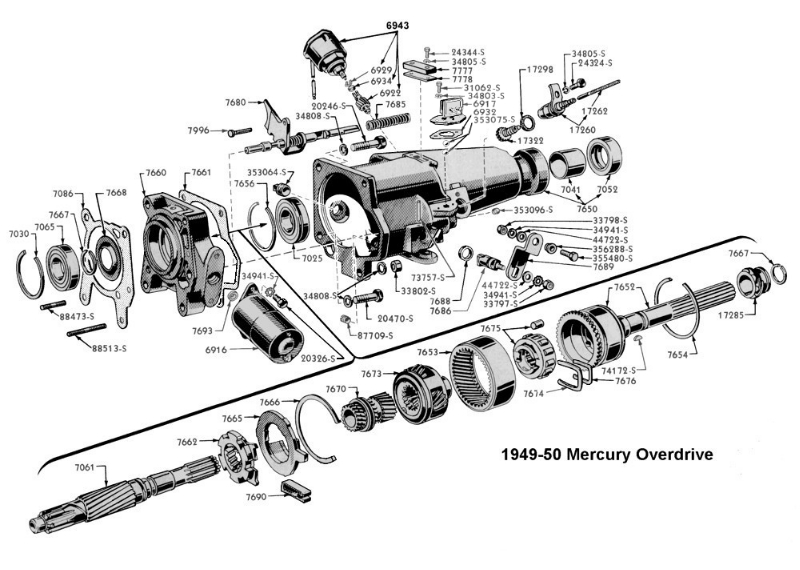

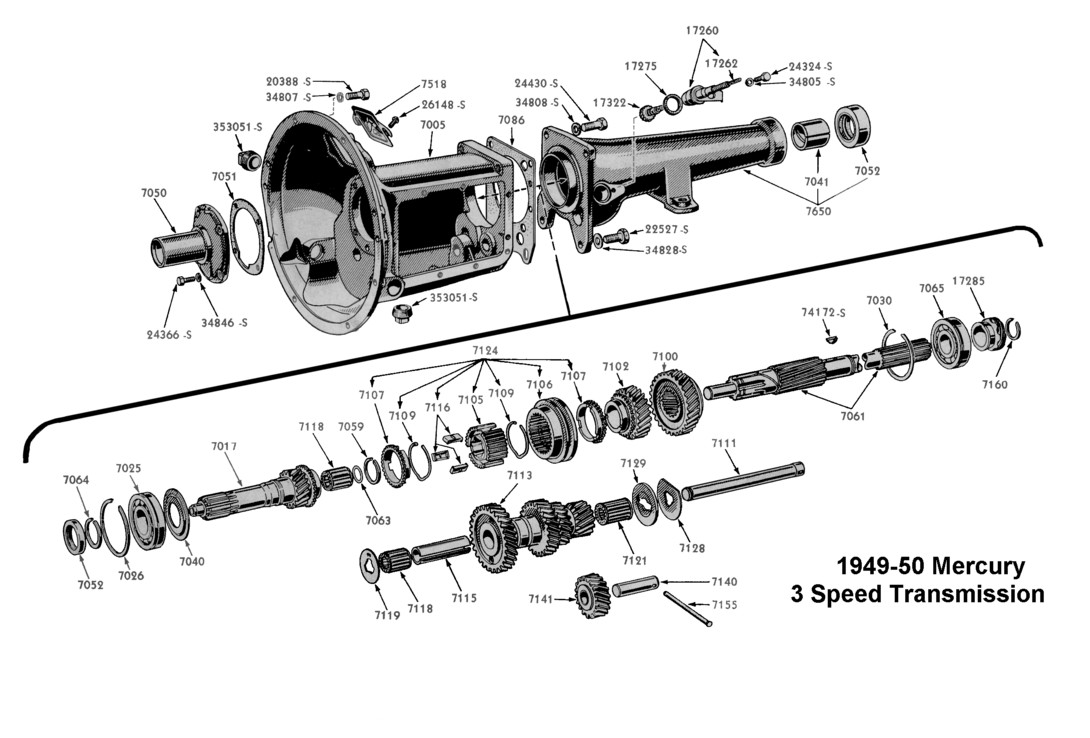

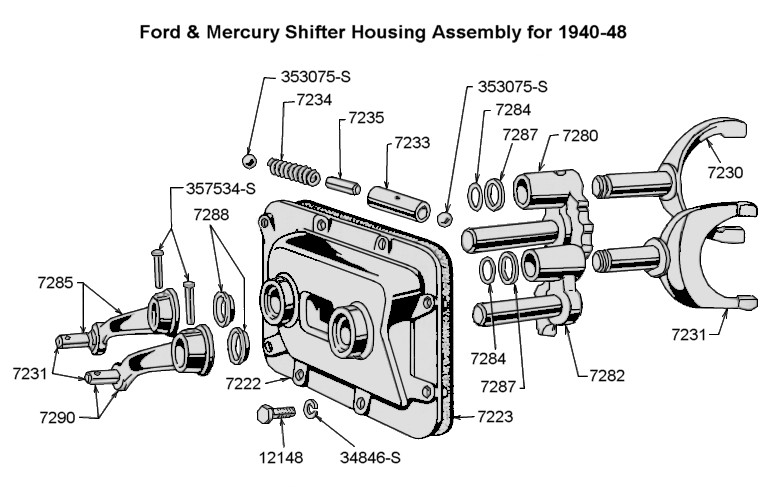

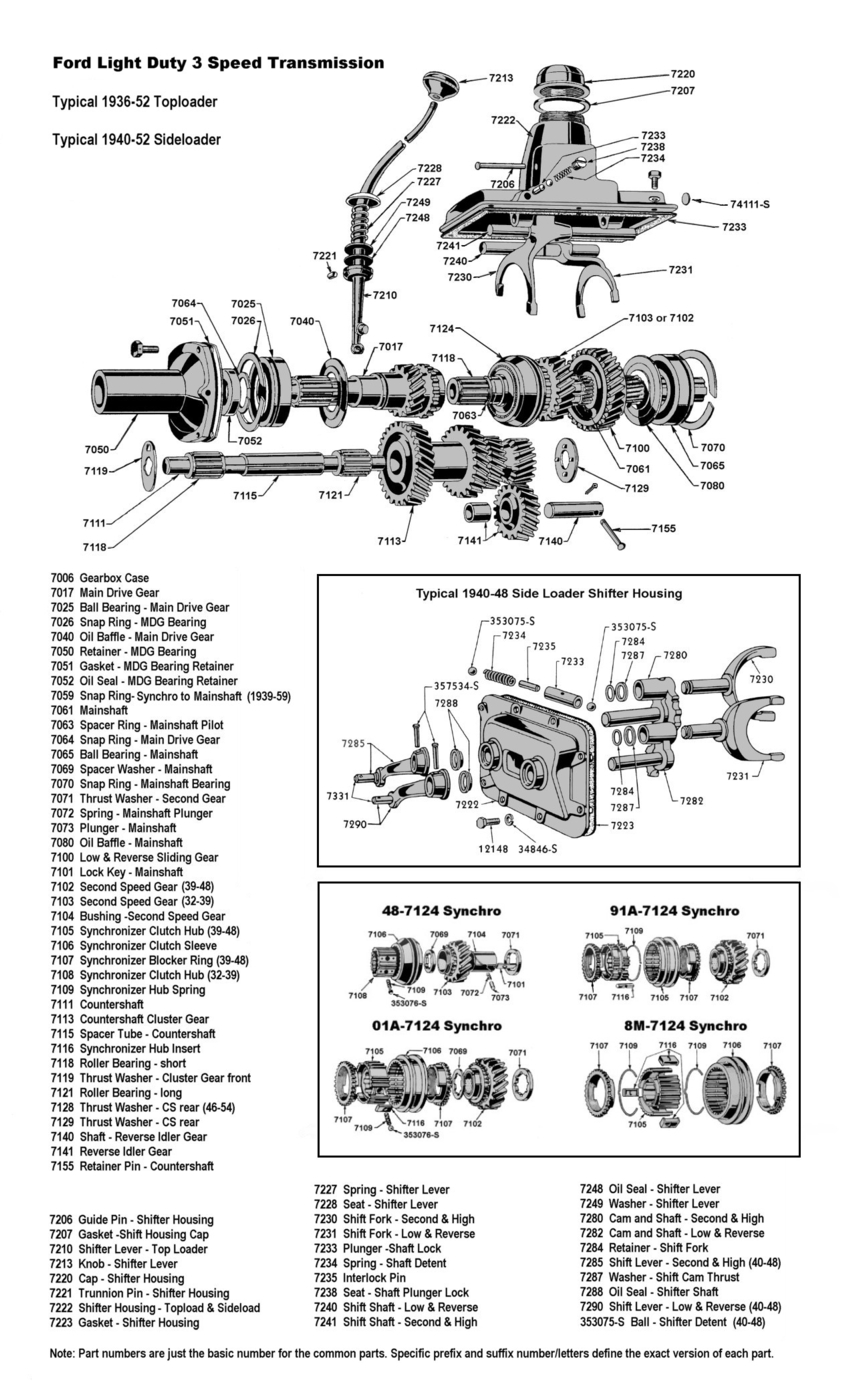

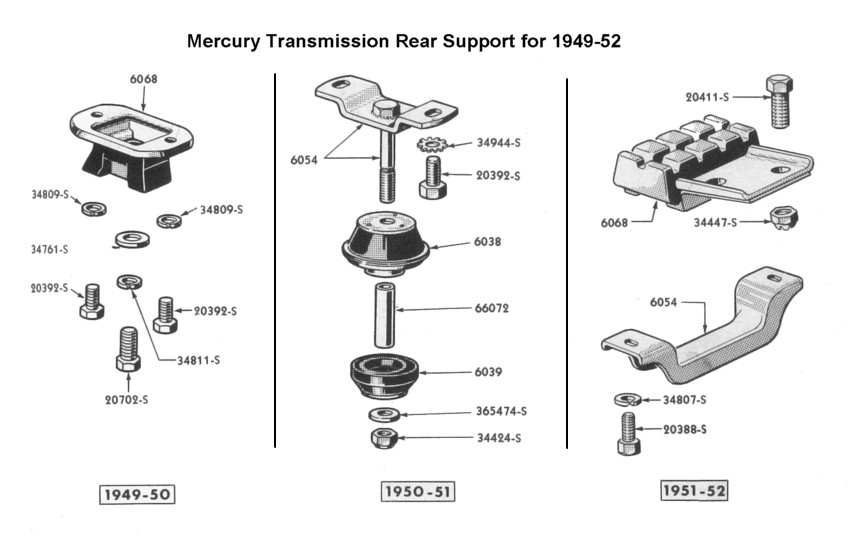

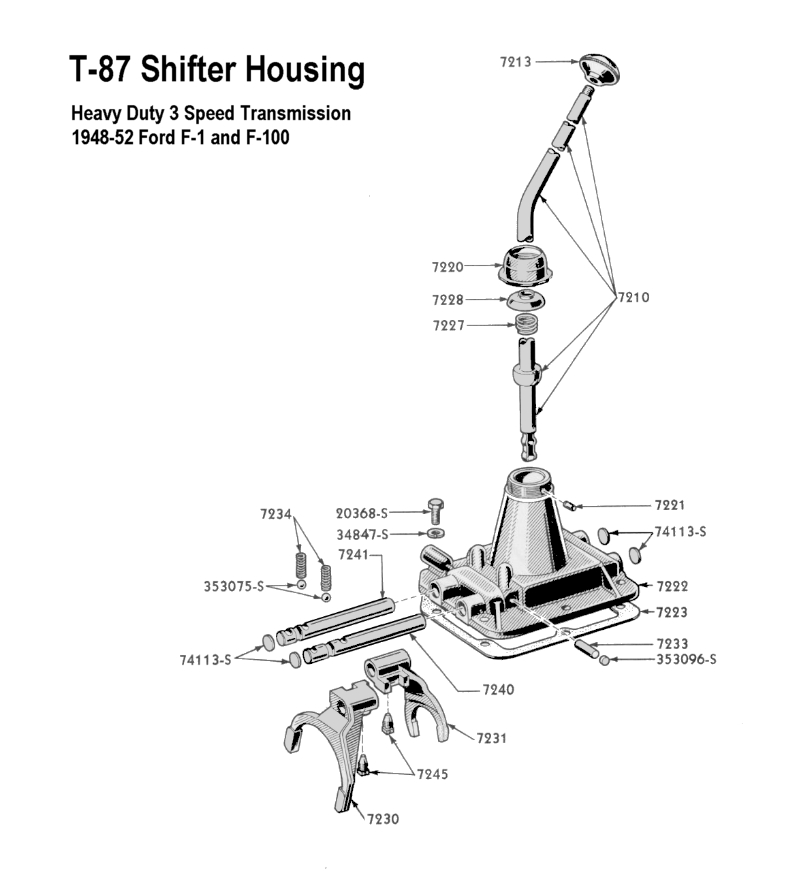

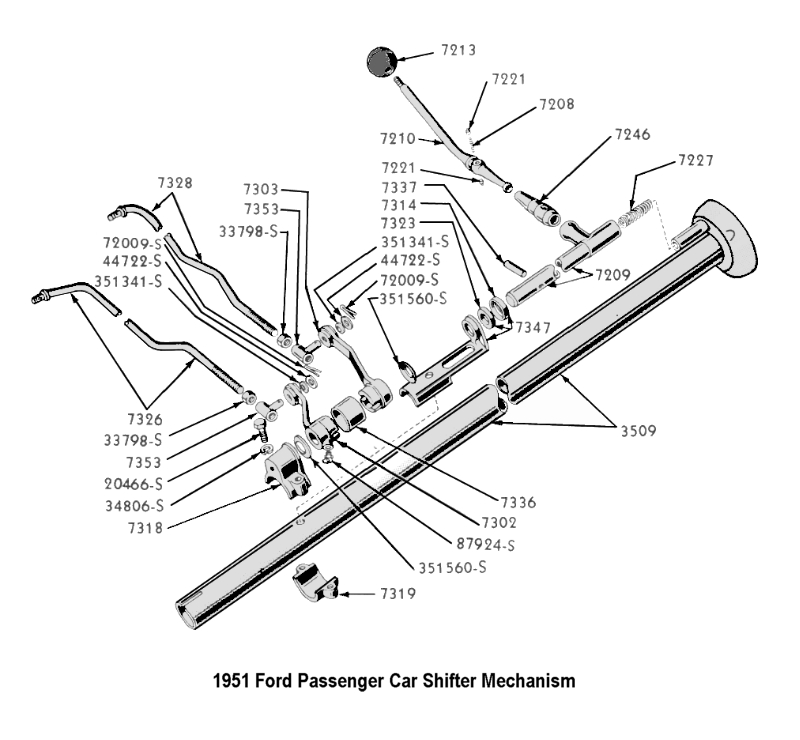

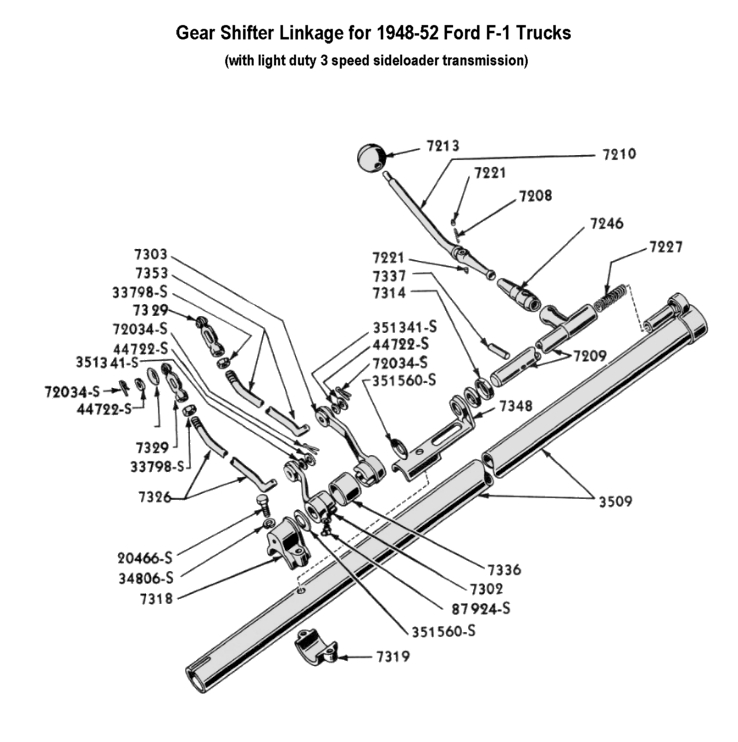

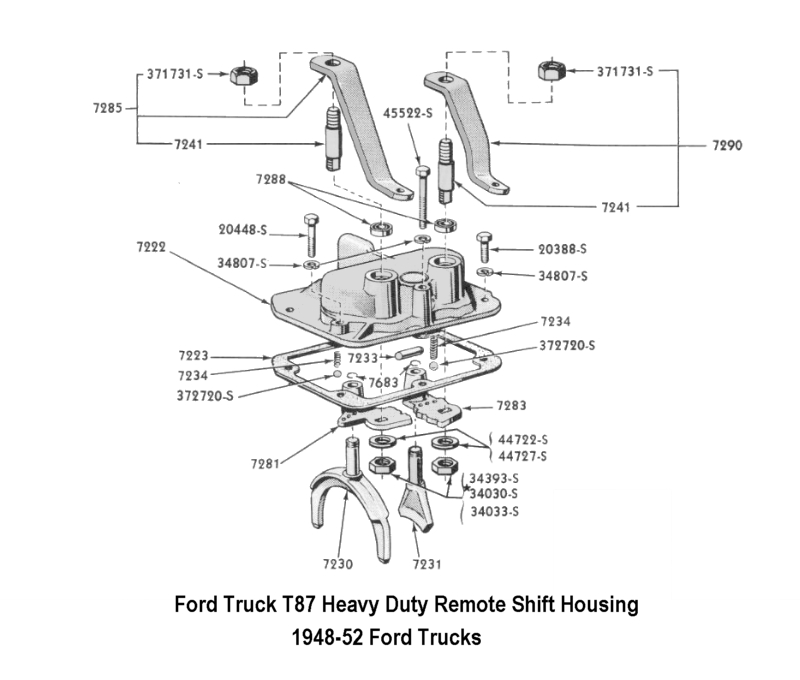

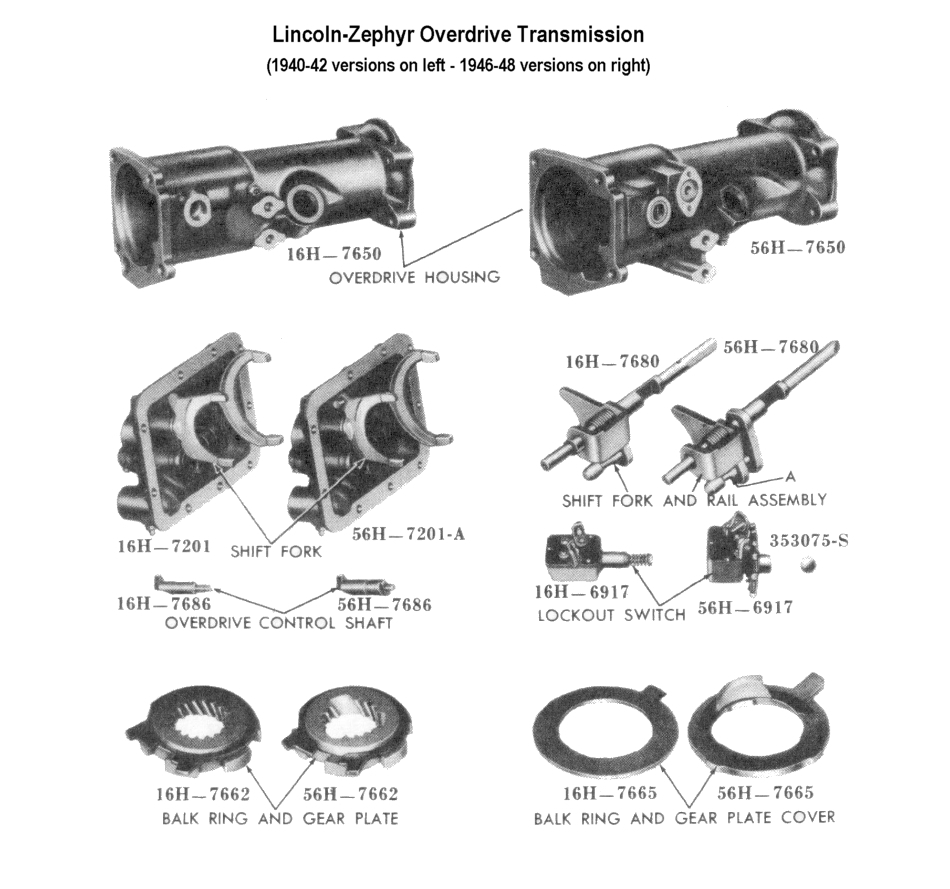

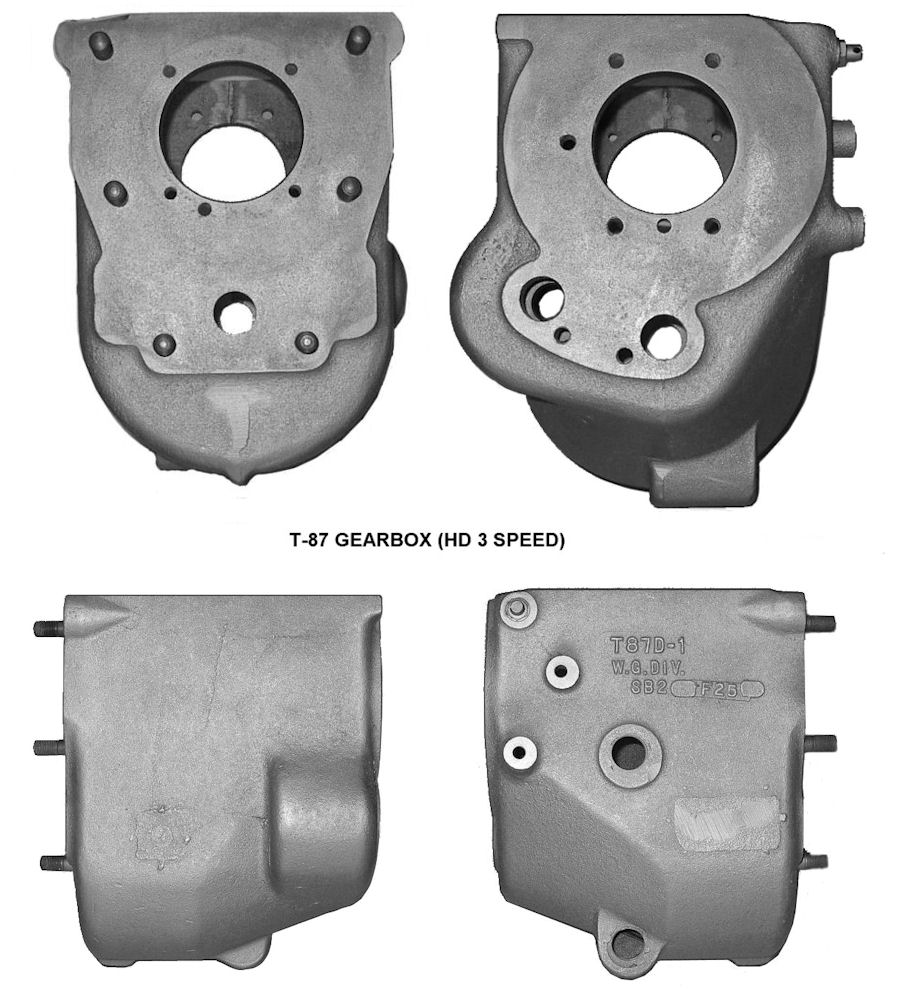

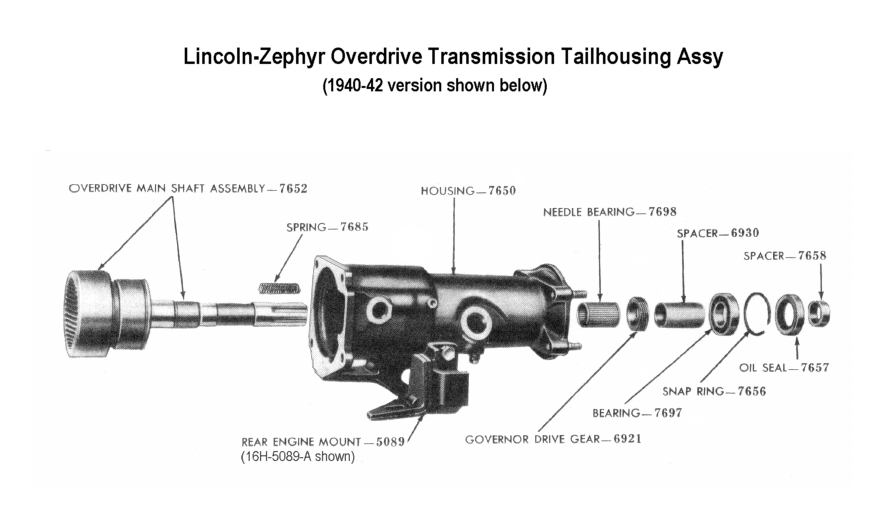

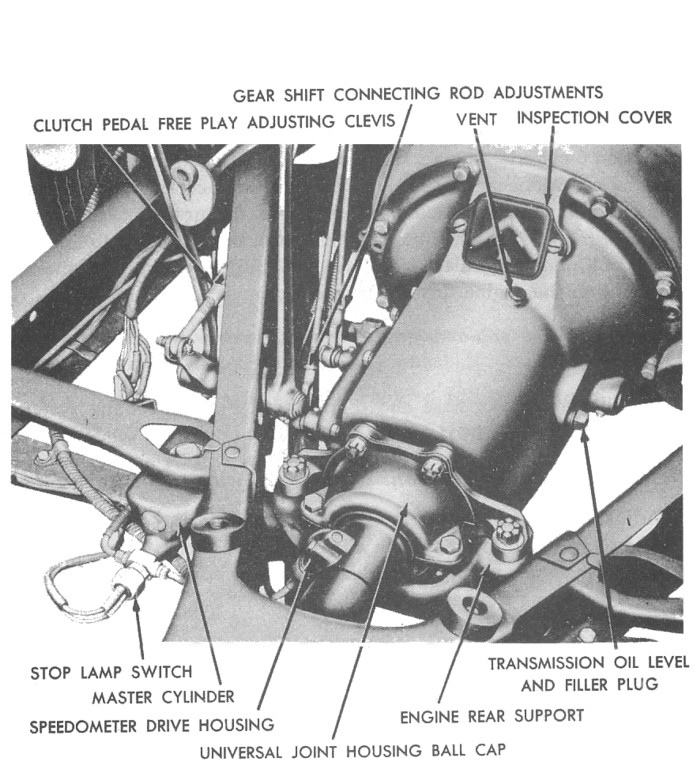

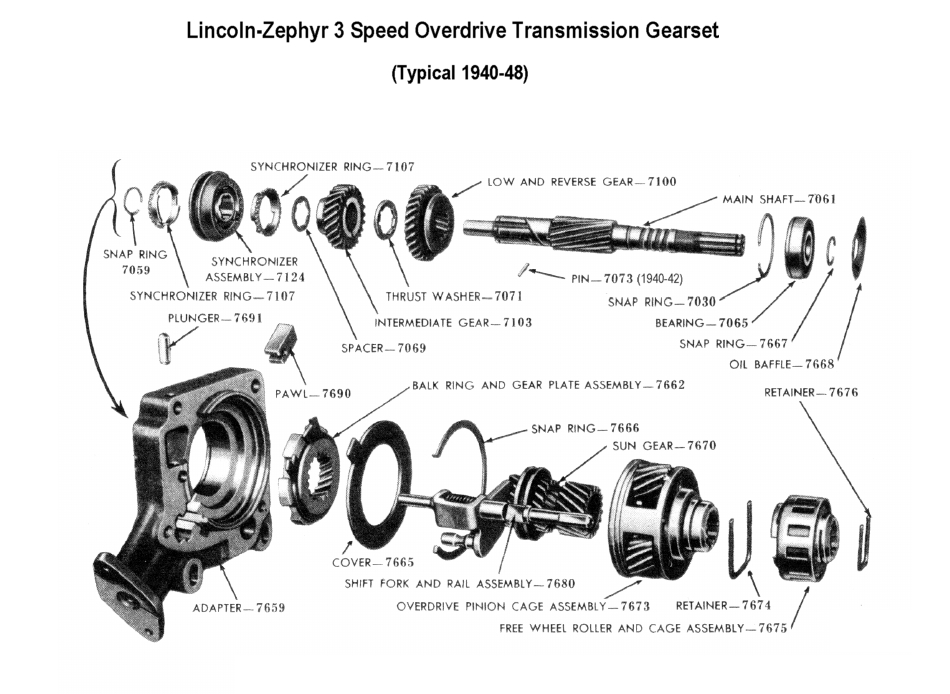

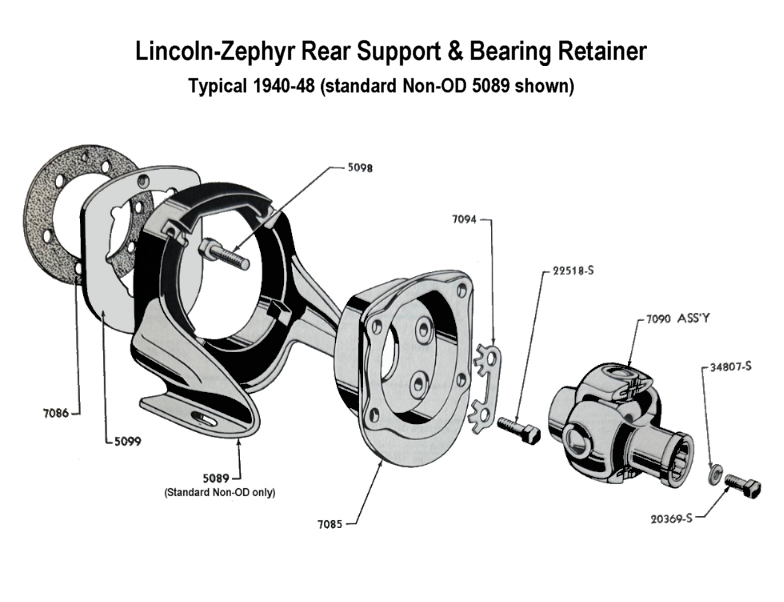

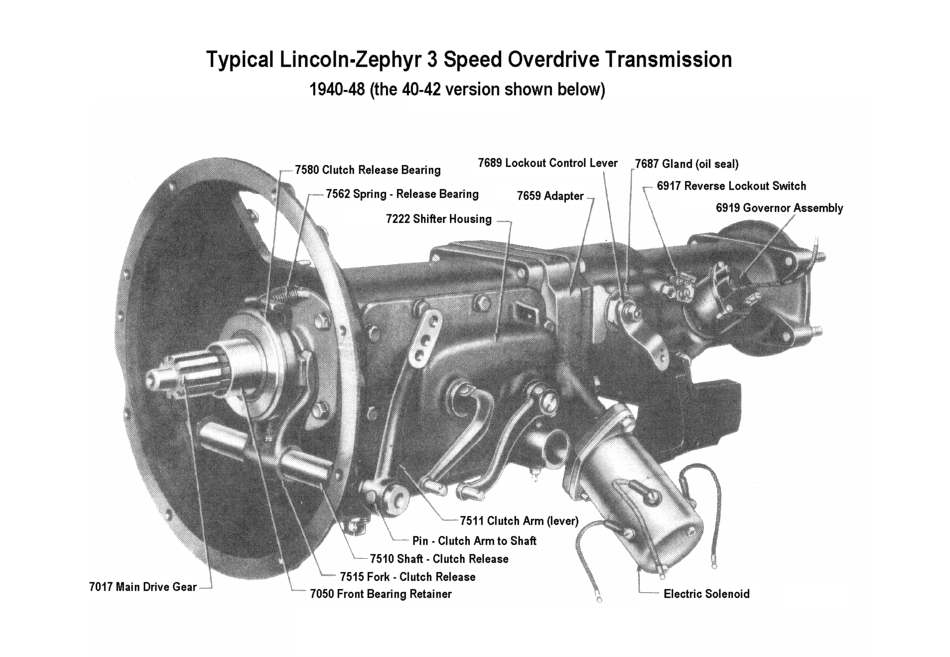

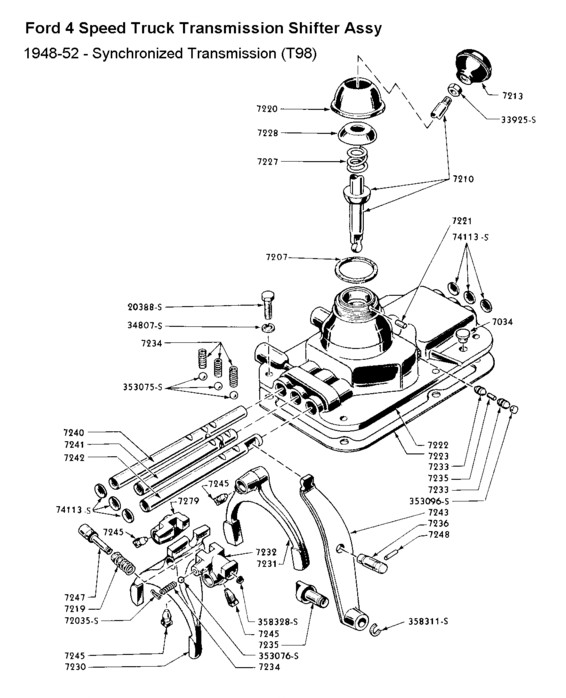

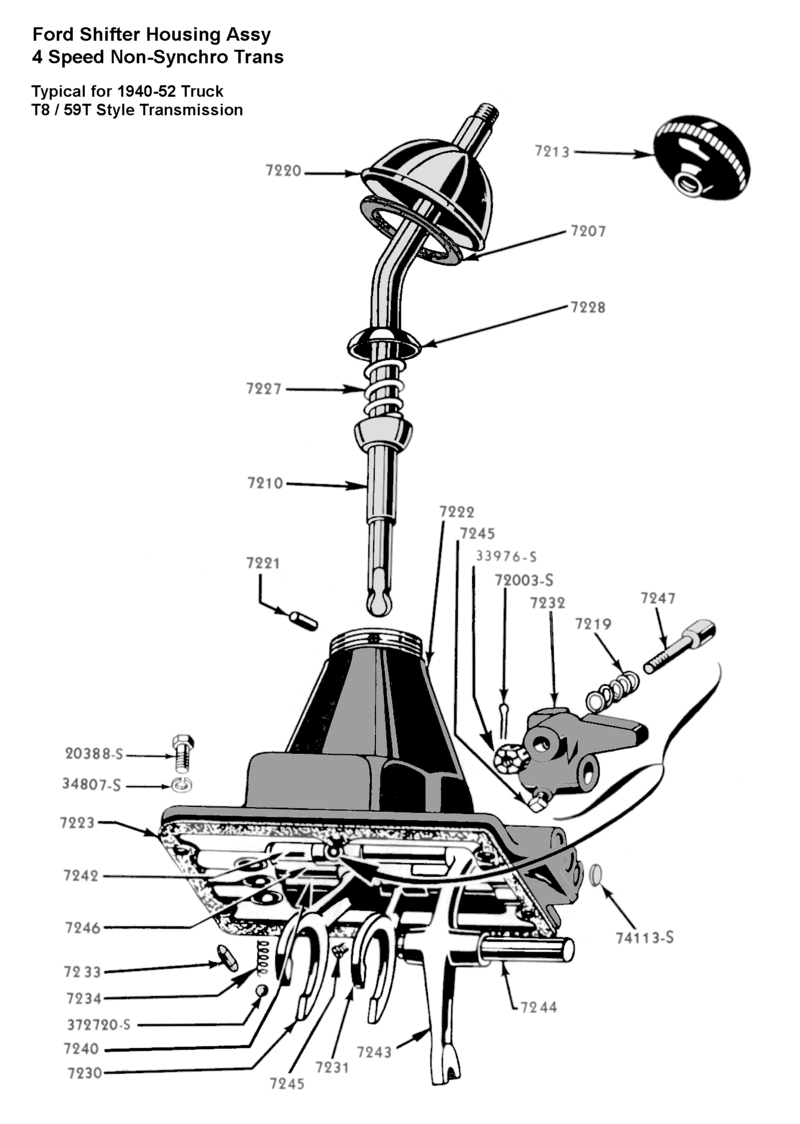

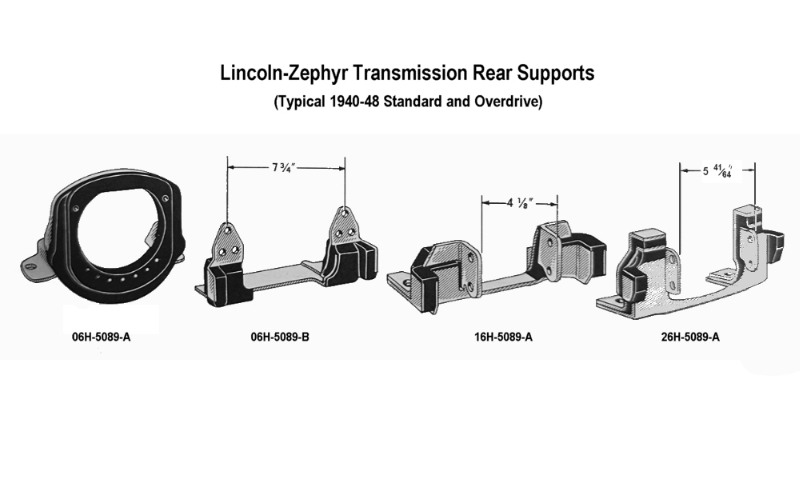

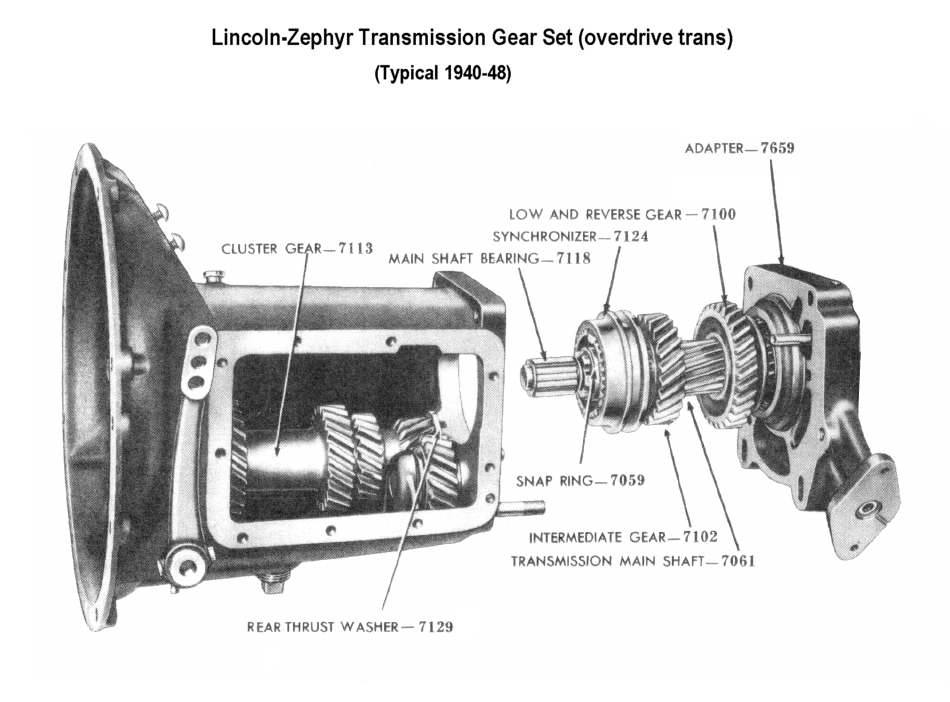

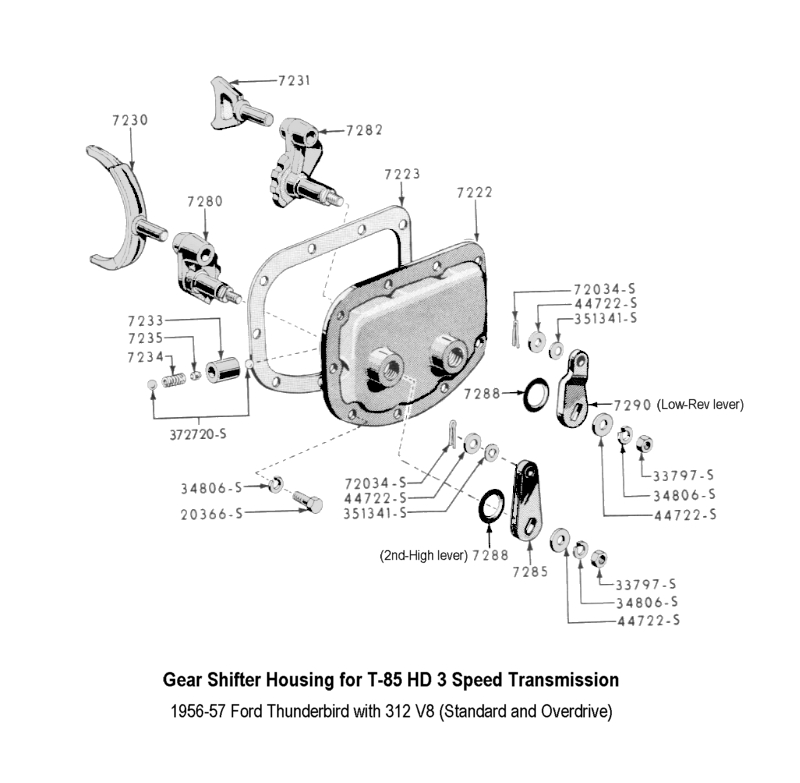

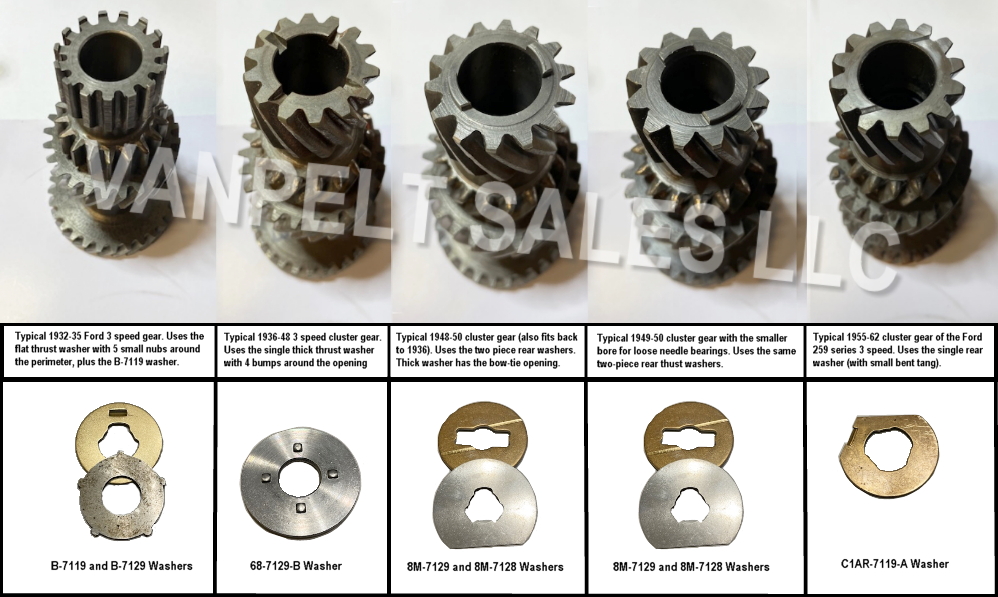

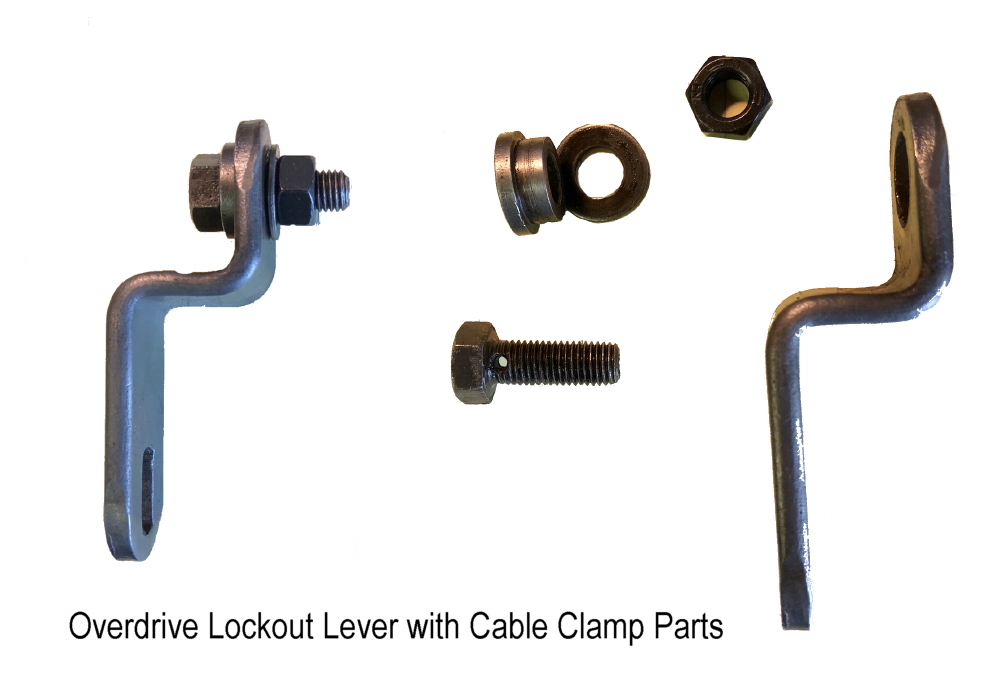

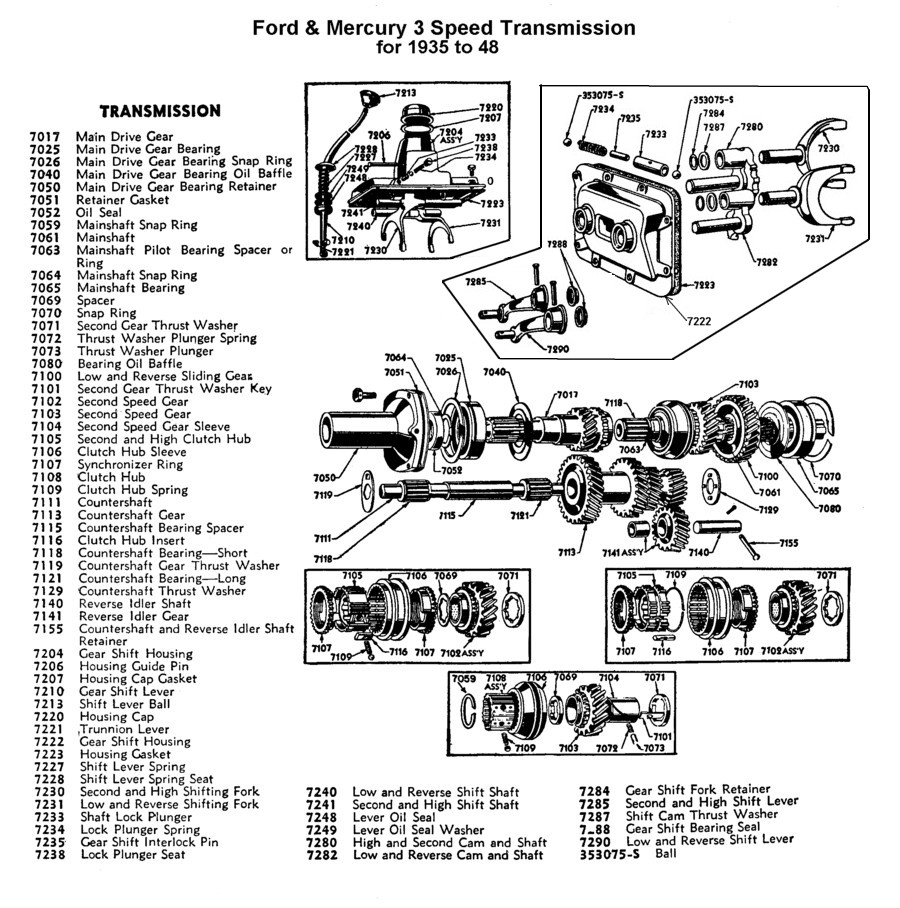

1932-54 Ford & MercuryTransmissions - Passenger Three speed trans for 1932-34 passenger & commercial Three speed trans for 1936 to 52 comprehensive Three speed trans for 1937 to 40 (60hp) Three speed trans gearset for 38 to 41 passenger & commercial Three speed trans for 1936 to 39 (cutaway) Three speed trans for 1939 (part A) Three speed trans for 1939 (part B) Three speed trans for 1938-39 Lincoln Zephyr Three speed trans for 1940 (cutaway) Three speed trans for 1942 to 48 cars (mounting diagram) Three speed trans for 1942 to 48 trucks (open drive type) Three speed trans for 1949 to 54 Three speed trans for 1949 to 50 Mercury Overdrive trans for 1949 to 50 Overdrive trans for 1949 to 50 Mercury Overdrive trans for 1952 to 54 Overdrive sliding pawl assy for 1949 to 50 convertibles Gearshift assembly for 1940 to 48 cars Gearshift assembly for 1952 to 53 Ford cars Gearshift housing for 1940-48 Cars Gearshift housing for 1949 to 51 Ford Gearshift housing for 1949 to 51 Mercury Gearshift housing for 1952 to 54 1932-59 Ford & Mercury Transmissions - Misc Trans Main Drive Gear Chart for 1928 to 48 Trans Countershaft Cluster Gear Chart for 1928 to 48 Service Bulletin for 1932 to 35 Gear & Synchro Combinations Synchronizer Types for 1936 to 52 Rear Mount - Engine-trans for 1932 to 36 car Rear Mount - Engine-trans for 1940 to 47 truck Rear Mount - Engine-trans for 1942 to 48 car Rear Mount - Transmission for 1949 to 52 Mercury Universal Joint - Typical for 1932 to 37 vehicles Universal Joint - Typical for 1938 to 48 vehicles 1949 to 52 Mercury Flywheel Housing Assembly Overdrive Lockout Lever Assembly Overdrive Control Assembly for 1949 to 52 Mercury Overdrive Control Assembly for 1953 to 59 Ford cars 1940-48 Lincoln Overdrive Transmissions Lincoln Overdrive Transmission Complete for 1940-48 Lincoln Overdrive Trans Gearbox - Mainshaft and Gears for 40-48 Lincoln Transmission Gearset for 40-48 Lincoln Overdrive Trans - Tailhousing & OD gears Lincoln Transmission Tailhousings & Shifter Housings for 40-48 Lincoln Transmission Rear Support & Rear Retainer for 40-42 Lincoln Transmission Rear Supports for 1940-48 Bell Housings & Starter Plates Click here for more information on bell housings for 1949-53 models 1939 Transmissions - The Real Story Click here for more information on the Ford top loader 3 speed Transmission Gear Ratios Click here for a chart of common Ford-Mercury-Lincoln ratios	1955-66 Ford Transmissions - Passenger Overdrive for Six and V8 for 1955 to 56 Overdrive for 1956 T-Bird V8 and 1957 to 59 big V8 Overdrive for 1957-62 Ford Six and V8 (272 & 292) Three Speed OD Trans (T86) for 1955-62 Six and Small V8 Three Speed Std Trans (T85) for 1957-65 Ford Big V8 & 57-60 T-Bird Big V8 Three Speed Std Trans for 1955-56 T-Bird (292) Three Speed Std Trans for 1957-59 Ford Six & V8 (272-292) Three Speed Std Trans for 1960-62 Ford Six & V8 (221-260-292) Three Speed Std Trans for 1960-66 Ford Six (140-170) Type 277 Three Speed Std Trans for 1963-67 Ford V8 Type 303 Gearshift housing for 1955 to 57 Ford & T-Bird 292 Gearshift housing for 1956-57 T-Bird 312 with T-85 Gearshift housing for 1958 to 62 Ford Gearshift housing for 1957 Ford 312SC & 1958-62 Big V8 OD & 1960 T-Bird Ford & Mercury Clutches Clutch assembly for 1932 to 34 (65hp) car Clutch assembly for 1935 to 39 (85hp) car Clutch assembly for 1940 to 48 (85/90hp) car Clutch assembly for 1937 to 40 (60hp) car Clutch assembly for 1949 to 51 Clutch assembly for 1952 to 54 Clutch assembly for 1949 to 51 Mercury Ford Transmissions - Truck Three Speed trans (Light duty) for 1948 to 59 Three Speed trans (Heavy duty T-87) for 1948 to 51 Three Speed (Heavy duty) views of gearbox for 1948 to 52 Three Speed trans (Medium Duty T-89) for 1955 to 64 Gearshift assembly for 1948-52 pickup (light duty 3 speed) Gearshift assembly for 1948-52 pickup (T87 HD 3 speed) Gearshift assembly for 1948-52 pickup (T87 HD) - Remote Shift Gearshift assembly for 1953-56 pickup (T87 HD) - Remote Shift Four Speed trans (internals) for 1932 to 37 Four Speed trans (internals) for 1940 to 47 Four Speed trans (spur gear) for 1929 to 52 Four Speed trans - T98 (synchro) for 1948-52 Four Speed trans - T98 (synchro) for 1953-66 Four Speed trans (spur gear) Shifter Assy for 1940-52 Four Speed trans (synchro) Shifter Assy for 1948-52 Ford Transmission Books "The Ins and Outs of Early Ford Transmissions" by Mac VanPelt, a complete guide to identifying and repairing the early 3 speed trans. "The Official Guide to Borg-Warner R10 and R11 Overdrives" by R. Rundle "Ford Transmissions, Overdrives, Clutches, & PTO's" by Fomoco (1947) Ford Transmission Parts Prices Click here for a complete listing of available 3 speed transmission parts Click here for a complete listing of available 4 speed transmission parts Click here for a complete listing of available Overdrive transmission parts Ford Transmission Repair Service Click here for information on our transmission repair services
