FORD FLATHEAD IGNITION PARTS &
ELECTRICAL PARTS

We stock ignition parts for Ford V8 engines from 1937 to 1974.

Use these links for more information:

  Ignition Wiring Diagrams
Distributor Parts Drawings
Tune Up Specifications: 32 to 48
Tune Up Specifications: 49 to 53
Tune Up Specifications: 54 to 59

Page 1   Page 2   Page 3   TUNE-UP KITS
Ford Part
Number
Description Image Application Notes

Price for
New Part



Starters   (Complete)

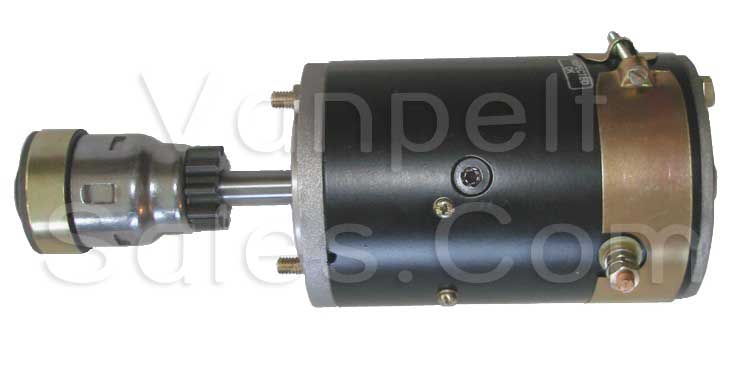

18-11002-NSF New Starter with Ford type drive - 6 Volt PIC 1932-53 V8   (Manual Trans Only)  $ 210.00
18-11002-NTF New Starter with Ford type drive - 12 Volt PIC 1932-53 V8   (Manual Trans Only) 210.00
Note: The above new starters do not require a core (or core charge). If you do not already have one, we suggest that you also purchase the 51-11140 starter support bracket (listed below). Above starters for standard transmission vehicles only. We do not carry a starter for the 51-53 vehicles with the automatic transmission. The starter drive is the standard bendix type as used on original starters.


Starter Parts

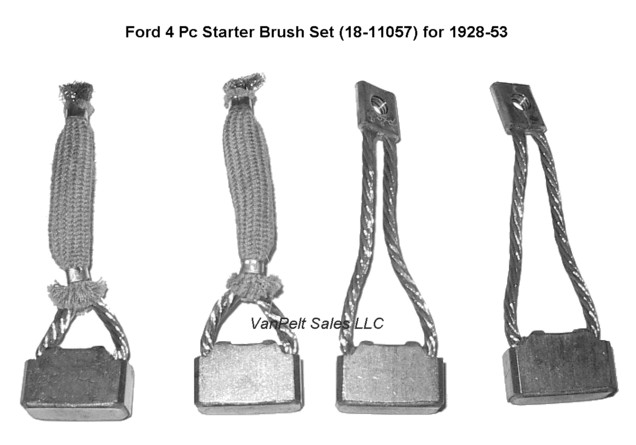

18-11057 Set of 4 Brushes PIC 1928-53 $  7.50
18-11052 Bushing - CE comm end PIC 1932-53 1.50
B-11135 Bushing - DE drive end PIC 1928-53 1.75
ICM-11135 Bushing - DE drive end PIC 1951-54 autom/1955-59 all 3.00

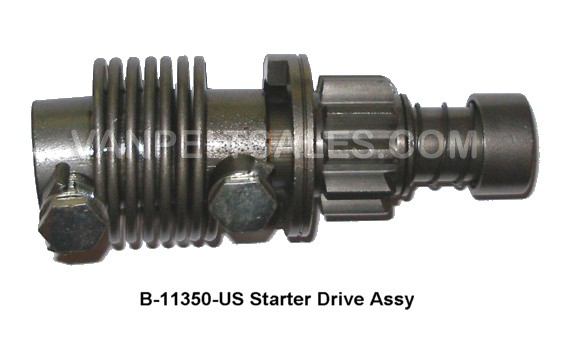

B-11350-US Starter Drive Assy  PIC 1932-53 exc autom & V8-60 49.00
  74175-S Key - Starter Drive to Shaft PIC 1932-53 except V8-60 1.00
B-11375 Spring - Starter Drive PIC 1932-53 except V8-60 7.00
52-11375 Spring - Starter Drive PIC 1937-40 V8-60 7.50

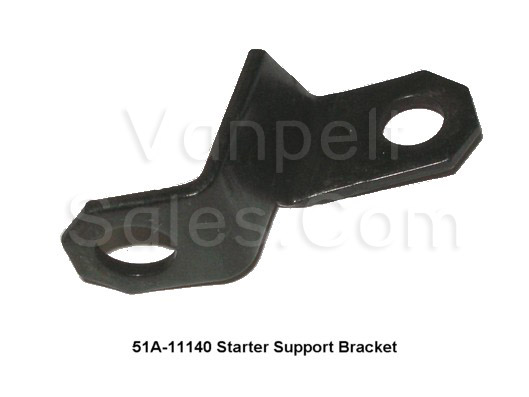

51A-11140 Starter Support Bracket (V8) PIC 1932-53 7.50

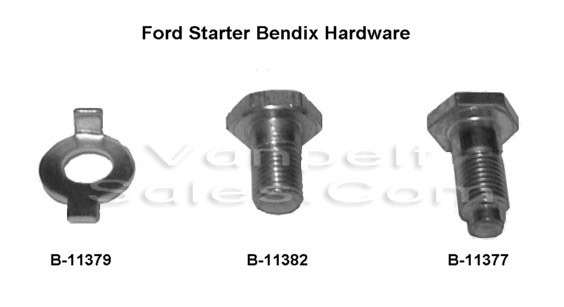

B-11377 Bolt - Starter Spring to Bendix head PIC 1932-53 1.00
B-11382 Bolt - Starter Spring to Shaft PIC 1932-53 1.00
B-11379 Lockwasher - Starter Bendix Bolt  (2 required) PIC 1932-53 1.00
Note: Replacement flywheel ring gears are available (see Engine Parts - Page 3)


Starter Solenoids


40-11450 Starter Switch - 6V - Floor mounted PIC 1933-34 V8 $ 29.95

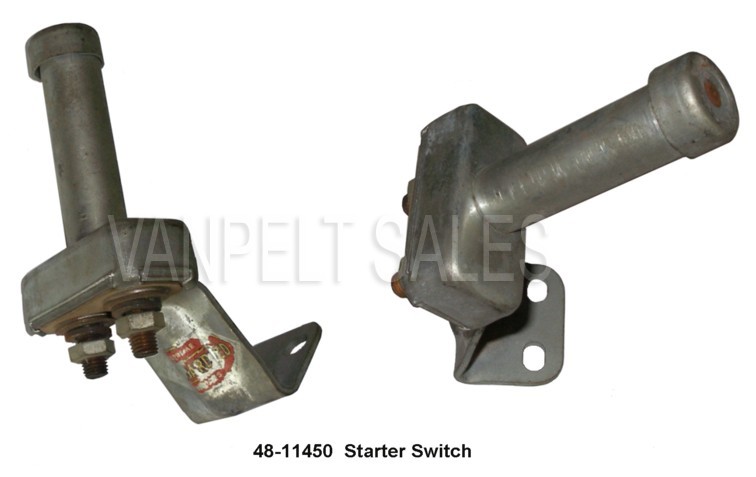

48-11450 Starter Switch - 6V - Floor mounted PIC 1935-36 V8    32.95
01A-11450 Starter Solenoid - 6V - Push Button - Metal  Housing - Ford script PIC 1937-48 Car & 37-51 Truck    29.95

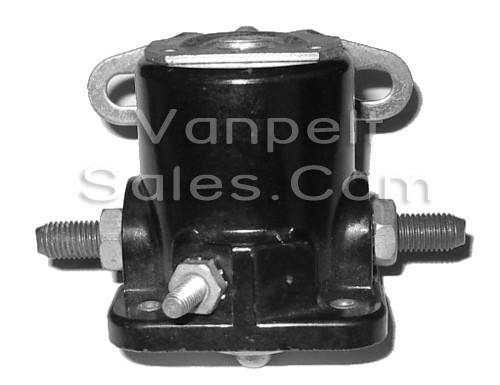

21A-11450 Starter Solenoid - 6V - Push Button - Plastic  Housing PIC 1937-48 Car & 37-51 Truck    19.95

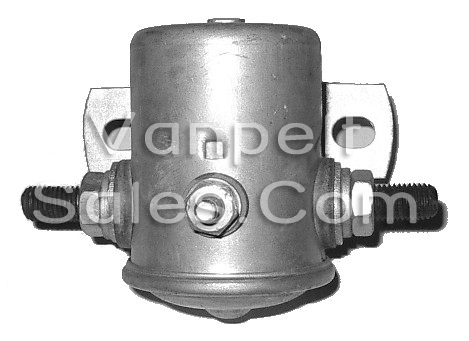

1A-11450 Starter Solenoid - 6V - Metal  Housing PIC 1951 Passenger Car Out of Stock

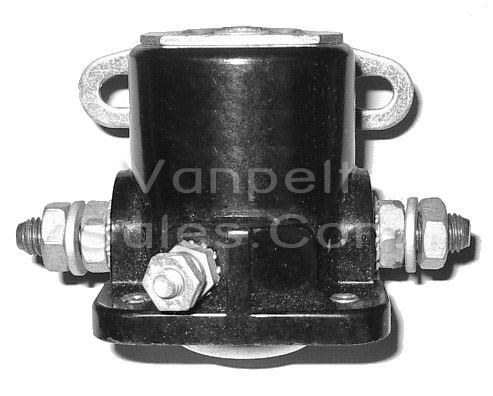

B5A-11450 Starter Solenoid - 6V - Plastic  Housing PIC 1952-55 Car & Truck    18.50
B6A-11450 Starter Solenoid - 12V - Plastic  Housing PIC 1956-74 Car & Truck    15.50
B6A-11450-AS Starter Solenoid - 12V - Plastic  Housing - Ford script PIC 1956-74 Car & Truck    49.50


Sender Units - Water Temperature

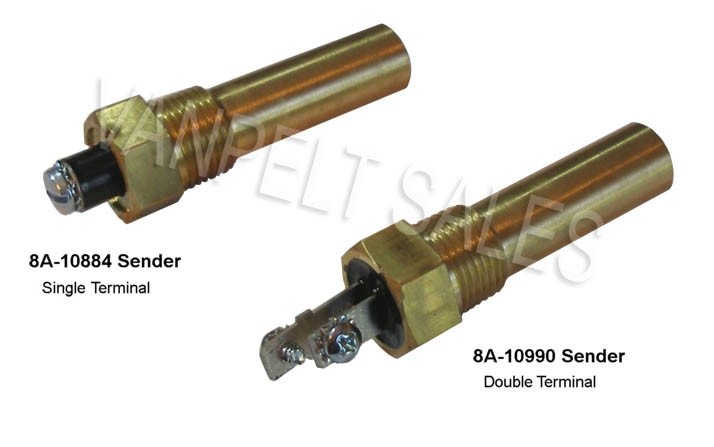

8A-10884 RH probe - Single Terminal -  6 Volt PIC 1939-55 V8 & Six $ 44.50
8A-10990 LH probe - Double Terminal - 6 Volt PIC 1939-55 V8 & Six    44.50
B6C-10884-A Single Terminal - 12 Volt PIC 1956 V8 & Six    59.00
B7A-10884-A Single Terminal - 12 Volt - -18 thread PIC 1957-62    12.00
C3AZ-10884-B Single Terminal - 12 Volt - 1/8-27 thread PIC 1963-64    15.00


Sender Units - Oil Pressure


41A-9278 80 Psi - Original style for stock oil gauge PIC 1944-53 V8 $ 45.00
41A-9278-R 80 Psi - Replacement type for aftermarket gauge PIC 1944-53 V8    15.00
B6AZ-9278-B   PIC 1954-62 V8 & 54-66 Six       8.50


Switches


6A-11500 Starter Switch - Dash push button   (unmarked) PIC 1937-51 V8     $  6.50

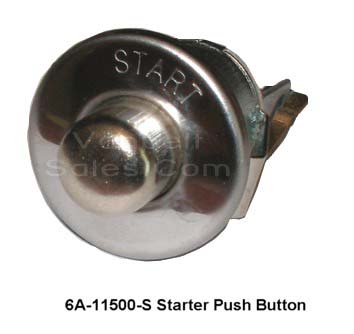

6A-11500-S Starter Switch - Dash push button   ("START") PIC 1937-51 V8       9.00

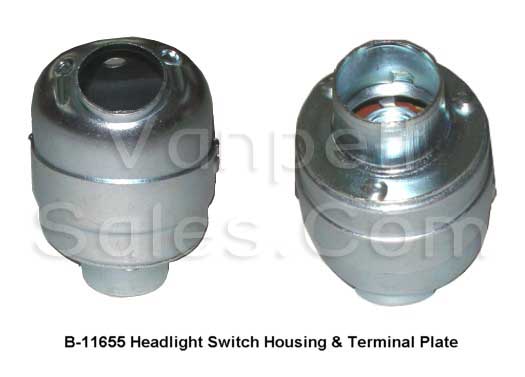

B-11655 Headlight Switch Housing & Terminal Plate PIC 1928-39 All 19.95

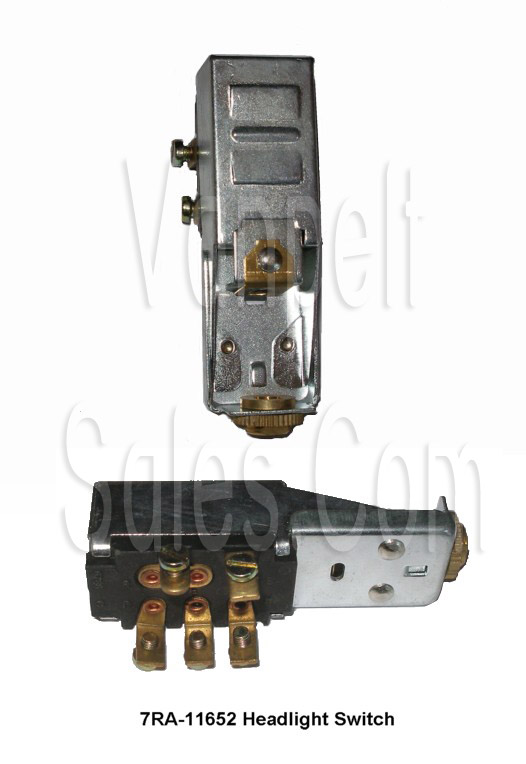

7RA-11652 Headlight Switch (less knob) - screw terminal type PIC 1941-48 Car & 41-50 Truck 42.95


Headlight Sealed Beam Lamps


B5AF-13007 Sealed Beam Headlamp - 6 volt - 7" round PIC 1940-55 Cars + Trucks  $ 11.00
C0DF-13007 Sealed Beam Headlamp - 12 volt - 7" round PIC 1956 + Various Cars + Trucks 8.50


Headlight Dimmer Switches

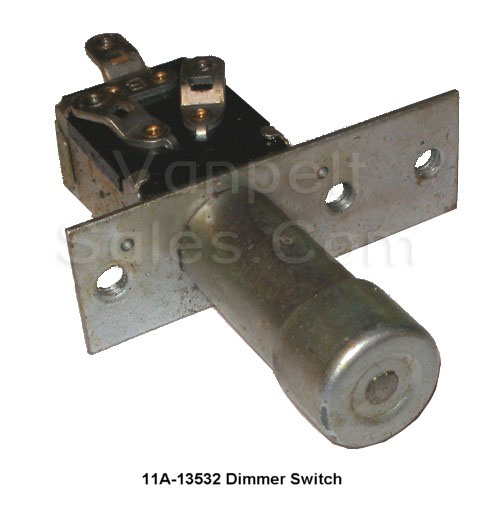

11A-13532 Dimmer Switch (3 hole bracket) - 6 volt PIC 1938-48 Cars $ 13.00
8A-13532 Dimmer Switch (2 hole bracket) - 6 volt PIC 1948-56 Cars 22.50
B7A-13532 Dimmer Switch (2 hole bracket) - 12 volt PIC 1957-58 Cars + 59-60 T-Birds 29.50
C0TF-13A024 Dimmer Switch (2 hole bracket) - 12 volt PIC 1959-73 Passenger Cars 9.00


Horn Relays

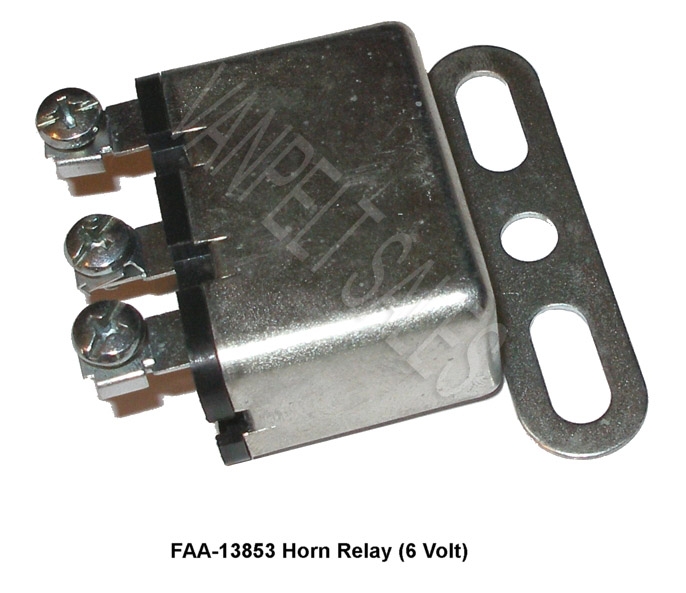

FAA-13853 Horn Relay - 6V    (equivalent to 7RA-13853 relay) PIC 1937-1955 $ 13.00
7RA-13853 Horn Relay - 6V    (equivalent to FAA-13853 relay) PIC 1937-1955 13.00

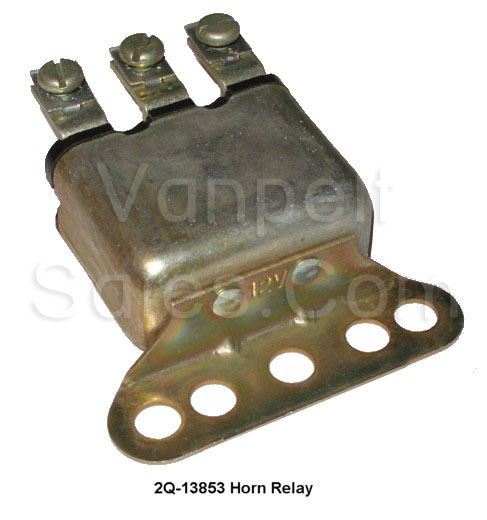

2Q-13853 Horn Relay - 12V PIC 1956 only 11.00
B7A-13853 Horn Relay - 12V PIC 1957-63 11.00
B8C-13853 Horn Relay - 12V PIC 1957-66 11.00


Miscellaneous Electrical


81A-3704/9K Ignition Switch Kit (switch body and switch brush) PIC 1938-1940 car + 38-47 pickup $ 19.75
11A-13480 Brake Light Pressure Switch for MC PIC 1939-1964  8.50

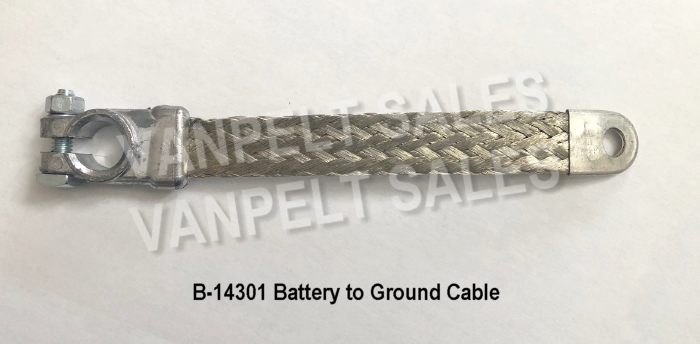

     B-14301 Braided Ground Strap (14.5" long) - Battery terminal end x lug end PIC 1935-1948 9.00

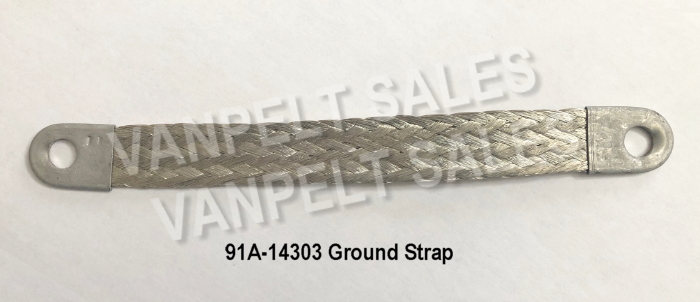

91A-14303 Braided Ground Strap (9" long) - Two lug ends PIC 1935-1953 6.95

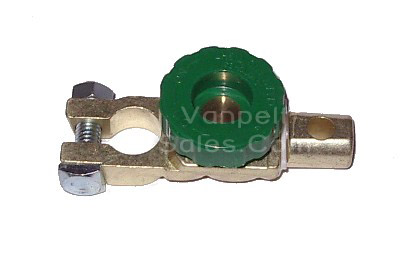

BDS910 Battery Disconnect Switch   (125 amp rated) PIC 1909-1979    9.50

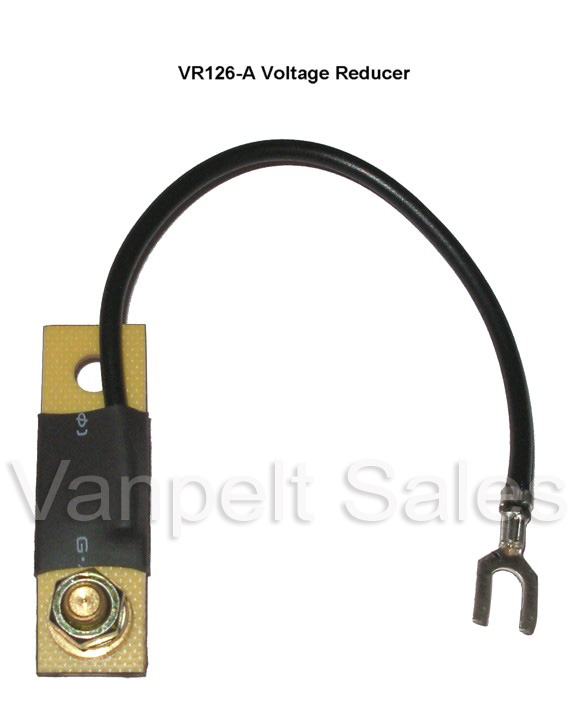

VR126A Voltage Reducer (12 to 6V for gauges etc) - 1 amp PIC 1928-1955    12.50
VR126C Voltage Reducer (12 to 6V) - 6 amp maximum PIC 1928-1955    29.50
VR126B Voltage Reducer (12 to 6V) - Handles up to 3 gauges PIC 1937-1955    34.50


Miscellaneous Windshield Wiper Parts


B-17528C Wiper Blade - 8" long - Hook type PIC 1932-39 car $ 3.45
51A-17528 Wiper Blade -  9" long - Hook type PIC 1940-48 car 3.95
7C-17528 Wiper Blade - 10" long   (Note: actual blade length is 9") PIC 1948-52 F pickup 15.95
Note: Some blade arm types are also available. Please contact us for your specific application.

  Return to Page 1         Return to Page 2          Tune-Up Kits



Please Note:
Prices are subject to change without notice and will be those in effect at the time of order

Ignition & Electrical Parts Are Not Returnable For Credit.

 We strive to keep this web page up-to-date, but suppliers often do not give us advance notice before changing pricing to us. Please confirm your pricing when placing an order. The New Parts listed here are primarily replacement parts from limited supplies of new-old-stock or new-old-replacement-stock; or new reproduction parts. The Ford part numbers listed are for identification purposes only, and do NOT represent or imply that the parts offered are genuine Ford service parts. Our minimum order for product is $10.00 and the minimum shipping charge is $7.00. All prices listed below are in US Dollars.

To place an order, call toll free (from USA locations) 1-800-299-7496. Office hours are Monday-Thursday from 9:00am to 5:30pm Eastern Time. If you are outside the USA please call (513) 724-9486. The same office hours apply. You may also use the online store to make purchases if within the USA. Not all parts are listed on the store yet so check with our sales office if you do not see an item in the online store.

INTERNATIONAL PHONE ORDERS: If you wish to order parts by telephone and credit card, please call (513) 724-9486 only during regular office hours.

Please Note: All international packages require completion of the Customs Declaration Form, and will be charged a $10.00 documentation fee.
