FLATHEAD V8 ENGINE PARTS

We stock parts for Ford flathead V8 engines from 1937 to 1953

Use this link for exploded drawings:

ENGINE PARTS DRAWINGS

Engine Parts Page 1 - Page 2 - Page 3 - Page 4

Ford Part
Number

Description Image Application Notes Price for
New Part


Engine Flywheel Ring Gears & Dust Seals

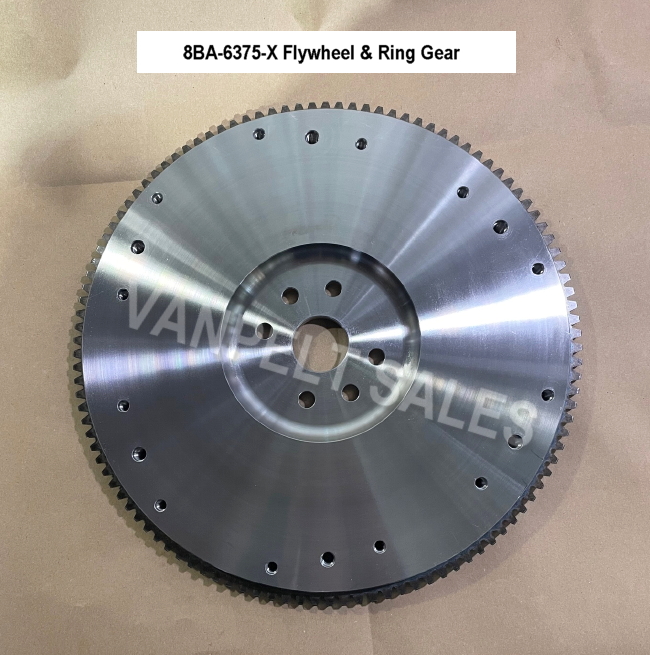

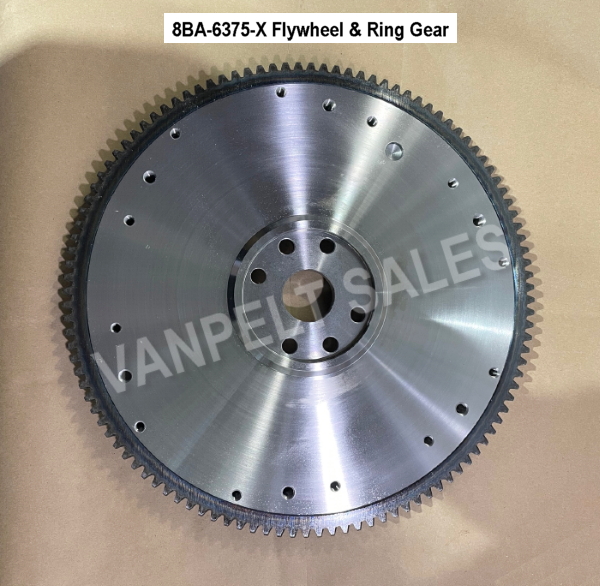

8BA-6375-X Flywheel (NEW)  with Ring Gear   (Drilled for 10" and 11" Long style pressure plate) PIC 1949-53 car + 48-53 truck V8 339.00

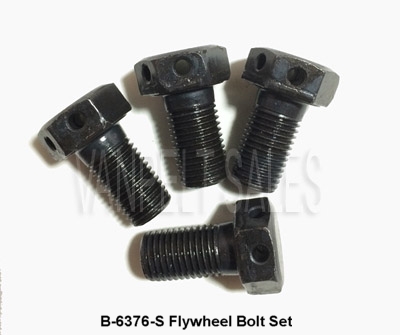

  B-6376-S Flywheel Bolts (set of 4) - drilled for safety wire PIC 1932-53 V8   (85-110hp)        19.00

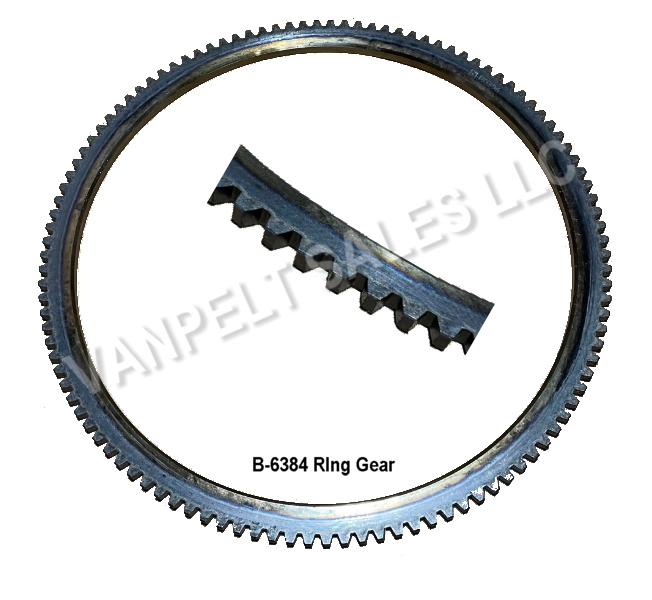

   B-6384 Ring Gear (112 teeth) - Flathead V8  (12.42" ID) PIC 1932-48 car + 32-47 truck    32.00

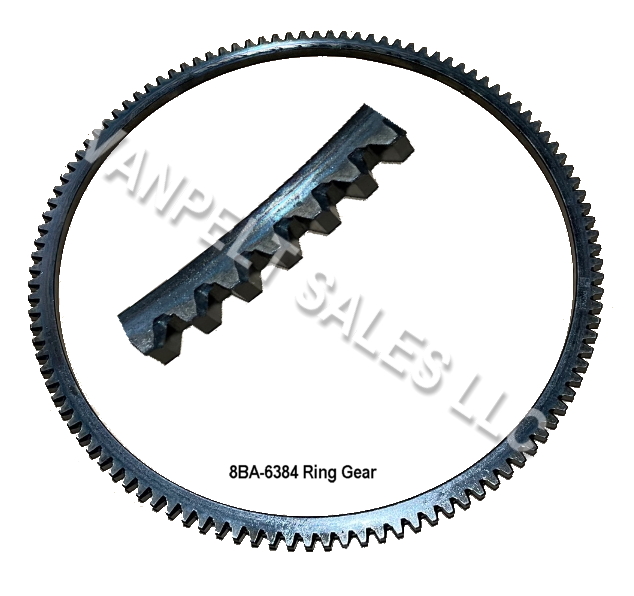

8BA-6384 Ring Gear (112 teeth) - Flathead V8  (12.85" ID) PIC 1949-53 car + 48-53 truck       39.00
EAA-6384 Ring Gear (146 teeth) - Y-Block (all) and OHV 215 & 223 Six PIC 1954-64 Y-V8 car + 52-62 Six 34.00
1CM-6387-B Dowel Pin (flywheel to crankshaft) - Oversize (0.439/441" diameter) PIC 1949-53 car + 48-53 truck 3.00

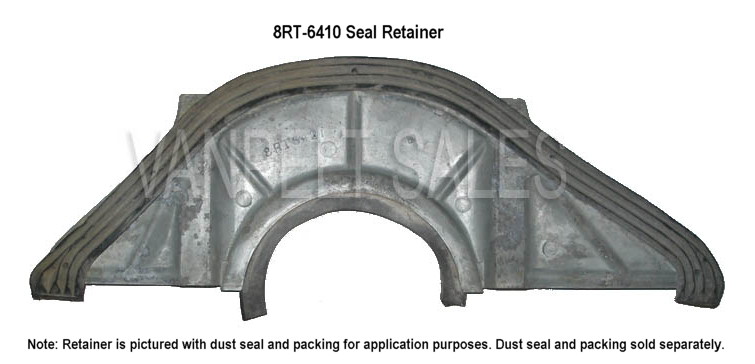

8RT-6410 Retainer (dust seal to flywheel housing) - 10½" long (bolts not included) PIC 1948-52 truck     32.00
8BA-6411 Dust Seal (flywheel housing) - passenger car housing PIC 1949-53 car + 1953 truck       18.00
8RT-6424 Dust Seal (flywheel housing) - truck housing PIC 1948-52 truck Out of Stock
8RT-6425 Packing - Retainer  PIC 1948-52 truck          4.00
350433-S Bolt - Pressure Plate to Flywheel (set of 6 special bolts) PIC 1935-57 V8          14.00
350645-S Bolt - Flywheel to crankshaft      (see B-6376-S set above) PIC
Note: The ring gears are not interchangeable between the 32/48 and the 49/53 types. Be sure to match the gear to the correct flywheel for proper starter operation. Starters and starter drives are available in Electrical Parts. See Page 3


Engine Valve Kits


8BA-6505-KF Complete Valve Kit (see description below) - with Ford springs PIC 1932-53 (85-100hp) $ 359.00
8BA-6505-KL Complete Valve Kit (see description below) - with LZ springs PIC 1932-53 (85-100hp) Check Availability
Note: The KF Kit includes 16 each: 8BA-6505 valves, 0BA-6513 springs, 8BA-6510 guides, 8BA-6514 spring retainers, 7HA-6518 pair split locks, 40-6512 guide retainers, plus 8 of 8BA-6571 valve guide seals (intake side only). If you want stiffer springs for a race type camshaft, order the 8BA-6505-KL kit which substitutes 16 of the 86H-6513 LZ valve springs.


Engine Valves & Valve Components

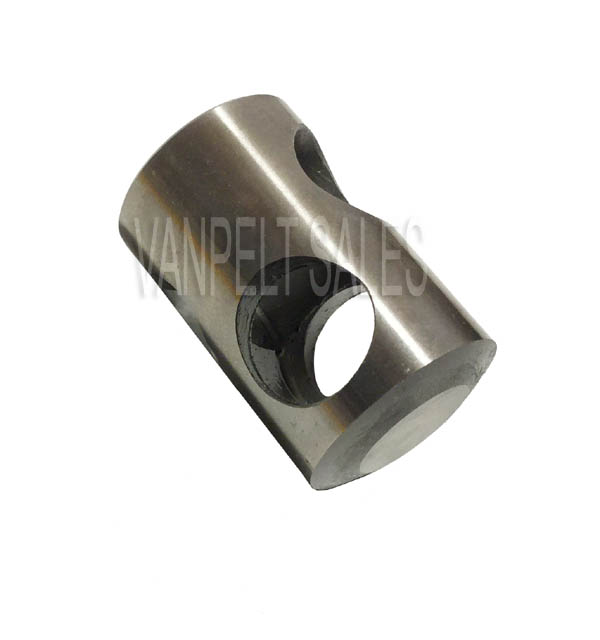

52-6500 Tappet - Slotted Hollow - Set of 16 PIC 1937-40  (60hp) $ 175.00
18-6500 Tappet - Slotted Hollow - Each PIC 1932-48 (85hp) 3.95
91A-6500 Tappet - Hollow - Each PIC 1932-53 (85-100hp)       3.95
91A-6500ADH Tappet - Hollow - Adjustable  (price per lifter) PIC 1932-53 (85-100hp)     19.00

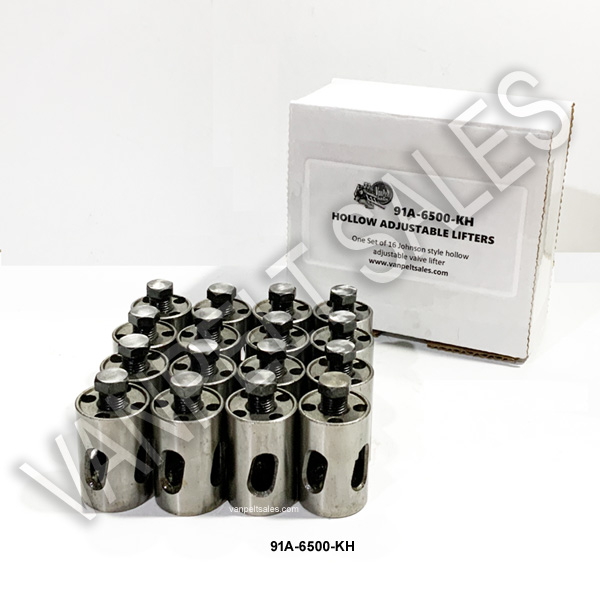

91A-6500KH Tappet - Hollow - Adjustable  (set of 16) PIC 1932-53 (85-100hp) Check Availability
91A-6500WRN Wrench set for adjustable lifters (2 pcs) PIC 1932-53 (85-100hp)       9.95
Tip: Eliminate the need for the small adjusting wrenches by drilling the lifter bosses in the block during the machining process. Drill a 1/8" diameter hole in each boss approximately 3/4" below the top lip of each boss. A small allen wrench or drill bit can be inserted in the hole to hold the lifter body from rotating while making adjustment to the hex bolt in the lifter.

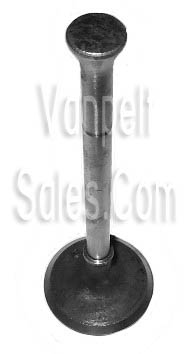

  52-6505 Valve (intake or exhaust) - Mushroom tip PIC 1937-40  (60hp)     19.95
11T-6505 Valve (intake or exhaust) - Mushroom tip PIC 1932-48 (85-100hp)     15.95

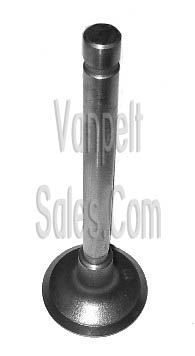

8BA-6505 Valve (intake or exhaust) - Straight Stem  (4.49" long) PIC 1932-50 (85-100hp)     11.00
1BA-6505 Valve (intake or exhaust) - Straight Stem  (4.54" long) - Rotator type PIC 1951-53     (100hp)      11.00
1GT-6505 Valve (exhaust only)  PIC 1941-47 car or truck Six 11.95
7HA-6505 Valve (exhaust only) - 1.51" head x 5.36" long (non rotator type) PIC 1947-51 car or truck Six 7.95
C3AZ-6505-A Valve (exhaust only) - 1.52" head x 5.02" long  (239-272-292-312 Y block) PIC 195-62 car or truck V8 9.95
5GA-6507 Valve (intake only)  PIC 1945-47 car or truck Six 8.95
7HA-6507 Valve (intake only) - 1.65" head x 5.36" long (non rotator type) PIC 1947-51 car or truck Six 15.95
C0AE-6507-J Valve (intake only) - 1.79" head x 5.02" long  (272-292) PIC 1955-56 car or truck V8 7.95
B7A-6507-A Valve (intake only) - 1.92" head x 5.02" long (272-292-312) PIC 1957 car or 1957 truck V8 9.95
40-6510 Valve Guide (split type) PIC 1932-48 (85-100hp)      7.95

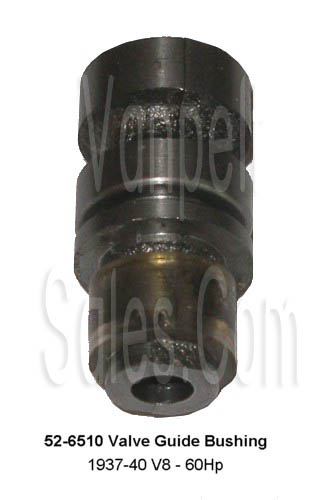

52-6510 Valve Guide (split type) PIC 1937-40 (60hp)      8.95
8BA-6510 Valve Guide (one piece type) PIC 1932-53 (85-100hp)      4.75
7HA-6510 Valve Guide (one piece type) - H Series Six PIC 1947-51 car or truck Six 9.95
52-6512 Retainer - Valve Guide (horseshoe clip) PIC 1937-40  (60hp)      2.50
40-6512 Retainer - Valve Guide (horseshoe clip) PIC 1932-53 (85-100hp)      1.65
52-6513 Valve Spring (intake or exhaust) PIC 1937-40 (60hp)      6.95
78-6513 Valve Spring (intake or exhaust) PIC 1932-50 (85-100hp)      3.25
0BA-6513 Valve Spring (intake or exhaust) - 2.48" long/10.1 coils PIC 1932-50 (85-100hp)      4.95
1BA-6513 Valve Spring (intake or exhaust) - 2.20" long/9.12 coils - For rotator type valve PIC 1951-53 (100hp) 8.50
86H-6513 Valve Spring LZ (intake or exhaust) - 2.40" long/9.2 coils PIC 1933-53 V8      5.95
0HA-6513 Valve Spring (intake or exhaust) - 2.56" long/9.3 coils PIC 1947-51 car or truck Six Check Availability
40-6514 Retainer - Valve Spring PIC 1932-48 (85-100hp)      1.25
8BA-6514 Retainer - Valve Spring (use with 8BA-6505 valves) PIC 1932-53 (85-100hp)      2.00
1BA-6514 Retainer - Valve Spring (use with 1BA-6505 valves) - For rotator type valve PIC 1951-53 (85-100hp)      1.75
7HA-6514 Retainer - Valve Spring (use with 7HA valves) - H series six PIC 1947-51 car or truck Six 1.50
1BA-6517 Sleeve - Valve Retainer  (use with 1BA-6505 and 1BA-6514) - For rotator type valve PIC 1951-53 (100hp)      5.00
7HA-6518 Keepers (2) - Valve Spring (use with 8BA-6505 valves) PIC 1949-51     (100hp)      1.75

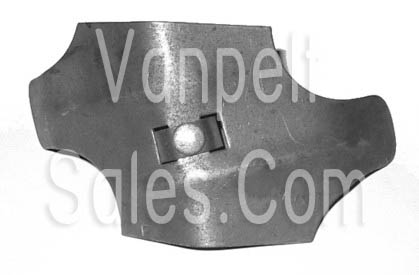

48-6524 Oil Baffle - Valve Chamber  (2 required) - NOS                        each: PIC 1932-53 V8      12.00
48-6524 Oil Baffle - Valve Chamber (2 required) - USED                      each: PIC 1932-53 V8 7.50
8BA-6571 Seal - Valve Guide (Intake) PIC 1949-53 (85-100hp)      1.25
C1TE-6571-C Seal - Valve Stem (intake and exhaust)                 Set of 16 PIC 1954-62 car or truck V8 18.50

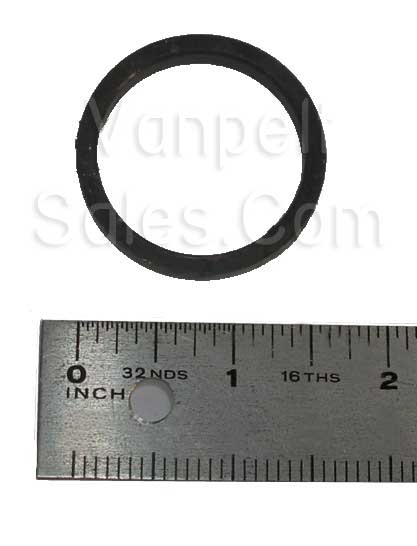

40-6056 Valve Seat Insert (requires machining to fit) PIC 1932-53 V8      5.95

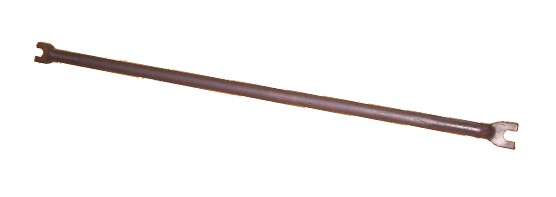

VGBT Valve Guide Bushing Tool (aka: pickle bar tool) PIC 1933-53 V8   42.00
Note: Some 1951-53 valve parts are no longer available. When rebuilding a 49-53 motor, use the 49-50 valve components which are all available. Also note that the 86H-6513 L-Z valve spring has a higher spring pressure for use with performance camshafts (not recommended for use with stock or mild camshafts).


Engine Oil Pump & Oil Pan Parts

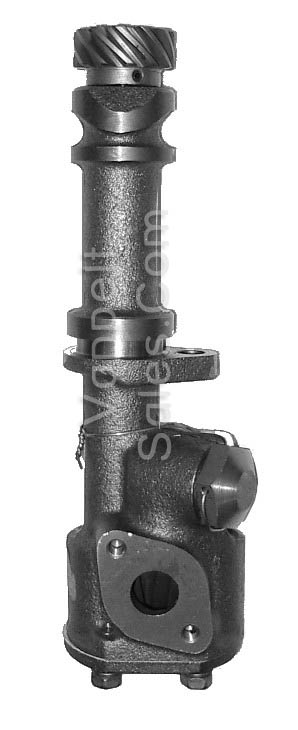

   8BA-6621

Oil Pump (short body) - 80 psi - Melling brand (standard volume) PIC 1949-53 V8. For 35-47 motors, add 8RT-6615 pickup & 41T6623 screen $ 219.00
Note: Original 32-48 long body oil pumps and repair kits are no longer available. Use the 8RT-6615 oil pump pickup tube (see below) with the 8BA pump when rebuilding pre 1949 V8 motors. Designed for the rear sump pans. Other pickup tubes may be required for center sump oil pans.

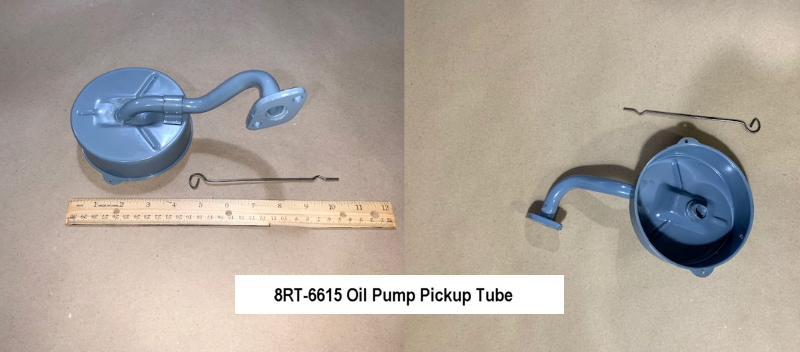

   8RT-6615 Oil Pump Pickup Tube & Cover with retainer clip (32-53 V8 various applications) PIC Screen not included      $  29.50
   41A-6623 Oil Pump Pickup Screen (same as 68- or 41T- or 8BA-6623 screen) PIC Fits all 32-53 pickup tubes.       19.00
  41A-6626 Gasket - Pickup Tube to Pump Body PIC 1942-53 V8 2.00

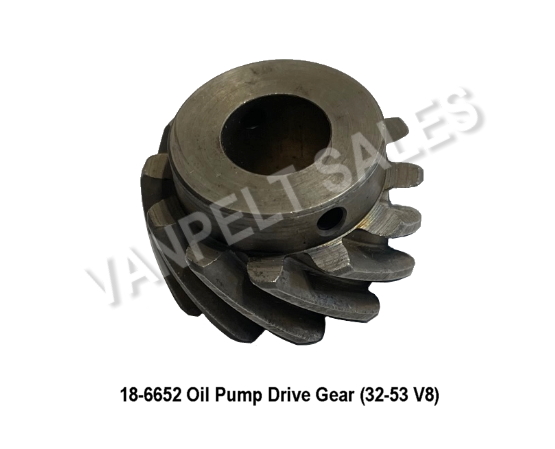

   18-6652 Gear - Oil Pump Shaft (12T) PIC 1932-53 V8 9.00
   01A-6654 Spring - Oil Pressure Relief  (50 psi) PIC 1932-42 V8       4.00
   41A-6654 Spring - Oil Pressure Relief  (80 psi) PIC 1942-48 V8       2.00

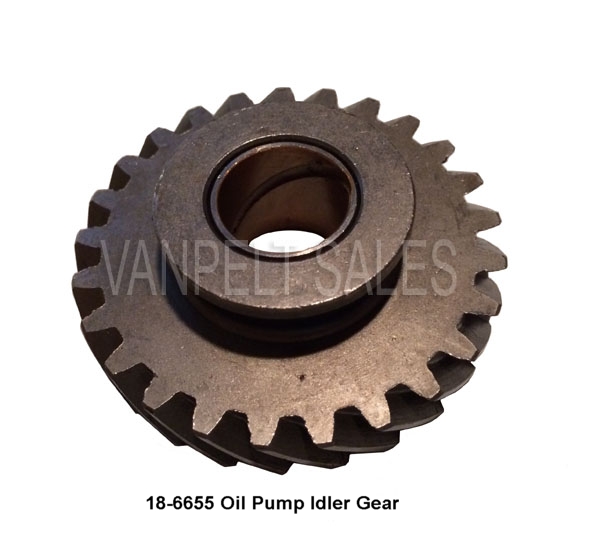

   18-6655 Oil Pump Idler Gear with new bushing PIC 1932-53 V8       39.00
18-6656/64 Idler Cover Plate & Shaft assy PIC 1932-48 V8 30.00
8BA-6656 Shaft - Idler Gear  (USED) PIC 1948-53 V8 20.00
   18-6657 Bushing - Oil Pump Idler Gear PIC 1932-53 V8 5.00

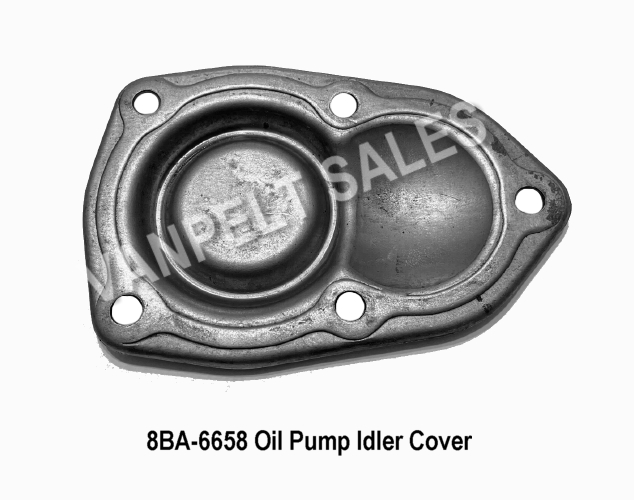

8BA-6658 Cover - Oil Pump Idler (pressed steel) PIC 1949-53 V8 19.00
1CM-6658 Cover - Oil Pump Idler (cast iron) PIC 1949-53 V8 24.00

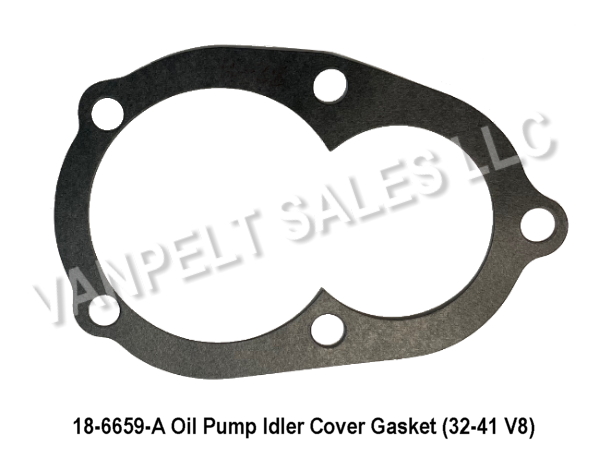

18-6659-A Gasket - Oil Pump Idler Cover PIC 1932-41 V8 3.50

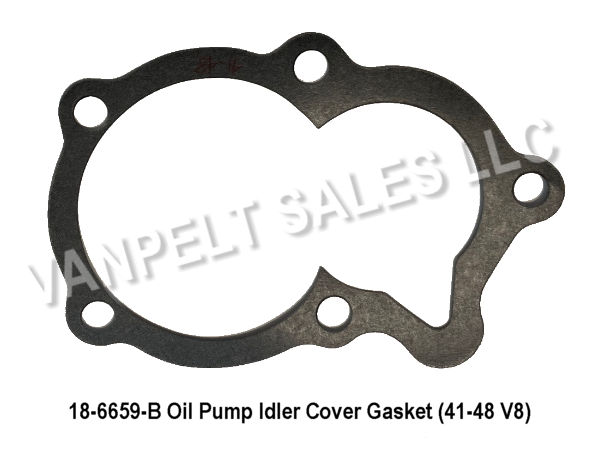

18-6659-B Gasket - Oil Pump Idler Cover PIC 1941-48 V8 3.50

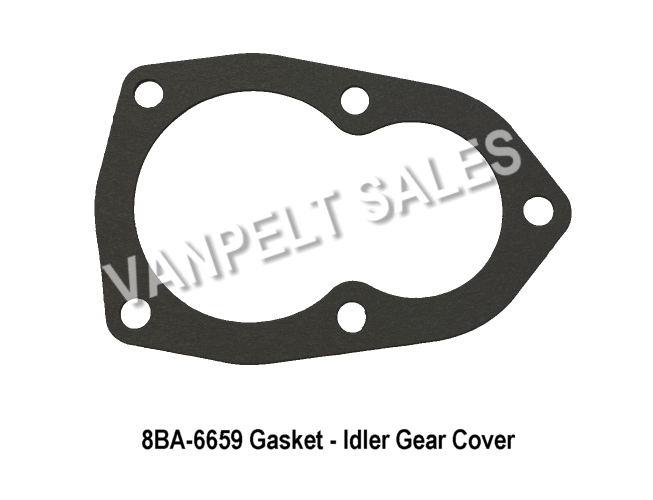

8BA-6659 Gasket - Oil Pump Idler Cover PIC 1948-53 V8 3.50
01A-6663 Plunger - Oil Pressure Relief PIC 1942-48 V8 Call for price
  68-6666 Plug - Oil Pressure Relief PIC 1932-48 V8 various Call for price


Engine Oil Pans


      6675 Used Flathead V8 Oil Pan   1935-53 V8 $ 125.00
Note: Pans are sold as-is from our used parts inventory. Please specify which type or model/year needed. Subject to availability.


Engine Oil Pan Parts

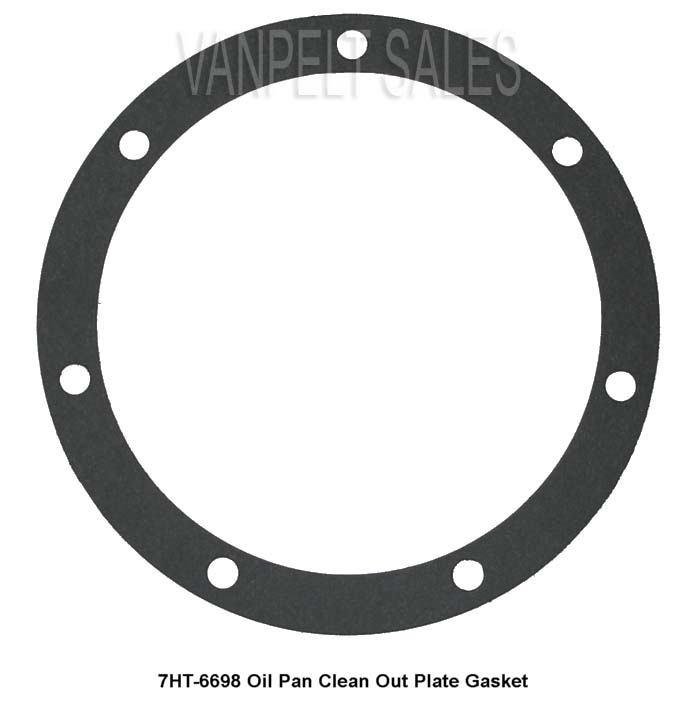

   7HT-6698 Gasket - Oil Pan Cleanout Plate PIC 1948-52 truck V8    $  5.50
    B-6700A Rope Seal (front) - Upper (timing cover) or Lower (oil pan)                   Each: PIC 1932-43 V8         3.50

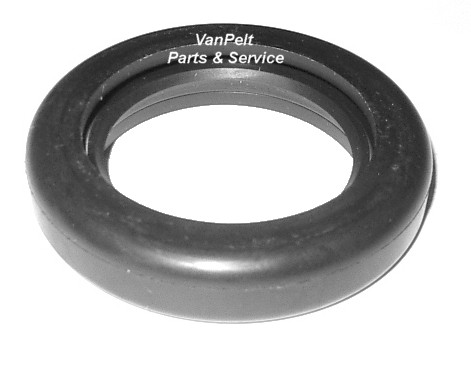

    B-6700M One-Piece Front Oil Seal    (use with 8BA-6362M sleeve) PIC 1932-53 V8       14.95

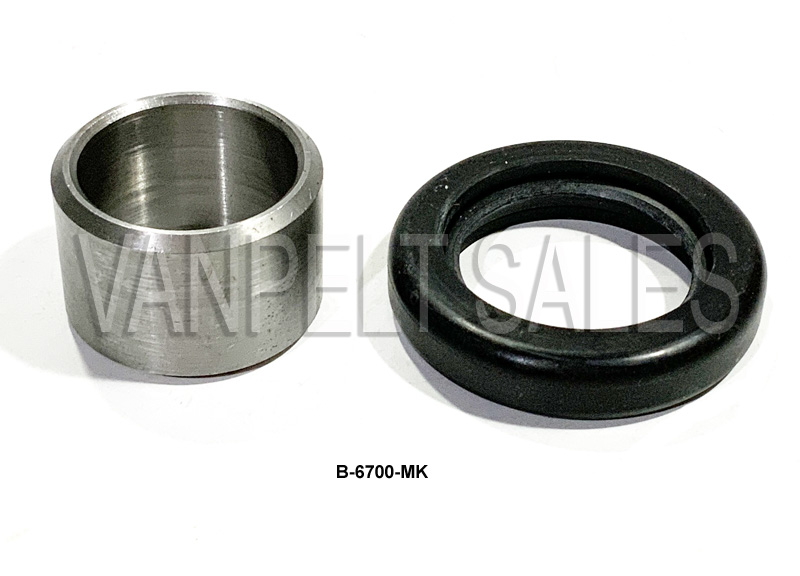

   B-6700MK One-Piece Front Oil Seal Kit   (includes B-6700M seal + 8BA-6362M smooth sleeve) PIC 1932-53 V8 18.95

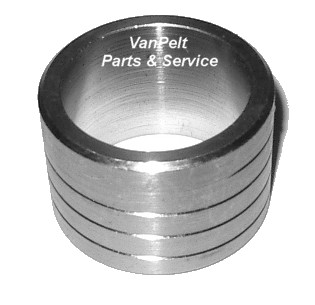

   8BA-6362 Crankshaft Sleeve (stock type with oil grooves) PIC 1949-53 V8         8.50
   8BA-6362M Crankshaft Sleeve (smooth type - w/o oil grooves - for 1 pc oil seal) PIC 1949-53 V8         8.50
    B-6730 Oil Pan Drain Plug (3/4-24x5/8") PIC 1933-48 V8 9.00
    B-6730M Oil Pan Drain Plug (3/4-24x5/8") - magnetic PIC 1933-48 V8      Out of Stock
    52-6730 Oil Pan Drain Plug (1½-20x5/8") PIC 1938-48 V8

   11.00

  8HA-6730 Oil Pan Drain Plug (7/8-16x5/8") PIC 1948-56 All      4.00

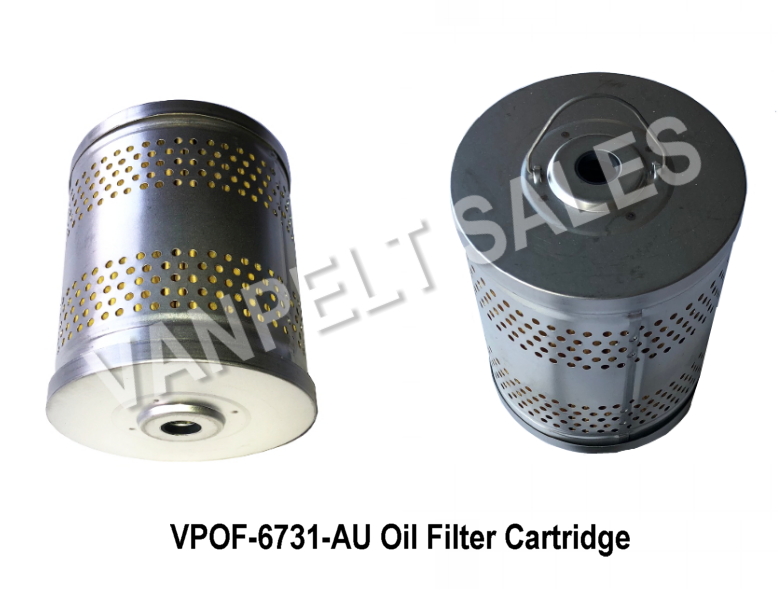

VPOF-6731-AU Oil Filter Element  (Fits in separate gravity feed type filter canister)  - American made PIC 1940-53 All 18.00
   B-6734-C Copper Gasket - Drain Plug (3/4") PIC 1928-38 All         3.00
  8HA-6734 Gasket - Drain Plug (7/8") fiber PIC 1948-56 All         2.00
    52-6734 Drain Plug Gasket (1½")  fiber) PIC 1938-48 V8         3.00

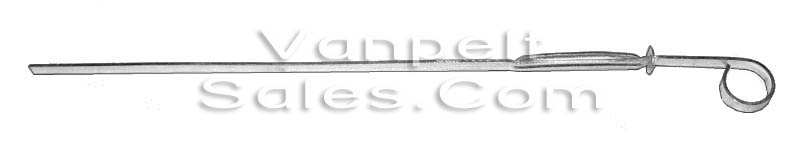

    48-6750 Dipstick - 16.625" long (regular handle) PIC 1935-48 V8      12.50

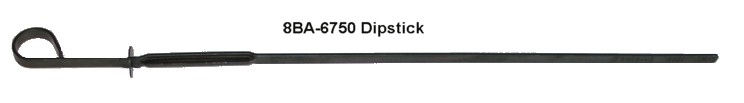

 EAB-6750 Dipstick (replaces 8BA-6750) PIC 1949-53 V8      22.00

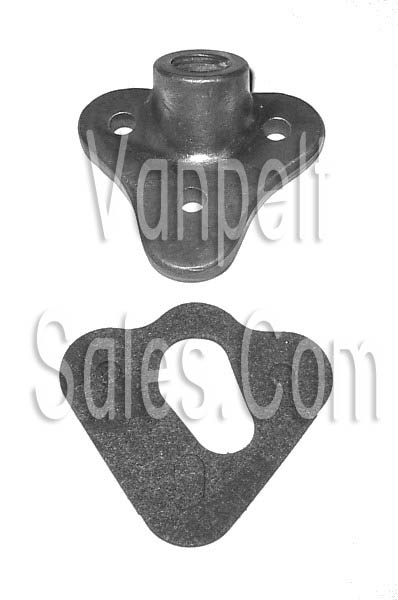

  48-6751-A Oil Dipstick Tube Boss & gasket (without rivets) PIC 1935-53 V8 Out of Stock

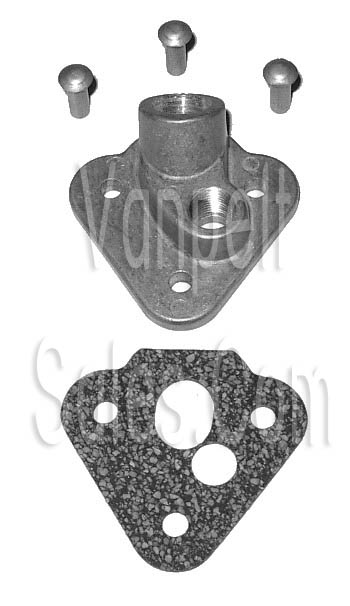

  59A-6751 Oil Dipstick Tube Boss (w/oil return) gaskets & rivets PIC 1946-48 V8    35.00
   48-6753 Gasket - Tube Boss to Oil Pan PIC 1935-48 V8 2.50
8BA-6753 Gasket - Tube Boss to Oil Pan PIC 1949-53 V8 2.50
   48-6754-A Tube - Dipstick - 7.00" long PIC 1935-53 V8 Out of Stock
   48-6754-B Tube - Dipstick - 8.33" long PIC 1935-53 V8         12.50
 8CM-6754 Tube - Dipstick  PIC 1949-51 V8 Mercury Out of Stock
 48-6756-A Tube Assy (Oil pan ventilator - under Fuel pump stand) - 4.98" long for cast iron manifolds PIC 1935-48 V8 18.00
 48-6756-B Tube Assy (Oil pan ventilator - under Fuel pump stand) - 4.02" long for aluminum manifolds PIC 1935-48 V8 Out of Stock
8BA-6763 Tube - Oil Filler - 8.75" OAL  (used part) PIC 1949-53 V8 22.00
     48-6766 Oil Breather Cap (X top) for V8 - Black Finish PIC 1935-48 V8      17.00
    48-6766-C Oil Breather Cap (X top) for V8 - Chromed PIC 1935-48 V8 25.00
  8BA-6766 Oil Breather Cap (skirted) for V8 - Black Finish PIC 1949-53 V8 24.00
Note: We have a limited quantity of used 6675 flathead oil pans. Call for price and availability.
Note: for all 6781 oil pan gasket sets see PAGE 1 listings


Radiator Caps

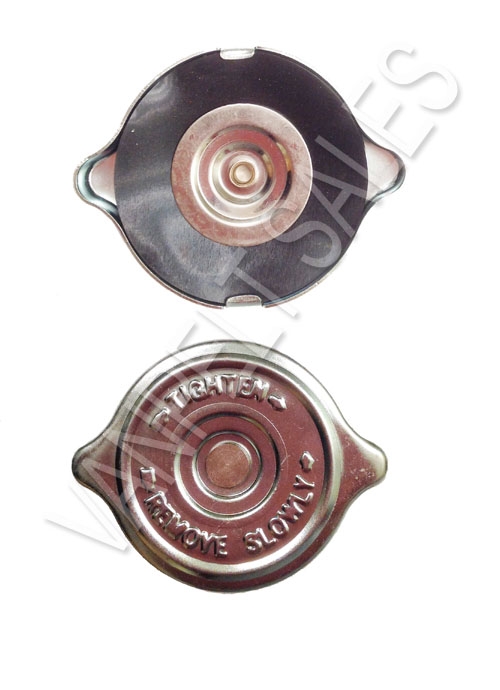

    91A-8100 Non Pressure Cap (replaces the 78-8100) PIC 1937-48 V8 $  8.50

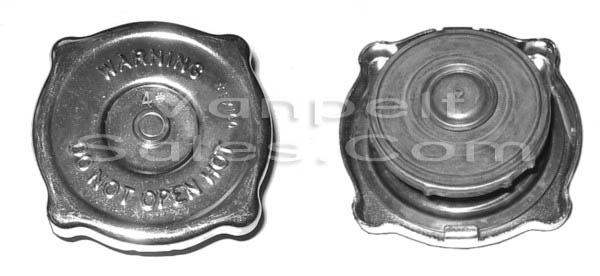

  41A-8100-C Pressure Cap (4 psi) - V8 PIC 1937-48 Car & 1937-51 Trucks 12.00

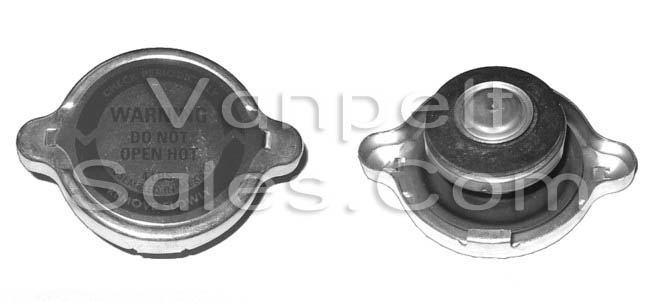

B2TZ-8100-A Pressure Cap (4 psi) - V8 PIC 1951-60 Trucks       7.50
B2AZ-8100-F Pressure Cap (7 psi) - V8  (replaces 0A-8100A) - approx 3/4" seat depth PIC 1949-54 Cars       7.50
B2AZ-8100-E Pressure Cap (7 psi) - V8  (replaces 1M-8100A) - approx 1" seat depth PIC 1949-54 Cars 7.50
C9ZZ-8100-A Pressure Cap (13 psi) - V8  (replaces 0A-8100A) PIC 1941-53 Cars       9.50


Radiator & Block Draincocks

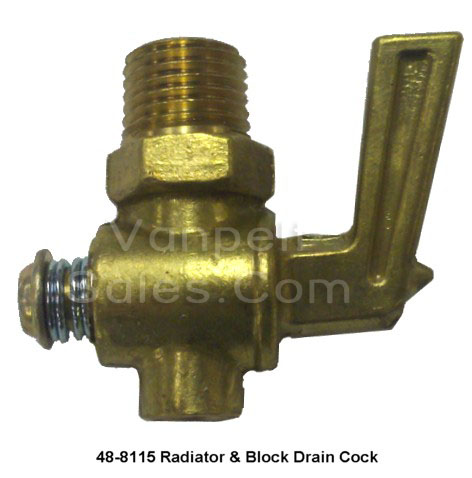

48-8115 Draincock - Offset Handle - 1/4" NPT PIC 1933-48 Cars & Trucks     18.50

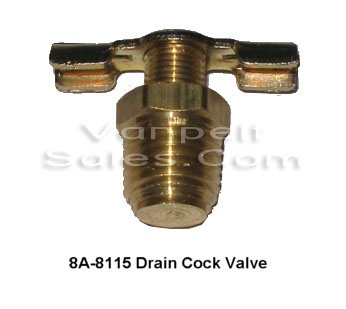

8A-8115 Draincock - Winged Handle - 1/4" NPT PIC 1942-59 Cars & Trucks    7.00

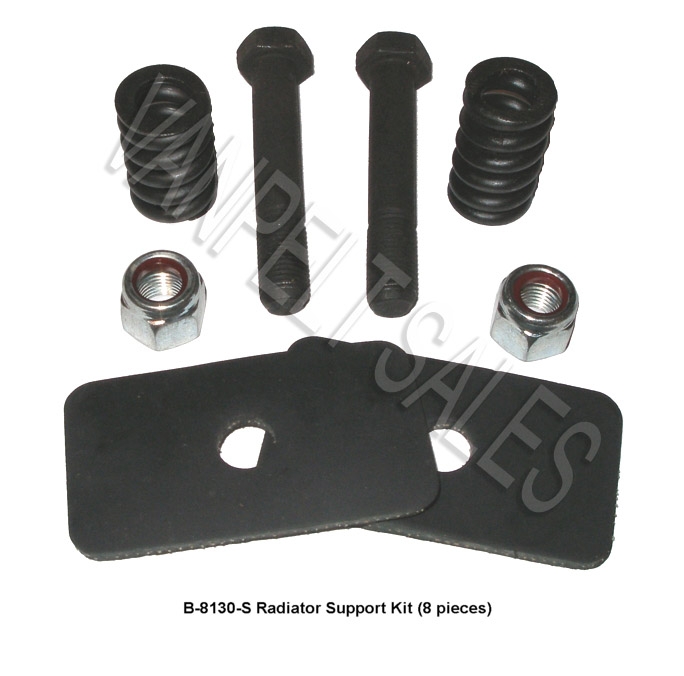

B-8130-S Radiator Support Bolt & Spring Kit PIC 1928-42 Various 5.95
8C-8130-S Radiator Support Bolt & Spring Kit PIC 1948-52 F-1 Pickups 16.00


Radiator Hose Kits


40-8260-K Hose Kit  (2 ea upper & lower + 8 clamps)  PIC 1932-36 All $  69.00
78-8260/86K Hose Kit  (2 ea upper & lower + 8 clamps) PIC 37-38 All + 39 Std  61.00
91A-8260/86K Hose Kit  (2 ea upper & lower + 8 clamps) PIC 39 Dlx + 40-41 V8 Car     75.00
21A-8260/86K Hose Kit  (2 ea upper & lower + 8 clamps) PIC 42-48 Car 75.00

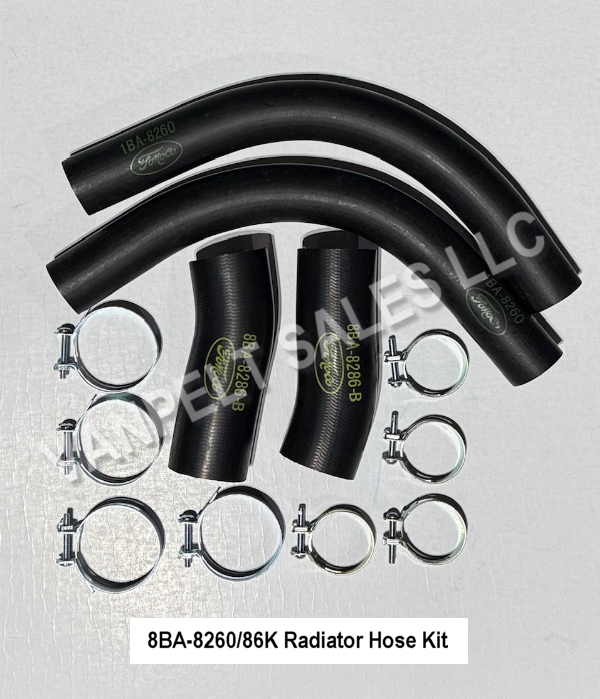

1BA-8260/86K Hose Kit  (2 ea upper & lower + 8 clamps)  with FoMoCo script PIC 49-53 Car 68.00
Radiator Hoses - Pipes - Clamps
BB-8260-S Upper Hoses (1 pair) w/o script PIC 32-36 All Passenger V8 $ 45.00
18-8286-S Lower Hoses (1 pair) w/o script PIC 32-38 All Passenger V8 21.00
78-8260S Upper Hoses (1 pair) w/Ford Script PIC 37-38 All + 39 Std     52.00
78-8260 Upper Hoses (1 pair) w/o script PIC 37-38 All + 39 Std     52.00
91A-8260S Upper Hoses (1 pair) w/Ford Script PIC 39 Delux + 40-41 All     52.00
91A-8260 Upper Hoses (1 pair) w/o script PIC 39 Delux + 40-41 All     45.00
91A-8286S Lower Hoses (1 pair) w/Ford Script - Special Order PIC 39 Delux + 40-41 All     58.00
91A-8286 Lower Hoses (1 pair) w/o script PIC 39 Delux + 40-41 All     39.00
21A-8260S Upper Hoses (1 pair) w/Ford Script PIC 1942-48     52.00
21A-8260 Upper Hoses (1 pair) w/o script PIC 1942-48     45.00
21A-8286 Lower Hoses (1 pair) w/o script PIC 32-38 All + 39 Std + 42-48     16.00

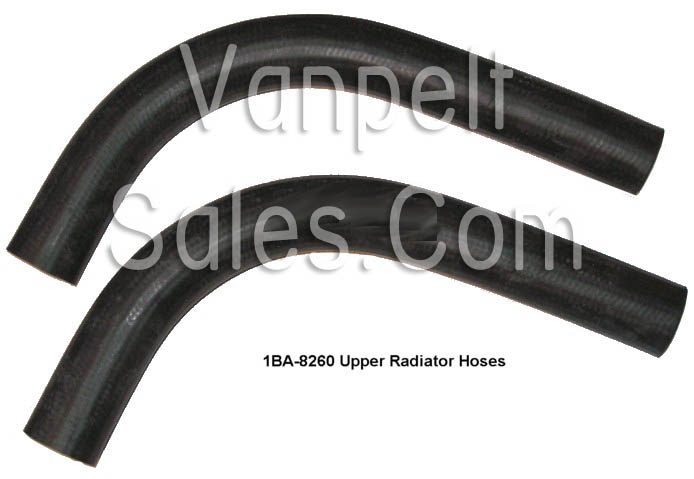

1BA-8260S Upper Hoses (1 pair) w/FoMoCo Script PIC 1949-53 Passenger V8     34.00

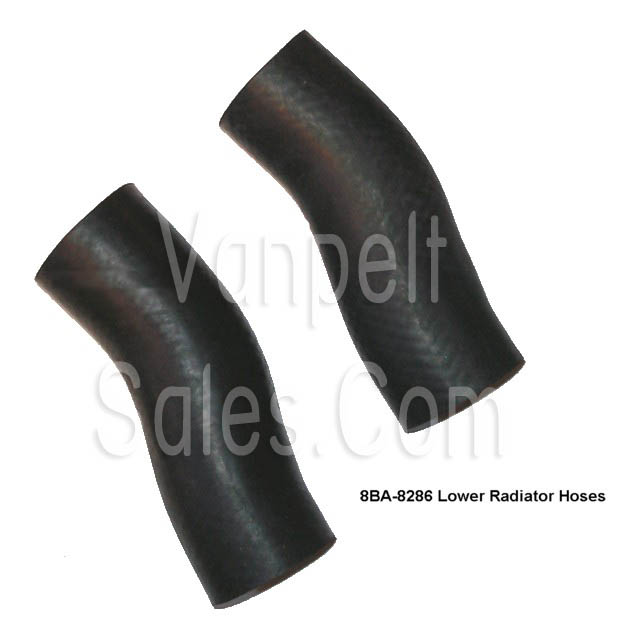

8BA-8286S Lower Hoses (1 pair) w/FoMoCo Script PIC 1949-53 Passenger V8     28.50
8RT-8260-A Upper Hoses (1 pair) w/o script (1¼ x 4¼") PIC 1948-53 F-1 Truck     21.00
8RT-8260-B Upper Hoses (1 pair) w/o script (1¼ x 2½") PIC 1948-53 F-1 Truck        12.00
21C-8260 Lower Hoses (1 pair) w/o script (1¾ x 7½") PIC 1948-52 F-1 Truck     41.00
67-8260 Lower Hoses (1 pair) w/o script (1¾ x 10.9") PIC 1953  F-100 Truck     59.00

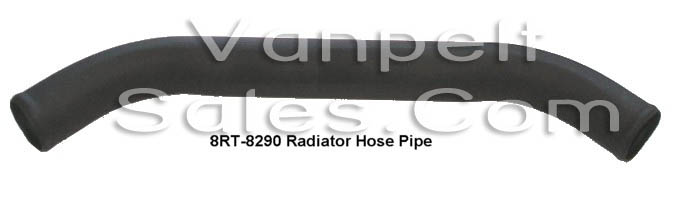

8RT-8290 Curved Pipe for Upper Hoses (1¼" dia) - 2 required   (Price each): PIC 1948-52 F-1 to F-3 Truck      21.00
51A-8333-D Straight Hose (1¼ x 36") - Customer cuts to fit PIC 1948-53 F-1 Truck      47.50
51A-8333-B Straight Hose (1¾ x 36") - Customer cuts to fit PIC 1948-53 F-1 Truck      55.00
8A-8287 Hose Clamp - 1¾" - as required for 1¼" hoses PIC Various       3.00
91A-8287 Hose Clamp - 2¼" - as required for 1¾" hoses PIC Various         1.95

Engine Parts Page 1 - Page 2 - Page 3 - Page 4
