FLATHEAD V8 ENGINE PARTS

We stock parts for Ford flathead V8 engines from 1937 to 1953

Use this link for exploded drawings:

ENGINE PARTS DRAWINGS

Engine Parts Page 1 - Page 2 - Page 3 - Page 4

Ford Part
Number

Description Image Application Notes Price for
New Part


Engine Water Pumps

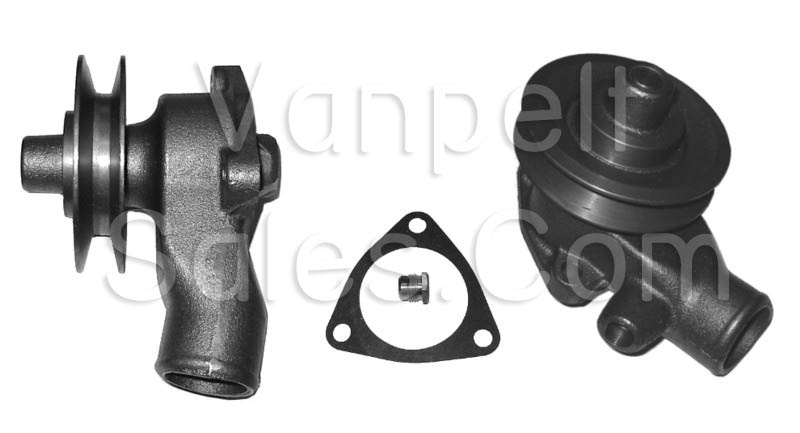

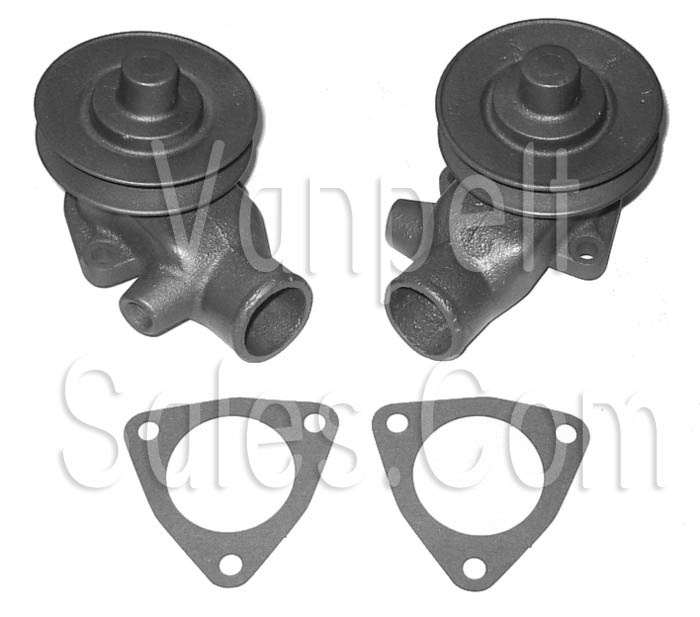

68-8501SPN Pair of New pumps (1933-36) - no cores required PIC Wide Belt Pulleys  $ 166.00
78-8501SPR Pair of new pumps (1937-48 Passenger Cars with 221 and 239 V8) PIC Wide Belt Pulleys 140.00

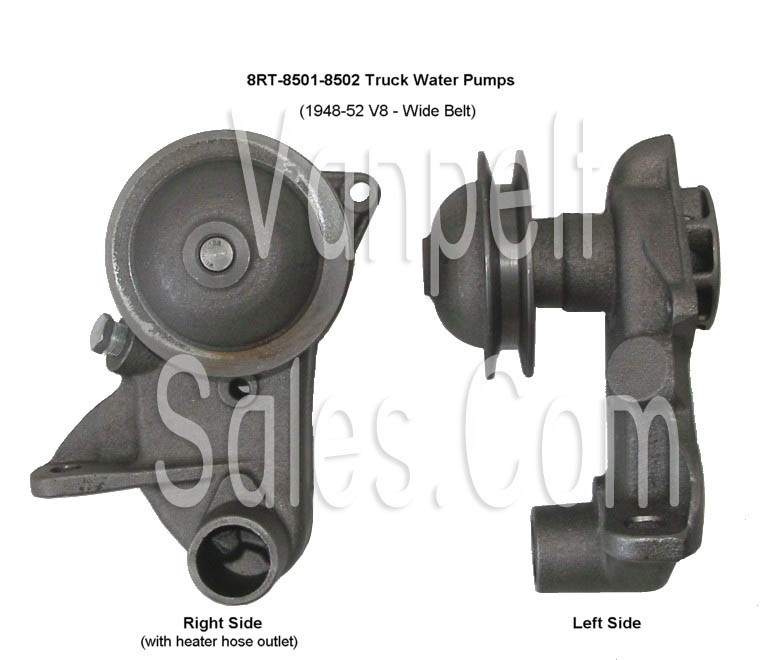

8RT-8501SPR Pair of new pumps (1948-52 Ford Truck 239 V8) PIC Wide Belt Pulleys 165.00

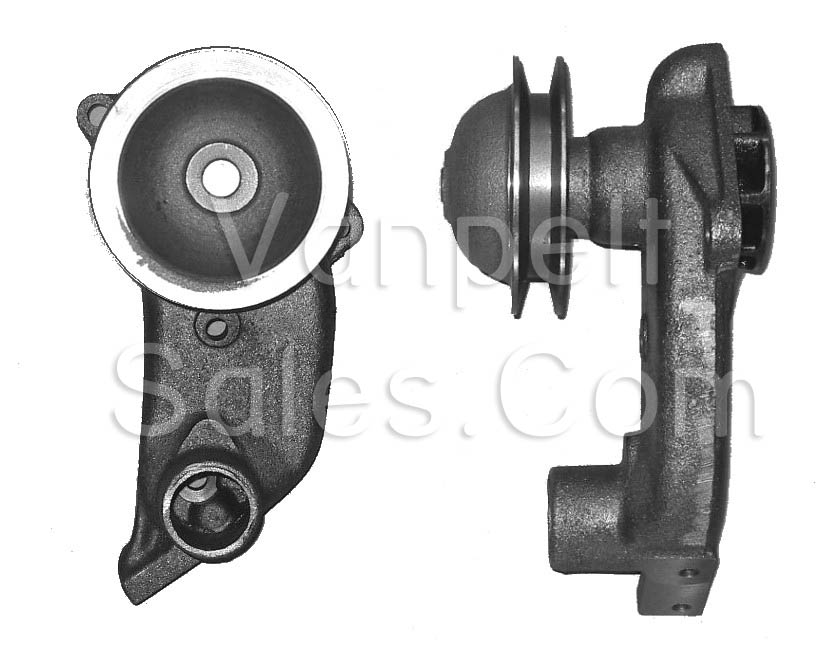

8BA-8501SPR Pair of new pumps (1949 Ford Car 239 V8) PIC Wide Belt Pulleys 190.00

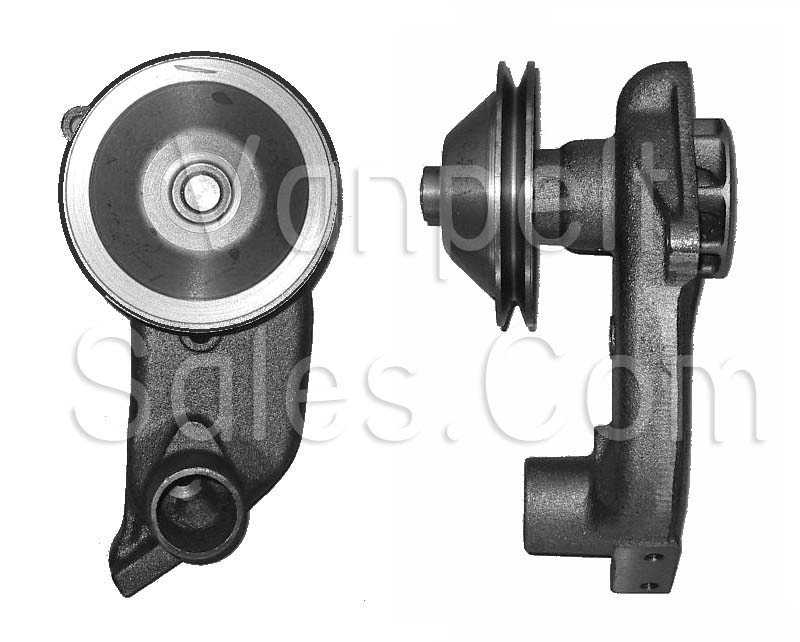

EAB-8501SPR Pair of new pumps (1950-53 Ford Car & 52-53 Truck & 52-53 Merc) PIC Narrow Belt Pulleys 165.00
B6C-8401-D New Water Pump  (1954-56 Ford car & 54-64 Ford pickup) - for 223 Six PIC Narrow Belt Pulley 125.00

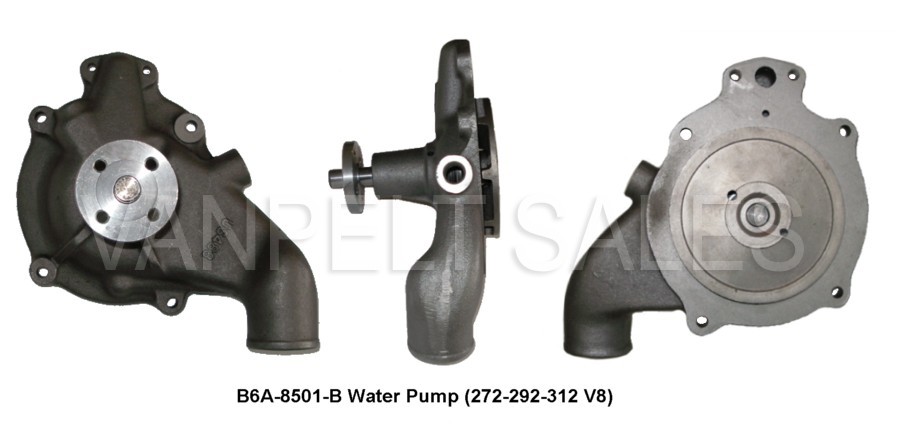

B6A-8501-BN New Water Pump  (1955-62 V8: 272-292-312) - Passenger Car PIC 1955-62 V8 (272-292-312) 135.00
Note: All flathead V8 pumps are brand new (no core required) and feature modern carbon-ceramic seals, sealed ball bearings, and improved impeller vane design for better flow.


Water Pump Gaskets   &   Repair Parts


   18-8507-PR Gasket (fits one pump) - per pair PIC 1932-36 V8 - 221 $     5.00

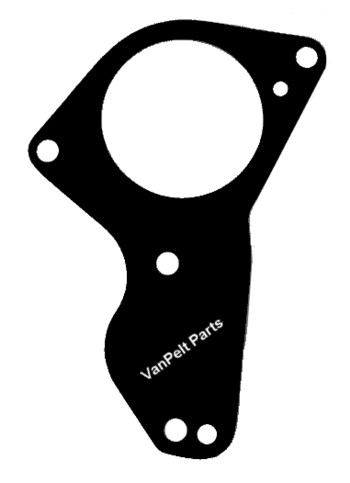

   78-8507-PR Gasket (fits one pump) - per pair PIC 1937-48 V8 - 221/239 5.50
  8BA-8507-PR Gasket (fits one pump) - per pair PIC 1949-53 V8 - 239/255 5.50
  78-8509 Pulley (wide belt) same left or right side PIC 1937-48 Cars + 37-47 truck  17.00
 8RT-8509 Pulley (wide belt) same left or right side PIC 1948-52  Truck Out of Stock

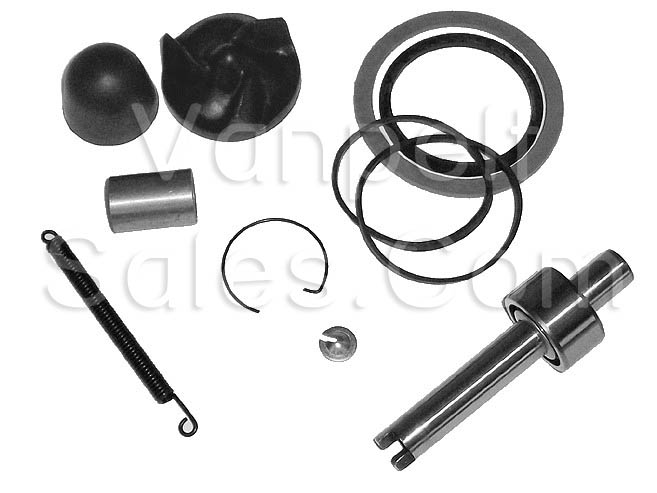

   52-8591-C Rebuild Kit (does one water pump) - includes gasket PIC 1937-40 V8-60hp 92.50
   68-8591 Rebuild Kit (does one water pump) - includes gasket PIC 1933-36 Ford Car 42.50

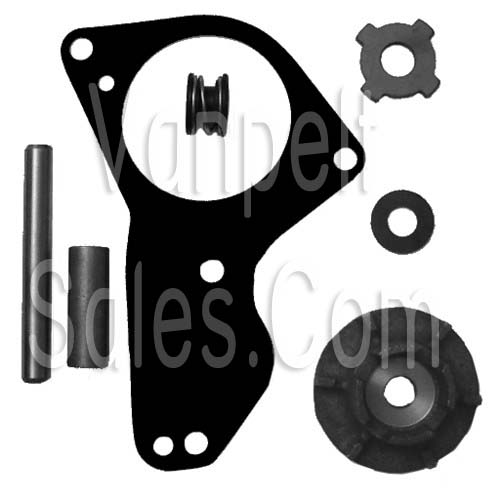

   78-8591 Rebuild Kit (does one water pump) - includes gasket PIC 1937-48 Ford & Merc Car 33.00

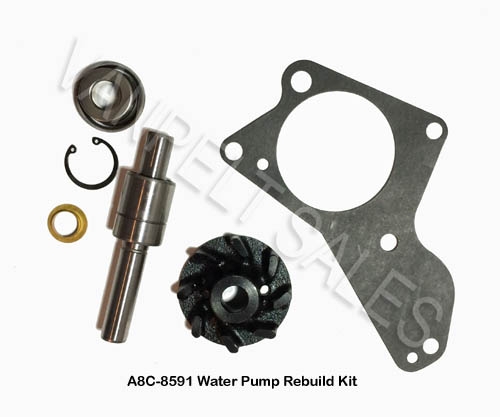

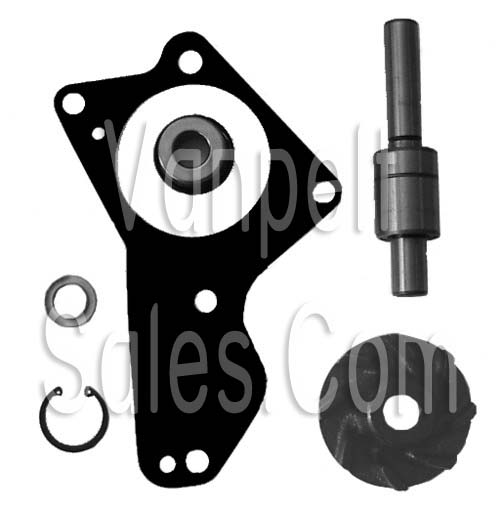

A8C-8591 Rebuild Kit (does one water pump) - includes gasket PIC 1949-53 Ford Car + 50-53 Merc 33.00

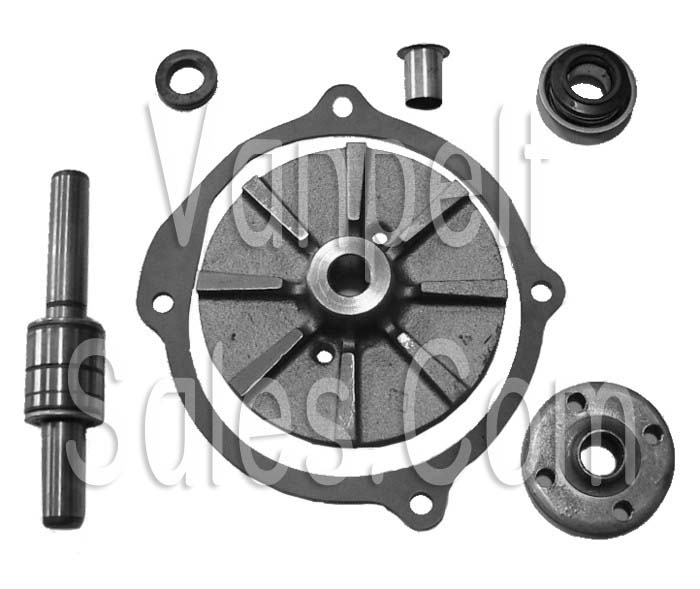

B5A-8591-C Rebuild Kit (does one water pump) - includes gasket PIC 1955-64 Pump (272-292-312 V8 Out of Stock

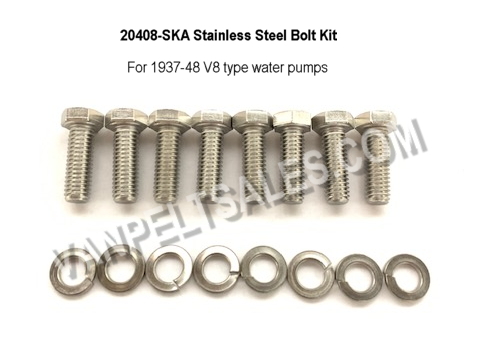

20408-SKA Stainless Steel Bolt & Washer kit for two V8 water pumps (8 bolts + 8 lockwashers) PIC 1937-48 Cars & 37-47 trucks 9.50

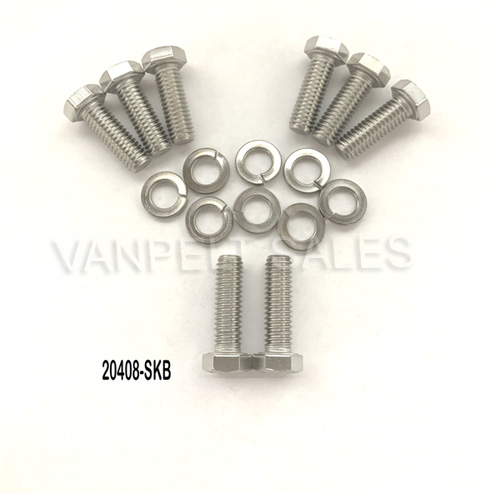

20408-SKB Stainless Steel Bolt & Washer kit for two V8 water pumps (8 bolts + 8 lockwashers) PIC 1949-53 Ford Car + 48-53 Trucks 14.50


Thermostats

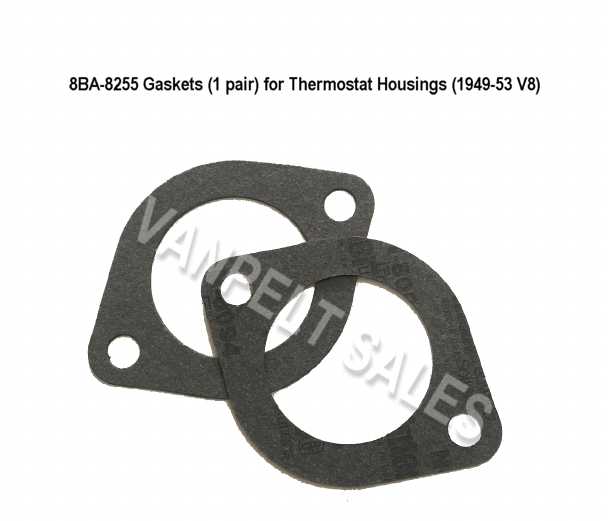

8BA-8255-PR Gaskets - Thermostat Housing     (two required - same for L or R side)     1 Pair: PIC 1949-53 Cars & Trucks $   3.50

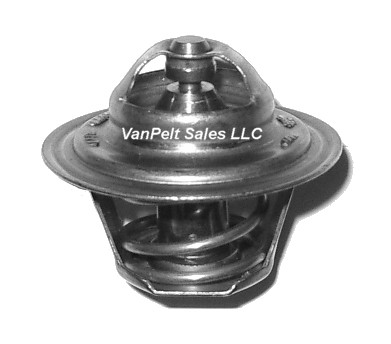

11A-8575-A Thermostat - 160° (two required)                             Each PIC 1937-48 Cars & Trucks    11.50
11A-8575-B Thermostat - 180° (two required)                             Each PIC 1937-48 Cars & Trucks 11.50

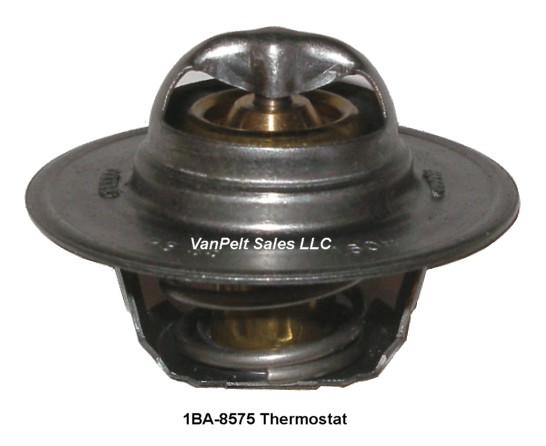

1BA-8575-A Thermostat - 160° (two required)                             Each PIC 1949-53 Cars & 48-53 Trucks 7.50
1BA-8575-B Thermostat - 180° (two required)                             Each PIC 1949-53 Cars & 48-53 Trucks 7.50
C2AZ-8575-A Thermostat - 160° (two required)                             Each PIC 1954-59 V8 & Six 8.50
C2AZ-8575-B Thermostat - 180° (two required)                             Each PIC 1954-59 V8 & Six 8.75

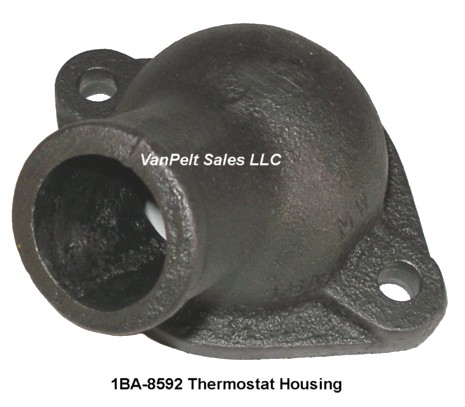

1BA-8592 Housing - Thermostat - Cast Iron stock angle - 1-1/4" Outlet   (2 required)           Each PIC 1949-53 Cars & 48-53 Trucks 22.00

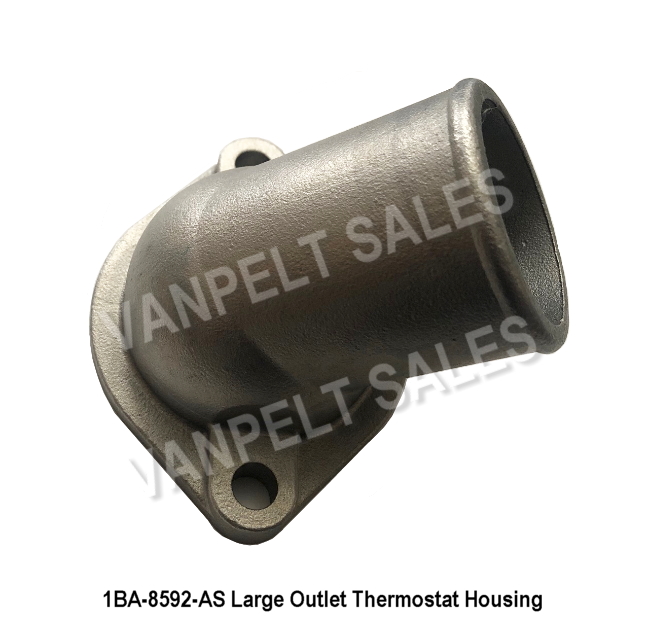

1BA-8592-AS Housing - Thermostat - Stainless Steel stock angle - Large Outlet   (2 required)   Each PIC 1949-53 V8 in a Hot Rod 26.00

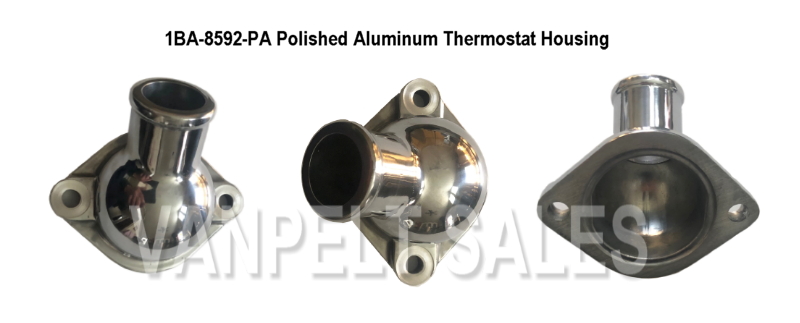

1BA-8592-PA Housing - Thermostat - Polished Aluminum stock angle - 1-1/4" Outlet (2 required) Each PIC 1949-53 Cars & 48-53 Trucks 18.00


Cooling Fan & Fan Parts


        8600 Fan blade only (specify model, size, mounting, etc) PIC

1932-48 Cars & 32-52 Trucks

Call for Price
        8602 Fan-Hub-Bracket assembly (specify model, size, etc) PIC

1949-53 Cars & Trucks

Call for Price

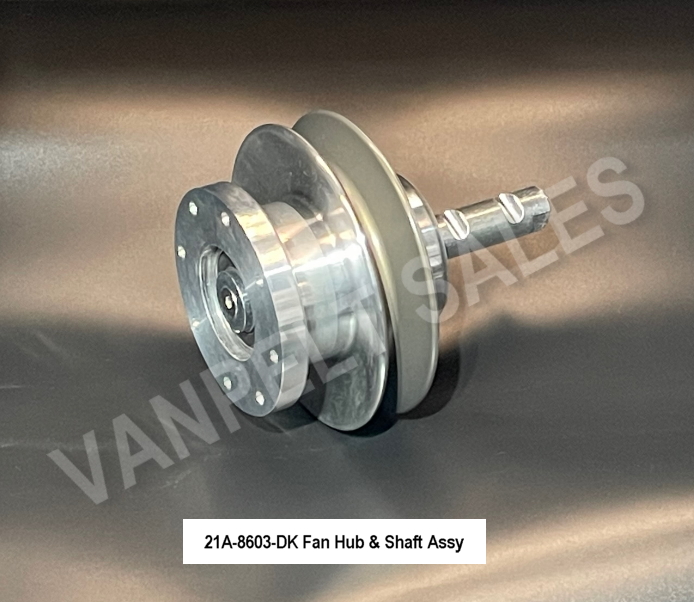

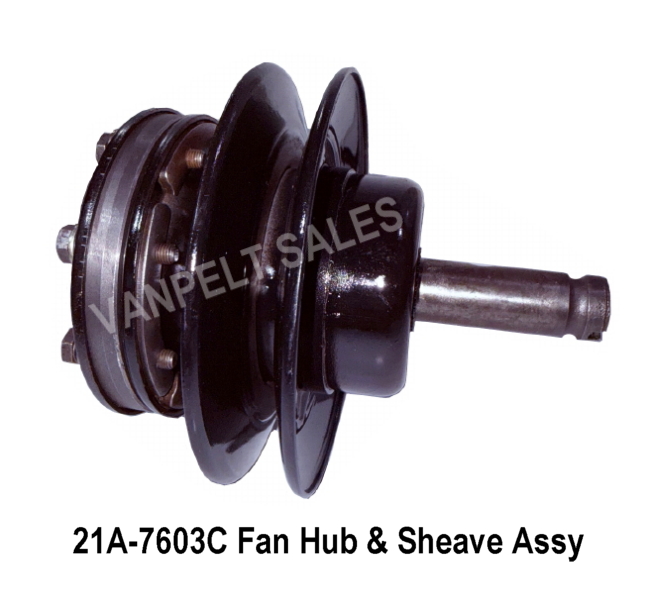

21A-8603-DK Fan Hub & Sheave Assy Complete (with sealed ball bearings) All New Assy PIC 1942-48 Cars/1942-52 Trucks $ 199.00
21A-8603 Fan Hub & Sheave Assy  (USED) - Does not include spindle bearing or shaft/impeller assy PIC

1942-48 Cars/1942-52 Trucks

95.00

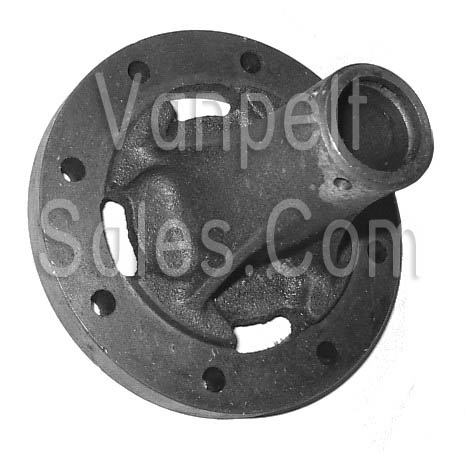

21A-8626 Spindle Bearing   PIC 1942-48 Cars/1942-52 Trucks 89.00
21A-8632 Mounting Bracket (fan shaft to generator bracket) PIC 1942-48 Cars/1942-52 Trucks 15.00

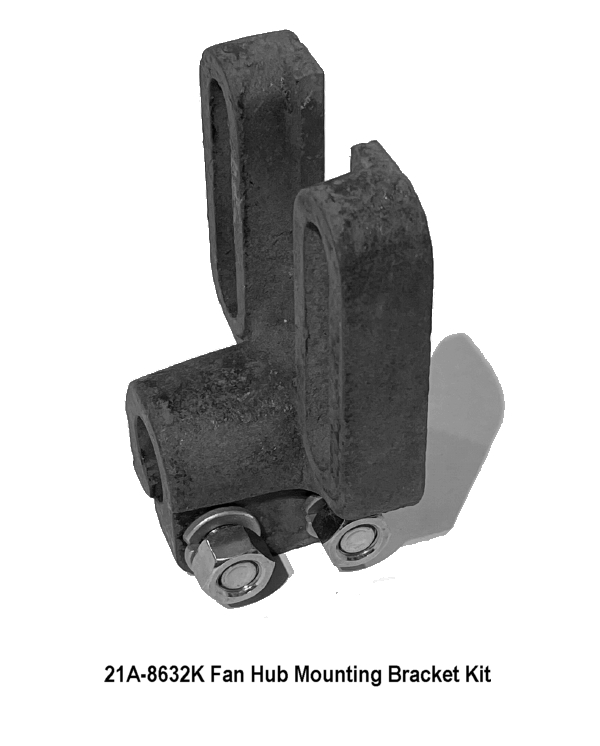

21A-8632K Mounting Bracket Kit (as above + includes bolts-nuts-lockwashers) PIC 1942-48 Cars/1942-52 Trucks 19.00
21A-8638 Gasket - Fan Hub - front PIC 1942-48 Cars/1942-52 Trucks 2.50

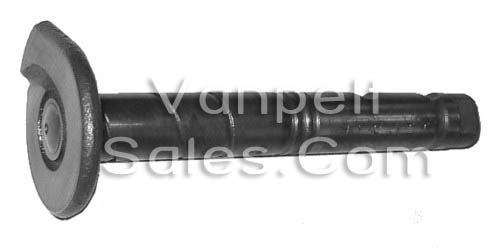

21A-8639 Shaft & Impeller Assy PIC 1942-48 Cars/1942-52 Trucks Check Availability
21A-8646 Gasket - Fan Hub - rear PIC 1942-48 Cars/1942-52 Trucks 2.00

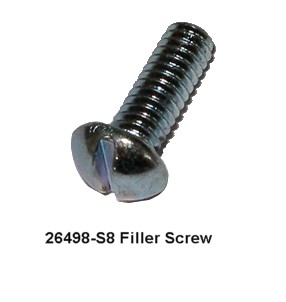

26498-S8 Screw - Fill Hole on Fan Hub (less washer)  Price for 2: PIC 1942-48 Cars/1942-52 Trucks 1.00
20309-SK Bolts - set of 4 with lockwashers for fan blade to generator pulley PIC 1933-38 Cars + 39 Standard 4.00
20489-SK Bolt Kit (2 bolts +2 nuts + 2 lockwashers) - for 8632 bracket to 8639 shaft PIC 1942-48 Cars/1942-52 Trucks  5.00

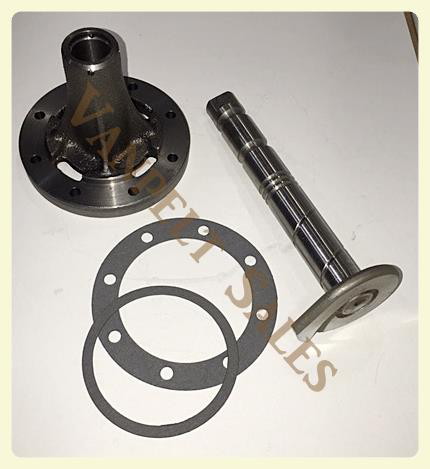

21A-8626-39K Kit: Spindle Bearing + Impeller & Shaft + Two Gaskets PIC 1942-48 Cars/1942-52 Trucks Check Availability
Note: 1932-41 fans are separate bolt-on parts. From 1932-38 (including 39 Standard) the fan was bolted to the generator pulley. The 1939 Deluxe plus all 1940-41 cars used a fan that bolted to the crankshaft pulley. The 1942-48 car fans were bolted onto their own hub & bracket assembly with 8 bolts. The 1949-53 car fans were one assembly that includes the fan blade, hub & pulley, and mounting bracket. The 1942-52 light trucks continued to use the 8 bolt fan with hub & bracket assembly like the 42-48 cars. The 1942-48 passenger car fans were usually 4 blade x 16" diameter. The trucks usually had the 18" and 18½" diameter fan blades.


Belts - Fan / Generator / Pumps


    40-8620-AS Belt - Gen/Water Pumps - Wide Belt - Ford script PIC 1933-36 Car & 33-37 Truck   $  18.00

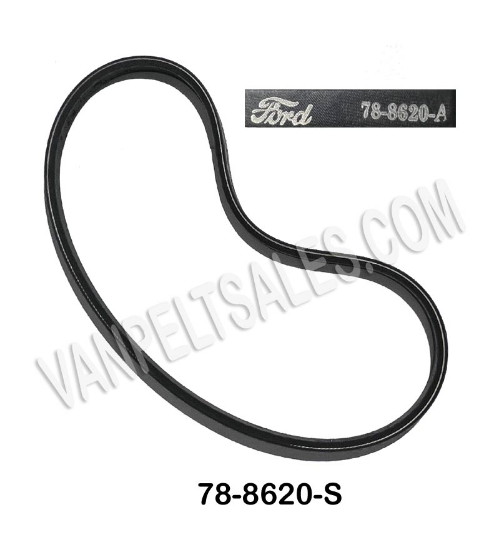

    78-8620-AS Belt - Fan/Gen/Water Pumps -Wide Belt - Ford script PIC 1937-48 V8 Car & Truck   35.00

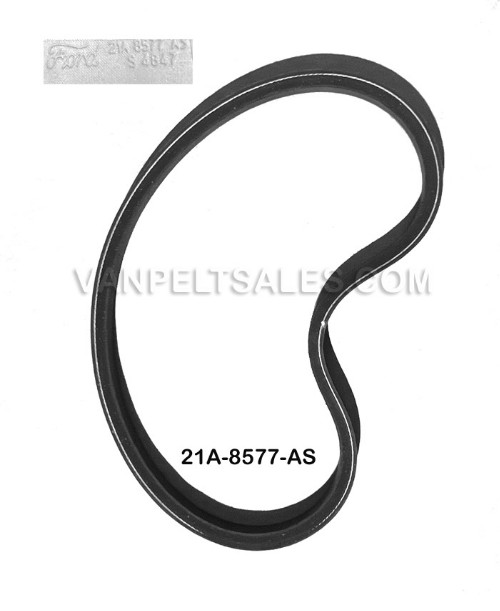

  21A-8577-S Belt - Fan - Wide Belt - Ford script PIC 1942-49 V8 Car + 42-53 V8 Truck    28.00

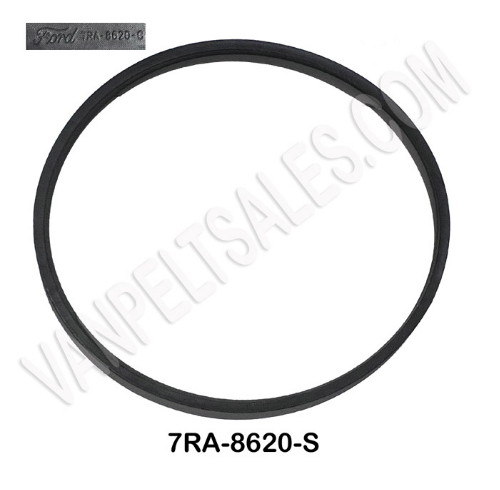

  7RA-8620-S Belt - Gen/Water Pumps - Wide Belt - Ford script PIC 1949 V8 Car + 48-53 V8 Truck   28.00
  8BA-8577-S Belt - Fan/Water Pump - Narrow Belt - FoMoCo script PIC 1950-53 V8 Ford Car + 53 Truck 19.50
  8BA-8620-S Belt - Gen/Water Pump - Narrow Belt - FoMoCo script PIC 1950-53 V8 Ford Car + 53 Truck      24.50


Miscellaneous Fuel System

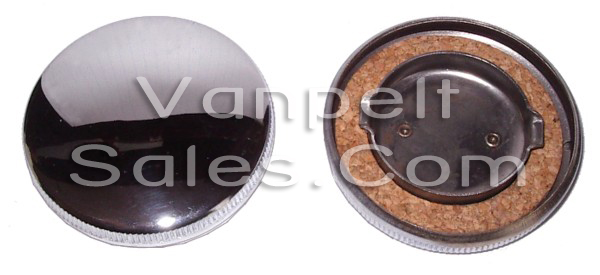

  11C-9030 Fuel Tank Cap - Non-Locking Chrome PIC 1932-48 Cars & 32-50 Trucks $   7.95
 B6TZ-9030 Fuel Tank Cap - Non-Locking Chrome PIC 1951-70 Trucks 11.00
  A-9173N Gasket - Fuel Pump Bowl (neoprene) PIC 1945-53 1.50
  01A-9275 Fuel Tank Sending Unit (6V) -      (Use 99A-9275) PIC 1936-40

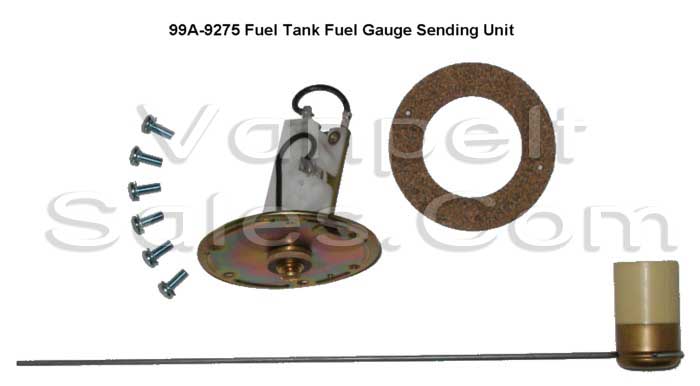

  99A-9275 Fuel Tank Sending Unit (6V) - Includes Gasket PIC 1941-48    36.95

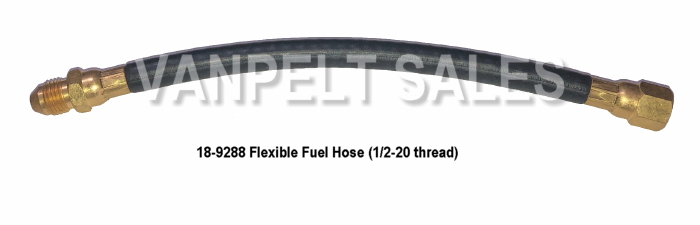

    18-9288 Flexible Fuel Line (fuel line to fuel pump) PIC 1932-48     10.50

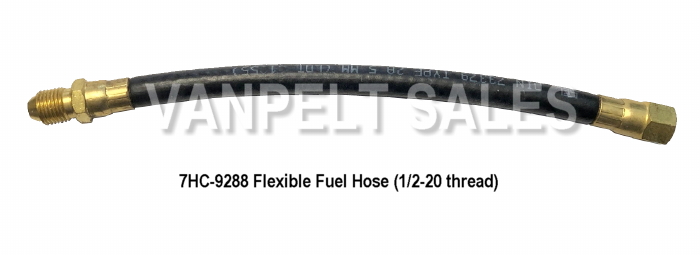

 7HC-9288 Flexible Fuel Line (fuel line to fuel pump) PIC 1949-50 10.50

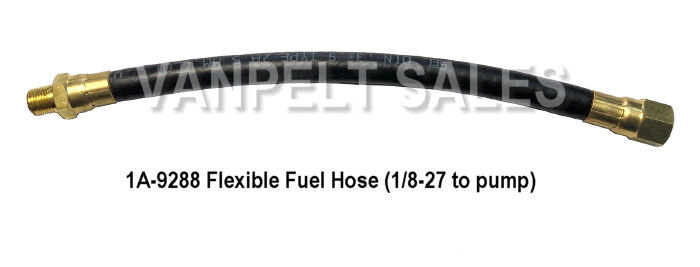

   1A-9288 Flexible Fuel Line (fuel line to fuel pump) PIC 1951-53 10.50


Fuel Pumps & Related Parts

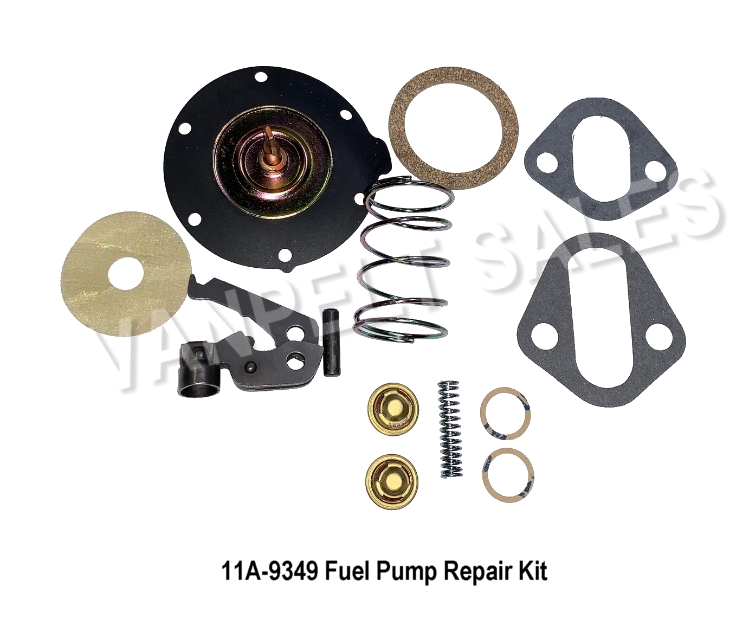

11A-9349 Repair Kit - Fuel Pump (for pumps with glass bowl) PIC 1945-53 Cars/1945-53 Trucks $   29.00
Note: the 11A-9349 pump repair kit can also be used for the 7RA and 1BA type pumps but the late style rocker arm is not included in this kit. The 7RA and the 1BA rocker arms are not sold separately at this time. The kit will repair the 1936-42 steel bowl pump but you must order the 68-9164 cork bowl gasket separately.

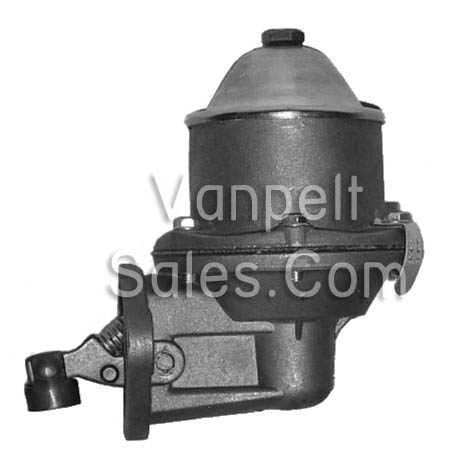

11A-9350 Fuel Pump (V8) - Steel Bowl (replaces 68-9350) - use 11A-9349 fuel pump to repair PIC 1933-48 Cars/1933-47 Trucks Out of Production

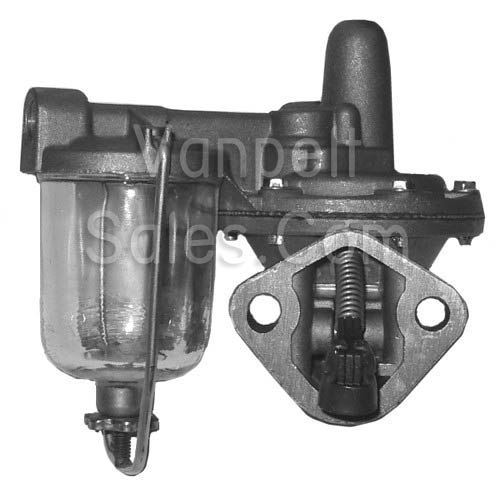

59A-9350 Fuel Pump (V8) - Glass Bowl          - use 11A-9349 fuel pump to repair PIC 1933-48 Cars/1933-47 Trucks Out of Production

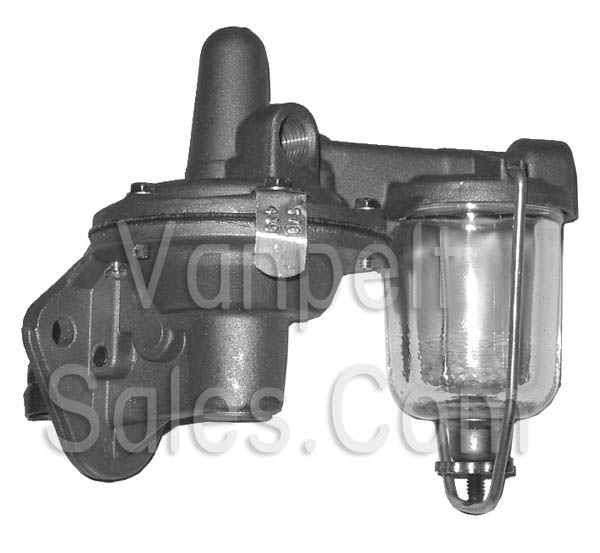

7RA-9350-C Fuel Pump (V8) - Glass Bowl - Large inlet - use 11A-9349 fuel pump to repair PIC 1949-50 Cars/1947-50 Trucks Out of Production

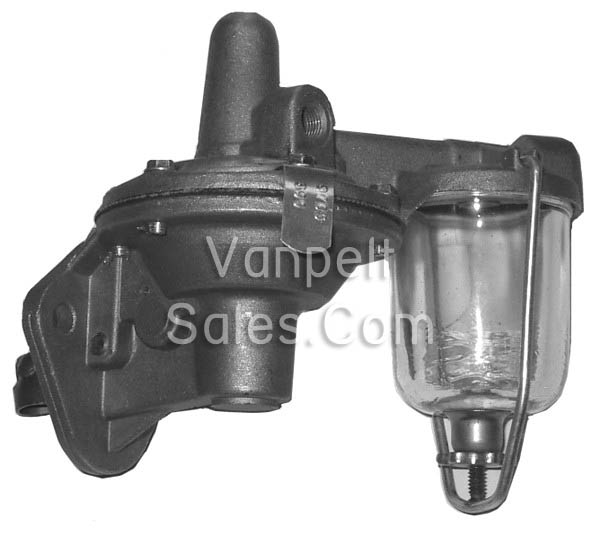

1BA-9350-A Fuel Pump (V8) - Glass Bowl - Small inlet  - use 11A-9349 fuel pump to repair PIC 1951-53 Cars/1951-53 Trucks Out of Production
68-9364 Cork Gasket for Steel Bowl type Fuel Pump (2.25" diameter) PIC 1936-42 Cars/1936-42 Trucks 4.00

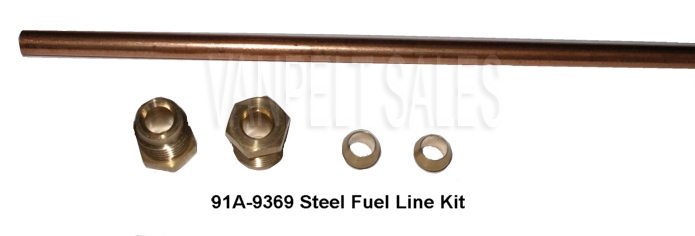

91A-9369-B Fuel Line (V8) - Copper Plated Steel - 12" long with fittings (1/2-20 thread) PIC 1933-53 Cars/1933-53 Trucks 9.50
8BA-9369K Fuel Line Kit (V8) - Pre-bent steel line with all fittings (1/2-20 and 1/8-27) PIC 1949-53 Cars/1948-53 Trucks 27.00

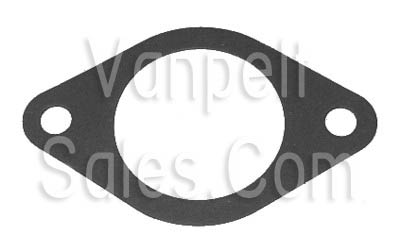

40-9374 Gasket - FP/Breather Stand to V8 Manifold PIC 1933-53 Cars/1933-53 Trucks     2.50
68-9398 Diaphragm - Fuel Pump PIC 1934-48 Cars/1933-47 Trucks   9.00

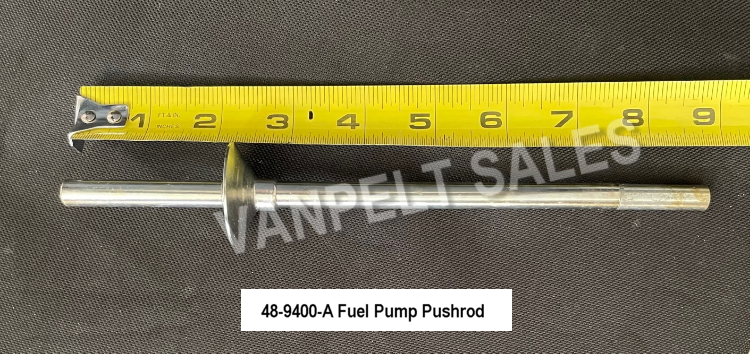

48-9400-A Push Rod - Fuel Pump (V8) - Cast Iron Intake (8.875") PIC 1933-48 Cars/1933-47 Trucks     13.00

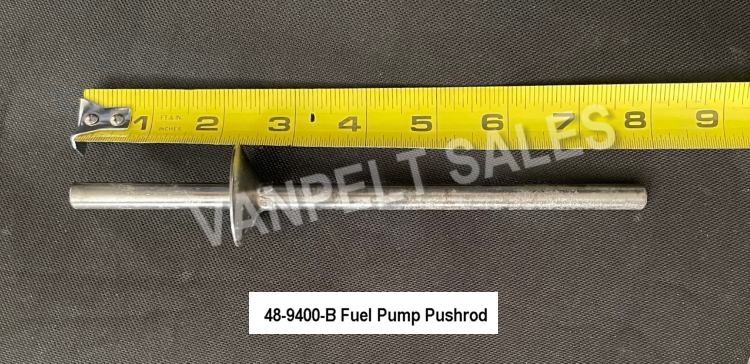

48-9400-B Push Rod - Fuel Pump (V8) - Aluminum Intake (7.875") PIC 1933-48 Cars/1933-47 Trucks   11.50

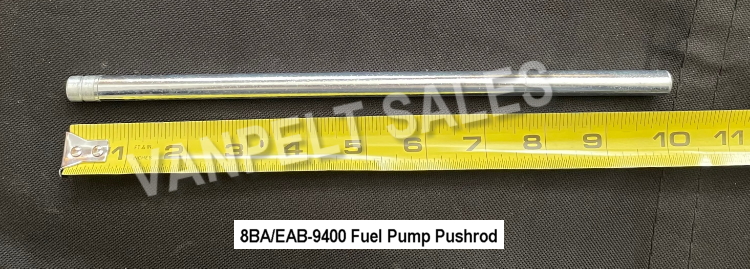

EAB-9400 Push Rod - Fuel Pump (V8) - Cast Iron Intake (10.064")  Replaces the 8BA-9400 pushrod PIC 1949-53 Cars/1948-53 Trucks

  14.50

52-9400-A Push Rod - Fuel Pump (V8-60hp) - Alum. Intake (5.625") PIC 1937-39 Cars & Trucks     10.00
52-9400-B Push Rod - Fuel Pump (V8-60hp) - Cast Iron (6.375") PIC 1937-40 Cars & Trucks     8.50

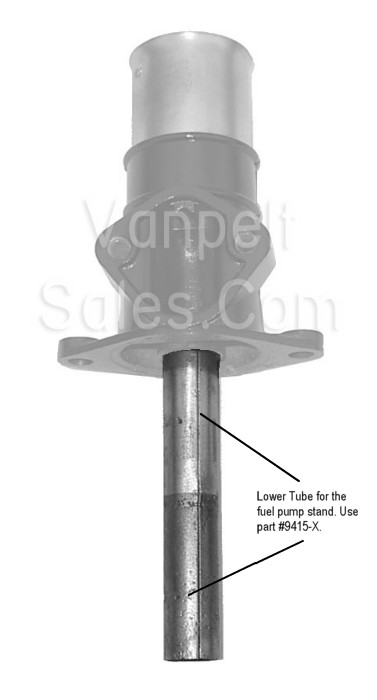

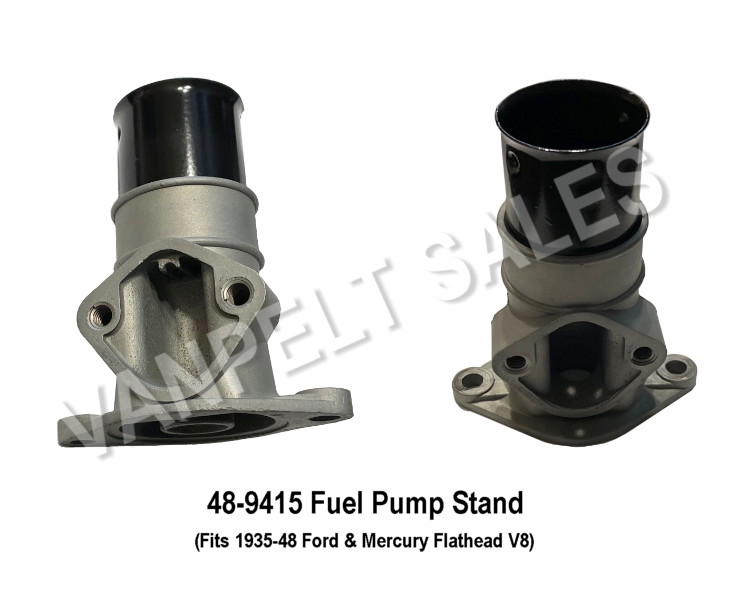

48-9415-R Stand - Fuel Pump & Breather Tube - Reconditioned Used - w/o lower tube (X-9415) PIC 1935-48 Cars/35-47 Trucks   85.00
X-9415 Lower tube for the 48-9415 stand - sold separately from 48-9415R stand PIC 1935-48 Cars & Trucks 20.00

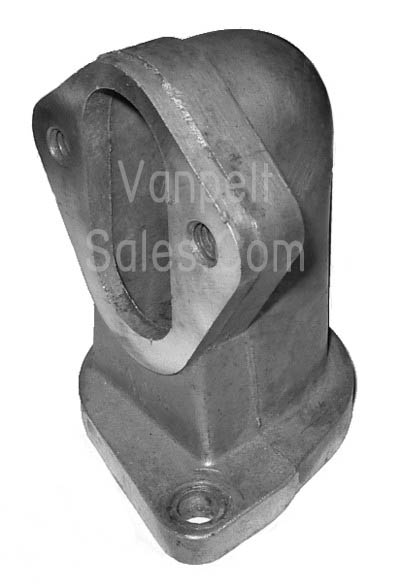

8BA-9416-R Stand - Fuel Pump Mount - Reconditioned Used PIC 1949-53 Cars/1948-53 Trucks   29.00

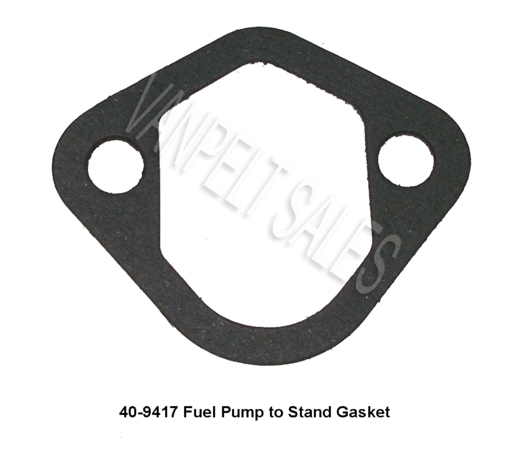

  40-9417 Gasket - Fuel pump to Stand PIC 1933-48 cars/1933-47 Trucks 2.50

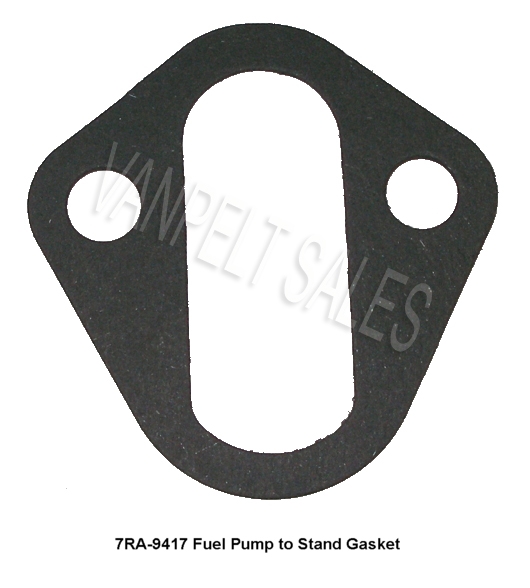

7RA-9417 Gasket - Fuel pump to Stand PIC 1949-53 cars/1948-53 Trucks 2.50


Miscellaneous Fuel Pump Related

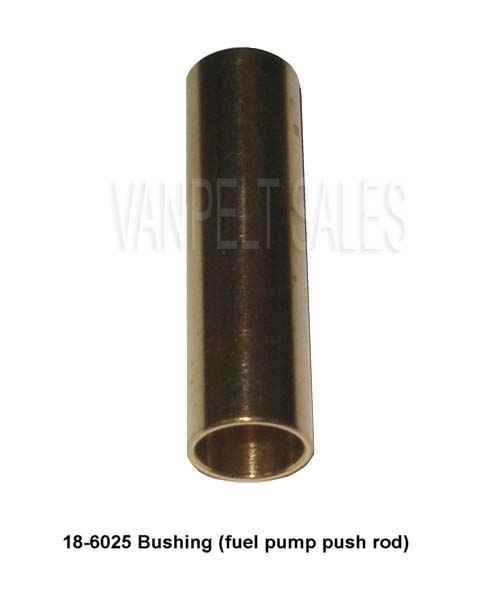

18-6025-A Bushing - Fuel Pump Pushrod (V8) - Brass PIC 1932-48 Cars/1932-47 Trucks     $   5.50

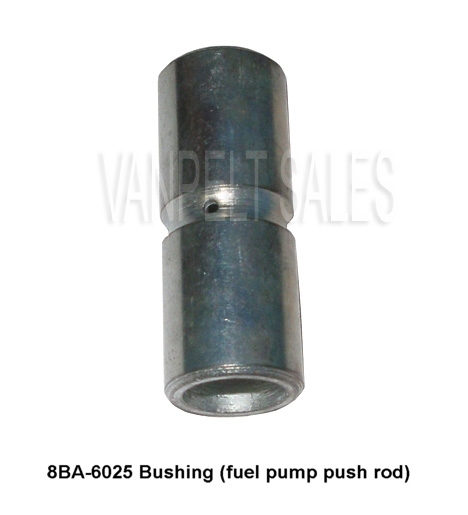

8BA-6025 Bushing - Fuel Pump Pushrod (V8) - Steel PIC 1949-53 Cars/1948-53 Trucks     5.50

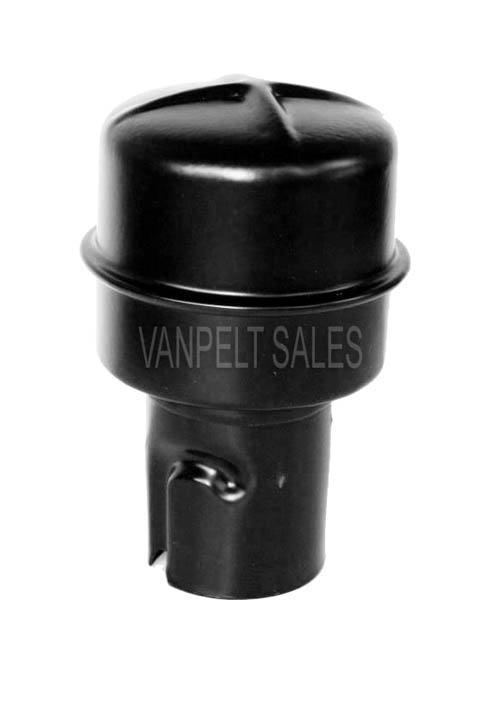

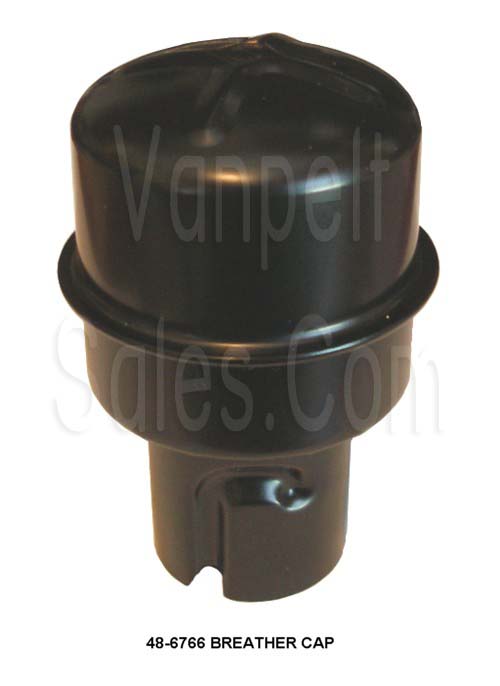

48-6766 Breather Cap (X top) for V8 - Black Finish PIC 1935-48 Cars/35-47 Trucks   14.00

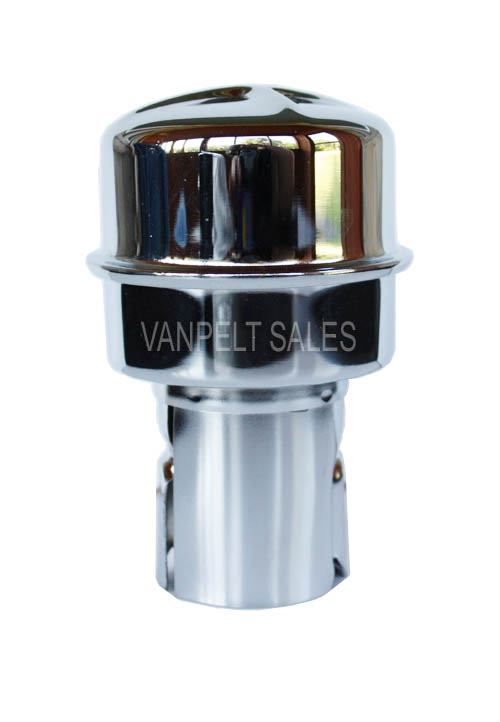

48-6766-C Breather Cap (X top) for V8 - Chromed PIC 1949-53 Cars/1948-53 Trucks 21.00

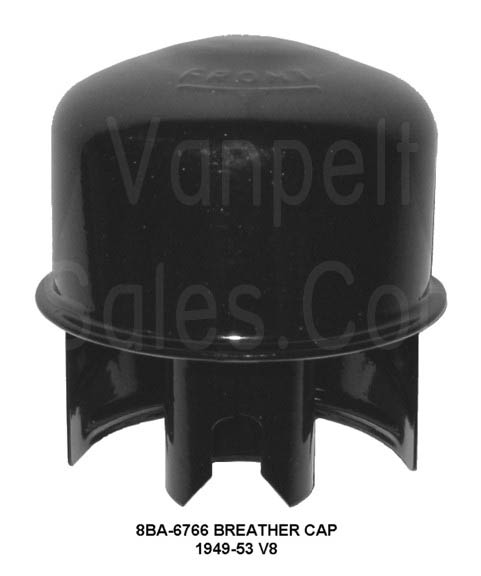

8BA-6766 Breather Cap (with skirt) for V8 - Black Finish PIC 1949-53 Cars/48-53 Trucks   24.00


Carburetors


 59A-9510-N Carburetor - 94 type - All New for V8 PIC 1938-48 Cars/38-47 Trucks $   650.00

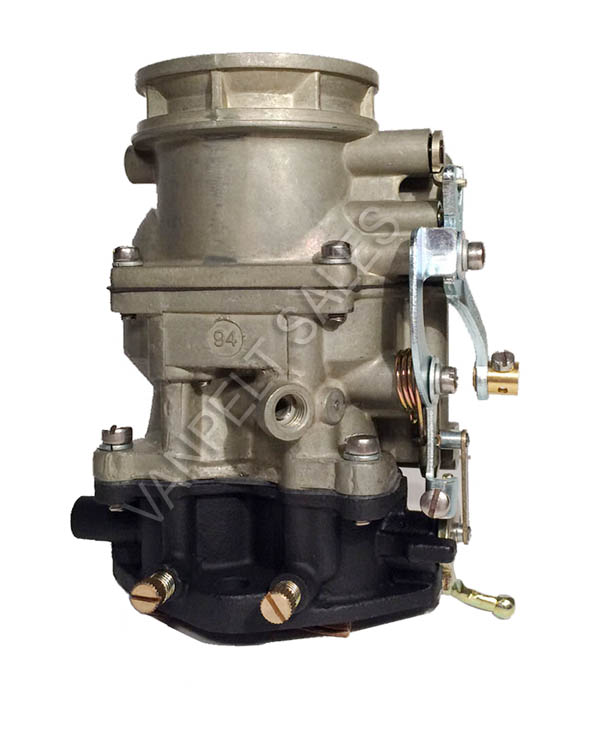

 8BA-9510-N Carburetor - 94 type - All New for V8 PIC 1949-53 Ford Cars 650.00
 8RT-9510-N Carburetor - 94 type - All New for V8 PIC 1948-53 Ford Trucks 650.00


Carburetor Parts & Rebuild Kits


  40-9447-A Carb Gasket - Base to intake - Stromberg PIC 1933-37 V8 $   3.00
  40-9447-B Carb Gasket - Base to intake - Ford/Holley PIC 1938-53 V8 3.00
   T-9533-S Stromberg Jet Removal Wrench PIC Various 97 types 14.95
  40-9550 Carburetor Float - Stromberg 97 PIC 1934-39 V8 17.50
  78-9550 Carburetor Float - Ford/Holley 94 PIC 1938-53 V8 17.50
 7HA-9590 Carb Repair Kit for Ford Six carb (1GA/7HA/8HA) PIC 1941-51 Six 17.50

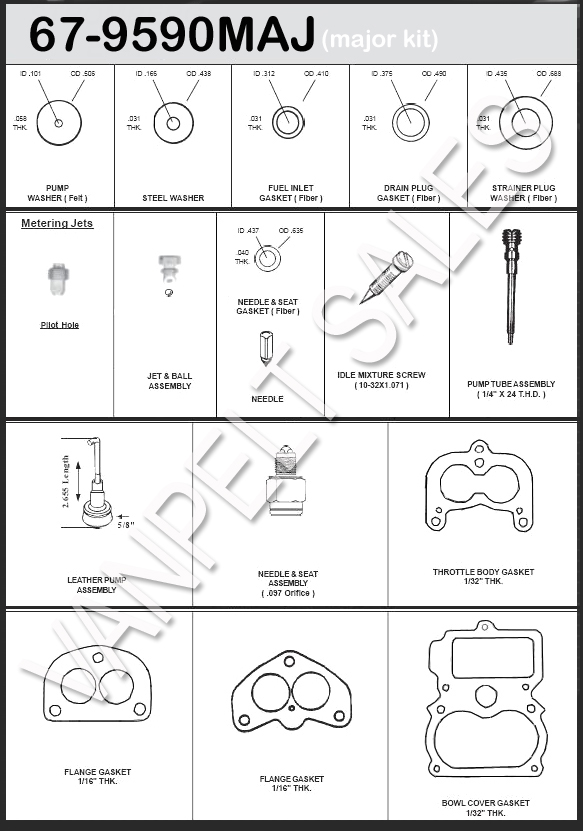

  67-9590-M Carb Repair Kit for Stromberg 97 (includes jets) PIC 1936-39 V8   54.00
  52-9590 Carb Repair Kit for Stromberg 81 (includes jets) PIC 1937-40 V8-60hp   62.00
8CM-9590-B Carb Repair kit for Mercury PIC 1949-51 Mercury Cars 72.00

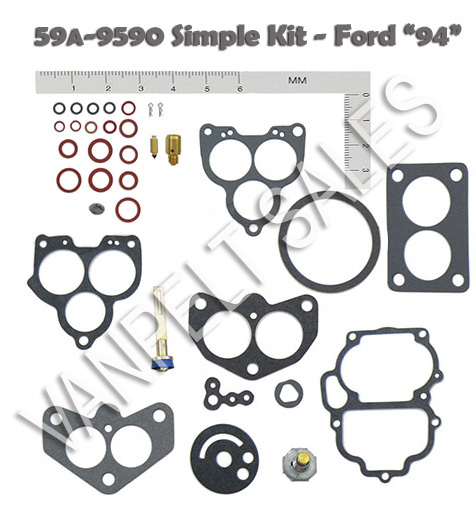

  59A-9590 Simple Kit for Ford 94 PIC 1938-53 V8   26.00
  B4A-9590 Simple Kit for Ford 94 PIC 1954-56 V8 39.00
  21A-9735 Accelerator Pedal (also replaces the 48-9735 pedal) PIC 1935-48  17.00
TAAA-9735 Accelerator Pedal PIC 1948-56 F-1 and F-100 pickup 14.95

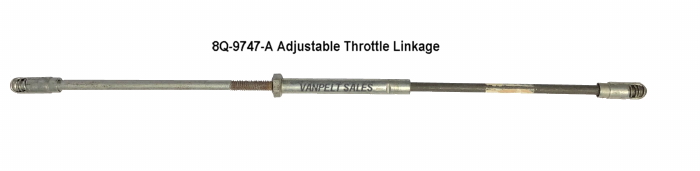

  8Q-9747 Linkage - Accelerator (spring loaded ends) - Adjustable from 11.875" to 12.875" PIC 1932-53 hot rod applications 29.00


Miscellaneous Engine / Transmission Paint

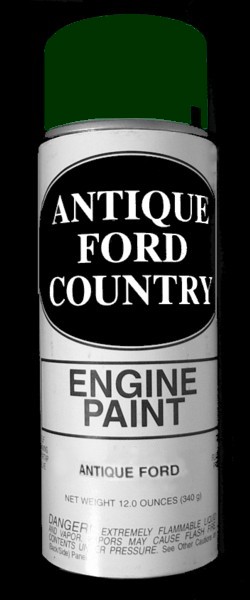

  RC-110 Antique Green Spray Paint - 12 oz PIC

1932-42 Ford car or truck

 $ 14.00
  RC-111 Antique Dark Blue Spray Paint 12 oz PIC

1946-48 Ford + 39-48 Merc

Out of Stock
  RC-112 Cast Blast Gray Spray Paint - 12 oz PIC

General Purpose Aerosol

Out of Stock
  Please Note: Paints are not available for international buyers, or for local shipment by air. We will only ship via ground service to USA locations.


Miscellaneous Hardware


  18-6515 Stud - Fuel pump stand to intake manifold     (5/16-18 x 5/16-24 x 1" Long)  Each: PIC 1932-53 V8 $  3.00

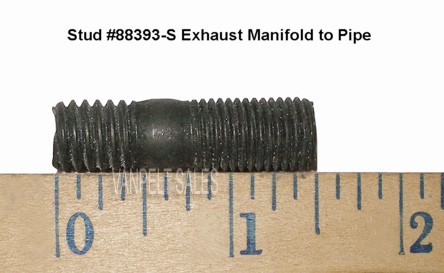

  88393-S Stud - Exhaust Manifold to Pipe (1½" long) PIC 1932-53 V8 2.00
  89067-SK Stud - Carburetor to Intake Manifold  (1.25" long) - Set of 3 studs PIC 1934-53 V8 6.00
  33816-S Nut (brass) - for exhaust manifold pipe stud PIC 1932-53 V8 2.50

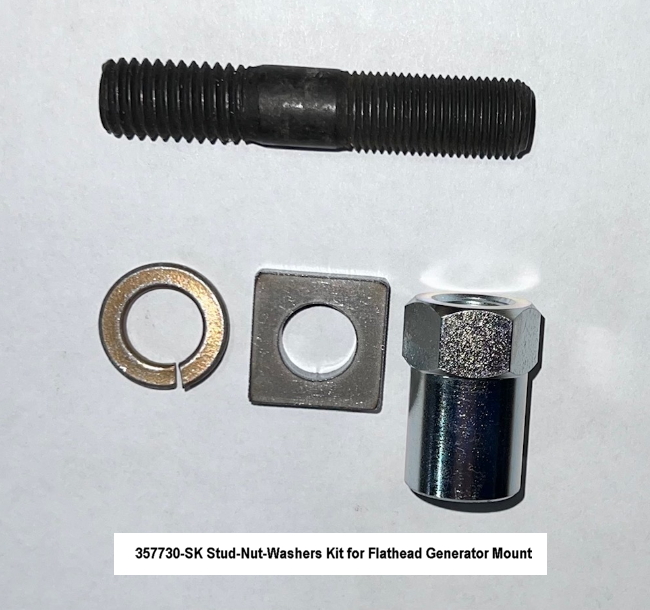

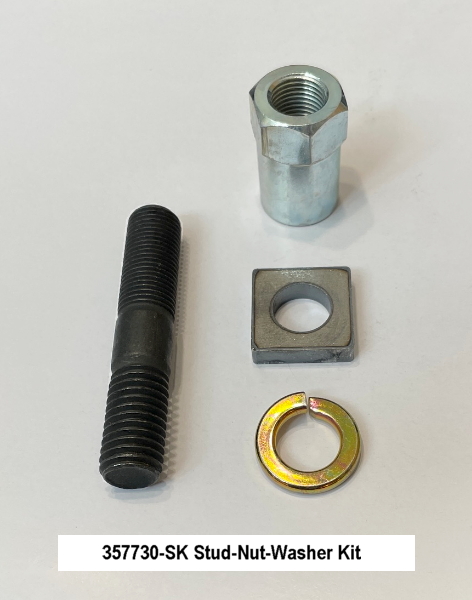

  357730-SK Kit - Generator mount to V8 intake (stud-nut-square washer-lockwasher) PIC 1942-53 V8 29.00

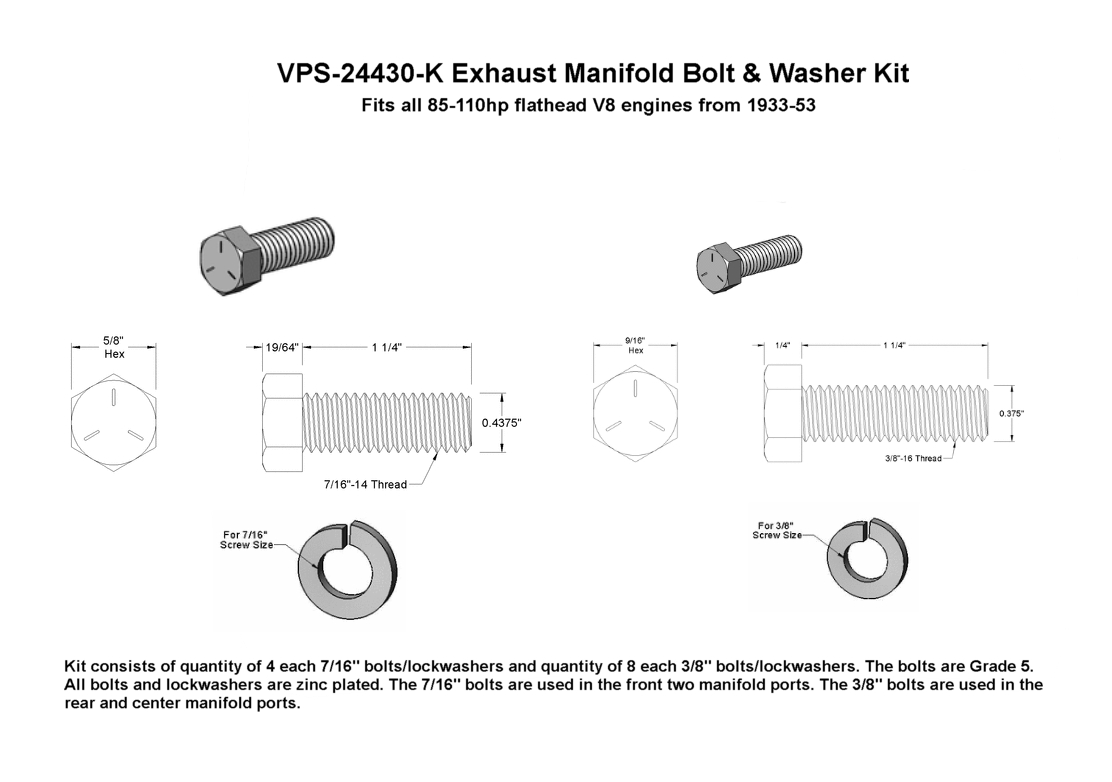

 VP-24430-K Bolt & Lockwasher Kit - exhaust manifolds to block  (12 pcs) PIC 1933-53 V8 11.00
  BPP-250 Brass Pipe Plug - Hex Head - 1/4" NPT PIC   3.50
  BPP-375 Brass Pipe Plug - Hex Head - 3/8" NPT PIC   5.00

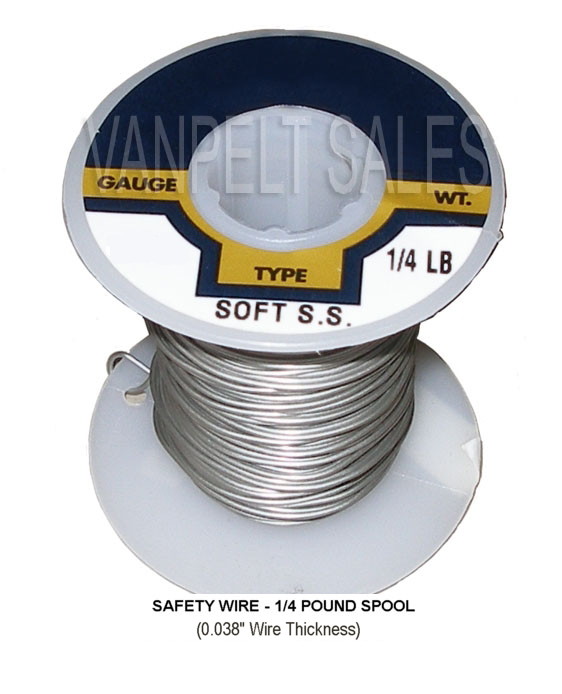

  SW-25 Spool of .038" safety wire - 1/4 lb - 304 stainless steel PIC   13.50

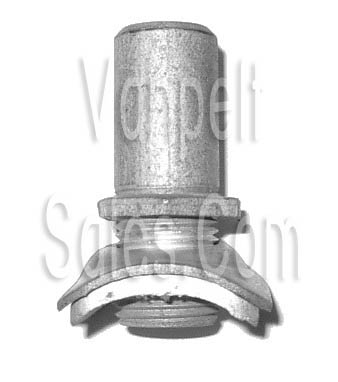

  91A-15160 Heater Hose Nipple Assy - Fits into lower radiator hose PIC 1939-48 V8   12.50

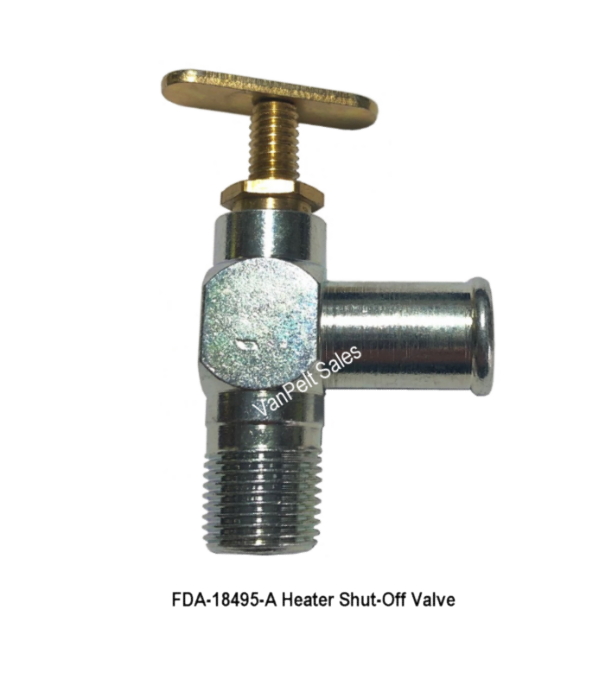

 FDA-18495-A Heater Shut-Off Valve (3/8" NPT x 5/8" hose) PIC 1939-56 21.00
  8M-18599 Heater Hose Nipple (3/8" thread) - Straight type PIC 1949-53 V8 13.50
  8A-18599 Heater Hose Nipple (3/8" thread) - Angled type PIC 1949-53 V8 10.50
  74147-S Key - 5/32" wide (Timing gear to camshaft) PIC 1954-64 Y-Block V8 1.00
  74151-S Key - 1/4" wide  (Crankshaft pulley to crankshaft) PIC 1954-64 Y-Block V8 1.00
  74153-S Key - 1/4" wide  (Crankshaft pulley to crankshaft) PIC 1949-53 V8 1.50
  74156-S Key - 1/4" wide  (Crankshaft pulley to crankshaft - exc V8-60) PIC 1932-37 V8 2.00
  74175-S Key - 5/32" wide (Timing sprocket to crankshaft) PIC 1954-64 Y-Block V8 1.00
  74175-S Key - 5/32" wide (Starter drive to armature shaft) PIC 1932-53 V8 1.00
 357654-S Key - 1/4" wide  (Timing gear to Crankshaft) PIC 1949-53 V8 1.00

Engine Parts Page 1 - Page 2 - Page 3 - Page 4
