Parts Drawings: Brake Systems

Home    Parts Drawings     Web Links     Tune-Up & Service     Serial Numbers     Engine ID     Trans ID     Model Identification     Terms of Sale     Contact Us    Our Online Store    Our Catalog

Brake & Shoe Assemblies

• Passenger cars 1933 to 34

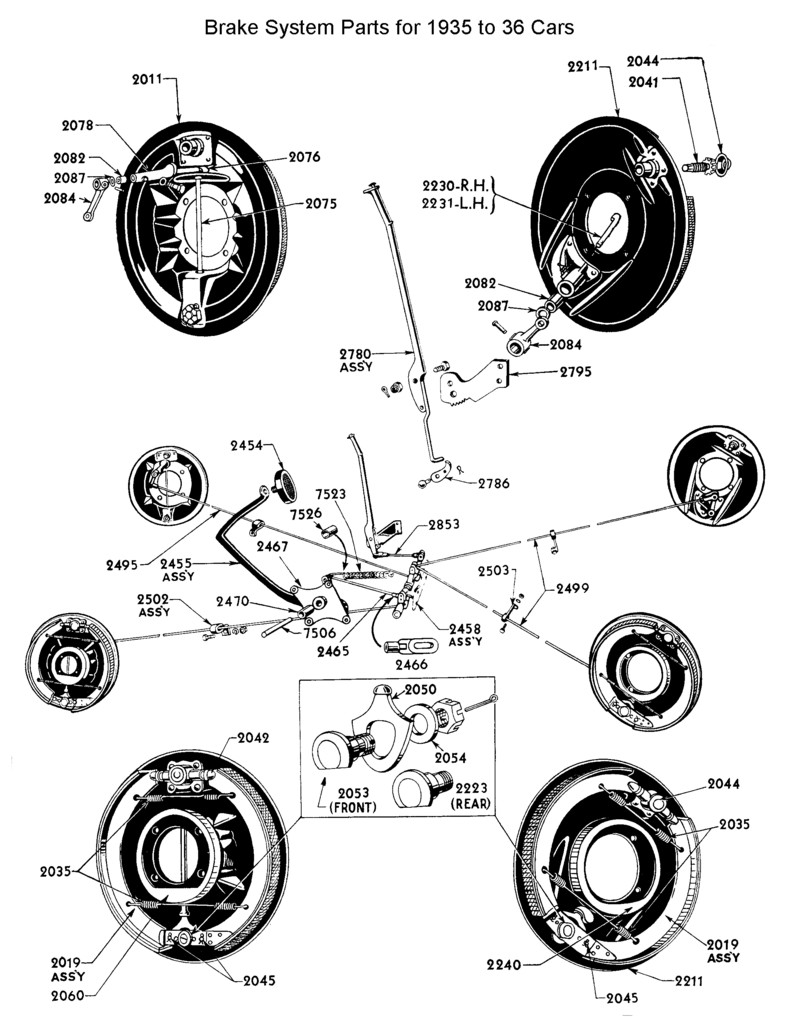

• Passenger cars 1935 to 36

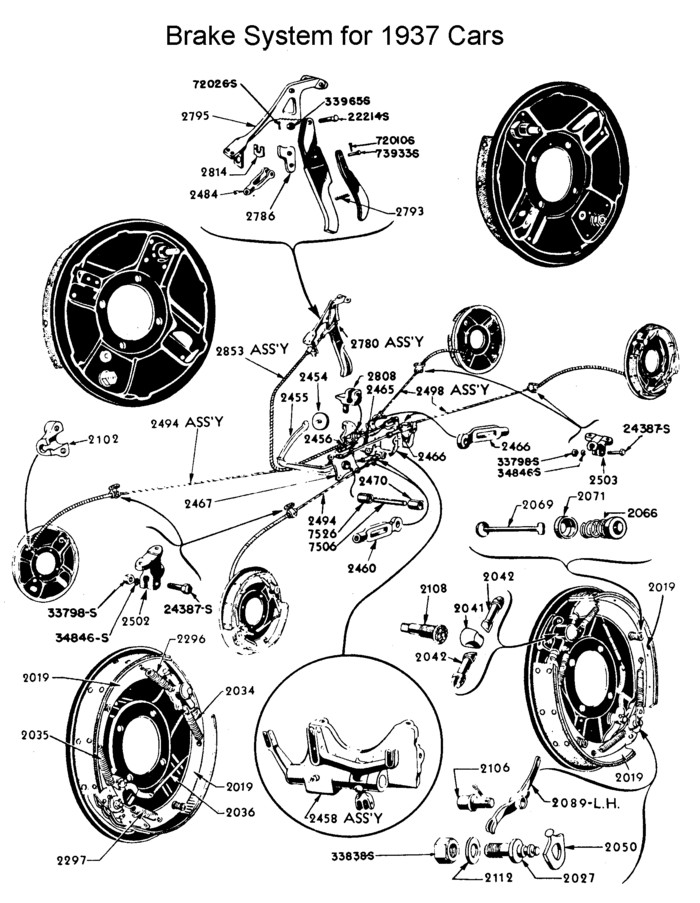

• Passenger cars 1937

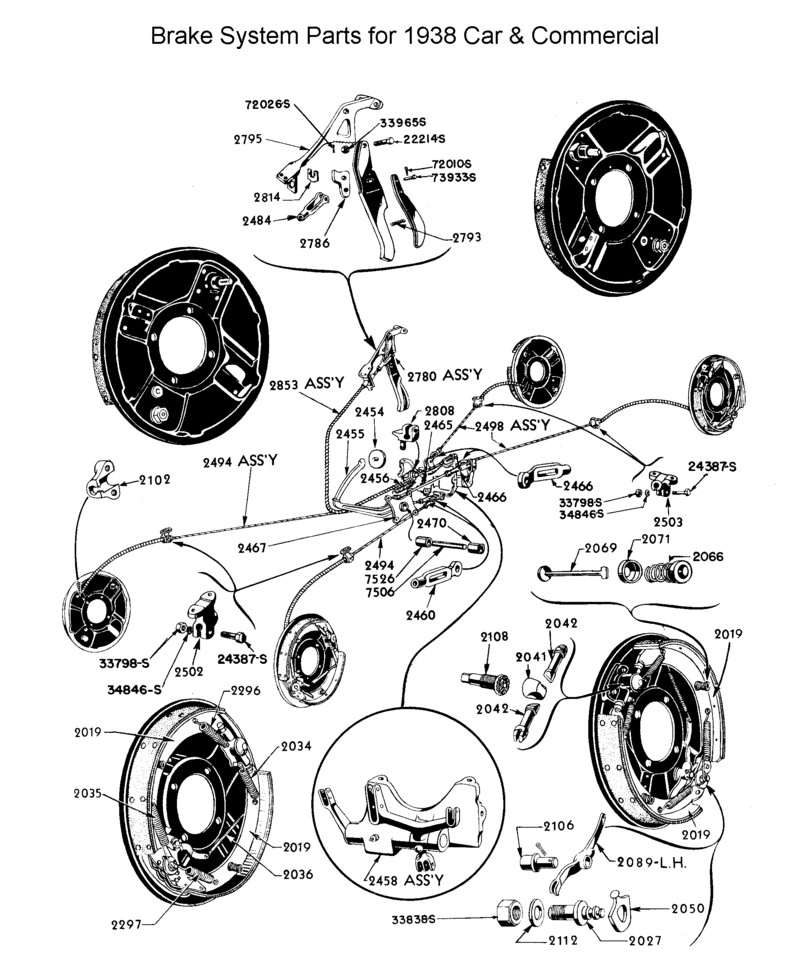

• Passenger cars 1938

• Passenger cars 1939-42 system

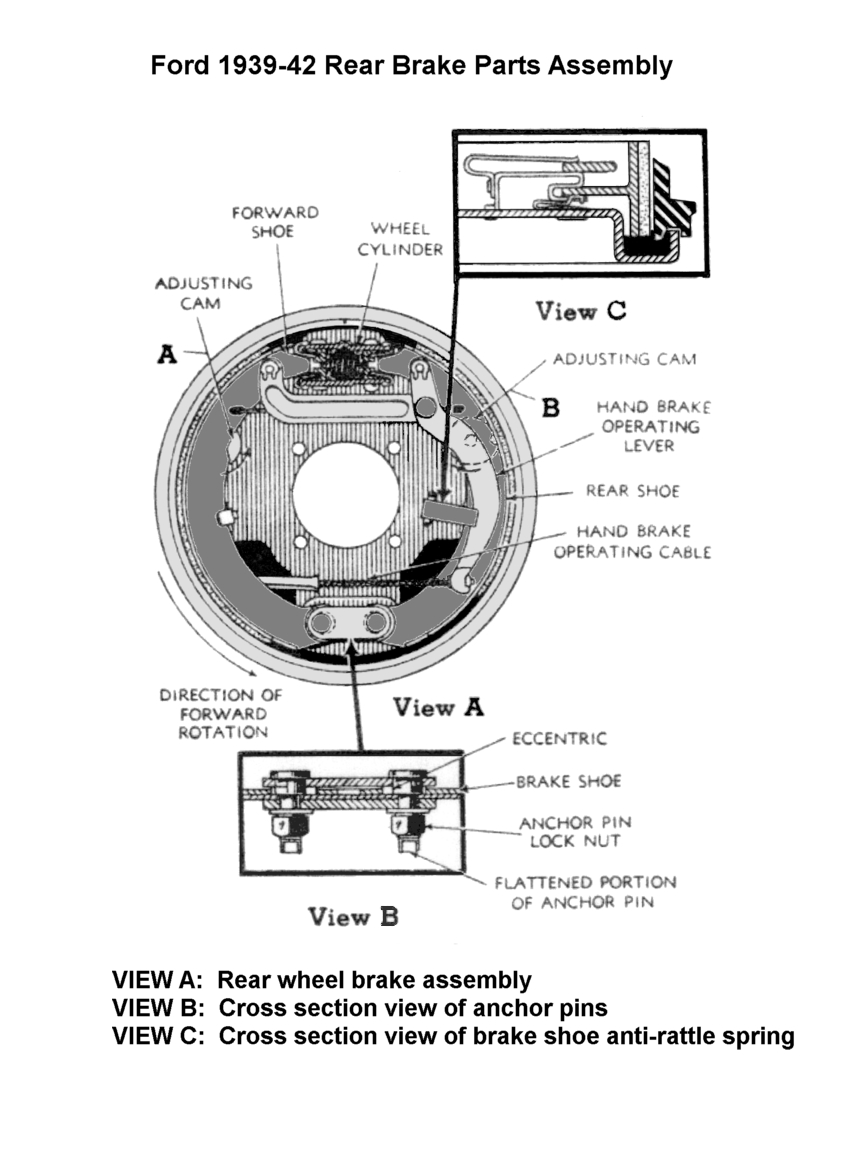

• Passenger cars 1939-42 rear assy

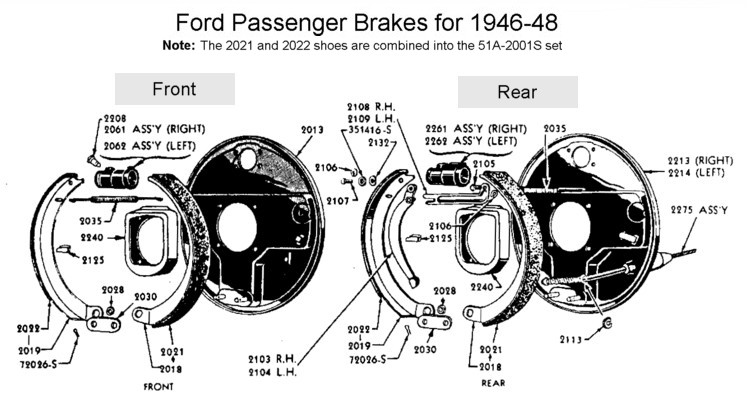

• Passenger cars 1946-48 (shoes)

• Passenger cars 1946-48 system

• Passenger cars 1942-48 (drums)

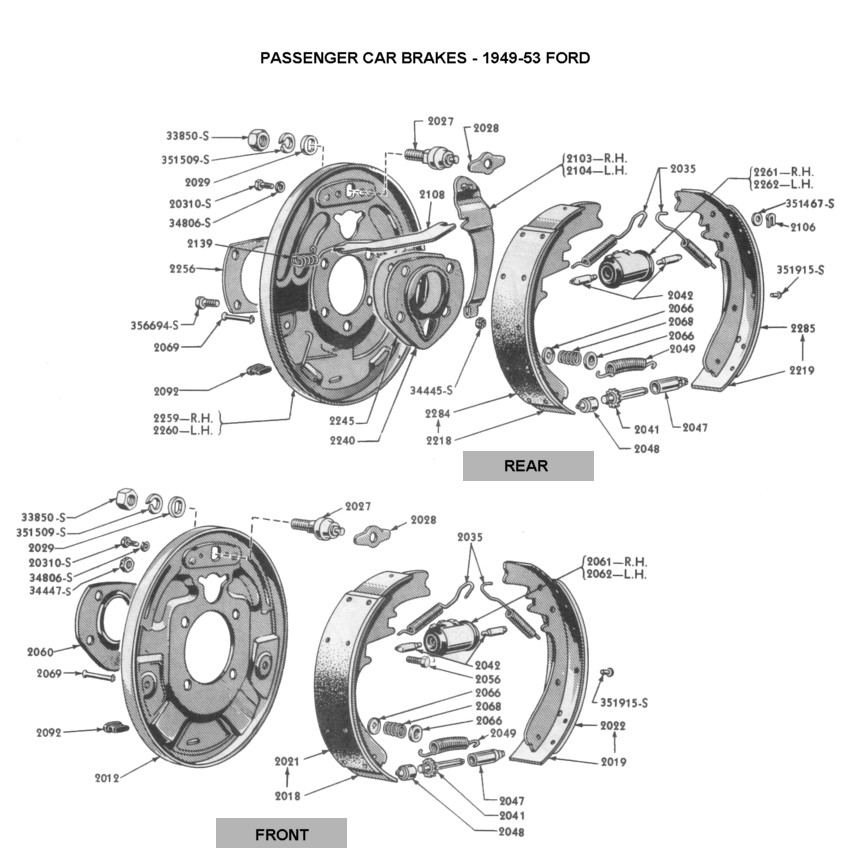

• Passenger cars 1949-53

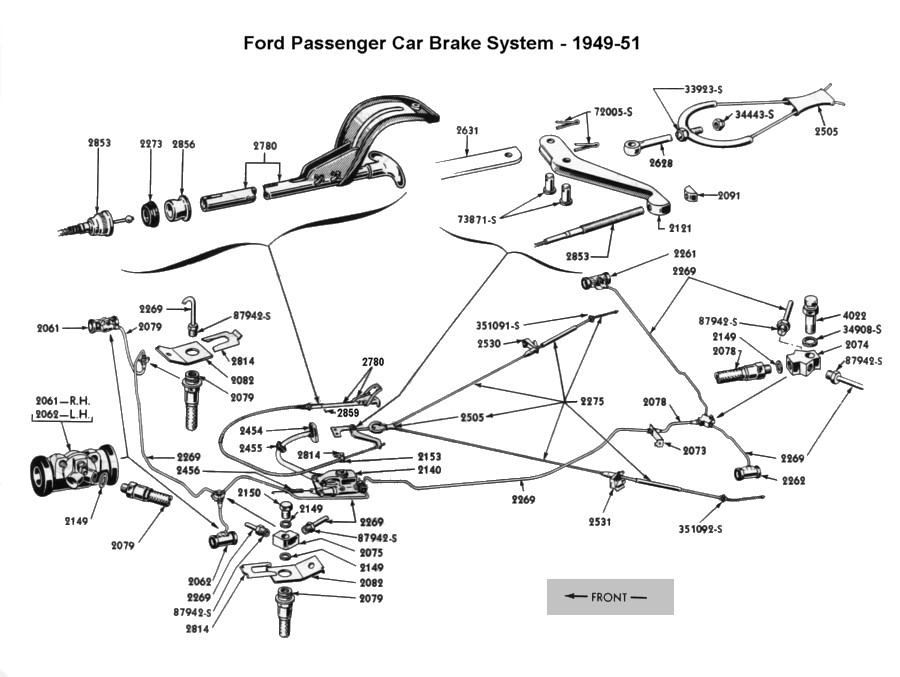

• Passenger cars 1949-51 system

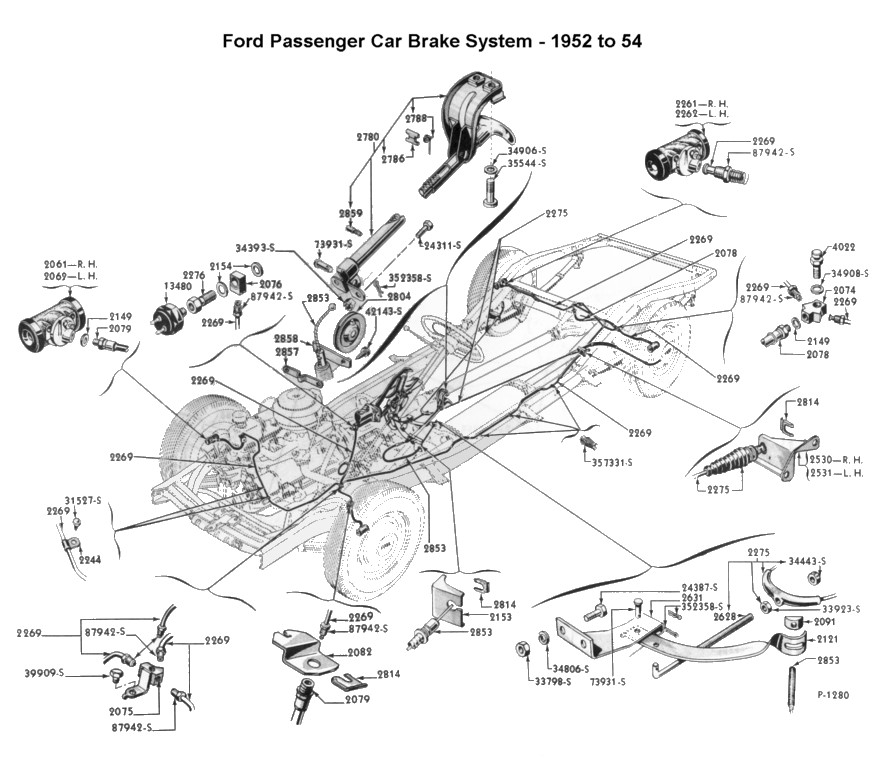

• Passenger cars 1952-54 system

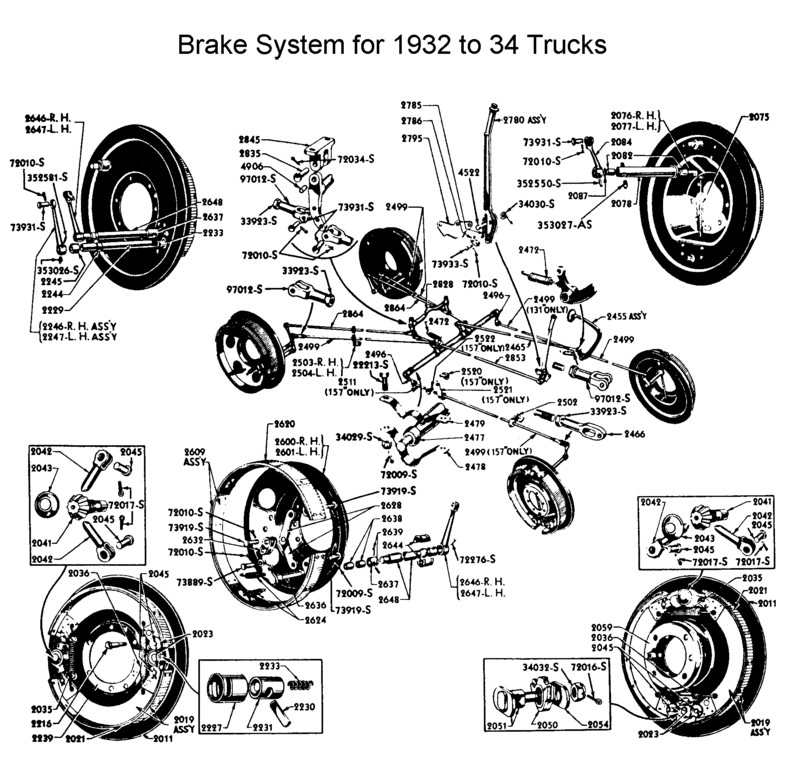

• Trucks 1932 to 34

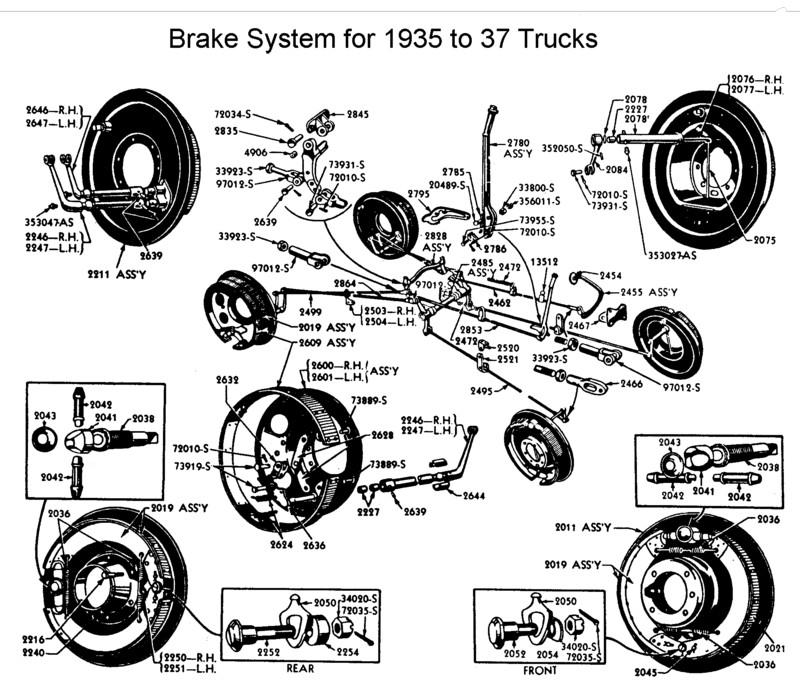

• Trucks 1935 to 37

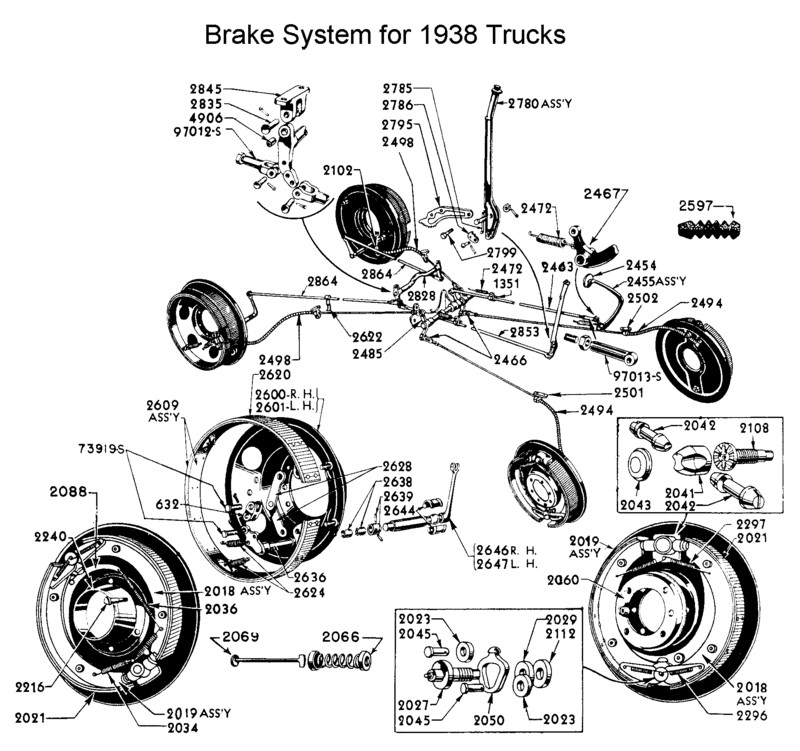

• Trucks 1938

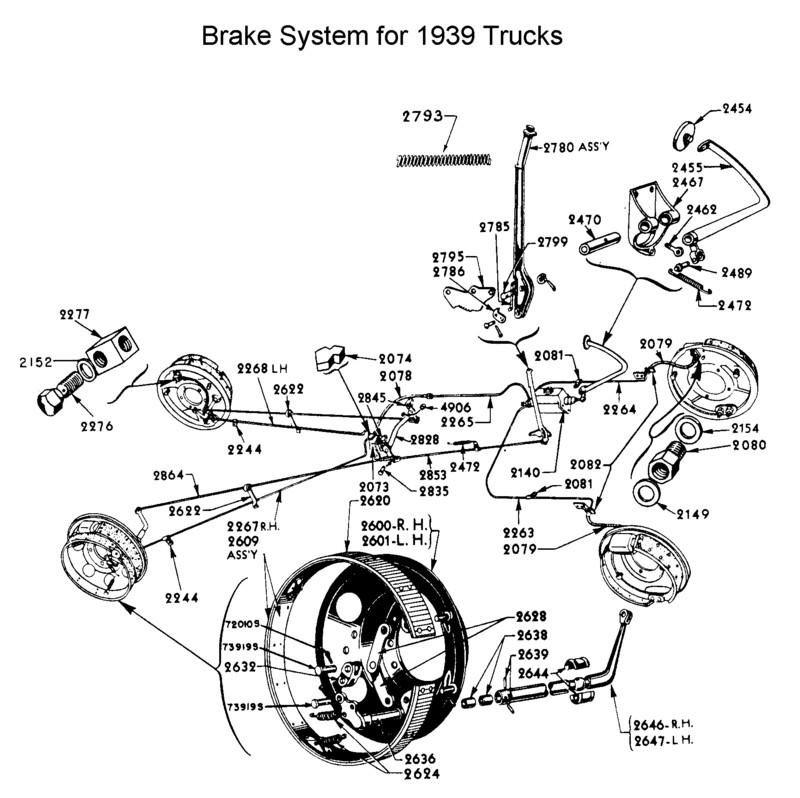

• Trucks 1939

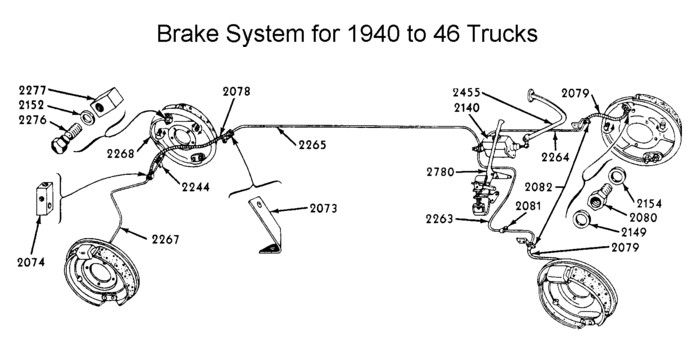

• Trucks 1940 to 46

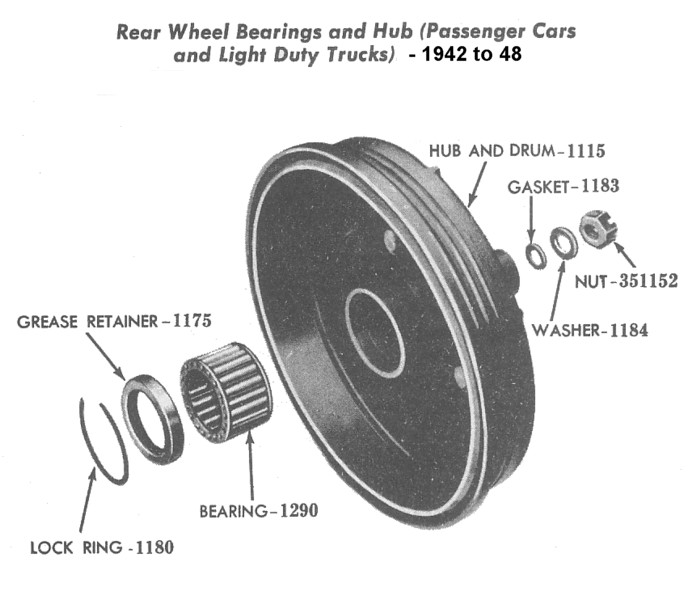

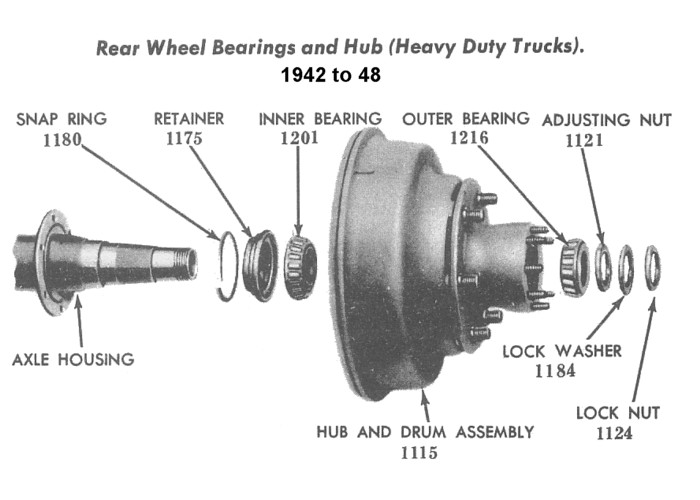

• Trucks 1942 to 48 (rear drums)

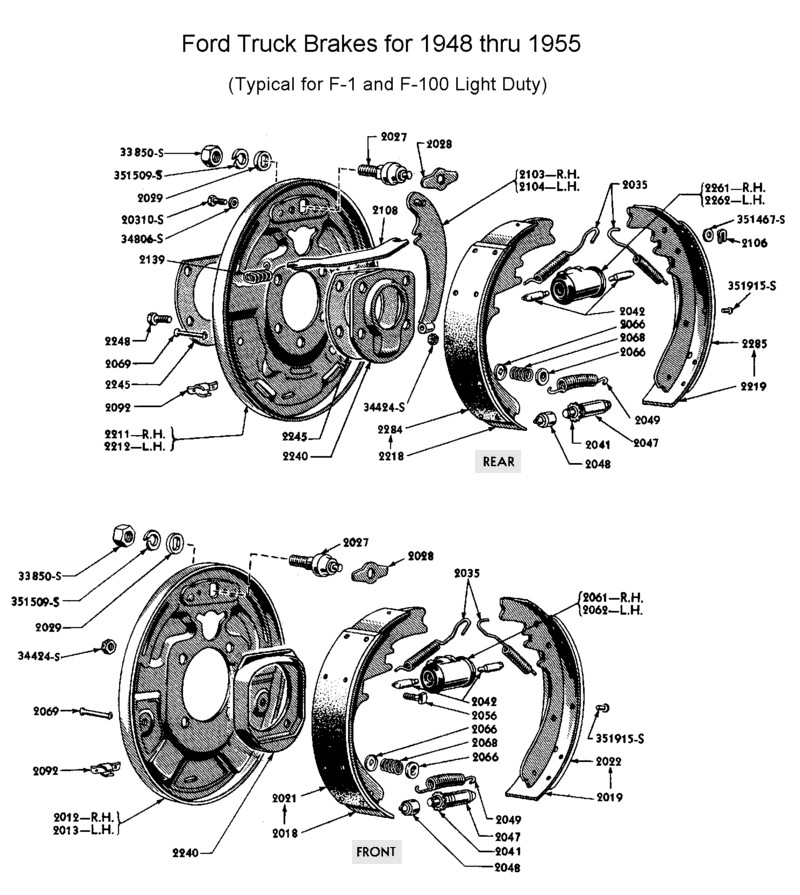

• Trucks 1948 to 55 light duty

Brake Cylinders

• Master cylinder 1939 to 48

• Master cylinder 1939 to 40 cutaway

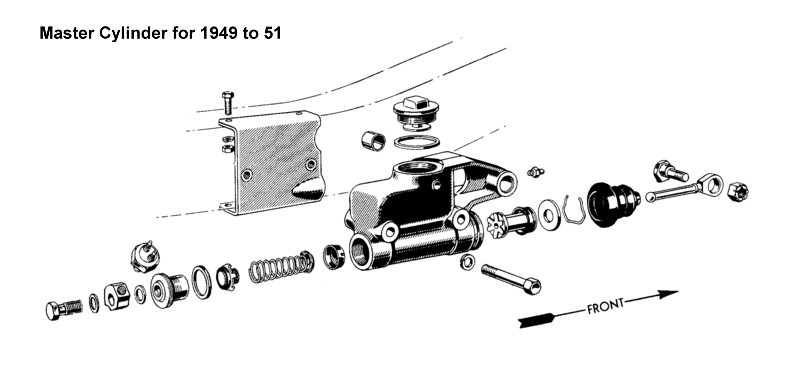

• Master cylinder 1949 to 51

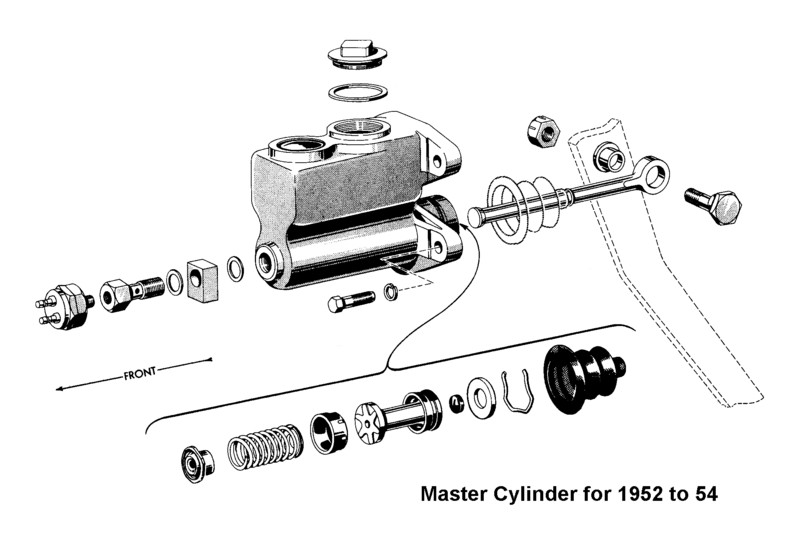

• Master Cylinder 1952 to 54

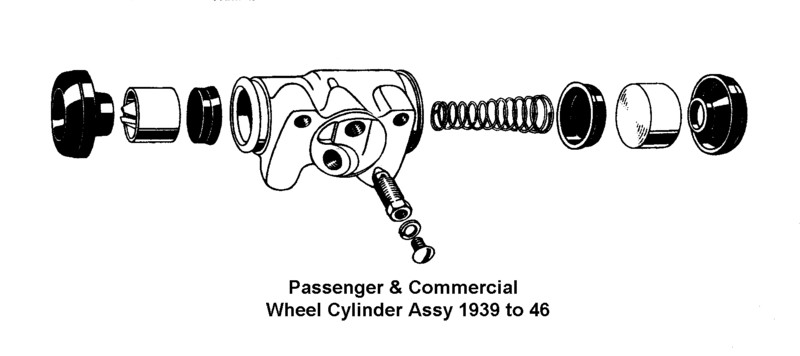

• Wheel cylinder 1939 to 46

Brake Pedal Assembly

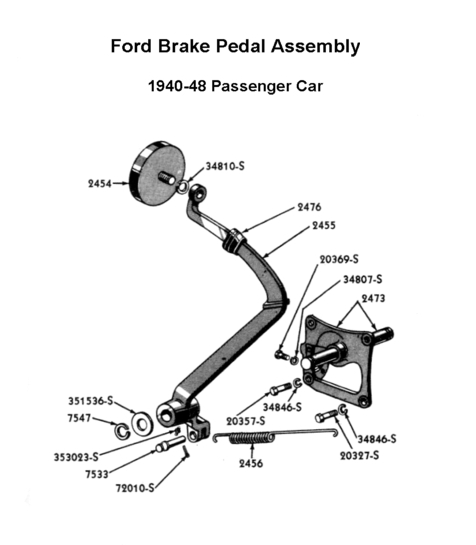

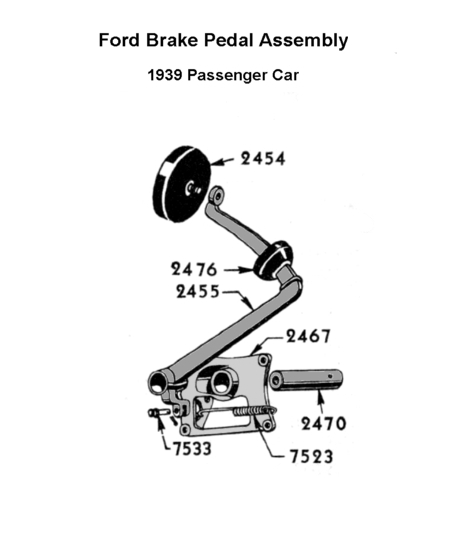

• Pedal Assy for 1939 passenger cars

• Pedal Assy for 1940-48 passngr cars
