FLATHEAD REAR END AND TORQUE TUBE PARTS

Use these links for more information:

Rear End Parts Drawings

Page 1      Page 2
Ford Part
Number
Description Image Application Notes Price for
New Part


Rear Wheel Seals & Parts


 B-1175 Grease Seal - Rear Wheel PIC 28-38 Car & 28-38 Pickup $  3.50
BB-1175-C Grease Seal - Rear Wheel PIC 1934-52 truck (1 ton & larger) 14.50

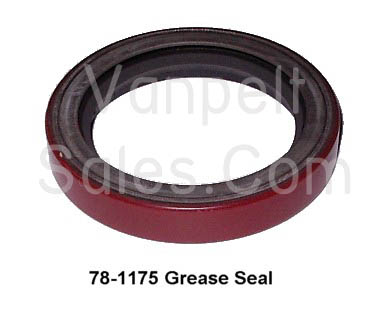

78-1175 Grease Seal - Rear Wheel PIC 38-48 Car & 38-47 Pickup  3.50
8A-1177 Grease Seal - Rear Wheel PIC 49-56 Car 3.95
0M-1177 Grease Seal - Rear Wheel PIC 48-56 F1 & F100 Pickup 3.95

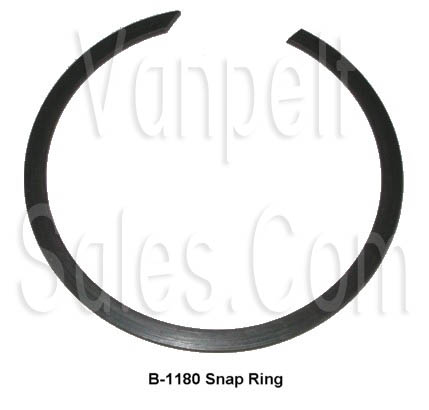

B-1180 Snap Ring - Rear Seal (3-11/32" od) PIC 28-38 Car & Pickup 2.75

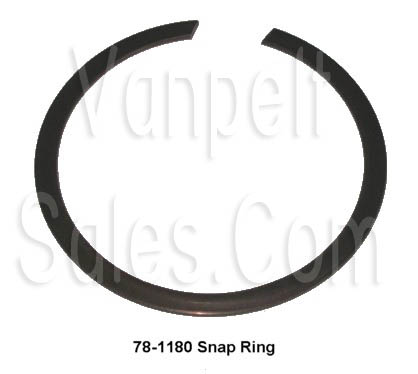

78-1180 Snap Ring - Rear Seal (3" od) PIC 38-48 Car & Pickup 2.75
B-1183 Fiber Washer - Rear Hub PIC 28-38 Car & Pickup 1.50
B-1225 Rear Wheel Bearing - 3.19" OD PIC 32-36 Car & 32-41 Pickup 33.00
68-1225 Rear Wheel Bearing - 2.84" OD PIC 36-48 Car & 36-47 Pickup 34.50
8A-1225 Rear Wheel Bearing - 2.81" OD PIC 49-56 Car & 52-54 Merc 24.50
8M-1225 Rear Wheel Bearing - 3.16" OD PIC 49-59 Wagon & 48-67 Pickup 24.50


Repair Sleeve - Rear Housing Bearing

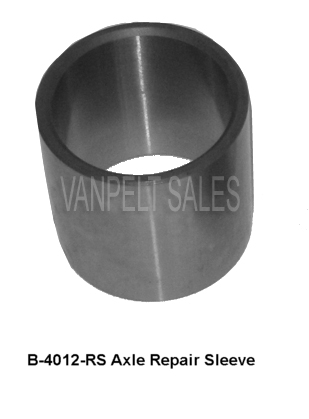

B-4012RS Hardened Sleeve for axle housing               Each: PIC

1928-48 Car & 28-47 Pickup

$ 29.50
Note: Requires machining of existing housing to fit the sleeve. One sleeve needed for each axle housing. Instructions included.


Gaskets - Rear Housing & Torque Tube


B-4030 Drain-Fill Plug - Rear Housing PIC 32-48 Car & 32-47 Pickup $  1.25
 B-4035KX Gasket & Shim Set  * PIC 1932 Early Model B and V8 24.00
18-4035K Gasket & Shim Set PIC 32-48 Car & 32-41 Pickup 22.00

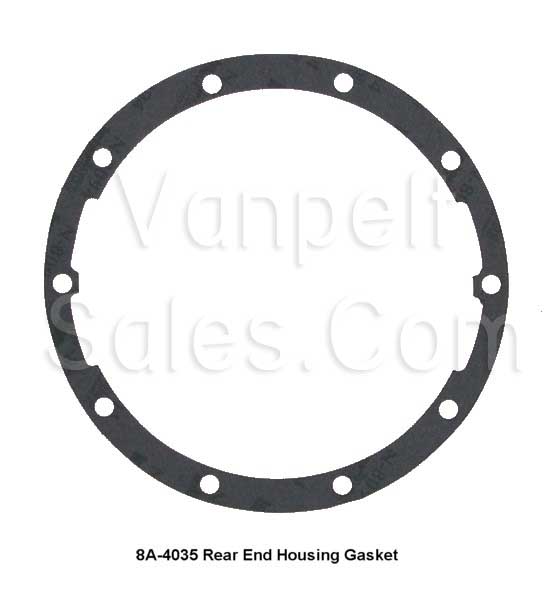

8A-4035 Gasket - Rear Housing PIC 49-56 Ford car & 52-55 Merc 5.95
8M-4035 Gasket - Rear Housing PIC 48-50 F1 pickup 6.95

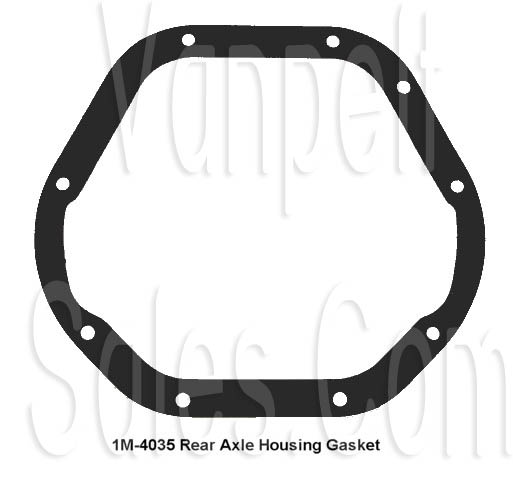

1M-4035 Gasket - Rear Housing PIC 51-56 Ford F1 & Others * 6.95
18-4507 Gasket - Torque tube to rear end housing      (made to interchange with B-4507 too) PIC 32-48 Car & 32-41 Pickup 3.50

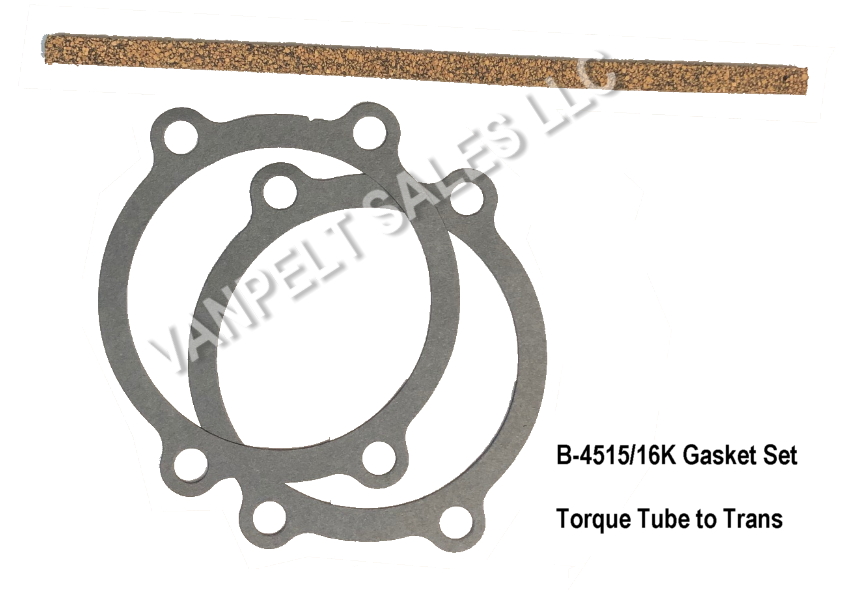

B-4515/16K Gasket Set (3 pc) - Torque tube to Trans PIC 28-48 Car & 28-41 Pickup 5.95
A8AZ-1001-A Gasket - Axle Housing - Outer PIC 49-59 Ford car 2.00
A8AZ-1001-B Gasket - Axle Housing - Outer PIC 49-59 Ford SW, SD, Police 2.00
C1AZ-1001-A Gasket - Axle Housing - Inner PIC 49-59 Ford car 2.00
* Early Kit includes all gaskets for 1928-31 Model A plus the 1932 Model B and early 1932 V8 housings.

* Also fits 1951-56 wagon and 1950-51 Merc and 1956 Merc and 1955-56 T-Bird



Ring and Pinion Gear Sets


B-4209-A Ring & Pinion Set - 3.78:1 ratio PIC 1932 early style car & pickup $ 395.00
B-4209-HS Ring & Pinion Set - 3.54:1 ratio PIC 1932 early style car & pickup 395.00
40-4209-F Ring & Pinion Set - 3.25:1 ratio - Ten spline pinion PIC 1932 late to 1934 car & pickup 495.00
40-4209-HS Ring & Pinion Set - 3.54:1 ratio - Ten spline pinion PIC 1932 late to 1934 car & pickup 495.00
68-4209-F Ring & Pinion Set - 3.25:1 ratio - Six spline pinion PIC 1935-48 car & 35-47 pickup 349.00
68-4209-HS Ring & Pinion Set - 3.55:1 ratio - Six spline pinion PIC 1935-48 car & 35-47 pickup 349.00
8C-4209-HS Ring & Pinion Set - 3.55:1 ratio PIC 1948-50 F1 pickup 349.00



Other Rear End & Torque Tube Parts


  B-4221 Bearing Cone Assy (carrier) - 2 req'd PIC 28-32 Four Car & Pickup $  44.00
  B-4222 Bearing Cup (carrier) - 2 req'd PIC 28-32 Four Car & Pickup 25.00
18-4221/22-S Carrier Bearing Set (one 18-4221 cone + one 18-4222 cup)   - Two sets required per vehicle PIC 32-36 Car & 32-36 Pickup 49.00
68-4221/22S Carrier Bearing Set (one 68-4221 cone + one 68-4222 cup)   - Two sets required per vehicle PIC 37-48 Car & 37-37 Pickup 45.00
  B-4243 Key - Rear Axle (2.86" L) - 2 required PIC 28-48 Car & 28-47 Pickup 1.50
  B-4245 Grease Seal - Rear Axle Inner  (2 required) PIC 28-48 Car & 28-47 Pickup 3.00
  B-4245 Grease Seal - Torque Tube Front (1 required) PIC 28-48 Car & 28-41 Pickup 3.00
  B-4513 Cap - Inner (4 bolt holes)  USED PART PIC 1932-48 Car & 32-41 Pickup  20.00
48-4520 Cap - Outer (2 piece type) USED PART PIC 1932-48 Car & 32-41 Pickup 45.00
20391-SK Kit: bolts, nuts, lockwashers   (for the 48-4520 outer cap assy) PIC 1932-48 Car & 32-47 Pickup 3.00
358011-S Lubricator Fitting - 1/8" - Angled   (for the B-4520 outer cap assy) PIC 1932-48 Car & 32-42 Pickup 2.00
48-4607 Pin - Driveshaft (10 spline type) - 2.04" long PIC 1932-37 Car & Pickup 2.00
68-4607 Pin - Driveshaft ( 6 spline type) - 1.70" long PIC 1937-48 Car & 37-41 Pickup 2.00
18-4616/21-S Pinion Bearing Set (one 18-4616 double race + two 18-4621 bearing cones) PIC 1932-34 Car & 32-34 Pickup 89.00
48-4616/21-S Pinion Bearing Set (one 48-4616 double race + two 48-4621 bearing cones) PIC 1935-48 Car & 32-47 Pickup 68.50
8A-4616 Pinion Bearing Race PIC 1949-54 Car + 49-51 Merc 12.00
8A-4621 Pinion Bearing PIC 1949-54 Car + 49-51 Merc 29.50
18-4625-U Pinion Pilot Bearing - USA made PIC 1932-48 Car & 32-47 Pickup 44.00
18-4625-I Pinion Pilot Bearing - Import PIC 1932-48 Car & 32-47 Pickup 21.00
8A-4628 Pinion Bearing Race PIC 1949-54 Car (check application)  14.50
8A-4630 Pinion Bearing PIC 1949-54 Car (check application)  27.00
18-4634 Nut - Pinion Bearing - 2 req'd            EACH: PIC 28-48 Car & 28-47 Pickup 3.75
 B-4636 Lockwasher - Pinion Bearing Nut   (1 req'd)  OD:2.509"    ID: 1.574" PIC 28-32 Car & 28-32 Pickup 2.50
01Y-4636 Lockwasher - Pinion Bearing Nut   (1 req'd)  OD:2.320"    ID: 1.325" PIC 32-48 Car & 32-47 Trucks 4.00
01Y-4637 Thrust Washer - Pinion Pilot Bearing PIC 1932-48 Car & 32-47 Pickup 4.00
B-4645 Roller Bearing - Driveshaft front PIC 1932-48 Car & 32-41 Pickup 13.00
B-4655 Bushing/Sleeve - Driveshaft front PIC 1932-48 Car & 32-41 Pickup 8.50
01Y-4676 Oil Seal - Rear End Pinion   (2.007" od) PIC 42-47 Comm/Pickup 13.00
8A-4676 Oil Seal - Rear End Pinion   (3.0" od) PIC 49-56 Ford car & 52-55 Merc 7.00
8M-4676 Oil Seal - Rear End Pinion   (3.0172" od) PIC 48-56 F1 & F100 + Others * 9.50
48-4684 Coupler - 6 spline pinion to 10 spline driveshaft PIC 35-48 Car & 35-41 Pickup 89.00
68-4684-B Coupler - 6 spline pinion to 6 spline driveshaft PIC 37-48 Car & 37-41 Pickup 63.00
  * Also fits 1949-56 Ford wagons + 1949-51 Mercury + 1955-56 T-Bird


Miscellaneous Parts


  34034-S Axle Nut   (5/8"-18) - 2 req'd            EACH: PIC 28-48 Car & 28-47 Pickup $  2.00
 356074-S Axle Nut   (5/8"-18) - replaced by 34034-S PIC   Use 34034-S
 351505 Axle Washer  (5/8") - 2 req'd            EACH: PIC 28-48 Car & 28-47 Pickup 1.50
B-5098-RK Bolt & Nut Kit -Torque tube to trans mount PIC 1932-48 Car & 32-41 Pickup .50
 20391-SK Bolt & Nut Kit -Holds the B-4520 outer cap assy PIC 1932-48 Car & 32-41 Pickup 3.00


Universal Joints


B-7090 Universal Joint - Front  (closed driveshaft) NEW PART PIC 1928-48 Car & 28-41 Pickup

  Check Availability

B-7090-U Universal Joint - Front  (closed driveshaft)  USED PART (note: repair kits available) PIC 1928-48 Car & 28-41 Pickup $ 55.00
B5AZ-4635-B Universal Joint - Front PIC 1949-60 Car * 18.95
B5AZ-4635-A Universal Joint - Rear PIC 1949-60 Car * 45.00
B5TZ-4635-A Universal Joint - Front & Rear PIC 1940-70 Truck 1 & 2 Ton * 16.00
B6TZ-4635-A Universal Joint - Front & Rear PIC 1953-70 Truck & 1 Ton * 16.00
B7AZ-4635-A Universal Joint - Front & Rear PIC 1956-60 Car * 14.95
B7AZ-4635-A Universal Joint - Front & Rear PIC 1942-71 Pickup - Ton * 14.95
* Note: Check engine/transmission combination to verify exact u-joint requirement before ordering. Truck u-joints are for 4x2 drive trains. Call for information on 4x4 drive train u-joints.


Speedometer Gear Parts - Open Drive


B5A-17322-A Speedo Driven Gear (20 tooth)  NEW PART PIC 1949-56 Car 19.00
B5A-17322-B Speedo Driven Gear (21 tooth)  NEW PART PIC 1949-56 Car 19.00
B5A-17322-C Speedo Driven Gear (19 tooth)  NEW PART PIC 1949-56 Car 19.00
B5A-17322-D Speedo Driven Gear (22 tooth)  NEW PART PIC 1949-56 Car 19.00
Note: Gear tooth counts vary depending on the rear end axle ratio and the wheel/tire size. Calculate carefully to get the best accuracy with your speedometer. Driven gears with less teeth make the speedometer read faster. More teeth make it read slower.


Speedometer Cables


99A-17260-C Speedometer Cable Assy (inner & outer cable) with ends PIC 1935-48 Applications $ 16.00
A9A-17260 Speedometer Cable Assy (inner & outer cable) with ends PIC

1949-64 Applications

18.50
 8C-17260-A Speedometer Cable Assy (inner & outer cable) with ends PIC

1948-60 Applications (F series)

19.50
Note: The A9A cable kit fits 1949-56 passenger cars and 1953-64 F series truck applications. Check with us for your specific application.
