Parts Drawings: Window Regulators
(One of eight pages)

Home    Parts Drawings     Web Links     Tune-Up & Service     Serial Numbers     Engine ID     Trans ID     Model Identification     Terms of Sale     Contact Us    Our Online Store    Our Catalog

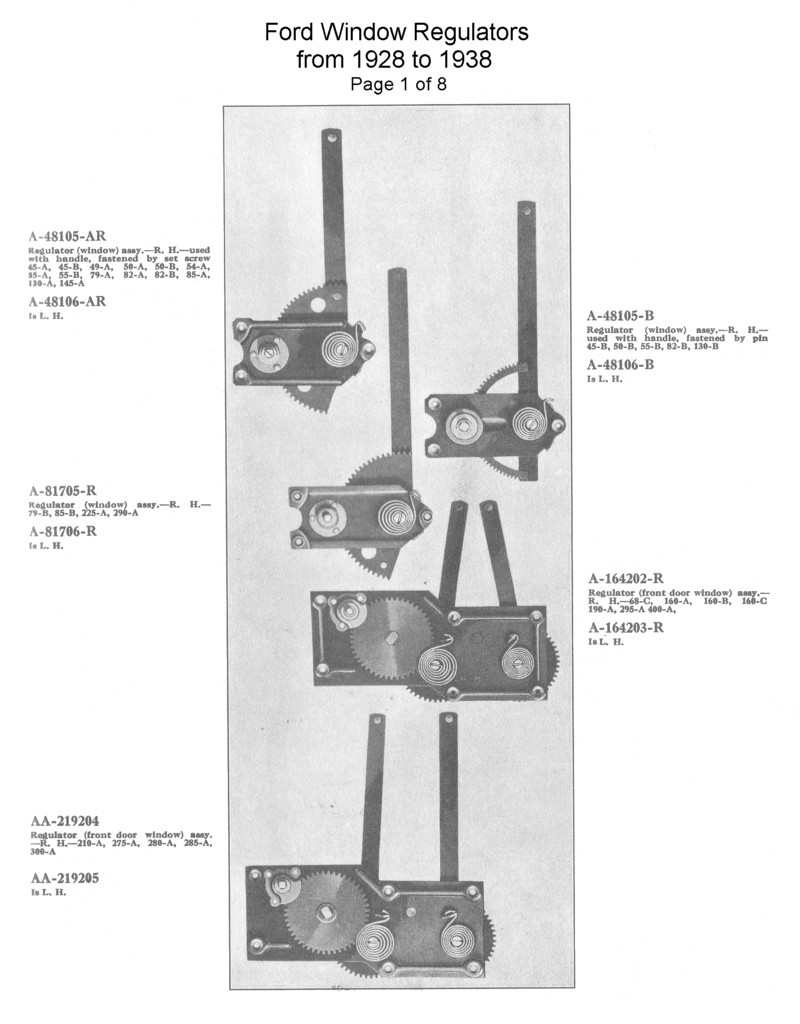

The regulators are listed and referenced by the Ford part number and the Ford body model it was used on. Please refer to the Model Body Number Chart link at the bottom of this page if you are not sure which body number your vehicle is. Do not confuse the Body Model with the vehicle model as they are different.

This collection of window regulator pictures is grouped in eight pages. If you want to link to the model/body type numerical list to reference the pictured model types go to this link. The regulator pictures are basically listed and shown in order of year produced. Each page may cover one or more years.

Page 2 of 8          Page 5 of 8
Page 3 of 8          Page 6 of 8
Page 4 of 8          Page 7 of 8
Page 8 of 8
