Radiator & Grill Assy - Ford

• Radiator & grill assy for 1934 car

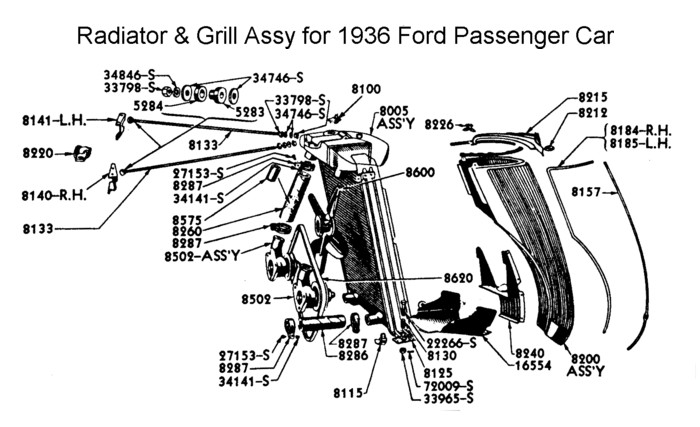

• Radiator & grill assy for 1936 car

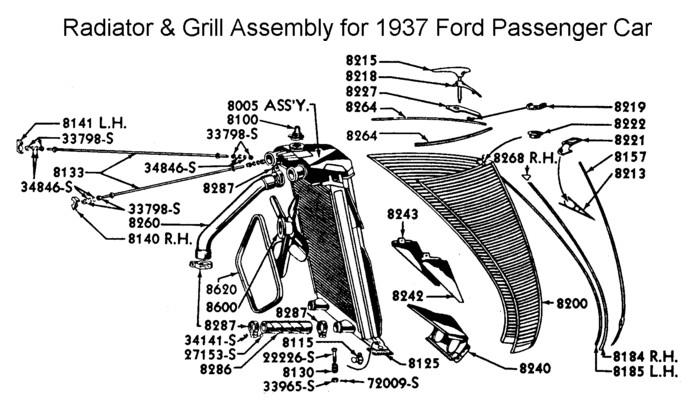

• Radiator & grill assy for 1937 car

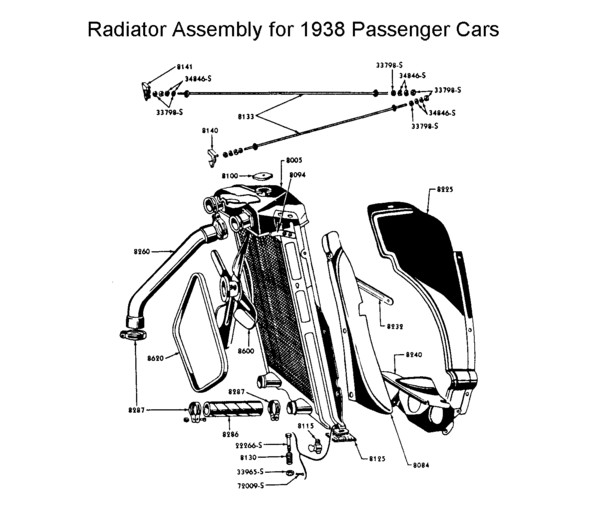

• Radiator for 1938 car

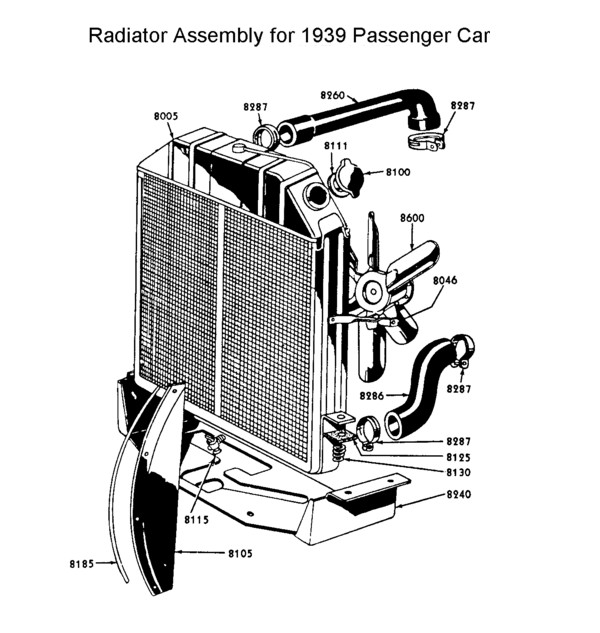

• Radiator for 1939 car

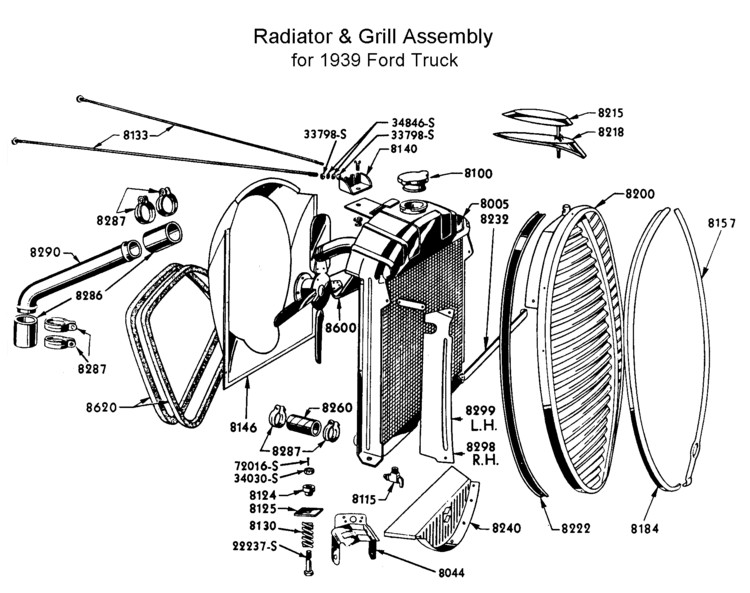

• Radiator & grill assy for 1938-39 truck
• Radiator & grill assy for 1940 truck
• Radiator & grill assy for 1941 truck
• Radiator for 1942 to 48 car
• Radiator & grill assy for 1942 to 47 truck

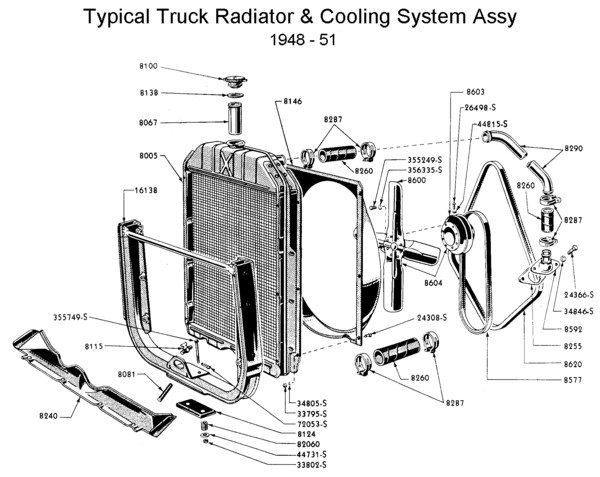

• Radiator assy for 1948-51 trucks
• Radiator assy for 1949 car
• Radiator assy for 1950-51 car

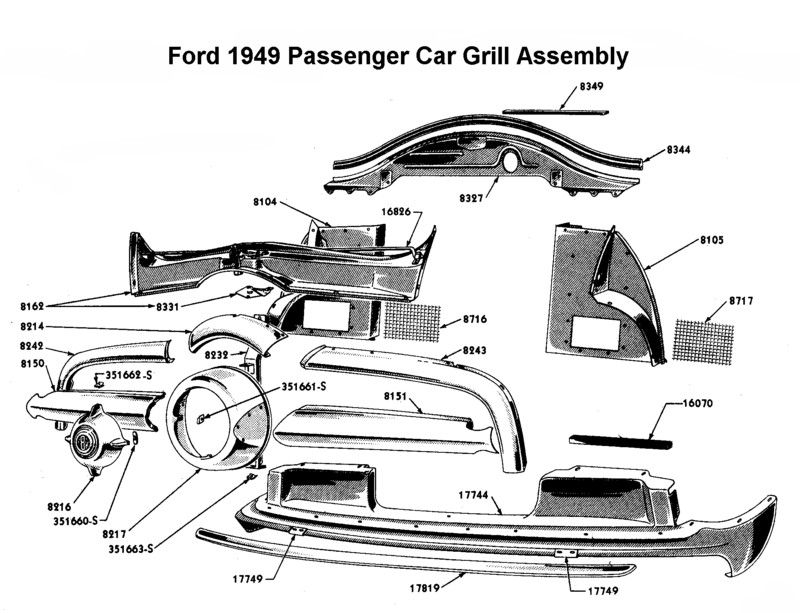

• Grill assembly for 1949 car
• Grill assembly for 1950 car
• Grill assembly for 1951 car
• Grill assembly for 1948-50 trucks
• Grill assembly for 1951 trucks
• Grill assembly for 1952 trucks
• Grill assembly for 1953 trucks

Radiator & Grill Assy - Mercury

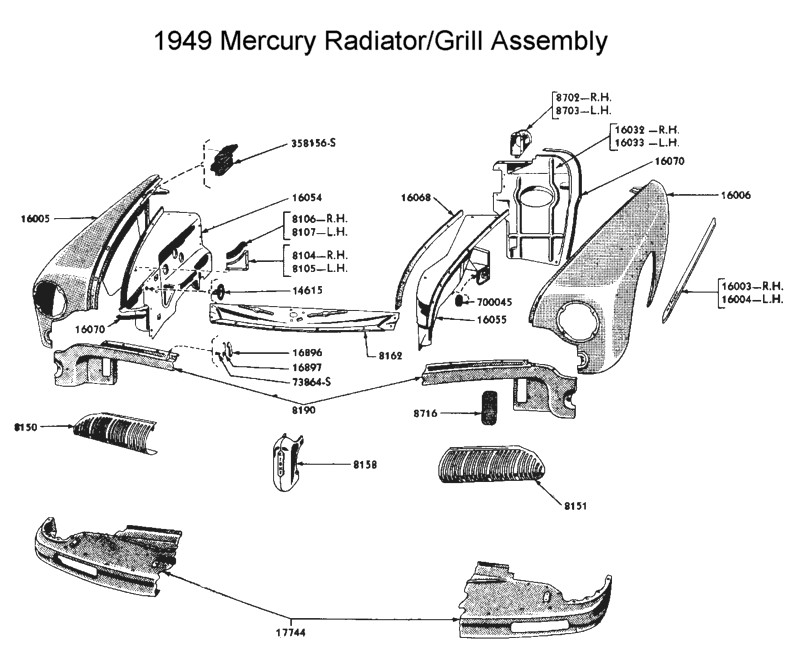

• Radiator grill assy for 1949 Mercury

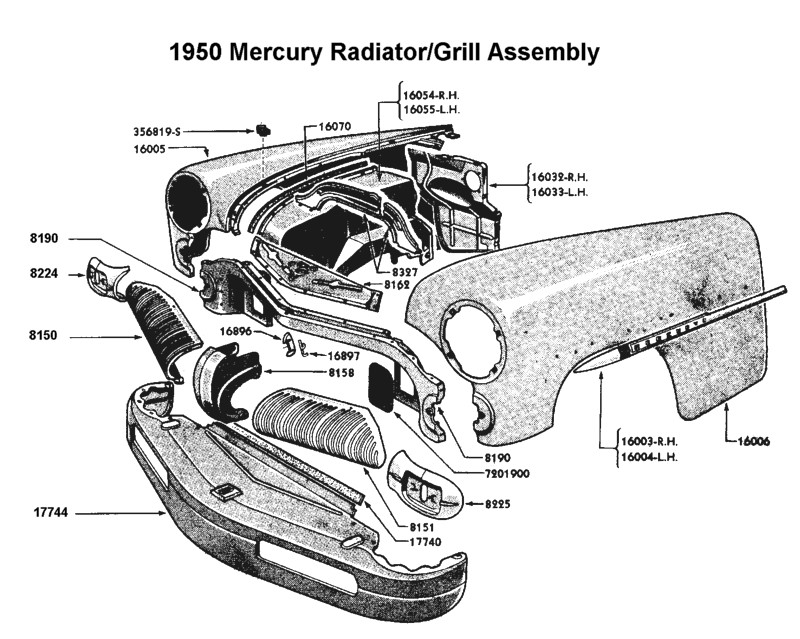

• Radiator grill assy for 1950 Mercury
• Radiator grill assy for 1951 Mercury

Fenders & Support Assemblies

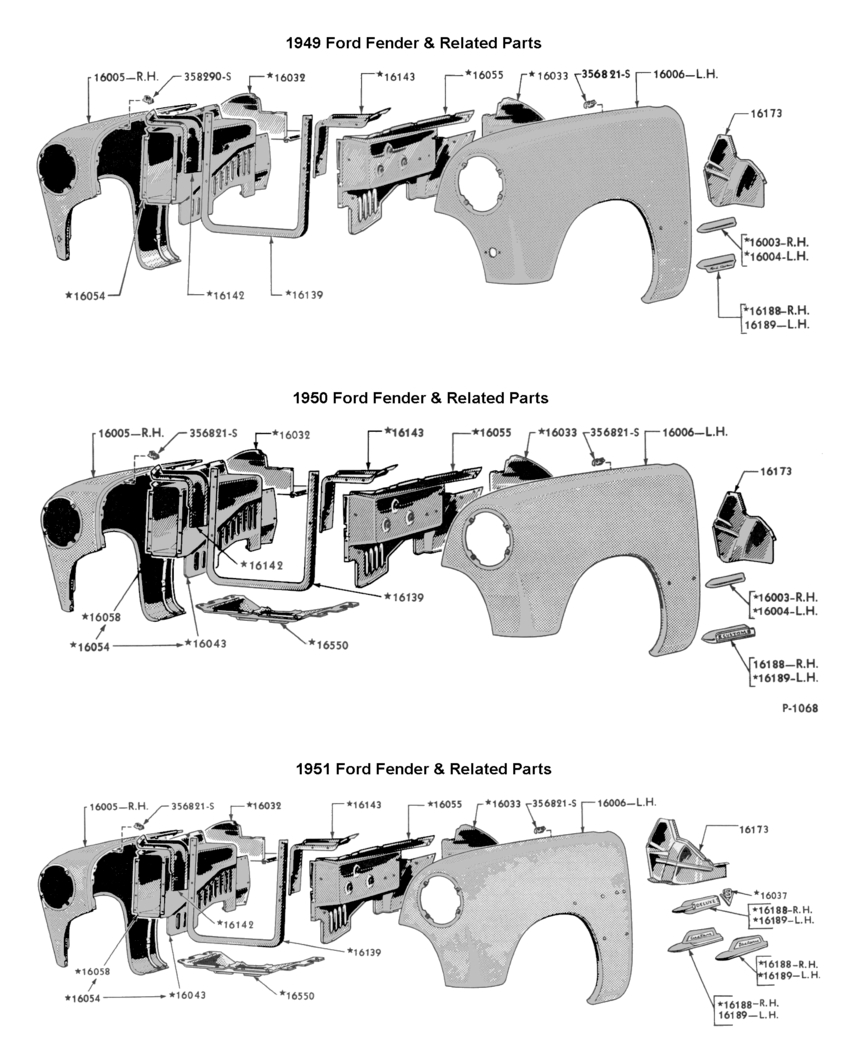

• Fenders - Front for 1949-51 Ford cars

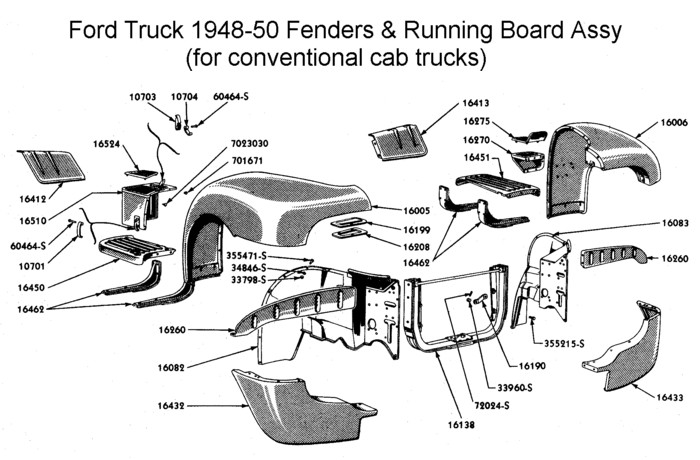

• Fenders & running boards for 1948-50 conventional trucks

• Fenders & running boards for 1948-50 cab-over trucks

• Fenders & running boards for 1951-52 conventional trucks

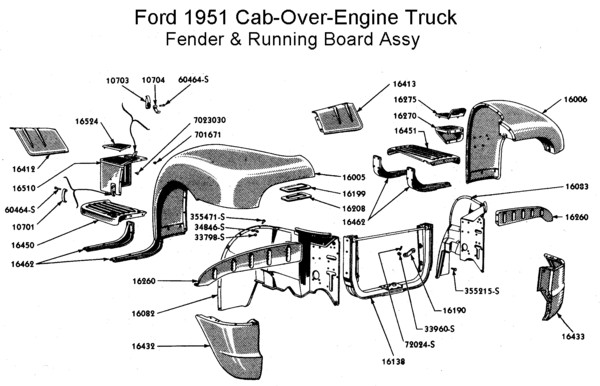

• Fenders & running boards for 1951-52 cab-over trucks

• Fenders & running boards for 1953 conventional trucks

Grill & Hood Assy - Ford

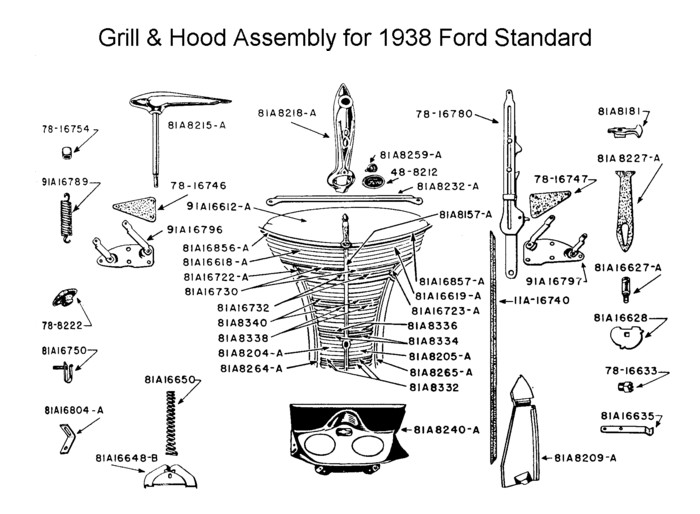

• Grill & hood assy for 1938 Std Ford car

• Grill & hood assy for 1938 Dlx Ford car

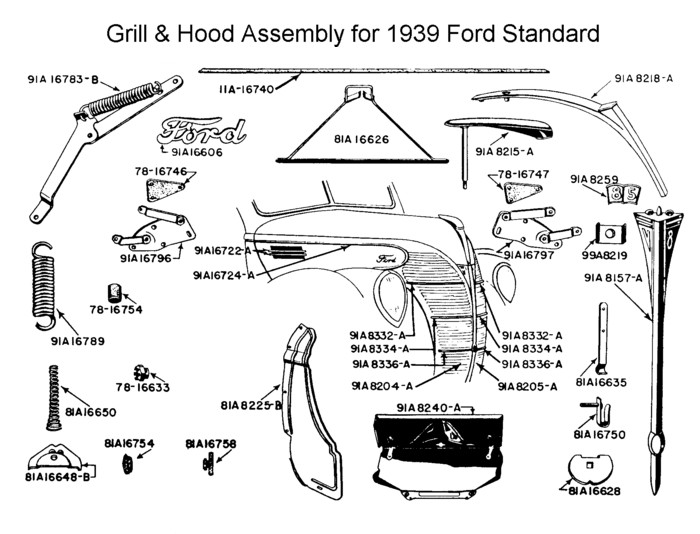

• Grill & hood assy for 1939 Std Ford car

• Grill & hood assy for 1939 Dlx Ford car

• Grill & hood assy for 1940 Std Ford car

• Grill & hood assy for 1940 Dlx Ford car

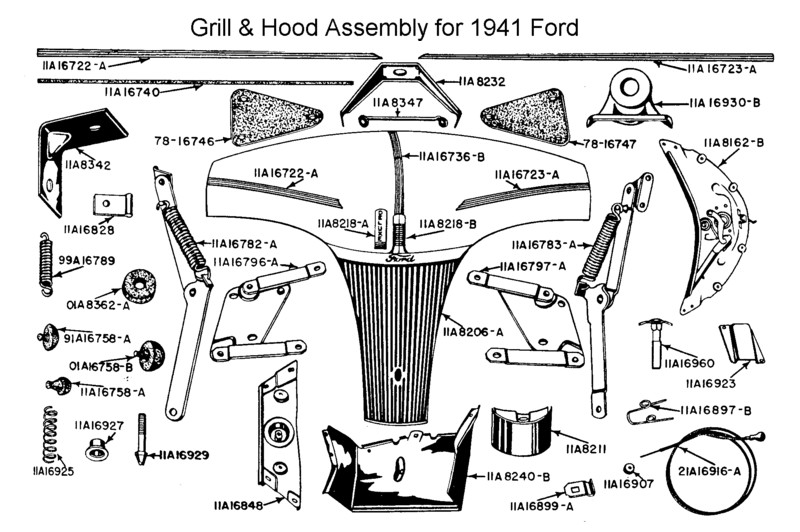

• Grill & hood assy for 1941 Ford car

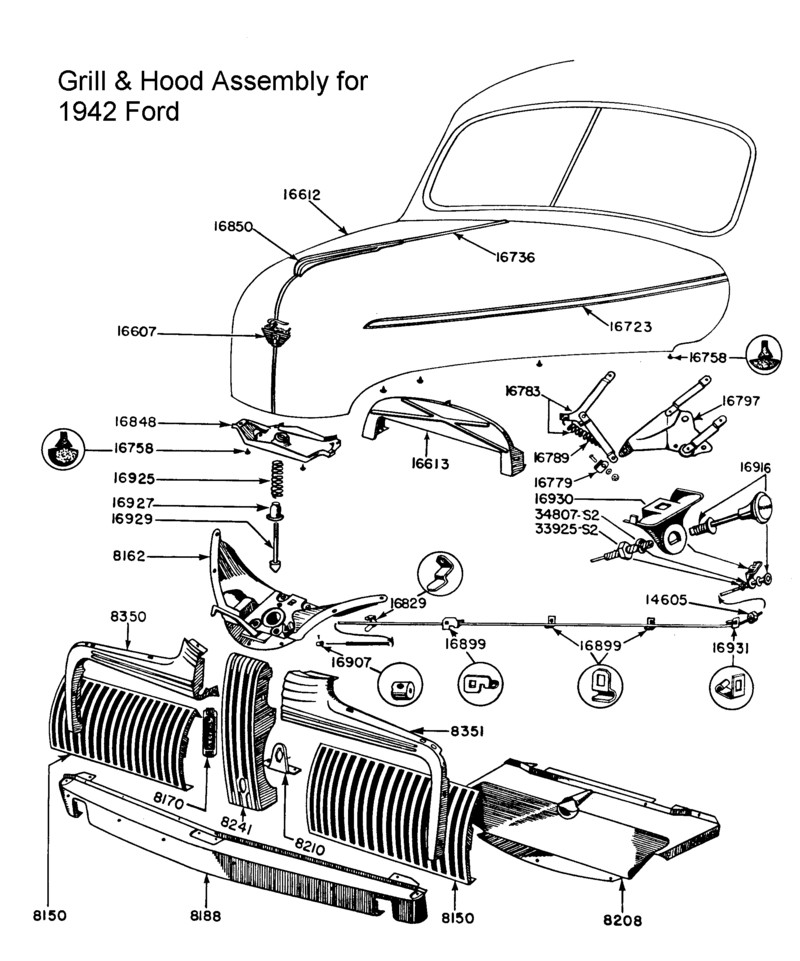

• Grill & hood assy for 1942 Ford car

• Grill & hood assy for 1946 Ford car

• Grill & hood assy for 1947-48 Ford car

• Hood assy for 1948-50 F1 truck

• Hood assy for 1948-50 COE truck

• Hood assy for 1951 F1 truck

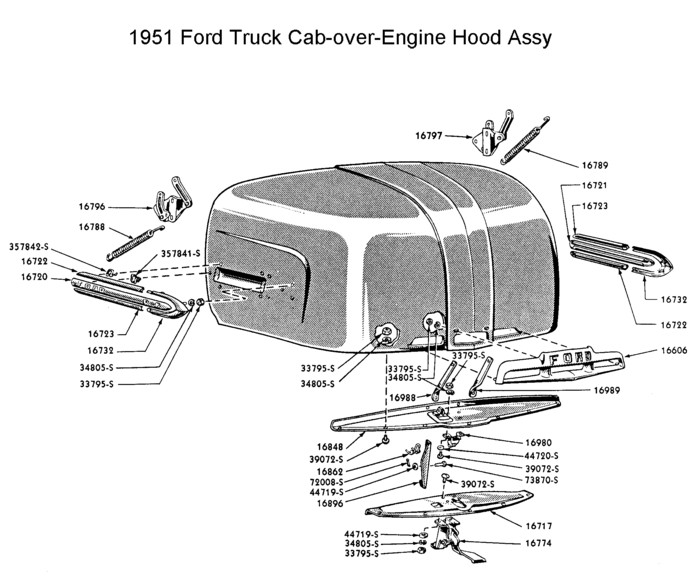

• Hood assy for 1951 COE truck

• Hood assy for 1952 F1 truck

• Hood assy for 1953 F-100 truck

Grill & Hood Assy - Mercury

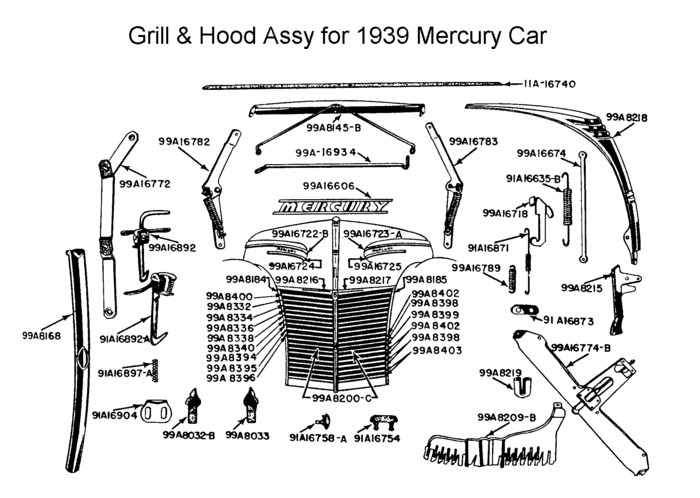

• Grill & hood assy for 1939 Mercury

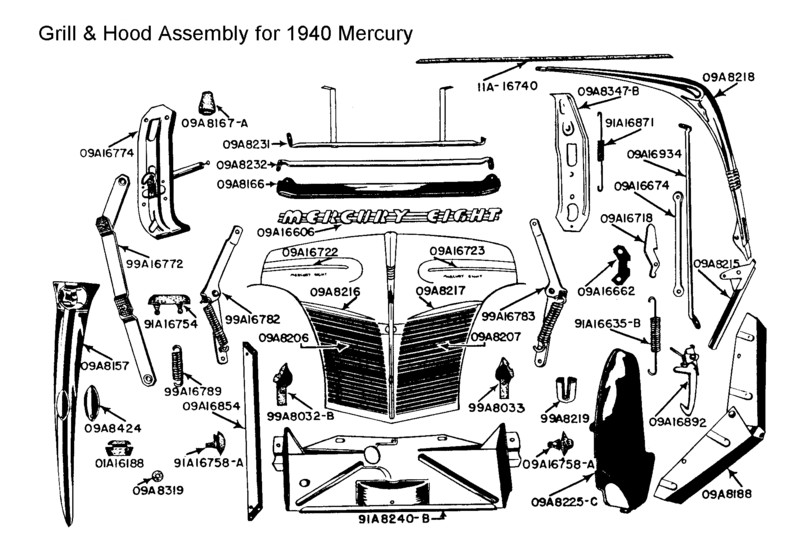

• Grill & hood assy for 1940 Mercury

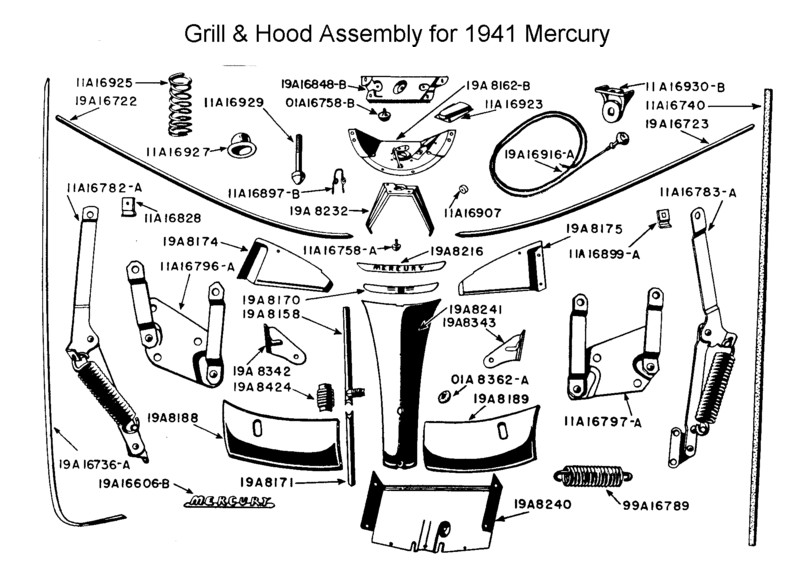

• Grill & hood assy for 1941 Mercury

• Grill & hood assy for 1942 Mercury

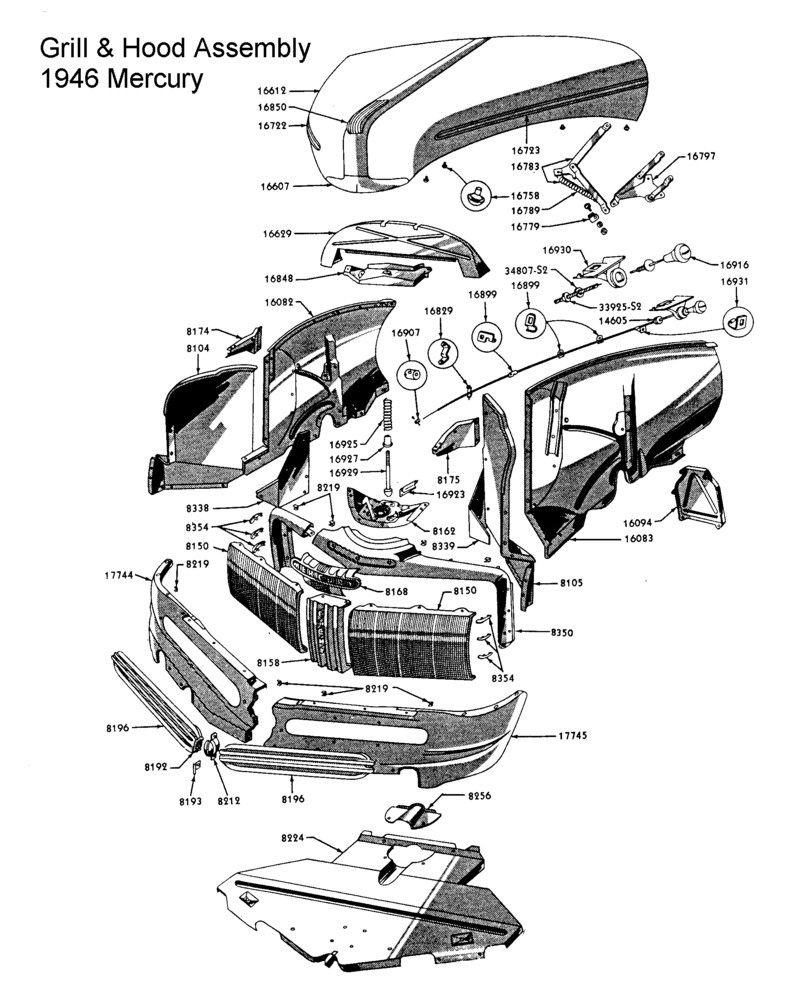

• Grill & hood assy for 1946 Mercury
